Model

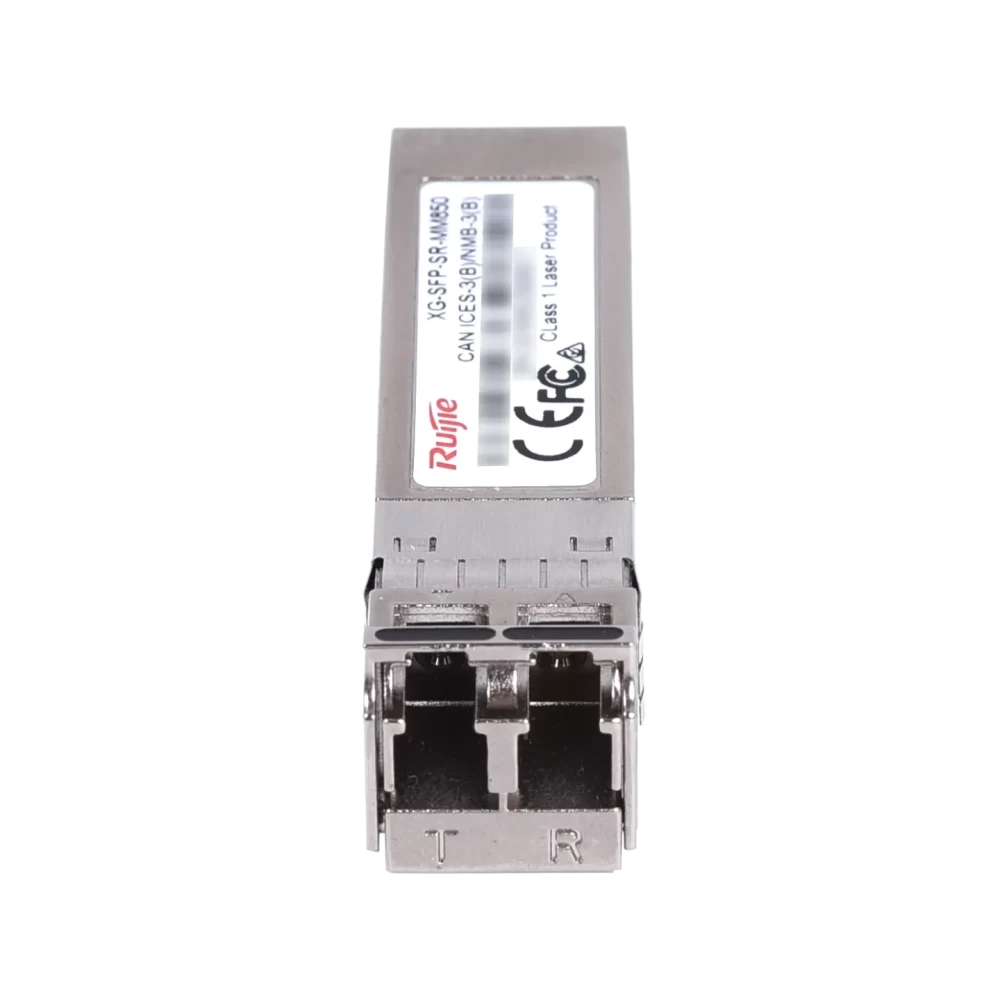

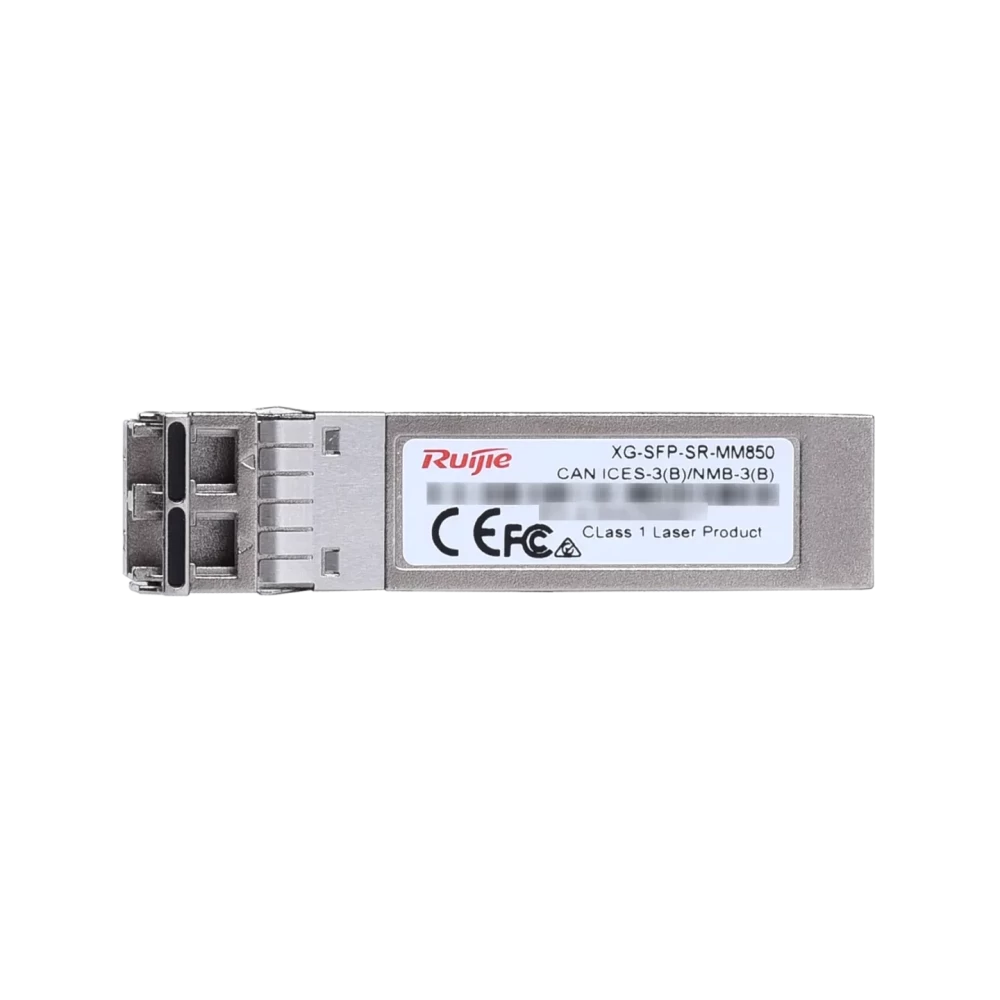

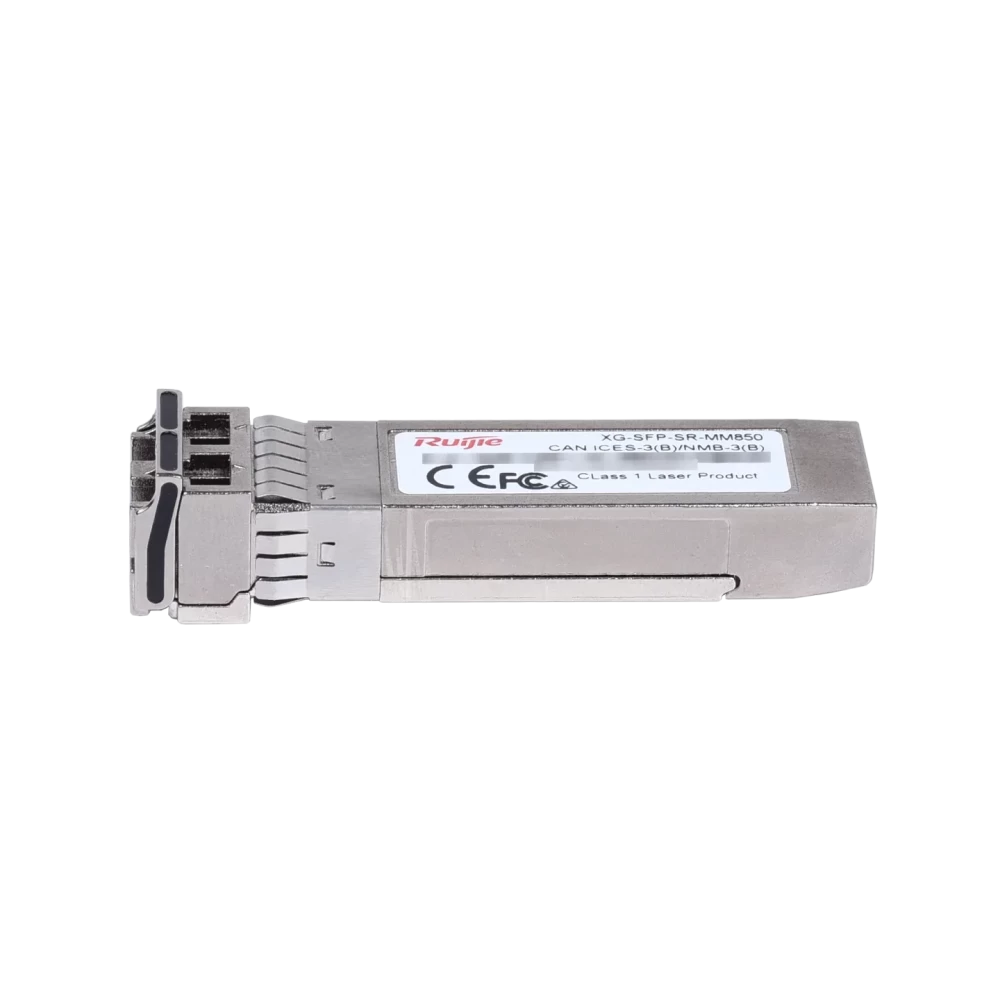

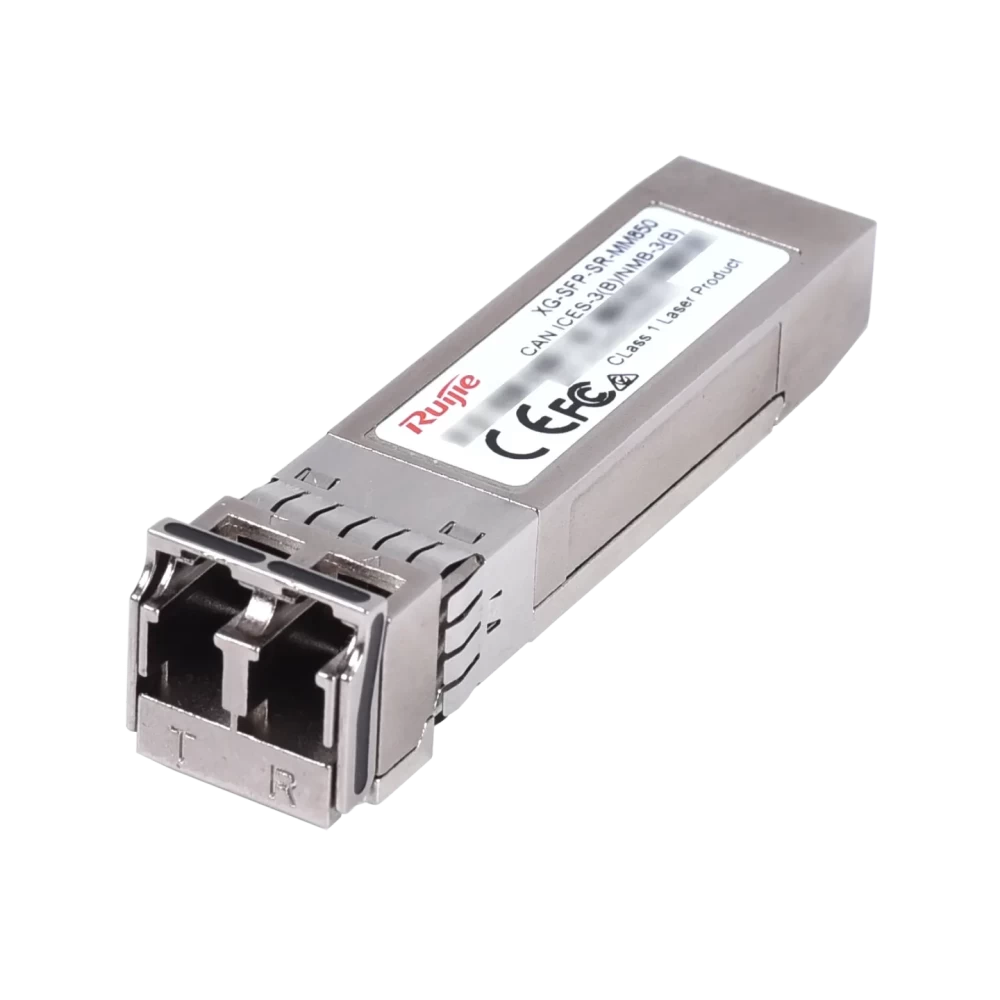

XG-SFP-SR-MM850

XG-SFP-LR-SM1310

XG-SFP-ER-SM1550

XG-SFP-ZR-SM1550

XG-SFP-LR10-SM1270-BIDI-I

XG-SFP-LR10-SM1330-BIDI-I

Data rate

10.3125 Gbps

Form factor

SFP+

Connector type

Duplex LC

Duplex LC

Duplex LC

Duplex LC

BIDI LC

BIDI LC

Cable type

MMF

SMF

SMF

SMF

SMF

SMF

Fiber end face finish type

Ultra Physical Contact (UPC)

Transmitter type

VCSEL

DFB

DFB

DFB

DFB

DFB

Receiver type

PIN

Reach

300 m (984.25 ft., with OM3 optical cables)

400 m (1312.34 ft., with OM4 optical cables)

10 km (32,808.40 ft.)

40 km (131,233.60 ft.)

80 km (262,467.19 ft.)

10km (32,808.40.13 ft.)

10km (32,808.40.13 ft.)

Bit error ratio (BER)

1.00E-12

Data diagnosis-capable (DDM/DOM)

Yes

Power consumption

≤ 1.5 W

Transmitter Optical Parameters

Wavelength

850 nm

1310 nm

1550 nm

1550 nm

1270 nm TX

1330 nm RX

1330 nm TX

1270 nm RX

Max. transmit power (AVG)

–1 dBm

0.5 dBm

4 dBm

4 dBm

0.5 dBm

0.5 dBm

Min. transmit power (AVG)

–7.3 dBm

–8.2 dBm

–4.7 dBm

0 dBm

–8.2 dBm

–8.2 dBm

Min. extinction ratio

≥ 3.0 dB

≥ 3.5 dB

≥ 3 dB

≥ 8.5 dB

≥ 3.5 dB

≥ 3.5 dB

Receiver Optical Parameters

Receive sensitivity (OMA)

< –11.1 dBm

< –12.6 dBm

< –14.1 dBm

< –24 dBm

< –14.4 dBm

< –14.4 dBm

Overload optical power (AVG)

–1 dBm

0.5 dBm

–1 dBm

–7 dBm

0.5 dBm

0.5 dBm

Environment and Reliability

Operating temperature

0°C to 70°C (32°F to 158°F)

–40°C to +85°C (–40°F to +185°F)

Operating humidity

10% RH to 90% RH

Storage temperature

–40°C to +85°C (–40°F to +185°F)

Storage humidity

10% RH to 90% RH

Dimensions and Weight

Dimensions (W x D x H)

56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)

Weight

35 g (0.08 lbs.)

Model

XG-SFP-AOC1M

XG-SFP-AOC3M

XG-SFP-AOC5M

Data rate

10.3125 Gbps

Form factor

SFP+

Connector type

SFP+ to SFP+

Data diagnosis-capable (DDM/DOM)

Yes

Length

1 m (3.28 ft.)

3 m (9.84 ft.)

5 m (16.40 ft.)

Module type

Active
