SKU: XG-SFP-ER-SM1550
Category: RUIJIE MODULE
Availability: Unlimited
Model
Description
XG-SFP-SR-MM850
10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft., with OM3 optical cables) or 400 m (1312.34 ft., with OM4 optical cables) over MMF
XG-SFP-LR-SM1310
10G LR module, SFP+ form factor, LC, 10 km ((32,808.40 ft.) over SMF

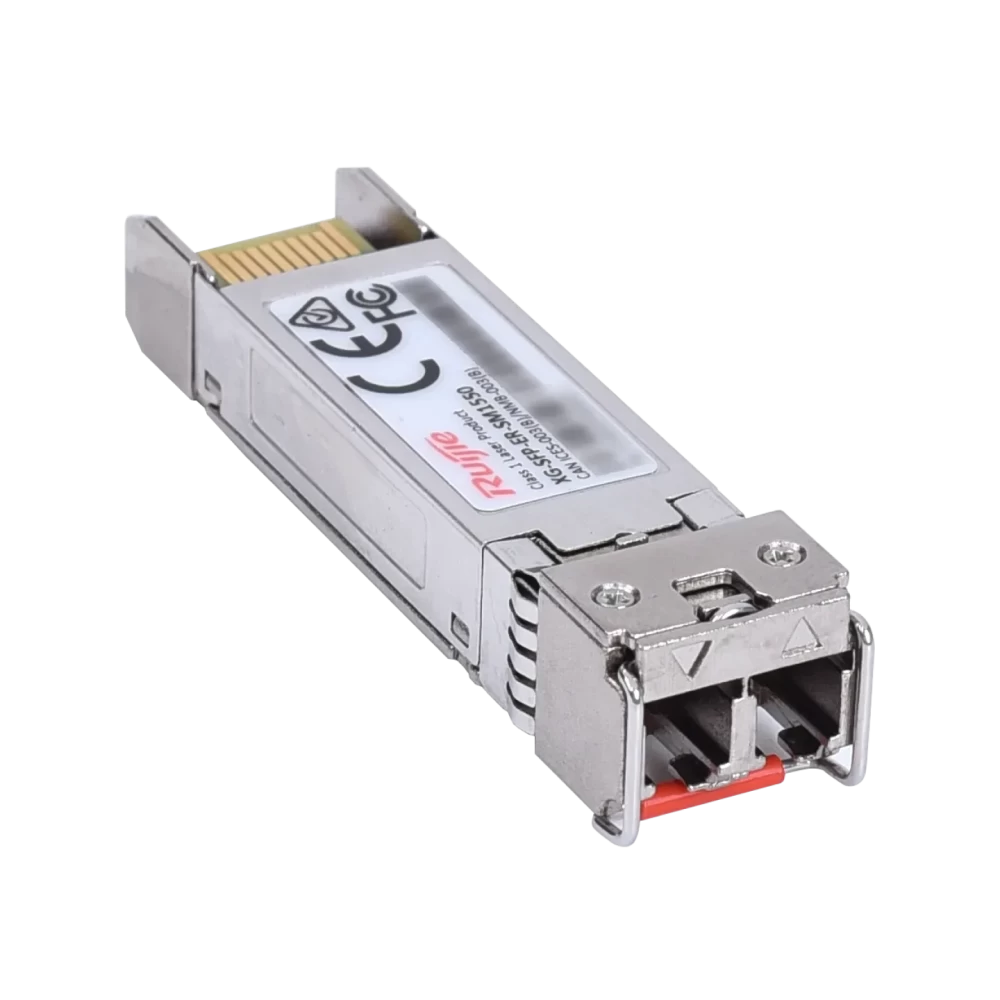

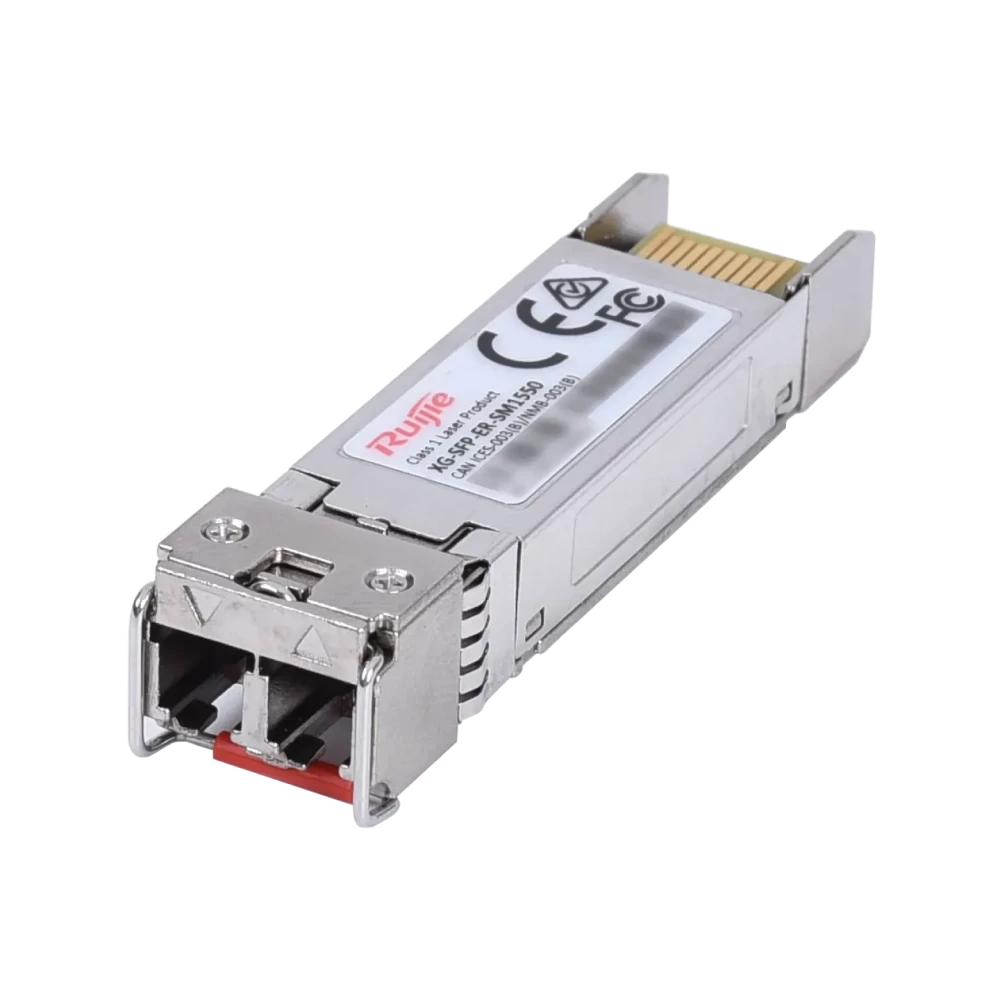

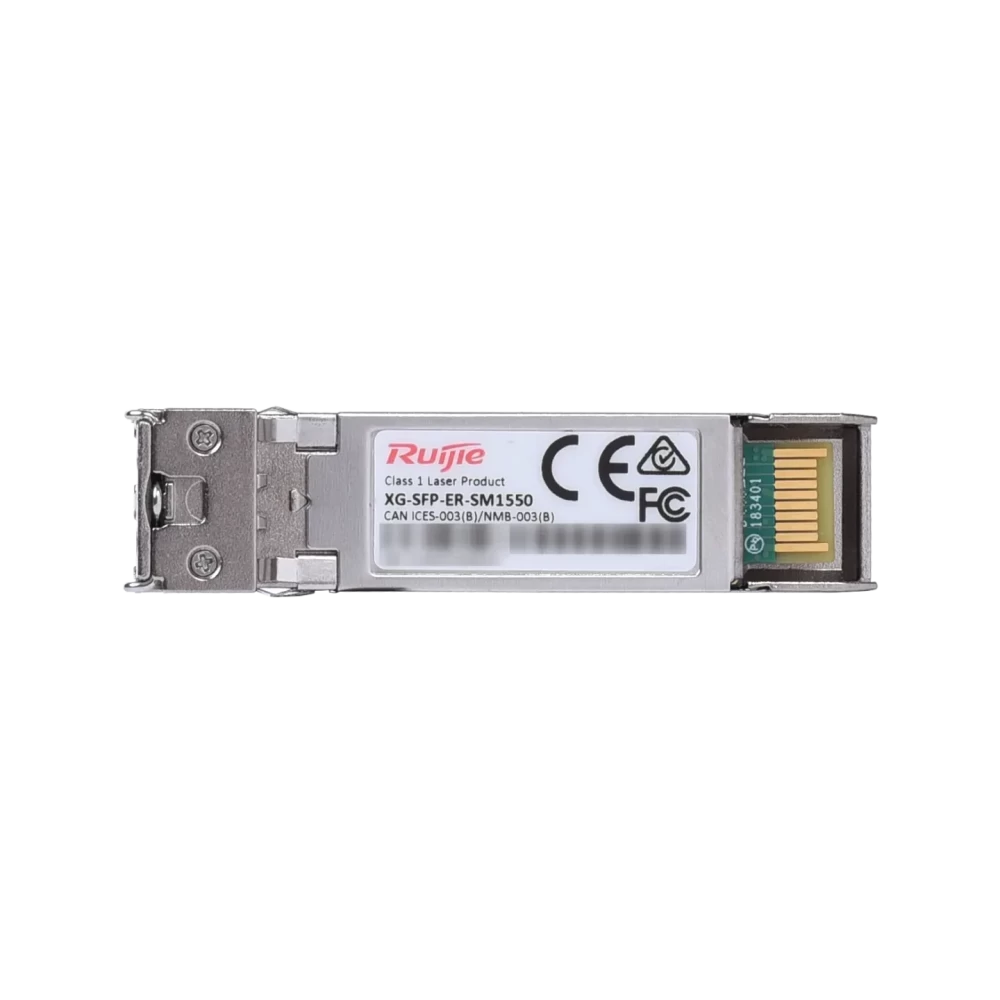

XG-SFP-ER-SM1550
10G ER module, SFP+ form factor, LC, 40 km (131,233.60 ft.) over SMF
XG-SFP-ZR-SM1550
10G ZR module, SFP+ form factor, LC, 80 km (262,467.19 ft.) over SMF
XG-SFP-LR10-SM1270-BIDI-I
10G LR module, SFP+ form factor, BIDI LC, 10 km (32,808.40.13 ft.) over SMF
XG-SFP-LR10-SM1330-BIDI-I
10G LR module, SFP+ form factor, BIDI LC, 10 km (32,808.40.13 ft.) over SMF
XG-SFP-AOC1M
10G SFP+ AOC cable, 1 m (3.28 ft.)
XG-SFP-AOC3M
10G SFP+ AOC cable, 3 m (9.84 ft.)
XG-SFP-AOC5M
10G SFP+ AOC cable, 5 m (16.40 ft.)
Brand: Ruijie
Model Number: XG-SFP-ER-SM1550
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 17/12/2024
Model | XG-SFP-SR-MM850 | XG-SFP-LR-SM1310 | XG-SFP-ER-SM1550 | XG-SFP-ZR-SM1550 | XG-SFP-LR10-SM1270-BIDI-I | XG-SFP-LR10-SM1330-BIDI-I |
Data rate | 10.3125 Gbps | |||||
Form factor | SFP+ | |||||
Connector type | Duplex LC | Duplex LC | Duplex LC | Duplex LC | BIDI LC | BIDI LC |
Cable type | MMF | SMF | SMF | SMF | SMF | SMF |
Fiber end face finish type | Ultra Physical Contact (UPC) | |||||
Transmitter type | VCSEL | DFB | DFB | DFB | DFB | DFB |
Receiver type | PIN | |||||
Reach | 300 m (984.25 ft., with OM3 optical cables) 400 m (1312.34 ft., with OM4 optical cables) | 10 km (32,808.40 ft.) | 40 km (131,233.60 ft.) | 80 km (262,467.19 ft.) | 10km (32,808.40.13 ft.) | 10km (32,808.40.13 ft.) |
Bit error ratio (BER) | 1.00E-12 | |||||
Data diagnosis-capable (DDM/DOM) | Yes | |||||
Power consumption | ≤ 1.5 W | |||||
Transmitter Optical Parameters | ||||||
Wavelength | 850 nm | 1310 nm | 1550 nm | 1550 nm | 1270 nm TX 1330 nm RX | 1330 nm TX 1270 nm RX |
Max. transmit power (AVG) | –1 dBm | 0.5 dBm | 4 dBm | 4 dBm | 0.5 dBm | 0.5 dBm |
Min. transmit power (AVG) | –7.3 dBm | –8.2 dBm | –4.7 dBm | 0 dBm | –8.2 dBm | –8.2 dBm |
Min. extinction ratio | ≥ 3.0 dB | ≥ 3.5 dB | ≥ 3 dB | ≥ 8.5 dB | ≥ 3.5 dB | ≥ 3.5 dB |
Receiver Optical Parameters | ||||||
Receive sensitivity (OMA) | < –11.1 dBm | < –12.6 dBm | < –14.1 dBm | < –24 dBm | < –14.4 dBm | < –14.4 dBm |
Overload optical power (AVG) | –1 dBm | 0.5 dBm | –1 dBm | –7 dBm | 0.5 dBm | 0.5 dBm |
Environment and Reliability | ||||||
Operating temperature | 0°C to 70°C (32°F to 158°F) | –40°C to +85°C (–40°F to +185°F) | ||||
Operating humidity | 10% RH to 90% RH | |||||
Storage temperature | –40°C to +85°C (–40°F to +185°F) | |||||
Storage humidity | 10% RH to 90% RH | |||||
Dimensions and Weight | ||||||
Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | |||||
Weight | 35 g (0.08 lbs.) | |||||
Model | XG-SFP-AOC1M | XG-SFP-AOC3M | XG-SFP-AOC5M |
Data rate | 10.3125 Gbps | ||
Form factor | SFP+ | ||
Connector type | SFP+ to SFP+ | ||
Data diagnosis-capable (DDM/DOM) | Yes | ||
Length | 1 m (3.28 ft.) | 3 m (9.84 ft.) | 5 m (16.40 ft.) |
Module type | Active | ||
