Description

RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.

RG-RAP6260(G) supports Reyee Mesh, which allows users easily expand extra Wi-Fi in outdoor place. Less wiring, more relaxing.

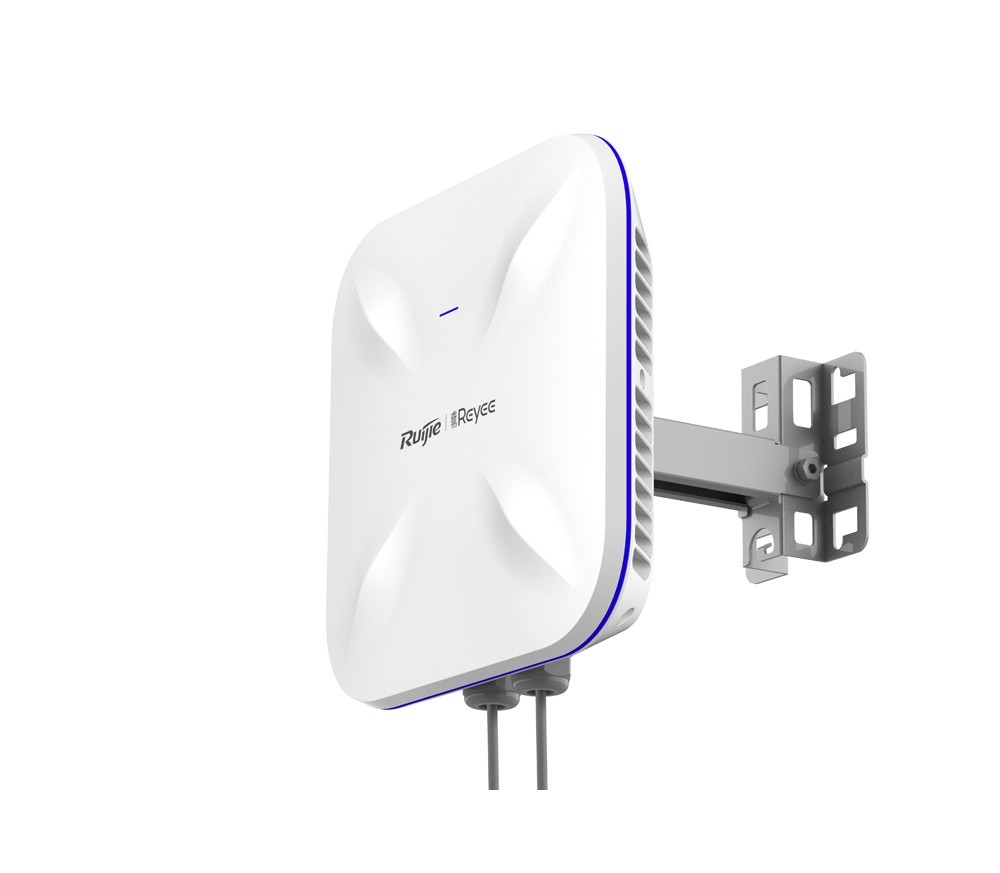

RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business.



Product Specifications

Brand: Ruijie

Model Number: RG-RAP6260(G)

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 999

Listed date: 05/08/2024

Technical SpecificationSpecification DescriptionModelRG-RAP6260(G)RadioDual-stream dual-bandProtocolConcurrent 802.11a/b/g/n/ac/axOperating Bands802.11b/g/n/ac/ax :2.4G ~ 2.4835GHz

802.11a/n/ac/ax: 5G:5.150~5.350GHz,5.725~5. (country specific)

AntennaInternal antennas (2.4GHz: 4dBi,5GHz: 6dBi)Spatial Streams2.4 GHz 2×2 MU-MIMO

5 GHz 2×2 MU-MIMO

Max Throughput

Up to 574Mbps at 2.4GHz

Up to 1201Mbps at 5GHz

Totally 1775Mbps per AP

Modulation

DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

Receive Sensitivity11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)

11a/g:-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)

11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15

11ac HT20:-83dBm(MCS0), -57dBm(MCS9)

11ac HT40:-79dBm(MCS0), -57dBm(MCS9)

11ac HT80:-76dBm(MCS0), -51dBm(MCS9)

11ax:HE80:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11)

Maximum Output Power of the Transmitter

(Single Stream)

2.4GHz(2.4~2.4835GHz):26dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz):25dBm

(country-specific,comply with local laws)

Adjustable Power1dBmDimensions298mm×298mm×65mm (excluding mounting kits)Weight≤1.35kg (excluding mounting kits)Service Ports1 10/100/1000 Base-T Ethernet port supports PoE IN;

1 100/1000 Base-X SFP Port

Management PortN/ALED IndicatorSingle indicator (Blue light)Power Supply802.3at PoE

(Warning:802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE switch or 802.3at POE adapter as power supplier)

Power Consumption≤17WBluetoothSupportEnvironmentOperating Temperature:-40°C~65°CStorage Temperature:-40°C~85°COperating humidity:0%~100%, non-condensingStorage humidity:0%~100%,condensing/non-condensingInstallationPole/Wall-MountableSafety StandardGB4943、IEC 60950-1EMC StandardGB9254、EN301 489,EN50155:EN50121Vibration StandardIEC61373Radio StandardEN300 328,EN301 893MTBF>400000HWLANMaximum number of clients: 512Recommended number of clients: 100Up to 8 SSIDSupport SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limitSupport Layer 2 user isolationSupport Reyee MeshRoamingSupport layer 2 and layer 3 roamingSecuritySupport PSK authenticationSupport static blacklist and whitelistSupport WPA(TKIP),WPA2(AES),WPA-PSK data encryptionRoutingSupport static IP address, DHCP, PPPoE DialManagement and MaintenanceSupport unified networking of all network equipment

Support local or remote management with Ruijie Cloud APP

Support local management with web

Support remote management with Ruijie Noc Cloud platform

Platform Management FeaturesAutomatic RF adjustment via the platformUnified configuration via the platformUnified monitoring via the platform
