SKU: RG-AP210-L
Category: ruijie access points
Availability: Unlimited
Model
Description

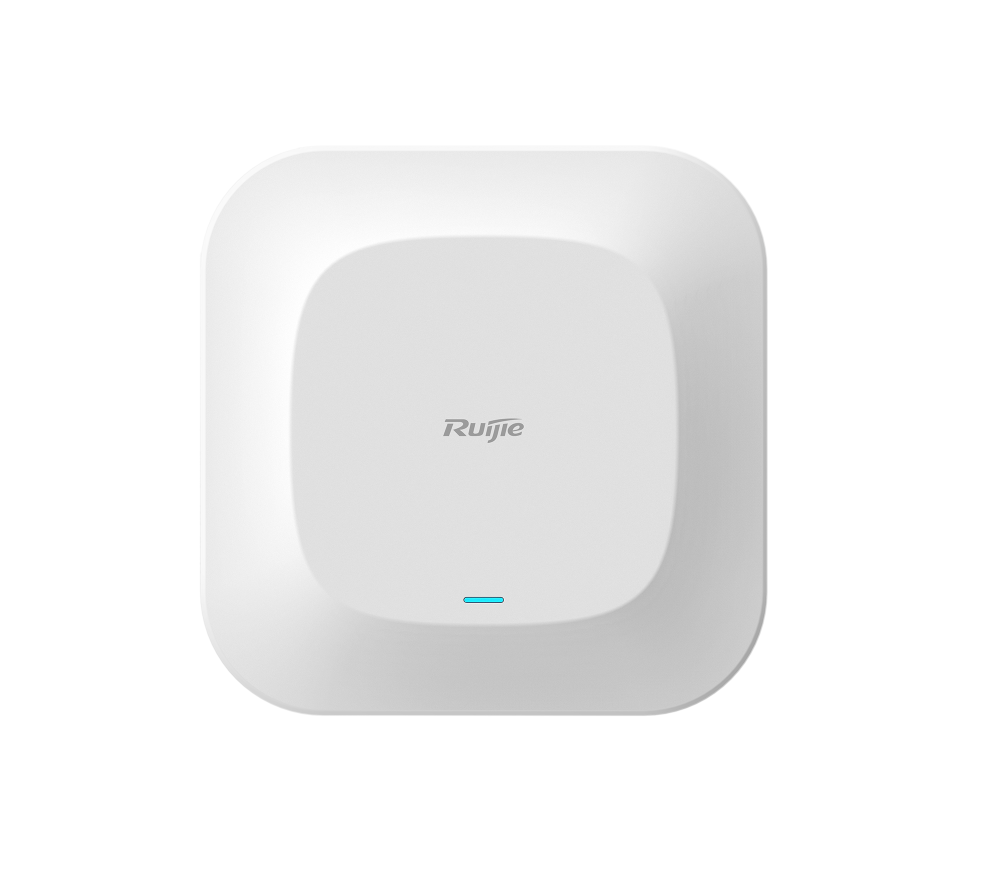

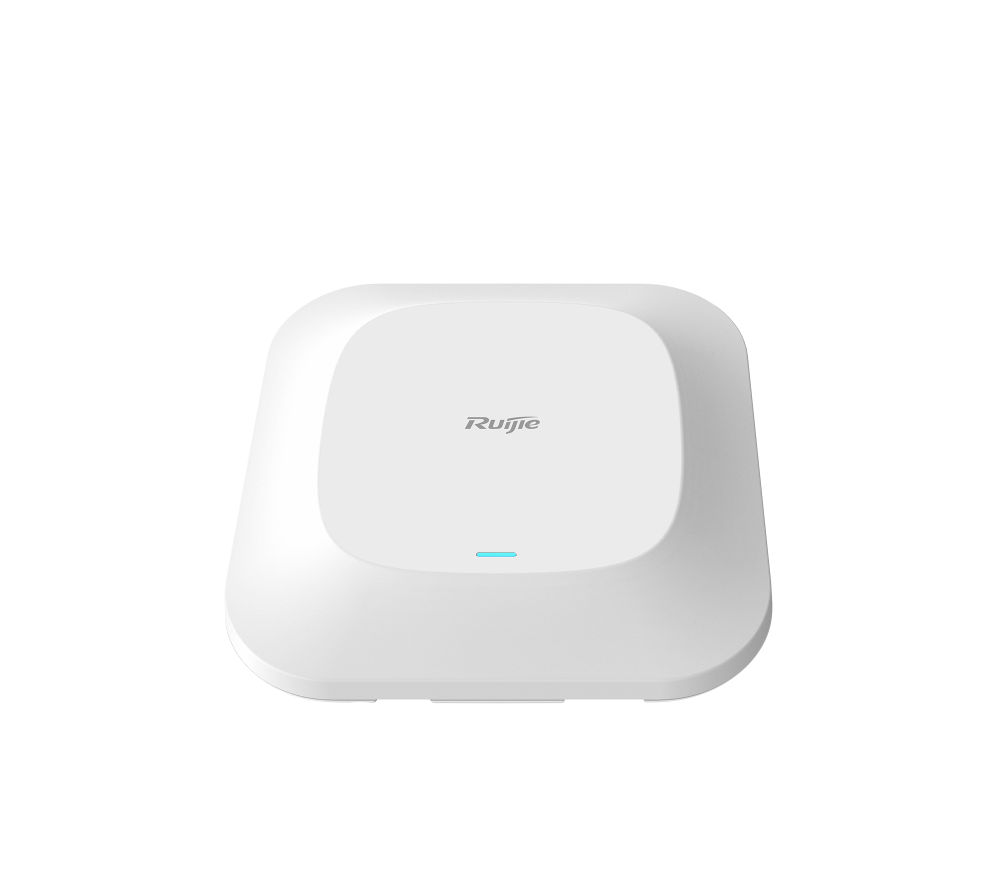

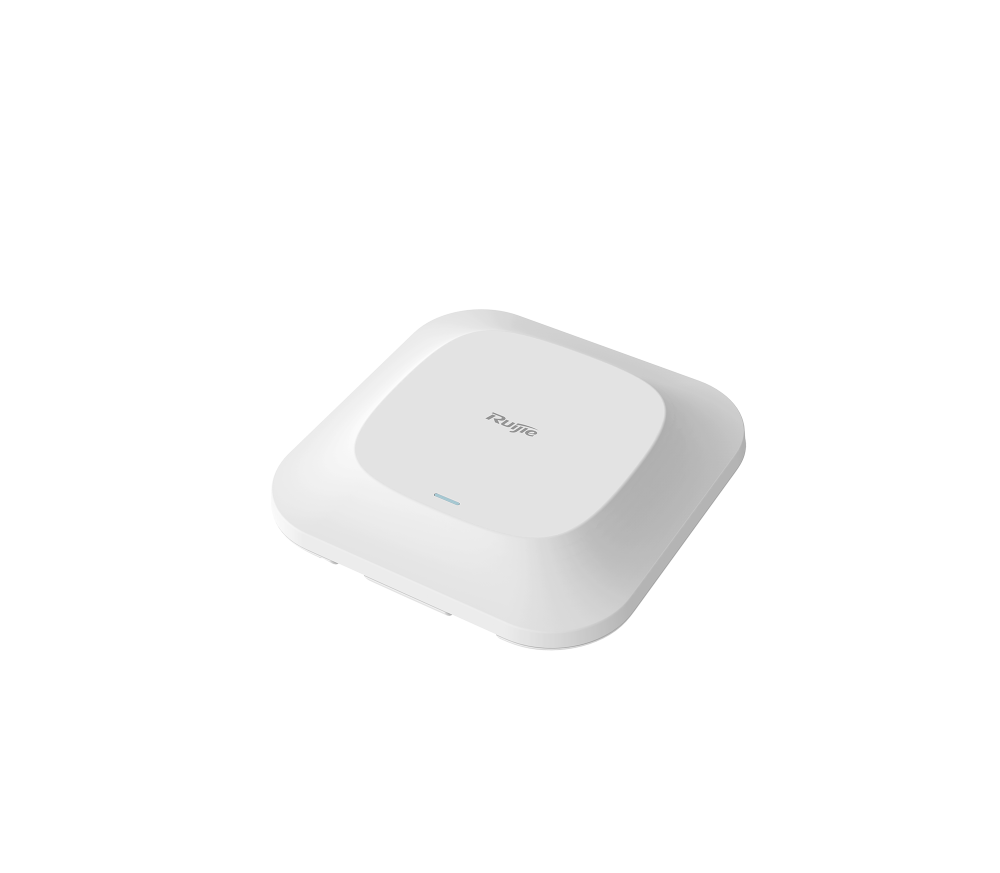

RG-AP210-L
Indoor 802.11n Access Point, 2 spatial streams (2.4GHz), access rate up to 300Mbps, 1 10/100BASE-T uplink port; Bundled with Ruijie Cloud Service lifetime license
(PoE and local power adapters sold separately)
Optional
RG-WS6008
WS Series Wireless Controller, 6 1000BASE-T ports, 2 1000BASE-T/1000BASE-X ports (combo), 32 APs License by default, maximum 200 APs or 400 Wall APs License
Brand: Ruijie
Model Number: RG-AP210-L
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/08/2024
Model | Ruijie AP730-L | Ruijie AP720-L | Ruijie AP710 | Ruijie AP210-L | |
|---|---|---|---|---|---|
Model | Ruijie AP730-L | Ruijie AP720-L | Ruijie AP710 | Ruijie AP210-L | |
Target Deployment | SME High Density Wi-Fi | Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel | |||
Type | Indoor Ceiling/Wall-mounting | ||||
Basic Spec | Radio | Tri-band (2.4G+5G+5G) | Concurrent Dual-band | Single-band | |
Protocol | 802.11a/b/g/n/ac Wave2 |
802.11a/b/g/n/ac
| 802.11b/g/n | ||
Operating Bands | 802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) | 802.11b/g/n: 2.4GHz to 2.483GHz
| |||
Antenna | Built-in Omni-directional Antenna | ||||
Antenna Gain | 2.4G: 3dBi 5G: 3dBi | 2.4G: 3dBi | |||
Max Throughput | Maximum throughput of 2.4G: 400Mbps Maximum throughput of 5G: 1.73Gbps Maximum throughput per AP: 2.13Gbps | Maximum throughput of 2.4G: 300Mbps Maximum throughput of 5G: 867Mbps Maximum throughput per AP: 1167Mbps | Maximum throughput of 2.4G: 300Mbps Maximum throughput of 5G: 8.67Gbps Maximum throughput per AP: 1167Mbps | Maximum throughput of 2.4G: 300Mbps Maximum throughput per AP: 300Mbps | |
Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and [email protected]/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and [email protected]/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM | |||
Receiver Sensitivity | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps） 11g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15 | |||
Spatial Streams | 2x2 | 2x2 | 2x2 | 2x2 | |
Maximum Transmit Power | 100mW | ||||
IP Rating | IP41 | ||||
Ports | 1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE+ 1 Console Port | 1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE 1 Console Port | 1 10/100BASE-T Ethernet uplink Port LAN1 supports PoE | ||
Power | Power Supply (DC Power adapters should be purchased from third-party vendors separately if needed.) | local power supply (DC 48V/0.6A) PoE (802.3at） | local power supply (DC 5V/3A) PoE (802.3af） | local power supply (DC 12V/1A) PoE (802.3af） | |
Power Consumption | <25.5W | <12.95W | <7.5W | ||
WLAN | Maximum clients per AP | 768 | 256 | 128 | |
BSSID capacity | 48 | 32 | 16 | ||
Remote Intelligent Perception Technology (RIPT) | Support | ||||
Intelligent load balancing based on the number of users or traffic | Support | ||||
STA control | Support | ||||
Bandwidth control | Support | ||||
Preference for 5GHz (band select) | Support | ||||
| Band Steering (5G Priority) | Support | N/A | ||
Security | PSK, Web, 802.1x authentication | Support | |||
PPSK authentication | Support | N/A | |||
Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | ||||
PEAP authentication | Support | ||||
User isolation | Support | ||||
Rogue AP detection and countermeasure | Support | ||||
RADIUS | Support | ||||
Wireless Intrusion Detection System(WIDS) | Support | ||||
Wireless Intrusion Prevention System (WIPS) | Support | ||||
Routing | IPv4 address | Static IP address or DHCP reservation | |||
IPv6 address | Manual or automatic configuration | ||||
Multicast | Multicast to unicast conversion | ||||
Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, TFTP, Web management | |||
Cloud AC management | Support | ||||
FAT/FIT switching | Support | ||||
External Characteristics | Lock | Support | |||
LED Indicators | 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode) | ||||
Relevant Standard | Wi-Fi Alliance Certification | Support | |||
Radio Standard | EN300 328 EN301 893 | ||||
EMC Standard | GB9254 EN301 489-1 EN301 489-17 EN 55032 EN 61000 EN 55035 | ||||
Safety Standard | GB4943 EN/IEC 60950-1 | ||||
Specifications | Dimensions (W x D x H) (mm) | 230x230x42 | 194 × 194 × 37 | 175*175*25.8 | |
Weight | 1.3kg | 0.42kg | 0.35kg | ||
Work Environment | Temperature | Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C | Operating Temperature: Storage Temperature: | ||
Humidity | Operating Humidity: 5% to 95% (non-condensing) Storage Temperature: 5% to 95% (non-condensing) | ||||
