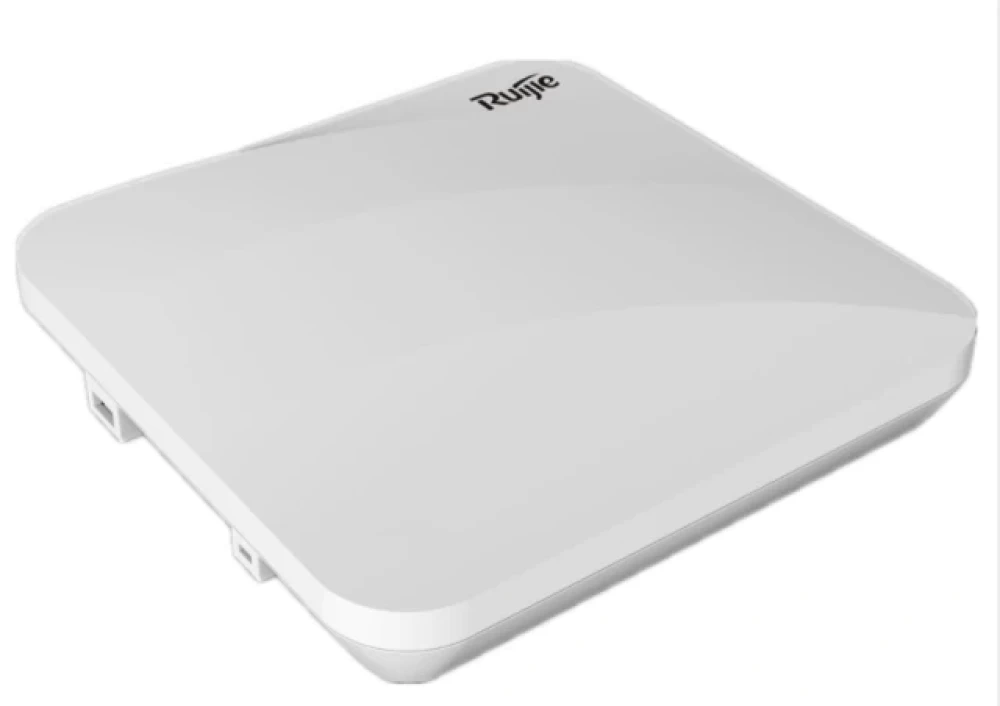

SKU: RG-AP740-I
Category: ruijie access points
Availability: Unlimited
| Specifications | ||
| Model | RG-AP740-I | |
| Target Deployments | For campuses, offices, hospitals, and hotspots of service providers | |
| Basic Specifications | Radio | Concurrent tri-radio dual-band |
| Protocol | 802.11a/b/g/n/ac | |
| Wave 2 | ||
| Operating Bands | 802.11b/g/n: 2.4GHz to 2.483GHz | |
| 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) | ||
| Antenna | Built-in "X-Sense 4" Smart Antenna | |
| 4×4 MU-MIMO | ||
| Max Throughput | 1733Mbps/800Mbps/433Mbps per radio | |
| 2966Mbps per AP | ||
| Spatial Streams | 4 | |
| Modulation | OFDM: BPSK@6/9Mbps | |
| QPSK@12/18Mbps | ||
| 16-QAM@24Mbps | ||
| 64-QAM@48/54Mbps | ||
| DSSS: | ||
| DBPSK@1Mbps | ||
| DQPSK@2Mbps | ||
| [email protected]/11Mbps | ||
| MIMO-OFDM: | ||
| PSK, QPSK, 16QAM, 64QAM and 256QAM | ||
| Receiver Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) | |
| 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） | ||
| 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 | ||
| 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） | ||
| 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） | ||
| 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） | ||
| Maximum Transmit Power | 100mw | |
| Adjustable Power | 1dBm | |
| IP Rating | IP41 | |
| Ports | Service Port | 2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port |
| Management Port | 1 console port | |
| Power | Power Supply | Local power supply (DC 48V) and PoE+ (802.3af/802.3at) |
| Support dual PoE for power backup | ||
| (Power adapters sold separately) | ||
| Power Consumption | <25.4W | |
| WLAN | Maximum clients per AP | Up to 612 |
| BSSID capacity | Up to 16 per radio Up to 48 per AP | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| X-speed | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Preference for 5GHz (band select) | Support | |
| Bluetooth | iBeacon | Support |
| Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, TFTP, Web management |
| One-click Optimization | Support | |
| (need to integrate with WIS) | ||
| Fault detection and alarm | Support | |
| Cloud AC management | Support | |
| Statistics and logs | Support | |
| FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. | |
| The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | ||
| External Characteristics | Lock | Support |
| LED Indicators | 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode) | |
| Relevant Standard | Wi-Fi Alliance Certification | Support |
| Safety Standard | GB4943, EN/IEC 60950-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Health Standard | EN 62311 | |
| Radio Standard | EN300 328, EN301 893 | |
| Vibration Standard | IEC60068 2-31, ETSI EN300 019, | |
| NEBS GR-63-CORE | ||
| Dimensions (W x D x H) (mm) | 230 × 230 × 42 | |
| Specifications | (Height of AP only, excluding case and mount kit) | |
| Weight | 1.3kg | |
| Work Environment | Temperature | Operating Temperature: -10°C to 50°C |
| Storage Temperature: -40°C to 70°C | ||
| Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
| Installation Mode | Ceiling/wall-mountable | |
Brand: Ruijie
Model Number: RG-AP740-I
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 07/08/2024
| Specifications | ||
| Model | RG-AP740-I | |
| Target Deployments | For campuses, offices, hospitals, and hotspots of service providers | |
| Basic Specifications | Radio | Concurrent tri-radio dual-band |
| Protocol | 802.11a/b/g/n/ac | |
| Wave 2 | ||
| Operating Bands | 802.11b/g/n: 2.4GHz to 2.483GHz | |
| 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) | ||
| Antenna | Built-in "X-Sense 4" Smart Antenna | |
| 4×4 MU-MIMO | ||
| Max Throughput | 1733Mbps/800Mbps/433Mbps per radio | |
| 2966Mbps per AP | ||
| Spatial Streams | 4 | |
| Modulation | OFDM: BPSK@6/9Mbps | |
| QPSK@12/18Mbps | ||
| 16-QAM@24Mbps | ||
| 64-QAM@48/54Mbps | ||
| DSSS: | ||
| DBPSK@1Mbps | ||
| DQPSK@2Mbps | ||
| [email protected]/11Mbps | ||
| MIMO-OFDM: | ||
| PSK, QPSK, 16QAM, 64QAM and 256QAM | ||
| Receiver Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) | |
| 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） | ||
| 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 | ||
| 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） | ||
| 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） | ||
| 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） | ||
| Maximum Transmit Power | 100mw | |
| Adjustable Power | 1dBm | |
| IP Rating | IP41 | |
| Ports | Service Port | 2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port |
| Management Port | 1 console port | |
| Power | Power Supply | Local power supply (DC 48V) and PoE+ (802.3af/802.3at) |
| Support dual PoE for power backup | ||
| (Power adapters sold separately) | ||
| Power Consumption | <25.4W | |
| WLAN | Maximum clients per AP | Up to 612 |
| BSSID capacity | Up to 16 per radio Up to 48 per AP | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| X-speed | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
| Bandwidth control | STA/SSID/AP-based speed control | |
| Preference for 5GHz (band select) | Support | |
| Bluetooth | iBeacon | Support |
| Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, TFTP, Web management |
| One-click Optimization | Support | |
| (need to integrate with WIS) | ||
| Fault detection and alarm | Support | |
| Cloud AC management | Support | |
| Statistics and logs | Support | |
| FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. | |
| The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | ||
| External Characteristics | Lock | Support |
| LED Indicators | 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode) | |
| Relevant Standard | Wi-Fi Alliance Certification | Support |
| Safety Standard | GB4943, EN/IEC 60950-1 | |
| EMC Standard | GB9254, EN301 489 | |
| Health Standard | EN 62311 | |
| Radio Standard | EN300 328, EN301 893 | |
| Vibration Standard | IEC60068 2-31, ETSI EN300 019, | |
| NEBS GR-63-CORE | ||
| Dimensions (W x D x H) (mm) | 230 × 230 × 42 | |
| Specifications | (Height of AP only, excluding case and mount kit) | |
| Weight | 1.3kg | |
| Work Environment | Temperature | Operating Temperature: -10°C to 50°C |
| Storage Temperature: -40°C to 70°C | ||
| Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
| Storage Humidity: 5% to 95% (non-condensing) | ||
| Installation Mode | Ceiling/wall-mountable | |
