SKU: RG-WS6512
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description

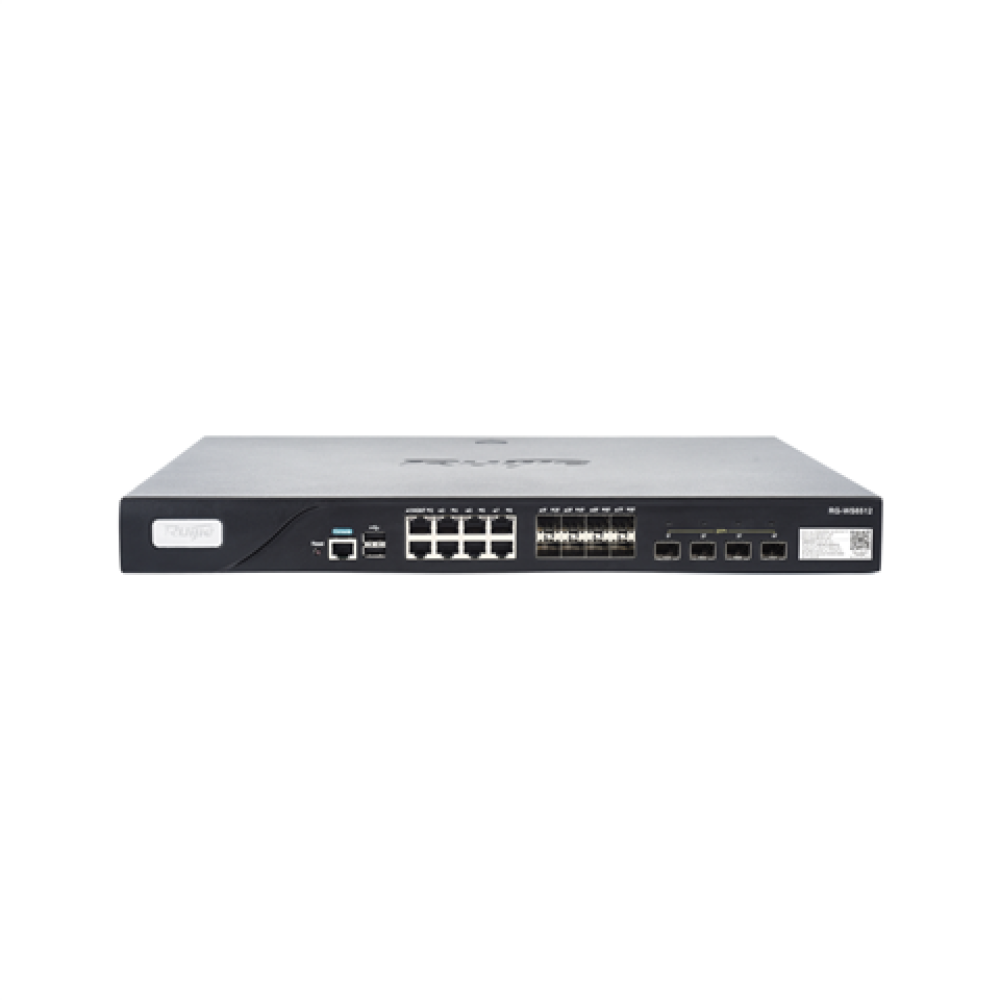

RG-WS6512
The wireless controller provides 8 x combo ports and 4 x SFP+ 10GE ports.
It supports 128 APs by default, and up to 1,152 licenses are available.
The maximum number of APs that can be managed by the AC is subject to the AP model:
● A generic AP occupies one license. The RG-WS6512 can manage up to 1,152 generic APs.
● A wall plate AP occupies half of the license. The RG-WS6512 can manage up to 2,304 wall plate APs.
● An i-Share micro AP occupies no license. The RG-WS6512 can manage up to 2,304 i-Share micro APs.
● The number of licenses occupied by an i-Share master AP is subject to the model. See the ordering information in the datasheet of corresponding i-Share master AP for details.
A power module is delivered with the main unit, which supports power redundancy.
RG-PA70I
AC power module (redundancy mode, 70 W, 10 A power cable)
Optical Modules
Model
Description
Mini-GBIC-SX-MM850
1000BASE-SX mini-GBIC module
Mini-GBIC-LX-SM1310
1000BASE-LX mini-GBIC module
XG-SFP-SR-MM850
10GE SFP+ SR module
XG-SFP-LR-SM1310
10GE SFP+ LR module
Licenses
Model
Description
RG-LIC-WS-16
The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 16. Each license supports one generic AP or two wall plate APs. For the number of licenses occupied by an i-Share master AP, see the ordering information.
RG-LIC-WS-32
The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 32. Each license supports one generic AP or two wall plate APs. For the number of licenses occupied by an i-Share master AP, see the ordering information.
RG-LIC-WS-128
The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 128. Each license supports one generic AP or two wall plate APs. For the number of licenses occupied by an i-Share master AP, see the ordering information.
RG-LIC-WS-512
The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 512. Each license supports one generic AP or two wall plate APs. For the number of licenses occupied by an i-Share master AP, see the ordering information.
RG-LIC-WS-1024
The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 1,024. Each license supports one generic AP or two wall plate APs. For the number of licenses occupied by an i-Share master AP, see the ordering informa
Brand: Ruijie
Model Number: RG-WS6512
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 16/11/2024
Key Specification | RG-WS6512 |
Number of manageable APs | 128 (default), 2,304 (maximum) Note: The number of APs that can be managed by the AC is subject to the AP model. See the Ordering Information for details. |
Maximum number of configurable APs | 4,096 |
Maximum number of manageable STAs | 32,768 Note: The maximum number of STAs that can be managed by the AC is subject to the network environment. Contact technical support team for details. |
802.11 forwarding capacity | 40 Gbps (subject to the wireless network environment) |
WLAN service | Maximum number of WLAN IDs: 4,094 Maximum number of associated STAs per WLAN: 32,768 |
Number of VLANs | 4,094 |
Port | 4 x 10GE SFP+ ports 8 x 1GE SFP/RJ45 combo ports, shared with one 10/100/1000BASE-T port Port 1 can be used as an out-of-band management port 1 x RJ45 console port 2 x USB ports |
Power supply | 2 x RG-PA70I 70 W AC power modules A power module is delivered with the main unit. You can buy one more optionally. Power input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 10 A (steady state) Power output: 12 V DC, 5.83 A |
Maximum power consumption | 70 W |
Rack height | 1 RU |
Applicable software version | RGOS11.9(6)W1B1 or later |
Network management platform | Web-based management (Eweb) WIS-based management (RG-iData-WIS) RG-Cloud |
Hardware Specification | RG-WS6512 |
Unit dimensions (W x D x H) | 440 mm x 340 mm x 43.6 mm (17.32 in. x 13.39 in. x 1.72 in.) |
Weight | Main unit:5.9 kg (13.01 lbs) A power module is delivered with the main unit. Power module: 0.4 kg (0.88 lbs) Shipping: 7.03 kg (15.50 lbs) |
Status LED | 1 x system status LED (under the Ruijie logo) 8 x 1GE RJ45 port LEDs 8 x 1GE SFP port LEDs 4 x 10GE SFP+ port LEDs |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Environment | Storage temperature: –40°C to +70°C (–40°F to +158°F) Storage humidity: 5% to 95% RH (non-condensing) Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) Operating temperature: 0°C to +45°C (32°F to 113°F) Operating humidity: 10% to 90% RH (non-condensing) Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.) Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Fan | Built-in fans Right-to-left airflow Fan speed adjustment Fan fault alarm |
Acoustic noise | < 78 dB |
Mean Time Between Failure (MTBF) | 400,000 hours (44 years) at the operating temperature of 25°C (77°F) |
System memory | 8 GB DRAM, eMMC 4 GB |
Software Specifications | RG-WS6512 |
WLAN | |
802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
CAPWAP | Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT |
Roaming | Intra-AC Layer 2 roaming Inter-AC Layer 3 roaming Intra-AC roaming handoff time < 50 ms 802.11R roaming in a VAC 802.11R roaming between ACs Centralized forwarding Local forwarding |
Forwarding mode | Centralized forwarding Local forwarding WLAN flexible forwarding (centralized forwarding is used for DHCP packets in local forwarding mode, and 802.1X/web/MAB authentication is not supported) |
Wireless QoS | AP/WLAN/STA-based rate limiting (WLAN/STA-based rate limit range: 8-261,120 in the unit of 8 Kbps. For example, if you set the value to 8, the rate limit is 8 x 8 Kbps = 64 Kbps.) Static and intelligent rate limiting based on STA quantity Intelligent and dynamic rate limiting based on channel utilization Fair scheduling |
User isolation | Layer 2 user isolation in WIDS configuration mode User isolation in a VLAN in local forwarding mode |
Reliability | AC virtualization Maximum number of virtualized ACs : 4 AC failover Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby) Multi-AC cluster (N-to-N) Remote intelligent perception technology (RIPT) Non-stop service during upgrade |
STA management | Access control based on the number of STAs associated with the AP Access control based on the number of STAs associated with the SSID Balanced access control based on the number of STAs associated with the AP Balanced access control based on the AP traffic Balanced access control based on the AP frequency band Band steering Configuration of the RSSI threshold in dB (Range: 0-100) Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
WLAN optimization | Adjustment of the transmit power for beacon packets or probe responses |
RF management | Country or region code setting Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel Automatic adjustment of the data rate Automatic selection of channel width AP load balancing based on traffic and STA quantity Band selection Radio Frequency Interference (RFI) detection and mitigation |
Security and Authentication | |
IPv4 security authentication | Web authentication 802.1X authentication MAB authentication SMS authentication QR code-based authentication Maximum number of STAs supported by the built-in Portal server: 7,500 |
IPv6 security authentication | Web authentication: IPv6 audit 802.1X authentication: IPv6 audit |
IEEE 802.11 security and encryption | Multi-SSID mode SSID hiding IEEE 802.11i-compliant PSK authentication WPA and WPA2 WPA3: WPA3-Personal (SAE), WPA3-Enterprise (CCMP, 128-bit), and WPA3-Enterprise (GCMP, 192-bit) WEP (WEP/WEP128) TKIP CCMP Anti-ARP spoofing |
ACL | Maximum number of ACEs: 131,072 |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
WIDS | Wireless Intrusion Detection System (WIDS) |
AP virtualization | Supported |
Routing and Switching | |
MAC | Maximum number of MAC address entries: 131,072 |
ARP | Maximum number of ARP entries: 81,920 |
IPv4 protocols | Ping and traceroute DHCP server, DHCP client, DHCP relay, and DHCP snooping DHCP address pools ● Maximum number of IPv4 address pools: 2,000 ● Maximum number of IPv4 addresses: 81,920 DNS client NTP Telnet TFTP server and TFTP client FTP server and FTP client Neighbor discover |
IPv6 protocols | DNSv6 client DHCPv6 relay, DHCPv6 server, and DHCPv6 client DHCP address pools ● Maximum number of IPv6 address pools: 256 ● Maximum number of IPv6 addresses: 2,048 TFTPv6 client FTPv6 server and FTPv6 client IPv6 CAPWAP ICMPv6 IPv6 ping 6 over 4 manual tunnels, 6 to 4 automatic tunnels, and ISATAP Manually configured IP addresses and automatically created local addresses IPv6 traceroute Neighbor discovery |
IPv4 routing | Static routing, RIP, and OSPFv2 IPv4 routing entries: 8,192 |
IPv6 routing | Static routing, RIPng, OSPFv3 IPv6 routing entries: 10,000 |
Multicast | Maximum number of static routing entries: 2,048 Maximum number of multicast group routing entries: 4,096 |
Management and Maintenance | |
Network management | RMON SNMP v1/v2c/v3 Syslog |
User access management | Console port login,Telnet login,SSH login,and FTP upload |
The following value-added software functions can be achieved with the WIS solution (used with RG-iData-WIS and AP).
Value-added Software | RG-WS6512 |
Intelligent O&M | |
Experience | Network operation analysis, such as device stability and signal coverage Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters VIP monitoring and alarm, and custom alarm thresholds STA global experience map and experience coverage evaluation based on the time range STA access protocol replay and fine-grained STA fault diagnosis Note: To support the preceding functions, ensure that the AP works in Fit mode. |
Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization Client steering to cope with roaming stickiness, and experience indicator comparison Client steering to cope with remote association, and experience indicator comparison One-click diagnosis – analyzing problems and providing suggestions |
Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes Time capsule – analyzing the device version and configuration change history |
Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
One-click report | One-click health report – generating a report on the overall operation of a network |
Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
Cloud Management | |
Management and maintenance | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates One-click discovery of the wired and wireless network topology and topology generation |
Cloud Authentication | |
Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes Authentication implemented in the cloud, without the need to deploy the local authentication server |
Customized portal | Customized Portal authentication page for mobile phones and PCs |
SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
Platform Capabilities | |
Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities Spark-based big data computing capabilities Data warehouse building based on Hive, and data model conversion, integration, and other functions |
Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments Granting operation permissions to administrators in different scenarios |
System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
Note: For details, refer to the latest hybrid cloud management solution.
Regulatory Compliance | RG-WS6512 |
Regulatory Compliance | IEC 62368-1, EN 62368-1, EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386 |
