Firewall Throughput4

Firewall (Traffic Mix)

IPS1

NGFW1,2

Threat Protection1,3

15 Gbps

3 Gbps

1.8 Gbps

1.6 Gbps

1 Gbps

15 Gbps

4 Gbps

2.1 Gbps

1.7 Gbps

1.14 Gbps

15 Gbps

5 Gbps

2.4 Gbps

1.8 Gbps

1.28 Gbps

15 Gbps

6 Gbps

2.7 Gbps

1.9 Gbps

1.42 Gbps

15 Gbps

7 Gbps

3 Gbps

2.1 Gbps

1.56 Gbps

15 Gbps

8 Gbps

3.3 Gbps

2.2 Gbps

1.7 Gbps

15 Gbps

9 Gbps

3.6 Gbps

2.3 Gbps

1.8 Gbps

15 Gbps

10 Gbps

4 Gbps

3.5 Gbps

2 Gbps

Combination of product and performance licenses:

3G: RG-WALL 1600-Z5100-S chassis

4G: RG-WALL 1600-Z5100-S chassis + 1 RG-WALL 1600-Z5100-S-1G-LIC performance license

5G: RG-WALL 1600-Z5100-S chassis + 2 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

6G: RG-WALL 1600-Z5100-S chassis + 3 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

7G: RG-WALL 1600-Z5100-S chassis + 4 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

8G: RG-WALL 1600-Z5100-S chassis + 5 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

9G: RG-WALL 1600-Z5100-S chassis + 6 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

10G: RG-WALL 1600-Z5100-S chassis + 7 RG-WALL 1600-Z5100-S-1G-LIC performance licenses

System Performance and Capacity

RG-WALL 1600-Z5100-S

Firewall throughput of IPv4 packets (1518-byte UDP packets)4

15 Gbps

Firewall throughput (packets per second)

2.3 Mpps

Concurrent sessions (TCP)

1000000

New sessions/second (TCP)

134000

Firewall policies

4000

SSL VPN throughput (1392-byte)

3 Gbps

Concurrent SSL VPN users (recommended maximum, tunnel mode)

1000

10 Gbps

IPsec VPN throughput (512-byte)

4 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

1000

Dimensions and Weight

RG-WALL 1600-Z5100-S

Product dimensions (W x D x H)

440 mm x 300 mm x 43.6 mm (17.32 in. x 11.81 in. x 1.72 in.)

Shipping dimensions (W x D x H)

545 mm x 450 mm x 130 mm (21.46 in. x 17.72 in. x 5.12 in.)

Product weight

4.44 kg (9.79 lbs)

Shipping weight

5.7 kg (12.57 lbs)

Form factor

1 RU rack

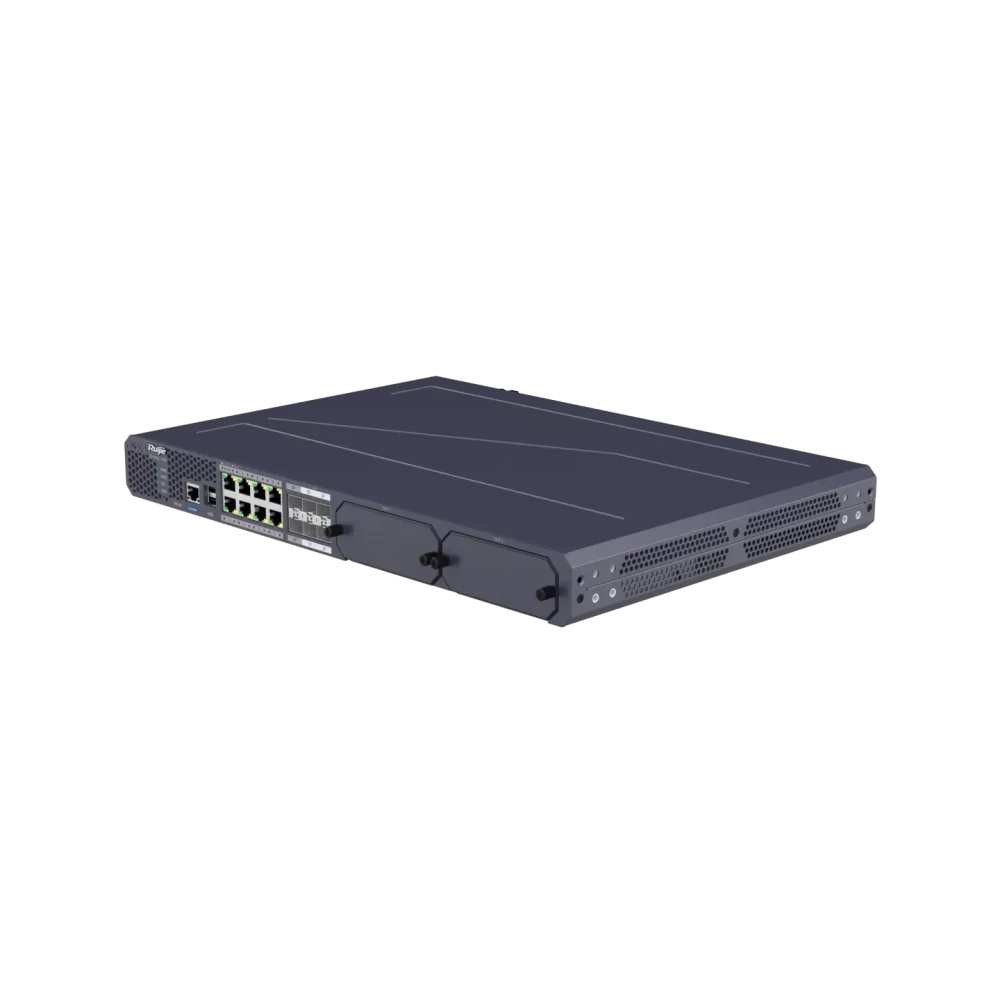

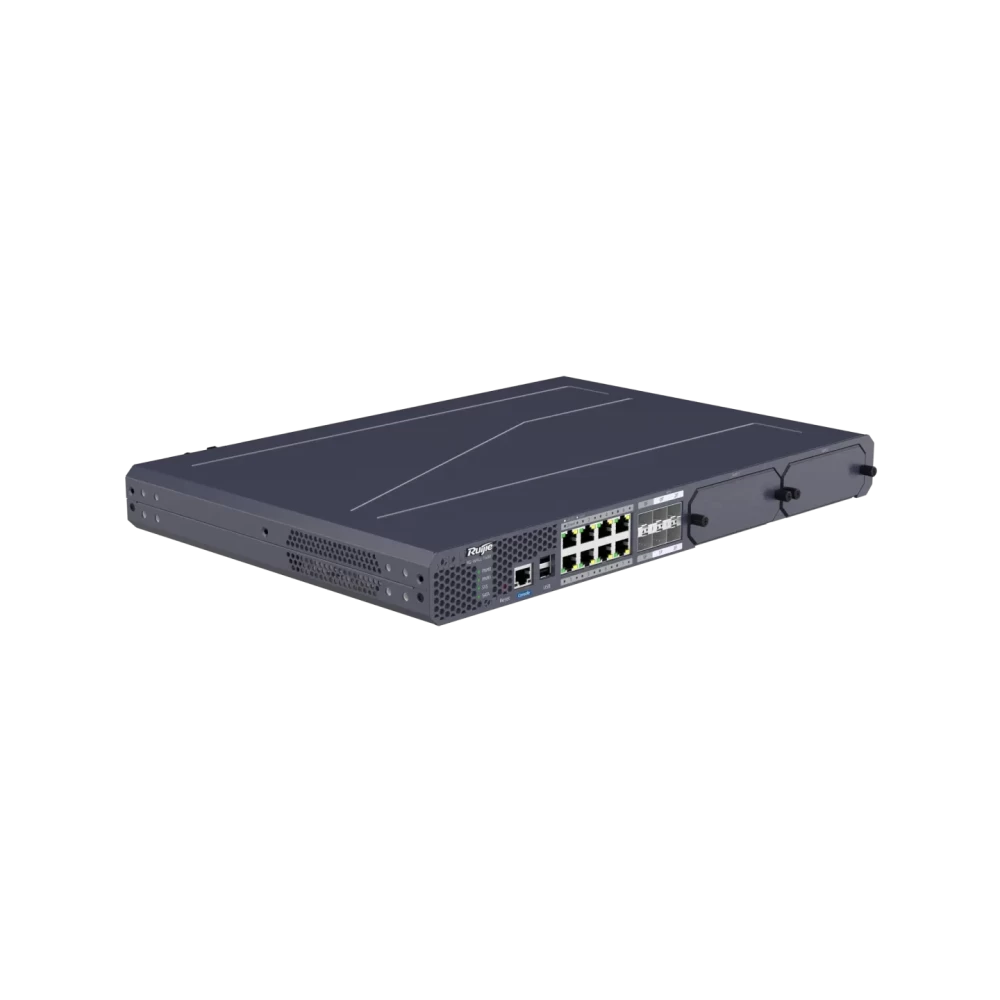

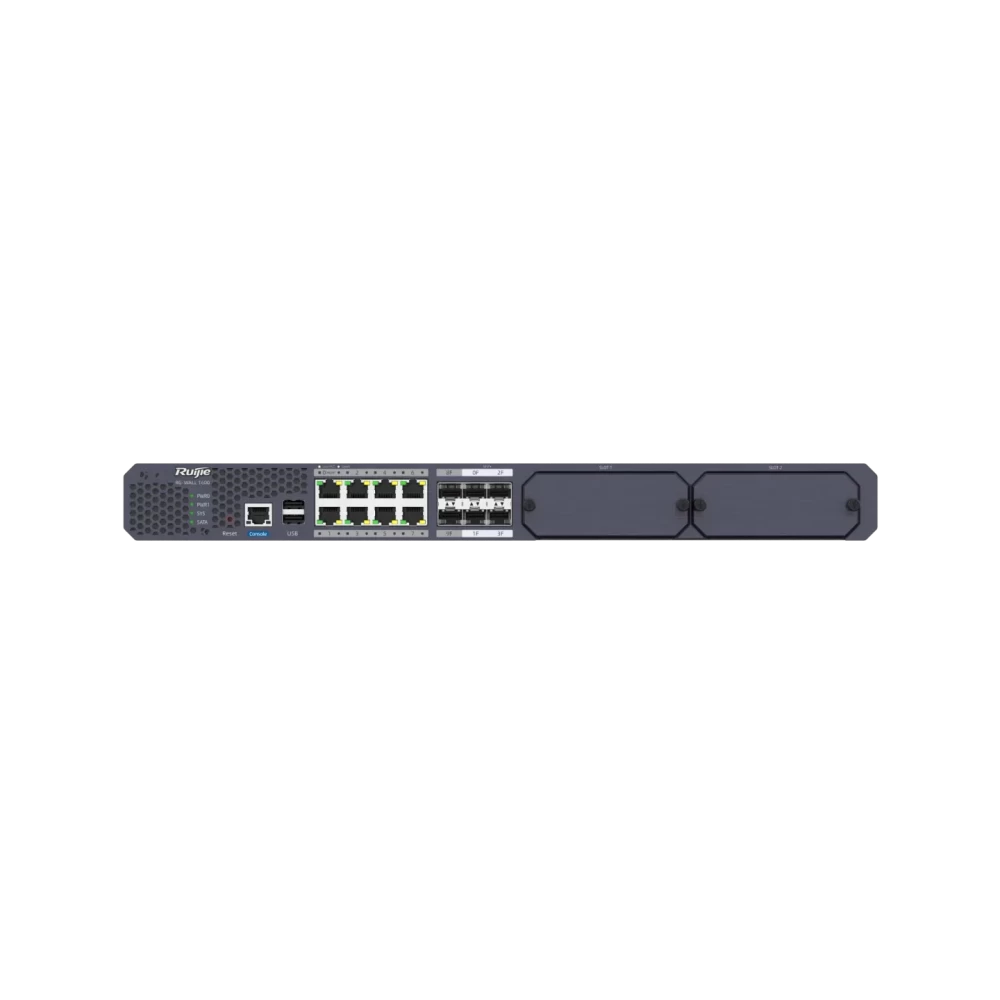

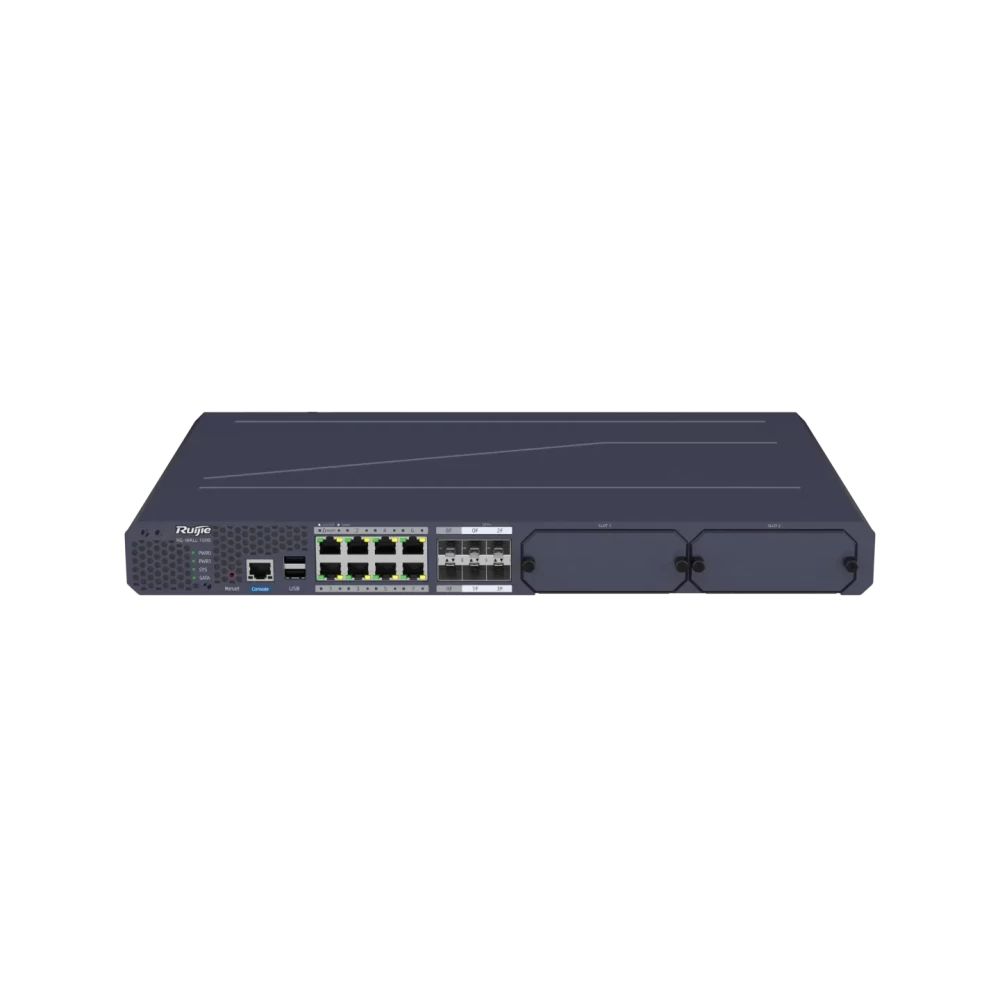

Port Specifications

RG-WALL 1600-Z5100-S

Fixed service port

8 x 10/100/1000BASE-T ports

2 x 1GE SFP ports

4 x 10GE SFP+ ports

Fixed management port

1 x RJ45 MGMT port (reusing Ge0/0)

1 x RJ45 console port (RS-232)

USB port

2 x USB 2.0 ports

Storage

RG-WALL 1600-Z5100-S

Hard disk

No hard disk for factory delivery. A 1 TB SATA hard drive can be added.

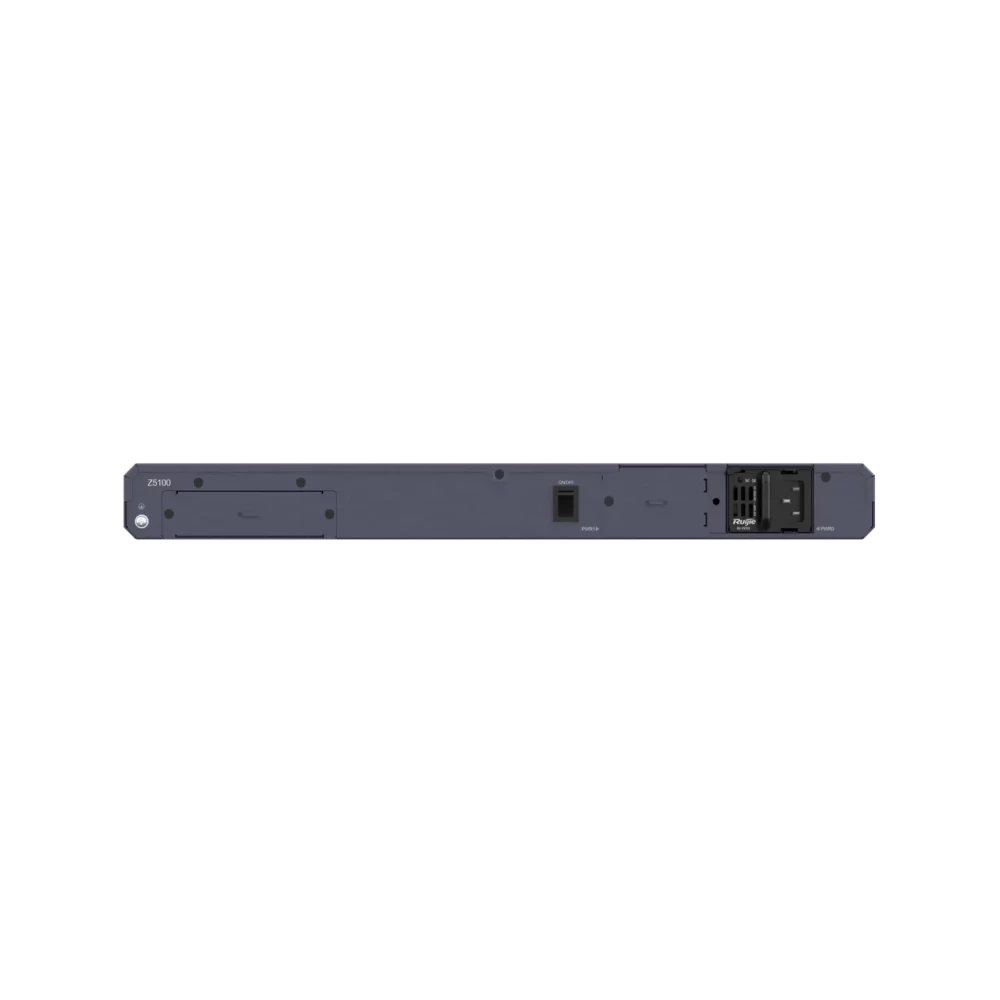

Power Supply and Consumption

RG-WALL 1600-Z5100-S

Power supply

2 x pluggable power modules (one power module for factory delivery)

l Rated input voltage: 100–240 V; 50–60 Hz

l Rated input current: 2 A (maximum)

Max. Power Consumption

< 60 W

Environment and Reliability

RG-WALL 1600-Z5100-S

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

40% RH to 65% RH (non-condensing)

Storage humidity

10% RH to 90% RH (non-condensing)

Noise level

36 dB

Operating altitude

0–5000 m (0–16404 ft.)

Compliance

EMC SZEM2404002506ATV

LVD SZES2404002242AT

Network

RG-WALL 1600-Z-S Series

Physical interface

Configuring interfaces as LAN/WAN interfaces; three modes for WAN interfaces: PPPoE, DHCP, and static IP; configuring the routing, transparent, or bypass mode for interfaces

Sub-interface

Configuring sub-interfaces and VLAN IDs

Bridge interface

Configuring interfaces in transparent mode as bridge interfaces

Aggregate interface

Configuring aggregate interfaces

Routing

IPv4/IPv6 static and dynamic routing, routing policy, Policy-based Routing (PBR), ISP address library-based routing, application-based routing, and egress load balancing

DHCP server

DHCP server functions

DNS server

Configuring DNS addresses for devices

DDNS

Multiple DDNS service providers supported

Link detection

Link detection and link detection logs

VPN

SSL VPN and IPsec VPN

VRRP

VRRP functions

Object

RG-WALL 1600-Z-S Series

Address and address group

Configuring IPv4/IPv6 address objects in IP address/range format

Zone

Configuring security zones

Application and application group

Configuring application types in application/application group mode

Service and service group

Configuring service objects; common default port services supported

Time plan

Configuring time objects; one-off time plans and cyclic time plans supported

ISP address library

Default ISP address libraries: China Telecom (CHN), China Mobile (CHN), China Unicom (CHN), CERNET (CHN), and Beijing Teletron (CHN); customizing, importing, and exporting ISP address libraries

Virus protection template

Configuring content object templates; antivirus (AV) templates supported; configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses

Intrusion prevention template

Configuring content object templates; predefined Intrusion Prevention System (IPS) templates supported; customizing IPS templates; configuring rule filters based on objects, severity, protocols, and threat types; setting excluded rules

File filtering

Configuring content object templates; file filter templates (filtering by file type) supported

URL filtering

URL filtering

SSL proxy certificate

Adding, importing, deleting, viewing, and downloading SSL proxy certificates; configuring a global SSL proxy certificate

Server certificate

Importing, deleting, viewing, and downloading server certificates

Security rule base

Viewing default security rules in the IPS security library

Content identification

URL category and keyword configuration

User authentication

User management, user import, authentication server configuration, real-name user information synchronization, and authentication policy configuration

Policy

RG-WALL 1600-Z-S Series

Traffic learning

Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic; exporting traffic learning logs

Network address translation (NAT)

NAT; configuring NAT policies; importing NAT policies in a batch; common NAT application-level gateway (ALG) services; server port mapping; viewing NAT address pool status

Security policy

Configuring security policies; customizing policies based on parameters including objects, contents, and zones; viewing the policy list; importing security policies in a batch

Policy simulation

Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects

Policy configuration wizard

Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies

Policy optimization

Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies

Policy lifecycle

Full lifecycle display of security policies, including detailed records of policy changes

Port scan

Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results

DoS/DDoS attack defense

Different DDoS attack defense policies in security defense

ARP attack defense

Preventing ARP attacks including ARP spoofing and ARP flooding in security defense

Local defense

Configuring local defense policies in security defense

Threat intelligence

Enabling or disabling threat intelligence; customizing threat intelligence; managing excluded threats

Blocklist and allowlist

Configuring global blocklists and allowlists

SSL proxy policy

Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; viewing the policy list

SSL proxy template

Configuring SSL proxy templates; setting the template type to protecting client or server

Allowlist

Configuring domain name allowlists and application allowlists

Behavior analysis

Configuring analysis policies, templates, and allowlists

System

RG-WALL 1600-Z-S Series

Simple Network Management Protocol (SNMP)

Connecting to third-party platforms for management through SNMPv1/v2/v3

Patch installation

Downloading and installing patches for upgrade

Cloud management platform

Enabling or disabling unified management on the cloud management platform; log upload to the cloud

One-click collection

Collecting fault information with one click

Device health

Device health diagnosis

Service diagnosis

Service continuity diagnosis

System upgrade

System upgrade and rollback

Database backup

System database backup and restoration

Factory settings restoration

Restoring factory settings on the web UI
