SKU: RG-WALL 1600-Z3200-S
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-WALL 1600-Z3200-S

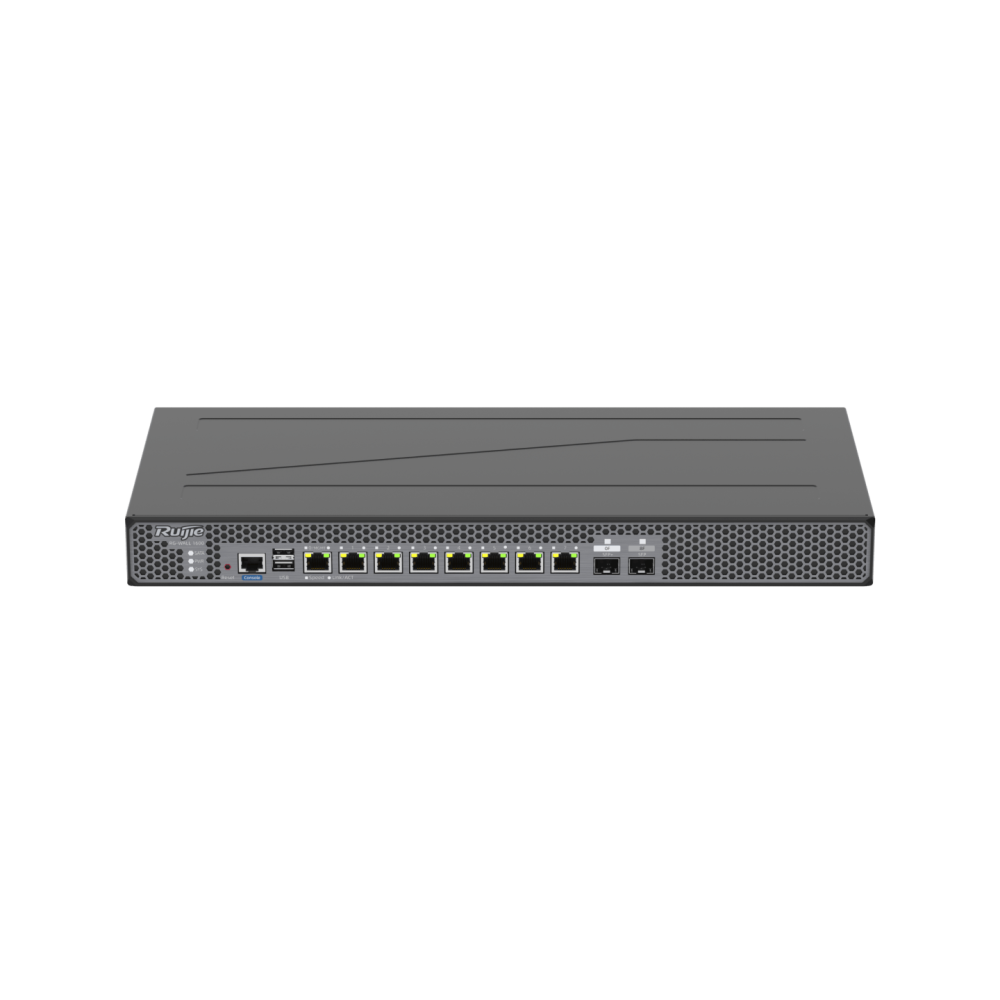

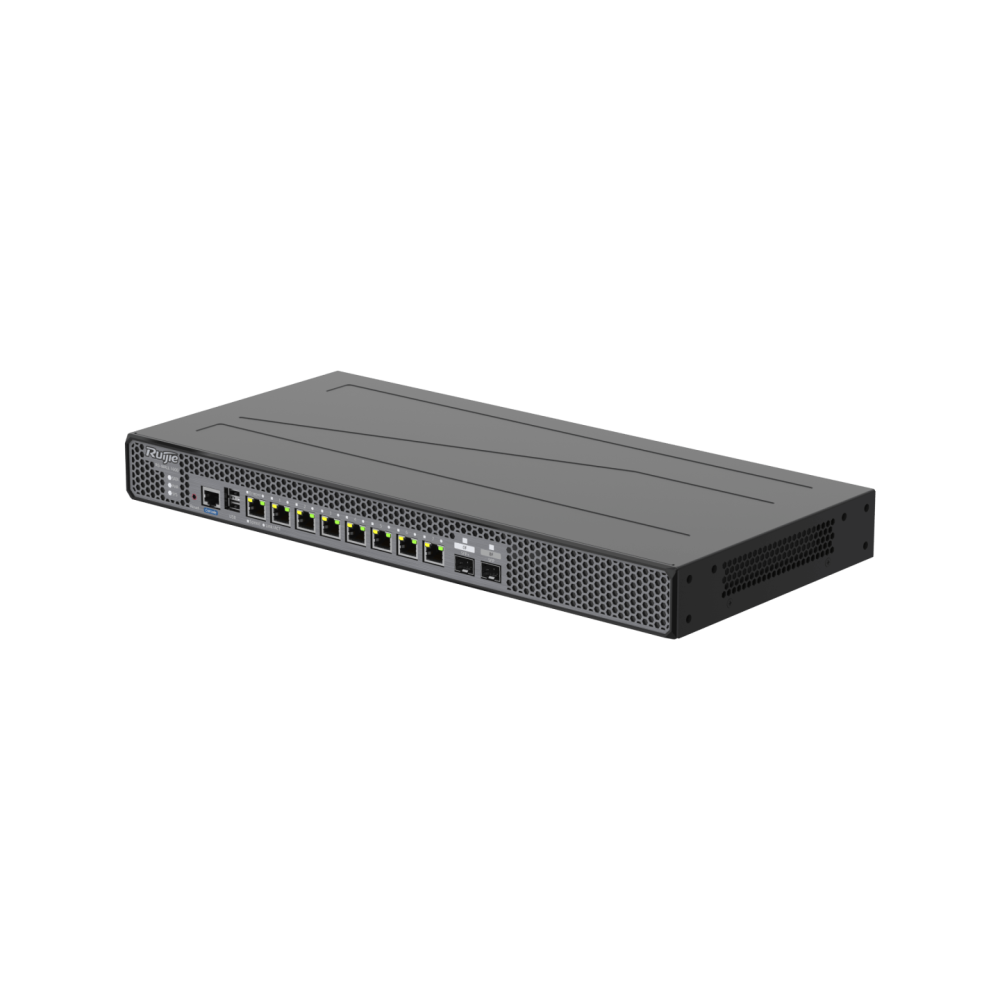

The RG-WALL 1600-Z3200-S cloud-managed firewall provides 8 x 10/100/1000BASE-T ports, 1 x GE SFP port, 1 x 10GE SFP+ port, and single power module (for factory delivery). The firewall is 1 U high and supports expansion of 1 TB enterprise-class SATA hard drive.
RG-WALL 1600-Z3200-S-1G-LIC
Performance expansion license for the RG-WALL 1600-Z3200-S cloud-managed firewall: One license provides expansion of 1 Gbps network throughput. For each device, up to two licenses can be added to achieve 3 Gbps network throughput.
RG-WALL 1600-Z3200-S-LIS-M-1Y
Four-in-one license for the firewall: One license provides one-year upgrade services for intrusion prevention (IPS), antivirus (AV), app identification (APP), and URL signature libraries.
RG-WALL 1600-Z3200-S-LIS-E-1Y
Five-in-one license for the firewall: One license provides one-year upgrade services for IPS, AV, APP, and URL signature libraries and one-year threat intelligence services.
RG-NSEC-HDD-1T
1 TB enterprise-class SATA hard drive can be added on the Z series firewall to meet hard disk configuration requirements.
RG-WALL 1600-Z3200-S+RG-WALL 1600-Z3200-S-LIS-M-1Y
Combination package of Ruijie cloud-managed firewall RG-WALL 1600-Z3200-S with a four-in-one firewall signature library license: includes one firewall and one-year upgrade services for IPS, AV, APP, and URL signature libraries.
RG-WALL 1600-Z3200-S+RG-WALL 1600-Z3200-S-LIS-E-1Y
Combination package of Ruijie cloud-managed firewall RG-WALL 1600-Z3200-S with a five-in-one firewall signature library license: includes one firewall, one-year upgrade services for IPS, AV, APP, and URL signature libraries, and one-year threat intelligence services.
The RG-WALL 1600-Z3200-S firewall provides one GE SFP port and one 10GE SFP+ port. The following table lists the optional optical transceivers.
Model
Description
MINI-GBIC-SX-MM850
1G SR module, SFP form factor, LC, 550 m (1,804.46 ft.) over MMF
MINI-GBIC-LX-SM1310
1G LX module, SFP form factor, LC, 10 km (32,808.40 ft.) over SMF
Mini-GBIC-GT
1G SFP copper module, SFP form factor, RJ-45, 100 m (328.08 ft.) over Cat 5e/6/6a
MINI-GBIC-LH40-SM1310
1G LH module, SFP form factor, LC, 40 km (131,233.60 ft.) over SMF
XG-SFP-LR-SM1310
10G LR module, SFP+ form factor, LC, 10 km (32,808.40 ft.) over SMF
XG-SFP-ER-SM1550
10G ER module, SFP+ form factor, LC, 40 km (131,233.60 ft.) over SMF
XG-SFP-AOC1M
10G SFP+ AOC cable, 1 m (3.28 ft.)
XG-SFP-AOC3M
10G SFP+ AOC cable, 3 m (9.84 ft.)
XG-SFP-AOC5M
10G SFP+ AOC cable, 5 m (16.40 ft.)
Brand: Ruijie
Model Number: RG-WALL 1600-Z3200-S
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 17/11/2024
Product Performance
Firewall Throughput4
Firewall (Traffic Mix)
IPS1
NGFW1,2
Threat Protection1,3
10 Gbps
1 Gbps
900 Mbps
850 Mbps
800 Mbps
10 Gbps
2 Gbps
1.6 Gbps
1.2 Gbps
900 Mbps
10 Gbps
3 Gbps
2 Gbps
1.6 Gbps
1 Gbps
Combination of product and performance licenses:
1G: RG-WALL 1600-Z3200-S chassis
2G: RG-WALL 1600-Z3200-S chassis + one RG-WALL 1600-Z3200-S-1G-LIC performance license
3G: RG-WALL 1600-Z3200-S chassis + two RG-WALL 1600-Z3200-S-1G-LIC performance licenses
System Performance and Capacity
RG-WALL 1600-Z3200-S
Firewall throughput of IPv4 packets (1518-byte UDP packets)4
10 Gbps
Firewall throughput (packets per second)
1.8 Mpps
Concurrent sessions (TCP)
500000
New sessions/second (TCP)
50000
Firewall policies
3000
1.7 Gbps
Concurrent SSL VPN users (recommended maximum, tunnel mode)
500
Application control throughput (HTTP 64K)2
3 Gbps
IPsec VPN throughput (512-byte)
2.6 Gbps
Gateway-to-gateway IPsec VPN tunnels
1000
Note:
All performance values are the maximum values and may vary depending on system configuration.
The performance values of IPS (mixed traffic), application control, NGFW, and threat protection are measured with logging enabled.
NGFW performance is measured with firewall, IPS, and application control enabled.
Threat protection performance is measured with firewall, IPS, application control, and malware protection enabled.
Firewall throughput is the maximum forwarding performance (1518-byte UDP packets) of hardware.
Hardware Specifications
Dimensions and Weight
RG-WALL 1600-Z3200-S
Product dimensions (W x D x H)
440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.; without rubber pads)
Shipping dimensions (W x D x H)
520 mm x 345 mm x 106 mm (20.47 in. x 13.58 in. x 4.17 in.)
Product weight
2.9 kg (6.39 lbs)
Shipping weight
4.0 kg (8.82 lbs)
Form factor
1 RU rack
Port Specifications
RG-WALL 1600-Z3200-S

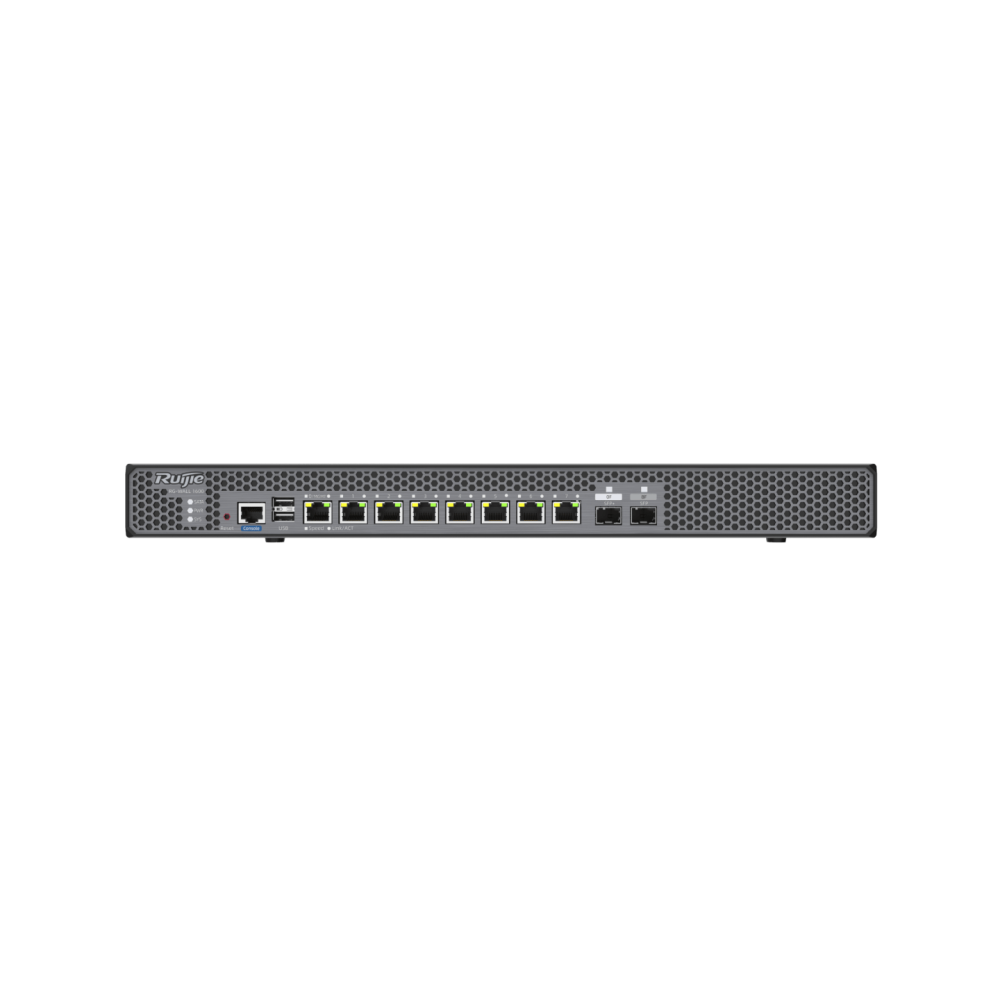

Fixed service port
8 x 10/100/1000BASE-T ports
1 x GE SFP port
1 x 10GE SFP+ port
Fixed management port
1 x RJ45 MGMT port (reusing Ge0/0)
1 x RJ45 console port (RS-232)
USB port
2 x USB 2.0 ports
Storage
RG-WALL 1600-Z3200-S
Hard disk
No hard disk for factory delivery. A 1 TB SATA hard drive can be added.
Power Supply and Consumption
RG-WALL 1600-Z3200-S

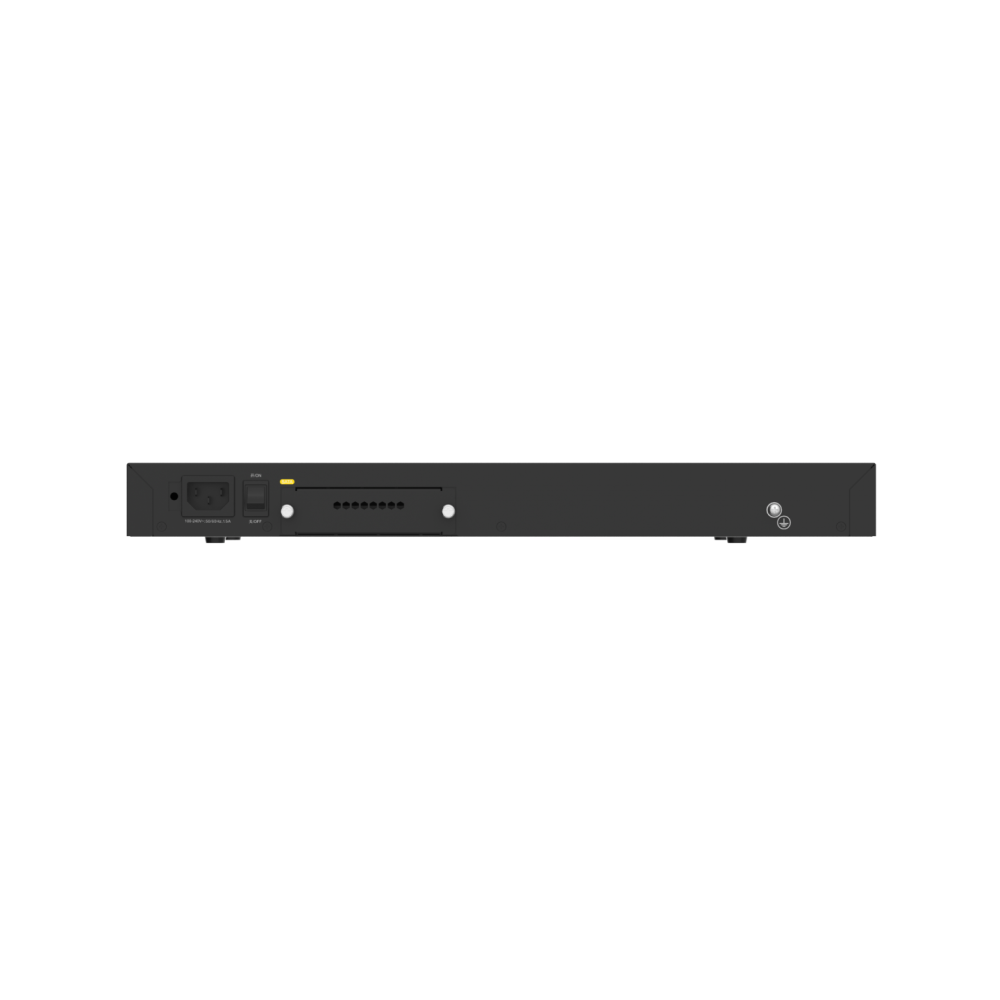

Power supply
Built-in single power module:
l Rated input voltage: 100–240 V; 50–60 Hz
l Rated input current: 0.65 A
Max. Power Consumption
< 25 W
Environment and Reliability
RG-WALL 1600-Z3200-S
Operating temperature
0°C to 45°C (32°F to 113°F)
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Operating humidity
5% RH to 95% RH (non-condensing)
Storage humidity
5% RH to 95% RH (non-condensing)
Noise level
43.7 dB
Operating altitude
0–5000 m (0–16404 ft.)
Compliance
EMC SZEM2302000974ATV
LVD SZES2302001034AT
Software Specifications
Network
RG-WALL 1600-Z3200-S
Physical interface
Configuring interfaces as LAN/WAN interfaces; three IP address assignment modes for WAN interfaces: PPPoE, DHCP, and static IP modes
Configuring routing or transparent mode for interfaces
Sub-interface
Configuring sub-interfaces and VLAN IDs
Bridge interface
Configuring interfaces in transparent mode as bridge interfaces
Static route
Configuring IPv4 static routes
PBR
Configuring policy-based routing (PBR)
Routing table
Overall routing information of a device
DHCP server
DHCP server; configuring DHCP address pools
Address management list
Assigned DHCP address list
DNS server
Configuring DNS addresses for devices
Link detection
Link detection and link detection logs
VPN
SSL VPN and IPsec VPN
VRRP
VRRP functions
Object
RG-WALL 1600-Z3200-S
Address/Address group
Configuring address objects in IP address/range format
Zone
Configuring security zones
Application and application group
Configuring application types in application/application group mode
Service/Service group
Configuring service objects; common default port services supported
Time plan
Configuring time objects; one-off time plans and cyclic time plans supported
Virus protection template
Configuring content object templates; predefined virus protection templates supported
Configuring virus protection templates; configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses
Intrusion prevention template
Configuring content object templates; predefined intrusion prevention templates supported
Configuring intrusion prevention templates; configuring rule filters based on objects, severity, protocols, and threat types; setting excluded rules
SSL proxy certificate
Adding, importing, deleting, viewing, and downloading SSL proxy certificates; configuring a global SSL proxy certificate
Server certificate
Importing, deleting, viewing, and downloading server certificates
Security rule base
Viewing default security rules in the IPS library
Content identification
URL category and keyword configuration
User authentication
User management, user import, authentication server configuration, real-name user information synchronization, and authentication policy configuration
Policy
RG-WALL 1600-Z3200-S
Traffic learning
Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic
Export of traffic learning logs
NAT
NAT and NAT policies
Policy import
Batch import of NAT policies
ALG
Common NAT ALG services in NAT policy
Server mapping
Server port mapping in NAT policy
Address pool
NAT address pool status display in NAT policy
Security policy
Configuring security policies; customizing policies based on parameters including objects, contents, and zones; policy list
Security policy
Batch import of security policies
Simulation policy
Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects
Policy configuration wizard
Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies
Policy optimization
Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies
Policy lifecycle
Full lifecycle display of security policies, including detailed records of policy changes
Port scan
Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results
DoS/DDoS attack defense
Different DDoS attack defense policies in security defense
ARP attack defense
Anti-ARP spoofing, ARP flooding suppression, and other functions in security defense
Local defense
Configuring local defense policies in security defense
Blocklist/Allowlist
Configuring global blocklists and allowlists
SSL proxy policy
Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; policy list
SSL proxy template
Configuring SSL proxy templates; setting the template type to protecting client or server
Allowlist
Configuring domain name allowlists and application allowlists
Allowlist
Configuring domain name allowlists and application allowlists
Behavior analysis
Configuring analysis policies, templates, and allowlists
System
RG-WALL 1600-Z3200-S
Administrator
Creating device administrators, including account names, passwords, and description
Administrator role
Setting multiple administrator roles and assigning different permissions
Clock configuration
Configuring system time; NTP service configuration supported
Service parameter
Configuring service ports for a device, including web (HTTPS), SSH, and other ports
Authorization management
Managing licenses of devices, including license import and activation
Device information
Viewing device information, including the product name, SN, and MAC address, version information, running time, and license information
System restart
Restarting the system on the web UI
System upgrade
Upgrading the system
Patch installation
Downloading and installing patches for upgrade
Configuration backup
Import and export of device configurations
Factory settings restoration
Restoring factory settings on the web UI
Signature library upgrade
Automatic signature library upgrades based on the latest versions on the cloud
Cloud management platform
Enabling or disabling unified management on the cloud management platform
Device binding
Adding devices to the cloud management platform by scanning a QR code
Ping
Ping for troubleshooting
Tracert
Tracert for troubleshooting
Packet obtaining tool
Tool for obtaining packets and exporting results
One-click collection
Collecting fault information with one click
Device health
Device health diagnosis
Service diagnosis
Service continuity diagnosis
Breakdown record
Breakdown information records
Device log retention
Device log retention
Factory settings restoration
Restoring factory settings on the web UI
