SKU: RG-S6980-64QC
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-S6980-64QC
64 x 400GE ports, four power supply module slots, eight fan slots
RG-PA1200I-F
Hot swappable power module, 2+2 redundancy, and front-to-rear airflow
M2EFAN II-F
Hot swappable fan module, 7+1 redundancy, and front-to-rear airflow
400GBASE Series Optical Transceivers
Model
Description
400G-QDD-SR8-MM850
400G SR8 transceiver, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF
400G-QDD-FR4-SM1310
400G FR4 transceiver, QSFP-DD form factor, Duplex
LC, 1310 nm, 2 km (6,561.68 ft.) over SMF
400G-QDD-DR4-SM1310
400G DR4 transceiver, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF
*400G-QDD-ZR-SM1550
400G ZR transceiver, QSFP-DD form factor, LC, tunable wavelength, P2P distance of up to 80 km (262,467.19 ft.) over SMF
* in Ordering Information indicates that the product will be available in the future.
100GBASE Series Optical Transceivers
Model
Description
100G-QSFP-iLR4-SM1310
100G iLR4 transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF
100G-QSFP-LR4-SM1310
100G LR4 transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF
100G-QSFP-SR-MM850
100G SR transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF
100G-QSFP-ER4-SM1310
100G ER4 transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF
100G-AOC-5M
100G AOC cable, QSFP28 form factor, 5 m (16.40 ft.)
100G-AOC-10M
100G AOC cable, QSFP28 form factor, 10 m (32.81 ft.)
Brand: Ruijie
Model Number: RG-S6980-64QC
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/12/2024
System Specifications | RG-S6980-64QC |

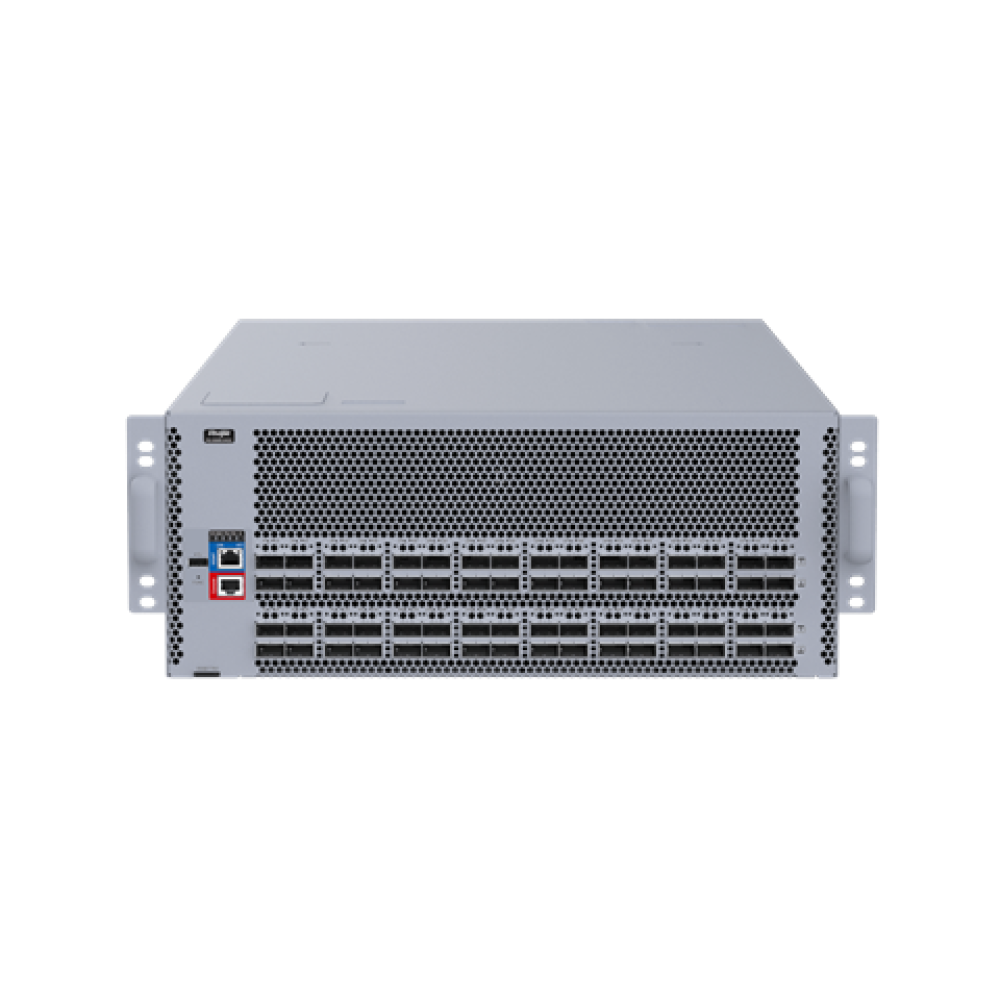

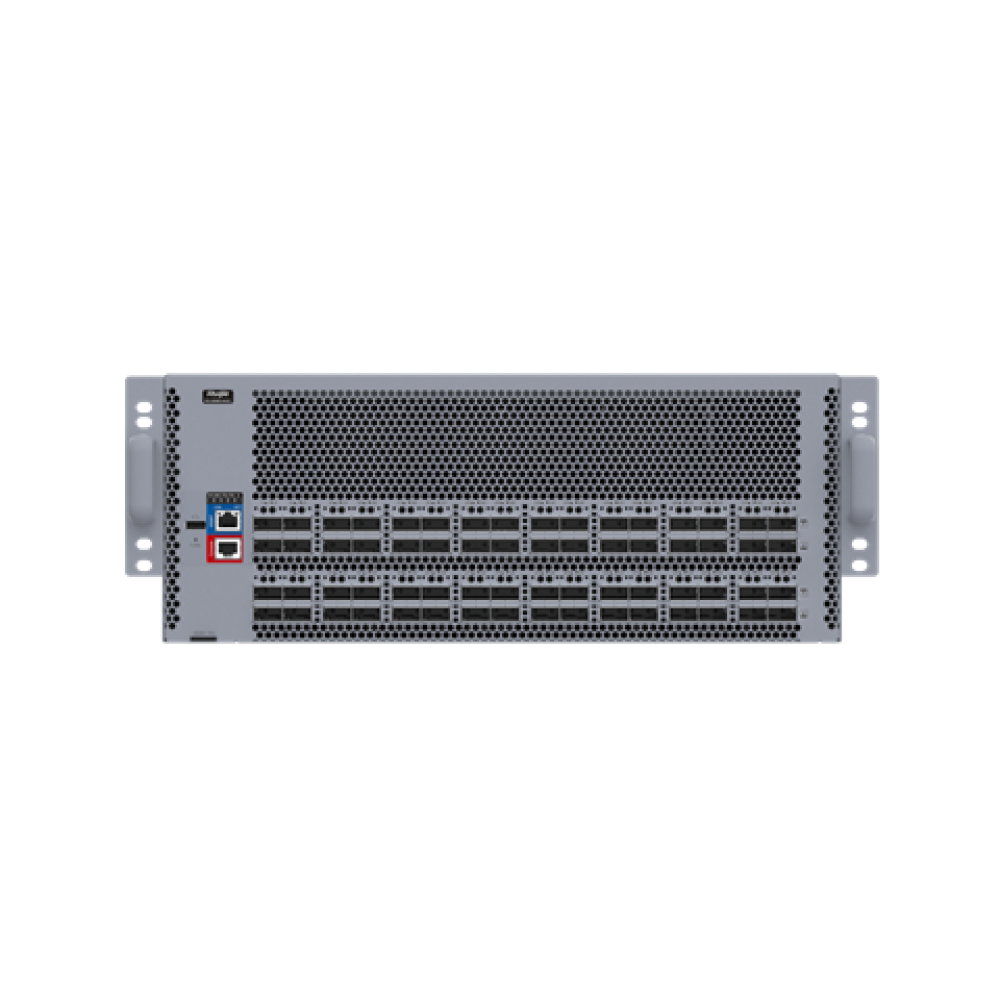

Ports | 64 × 400GE ports (QSFP-DD), up to 128 x 200GE ports |
Expansion Module Slots | Not supported |

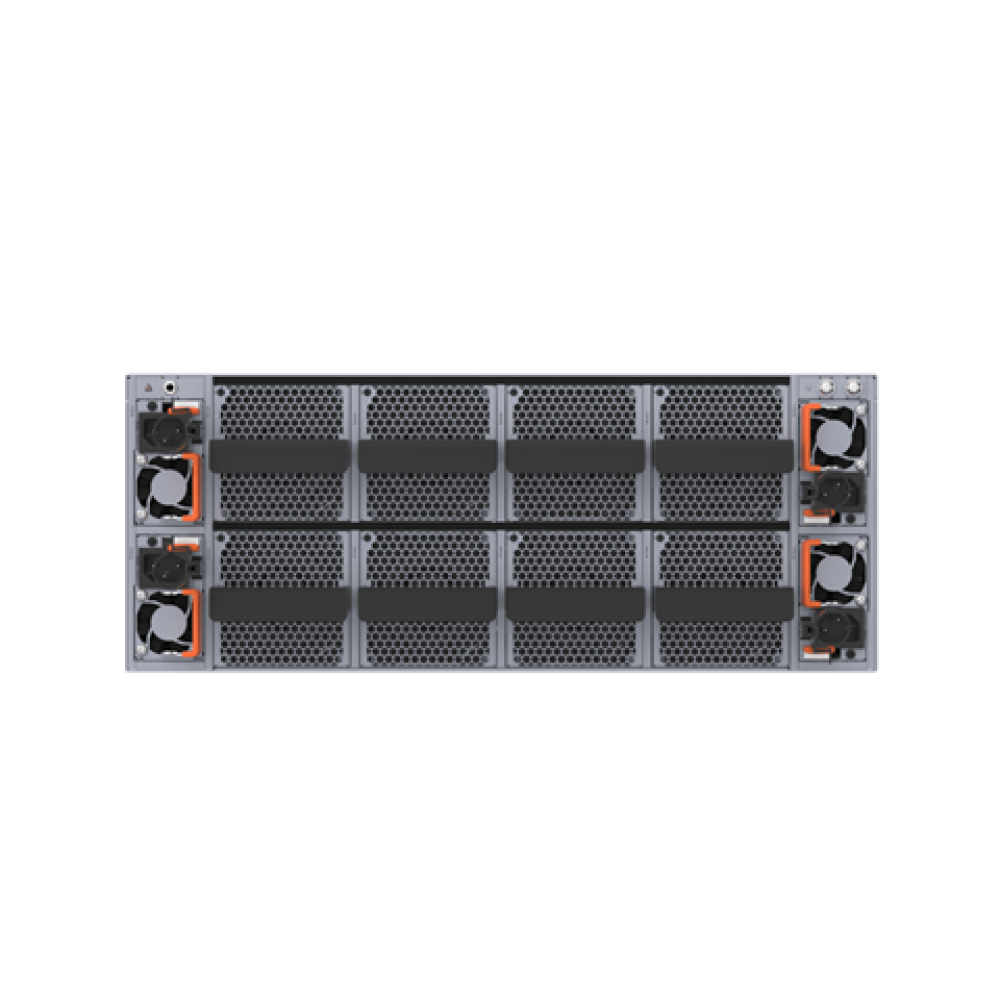

Expansion Modules | Four power supply module slots Eight fan module slots |
Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard |
Switching Capacity | 51.2 Tbps |
Packet Forwarding Rate | 10,300 Mpps |
802.1Q VLAN | 4,094 |
Dimensions and Weight | |
Dimensions (W × D × H) | 442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU) |
Weight | 38 kg (83.78 lbs., including eight fan modules and four power supply modules) |
Power Supply and Consumption | |
Power Consumption | ● Max: 2,400 W ● Typical: 1,760 W ● Static: 500 W |
AC | AC input: Rated voltage range: 100 V AC to 127 V AC Frequency: 50 Hz to 60 Hz Maximum rated input current: 13.8 A Rated voltage range: 200 V AC to 240 V AC Frequency: 50 Hz to 60 Hz Maximum rated input current: 8.5 A |
High-Voltage DC | HVDC input: 180 V DC to 300 V DC Rated voltage: 240 V DC Rated input current: 6.5 A |
Environment and Reliability | |
Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Operating Humidity | 10% RH to 90% RH (Non-condensing) |
Storage Humidity | 5% to 95% RH (non-condensing) |
Altitude | Operating altitude: up to 5,000 m (16,404.20 ft.) Storage altitude: up to 5,000 m (16,404.20 ft.) |
Software Specifications | RG-S6980-64QC |
Layer 2 Protocols | IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), jumbo frame (9 KB) |
Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, PBR, routing policy, ECMP, WCMP, VRRP |
IPv6 Protocols | Neighbor discovery, ICMPv6, path MTU discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ |
Data Center Features | PFC, ECN RDMA VXLAN, BGP-EVPN PFC deadlock prevention * AI ECN * ECN overlay RALB, AILB |
Visualization | gRPC sFlow |
QoS | 802.1p, DSCP, and ToS mapping |
Hgh Availability Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy and fan redundancy, and hot swappable line cards and power modules |
Security Features | Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, cleartext and MD5-based authentication for OSPF, RIPv2, and BGPv4 packets, Telnet login from specified IP addresses, broadcast packet suppression, hierarchical user management |
Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and overheat alarm |
Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, proxy ARP, and Syslog |
Specification | RG-S6980-64QC |
Safety | ● IEC 62368-1 ● EN 62368-1 ● BS EN 62368-1 ● GB 4943.1 |
Electromagnetic Compatibility (EMC) | ● EN 55032 ● EN 55035 ● EN 61000-3-2 ● EN 61000-3-3 ● BS EN55032 ● BS EN 55035 ● BS EN 61000-3-2 ● BS EN 61000-3-3 ● EN 300 386 ● GB/T 9254.1 |
Environment | ● 2011/65/EU EN 50581 ● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
