System Specifications

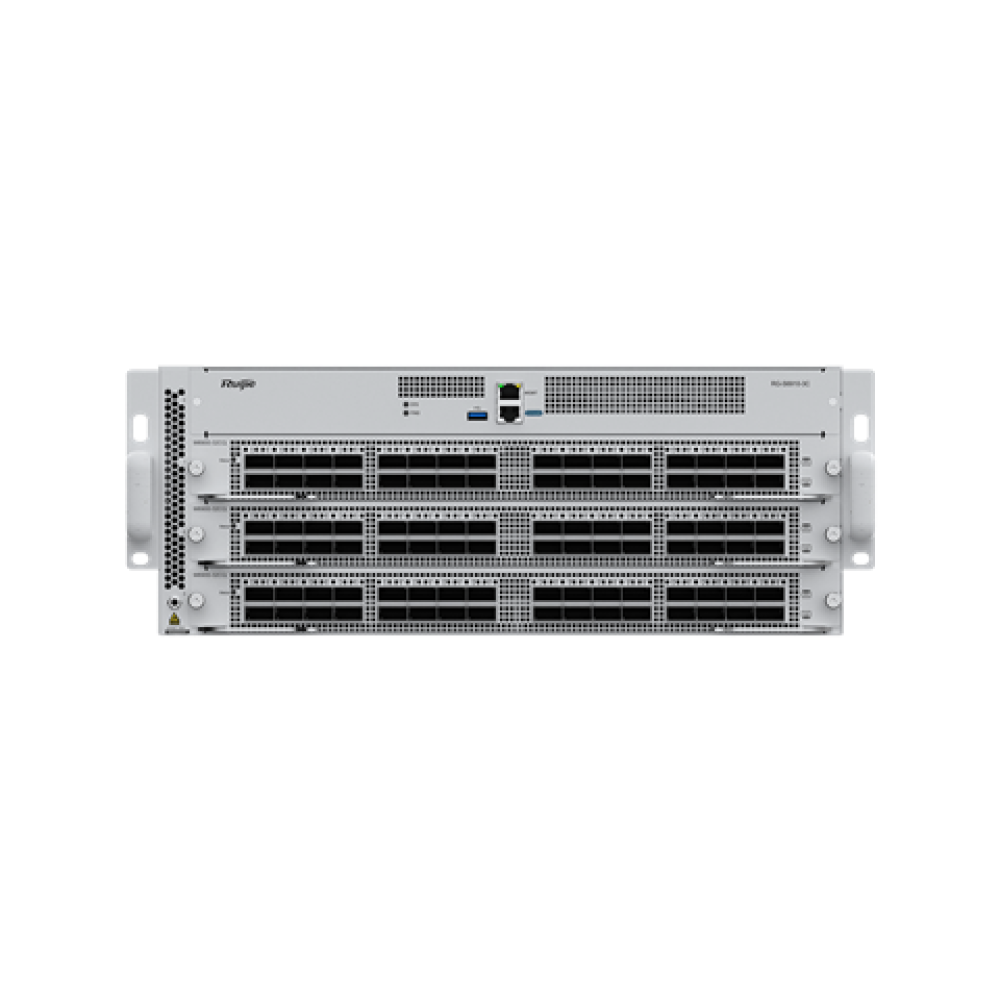

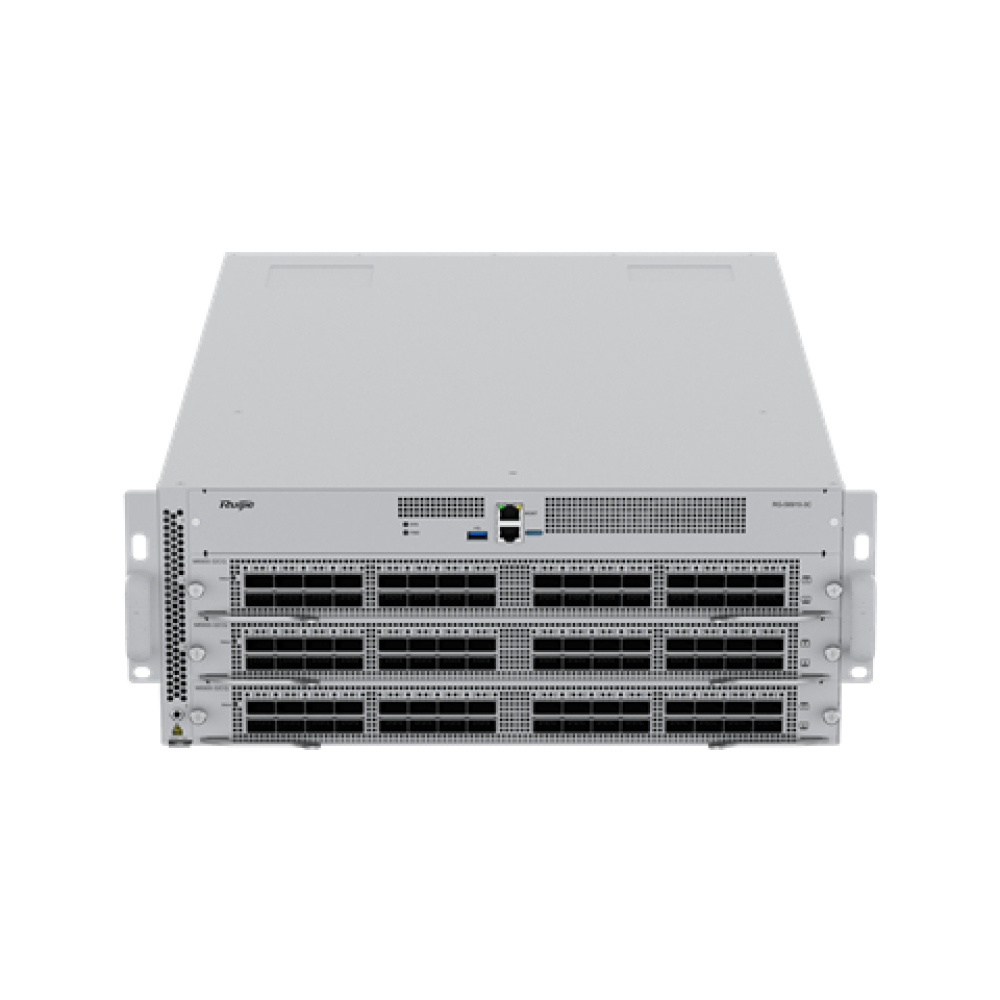

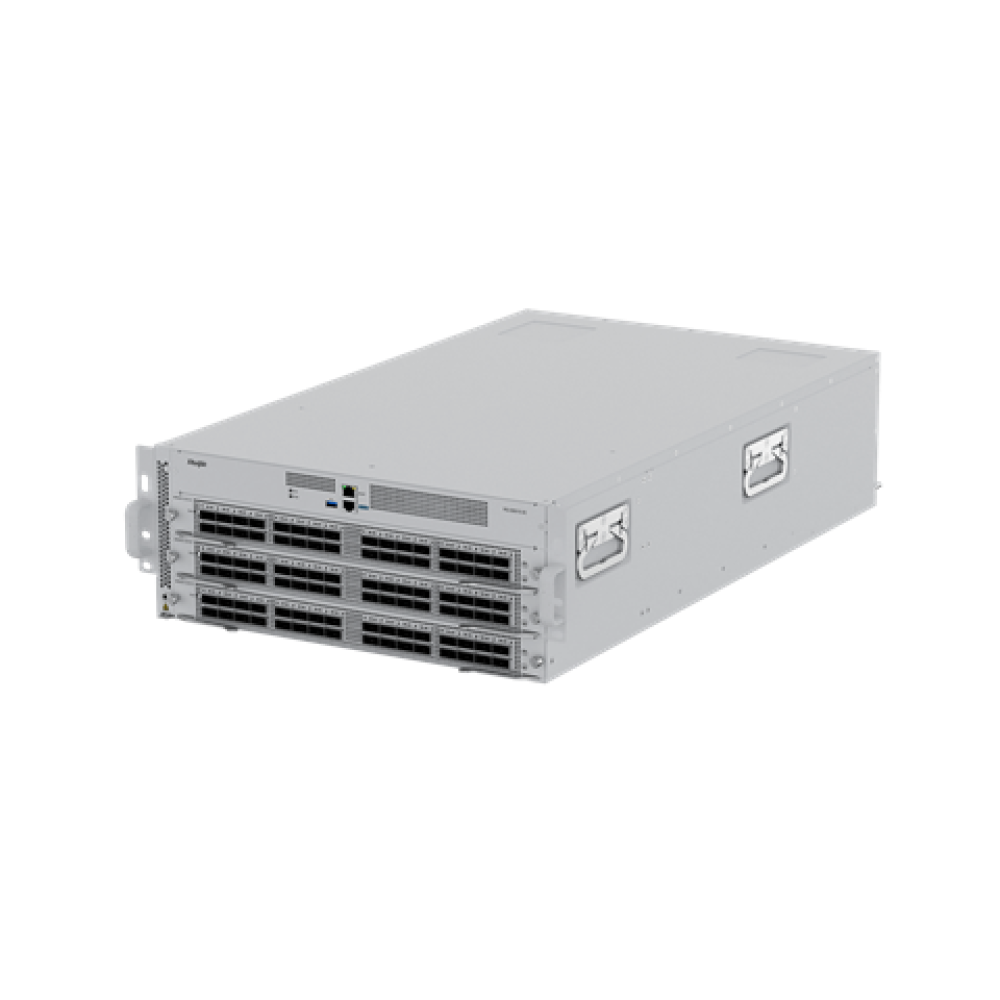

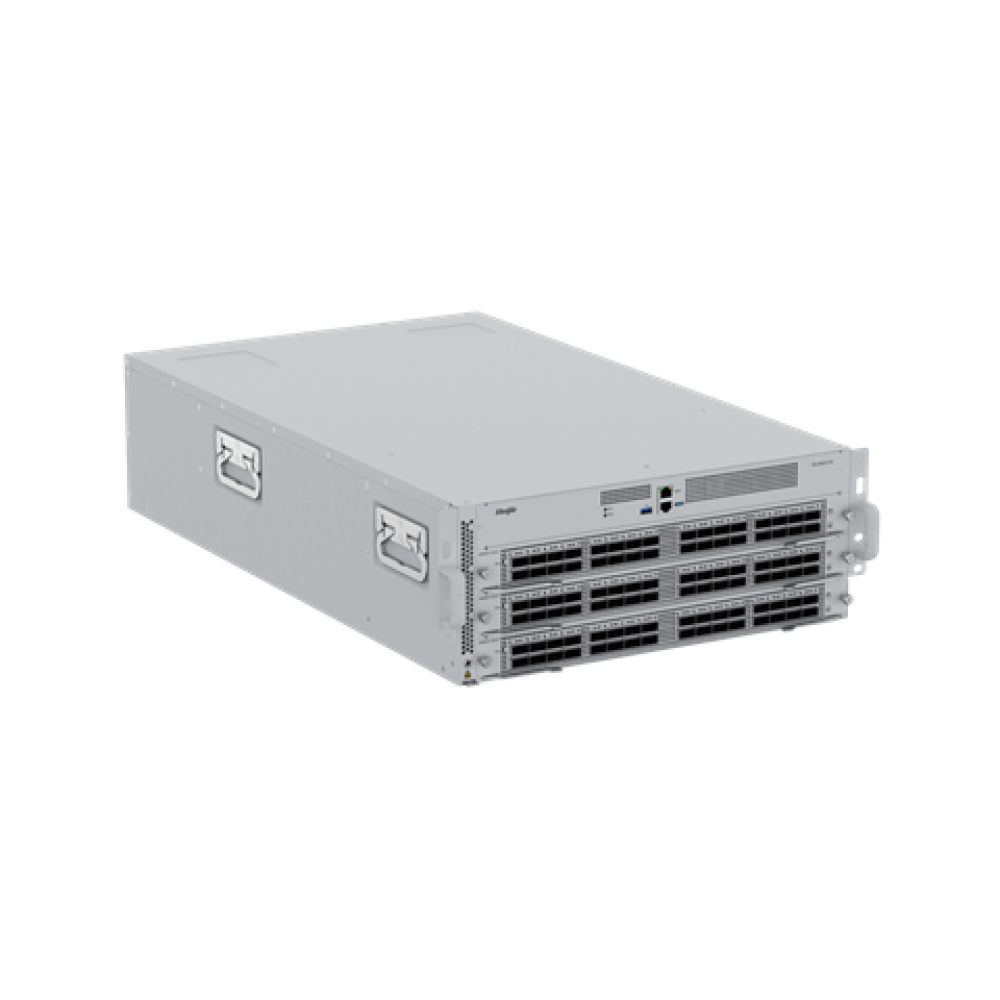

RG-S6910-3C

Ports

100GE/400GbE ports

Slots

4

Expansion Module Slots

Three expansion slots, each slot supporting the line card with 32 x 100GbE ports or 8 x 400GbE ports

Expansion module

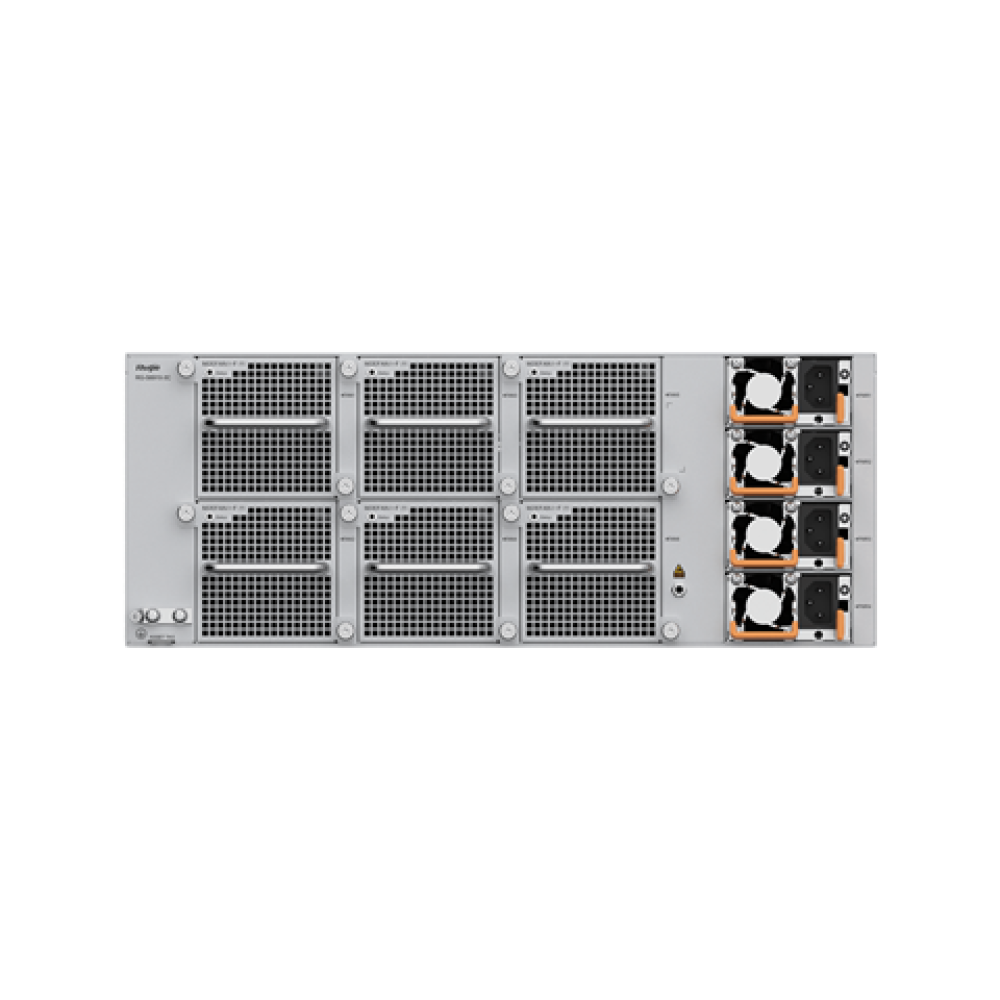

Four power module slots

Six fan module slots

Management Port

One management port, one console port, and one USB port

Switching Capacity

19.2 Tbps

Packet Forwarding Rate

4000 Mpps

802.1Q VLAN

4094

Dimensions and Weight

Dimensions

(W × D × H)

442 mm x 735 mm × 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.,4 RU)

Weight

About 42 kg (92.59 lbs., including four power modules, six fans, and three subcard modules)

Power Supply and Consumption

AC

● Rated voltage: 110 V AC/ 220 V AC

● Rated voltage range: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Max voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz

High-voltage DC

Input voltage range: 180 V DC to 300 V DC

Maximum Power Consumption

● Max: 2046 W

● Typical: 1092 W

● Static: 760 W

Environment and Reliability

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

10% RH to 90% RH (Non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)

Software Specifications

RG-S6910-3C

Device virtualization

Docker

gRPC APIs in Docker

L2 Protocols

IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (link aggregation), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IGMP Snooping, Jumbo Frame (9 KB), IEEE 802.1ad (QinQ), GVRP

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunneling, IPv4 over IPv6 tunneling

Visualization

gRPC

sFLOW and IPFIX

Multicast

IGMP Proxy、IGMP v1, v2, v3、IGMP Host Behavior、Querier Election、Member Query and Response、Static Multicast Route、IGMP Fast Leave、IGMP Filter、Layer-2 Multicast Forwarding Without Packet Loss、IGMPv1 and IGMPv2 Snooping、IVGL Mode、Querier、Source IP Address Check、Source Port Check、MLD Proxy、MLD v1 and v2、MLD Snooping、Coping with Traffic Burst Without Packet Loss、Layer-2 Multicast Forwarding Without Packet Loss、Source Port Check、MSDP、PIM-DM、PIM-SMv6、PIM-SSMv6、PIM-SM、PIM-SSM

ACL

ACL 80、Dual-stack Networking、ACL-based Redirection、IPv6 ACL、Standard IP-based ACL、Extended IP-based ACL、Extended MAC-based ACL、Ingress/Egress ACLs、Time-based ACL、Global ACL、ACL Counter、ACL Logging、ACL Re-marking、Displaying ACL Resource Usage、Expert-level ACL

QoS

Mapping of 802.1p, DSCP, and ToS priorities, ACL-based traffic classification, priority marking/remarking, multiple queue scheduling mechanisms available including SP, WFQ, and SP+WRR

Data center features

The MMU queue ID ranges from 0 to 7.

Buffer Occupation/Queue Traffic Statistics/Packet Loss Report Through gRPC

Flow Suspension Prevention

MMU

Displaying Lost Packets and Alarms Due to Buffer Congestion on an Interface

Real-Time Buffer Monitoring

Reading Statistics of Unicast Packet Loss Due to Buffer Congestion Through MIB

HA Design

GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swap for all cards and power modules

Security Features

Network foundation protection policy, CPP, DDoS attack defense, illegitimate packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression

Management Mode

SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Specification

RG-S6910-3C

Safety

● UL 62368-1

● CSA C22.2 No. 62368-1

● IEC 62368-1

● EN 62368-1

● BS EN 62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● EN 55035

● EN 61000-3-2

● EN 61000-3-3

● BS EN55032

● BS EN 55035

● BS EN 61000-3-2

● BS EN61000-3-3

● EN 300 386

● ANSI C63.4

● 47 CFR FCC Part 15 Subpart B

● ICES-003 Issue 7

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
