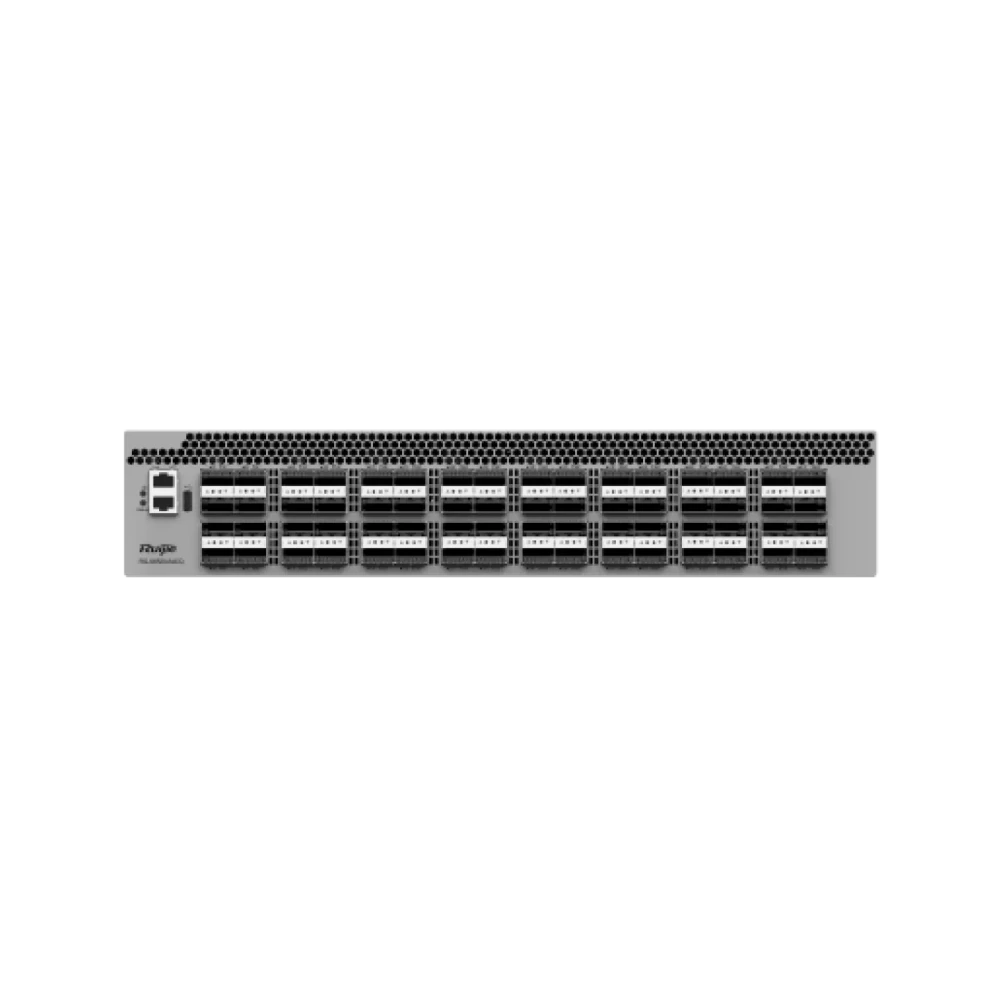

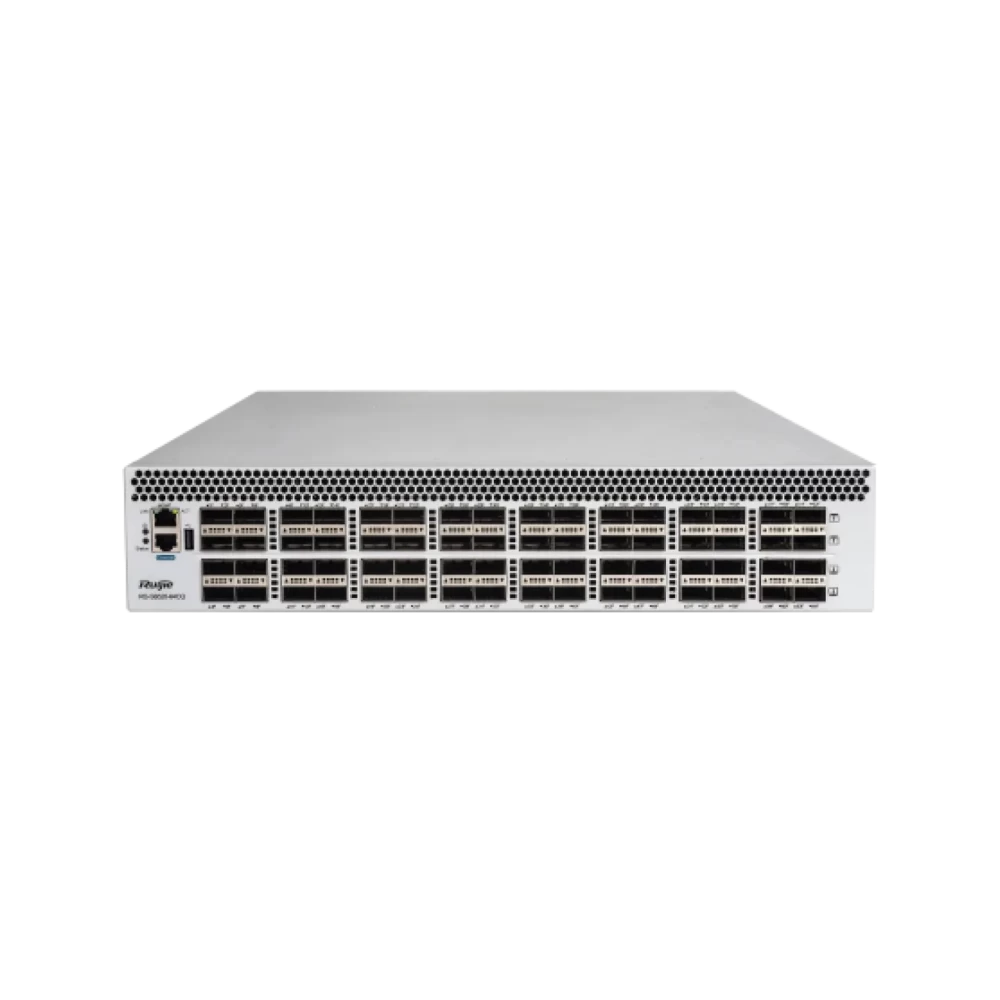

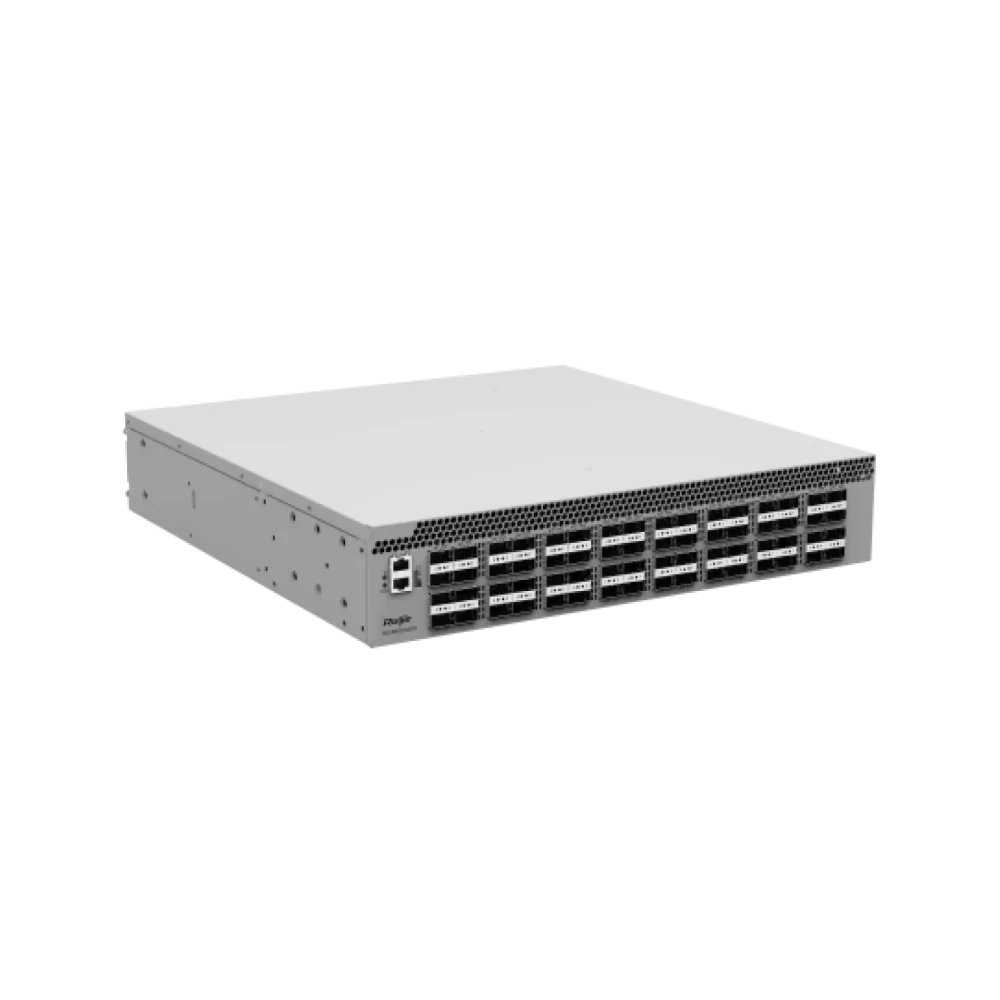

RG-S6520-64CQ 100GE Data Center RUIJIE Access Switch
RG-S6520-64CQ 100GE Data Center RUIJIE Access Switch
RG-S6520-64CQ 100GE Data Center RUIJIE Access Switch
RG-S6520-64CQ 100GE Data Center RUIJIE Access Switch
In stock

RG-S6520-64CQ 100GE Data Center RUIJIE Access Switch

SKU: RG-S6520-64CQ

Category: RUIJIE NETWORK SWITCH

Availability: Unlimited

0.00/5 (0 Review)
Quantity:
Total: KD 1,000.000
Share on:

Description

Chassis, Fan, and Power Supply Modules

Product Model

Description

RG-S6520-64CQ

64 × 100GE ports

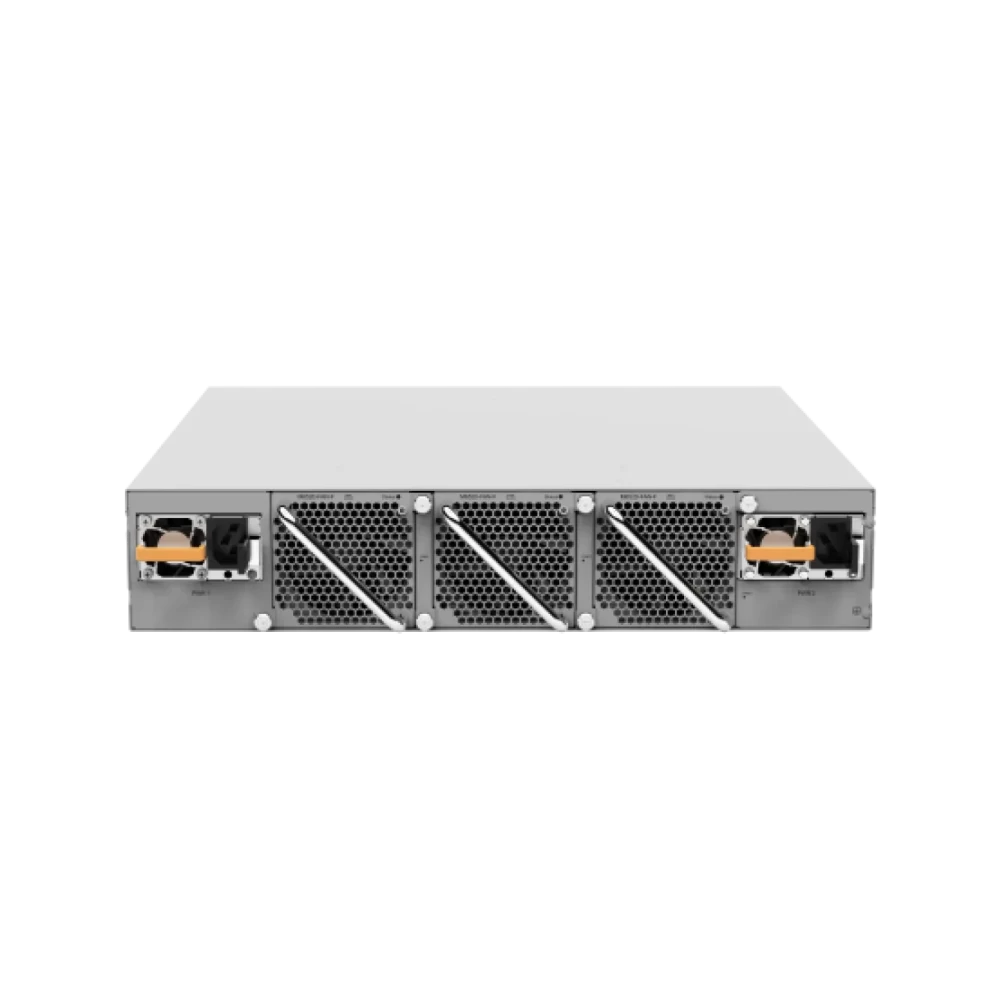

Two power supply module slots and three fan module slots
The power supply model is RG-PA800I-F, and the fan model is M6520-FAN-F.

RG-PA800I-F

Power supply module, supporting 1+1 redundancy, hot swapping, and front-to-rear ventilation design

M6520-FAN-F

Fan module, supporting 2+1 redundancy, hot swapping, and front-to-rear ventilation design



100GBASE Series Optical Modules

Product Model

Description

100G-QSFP-SR-MM850

100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF

100G-QSFP-LR4-SM1310

100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF

100G-QSFP-iLR4-SM1310

100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF

100G-QSFP-ER4-SM1310

100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF

100G-AOC-10M

100G QSFP28 AOC cable, 10 m (32.81 ft.)

100G-AOC-5M

100G QSFP28 AOC cable, 5 m (16.40 ft.)



40GBASE Series Optical Modules

Product Model

Description

40G-QSFP-SR-MM850

40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF

40G-QSFP-LR4-SM1310

40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF

40G-QSFP-LSR-MM850

40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF

40G-QSFP-LX4-SM1310

40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF

40G-QSFP-iLR4-SM1310

40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF

40G-AOC-30M

40G QSFP+ AOC cable, 30 m (98.43 ft.)

40G-AOC-5M

40G QSFP+ AOC cable, 5 m (16.40 ft.)


Product Specifications

Brand: Ruijie

Model Number: RG-S6520-64CQ

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 999

Listed date: 05/12/2024

Hardware Specifications

System Specifications

RG-S6520-64CQ

Ports

64 x 100GE ports (QSFP28)

Expansion Module Slots

Two power supply module slots, supporting 1+1 redundancy

Three fan module slots, supporting 2+1 redundancy

Management Port

One management port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

12.8 Tbps

Packet Forwarding Rate

4482 Mpps

802.1Q VLAN

4094

Dimensions and Weight

Dimensions
(W × D × H)

442 mm x 450 mm x 88.1 mm (17.40 in. x 17.72 in. x 3.47 in., 1 RU)

Weight

About 20 kg (44.09 lbs., including two power supply modules and three fan modules)

Power Supply and Consumption

AC

RG-PA800I-F module

● Rated voltage: 110 V AC/220 V AC

● Rated voltage range: 100 V AC to 240 V AC (50 Hz to 60 Hz)

● Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

● Rated input current range: 5 A to 10 A



High-voltage DC

RG-PA800I-F module

● Max voltage range: 180 V DC to 310 V DC

● Rated voltage: 240 V DC

● Rated input current: 5 A

Maximum Power Consumption

● Max: 600 W

● Typical: 410 W

● Static: 222 W

Environment and Reliability

Operating Temperature

0 °C to 45 °C (32 °F to 113°F)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity

10% RH to 90% RH

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)



Software Specifications

Software Specifications

RG-S6520-64CQ

L2 Protocols

IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel

Multicast

IGMPv1, v2, v3、IGMP Host Behavior、Member Query and Response、Querier Election、IGMP Proxy、Multicast Static Routing、MSDP、PIM-DMv4(PIM-DM)、PIM-SMv4(PIM-SM/PIM-SSM/Enabling PIM on Layer-3 Subinterface)、PIM-SMv6、MLD v1 and v2、MLD Proxy、Enabling PIMv6 on Layer-3 Subinterface

ACL

Standard IP-based ACL、Extended MAC/IP-based ACL、Expert-level ACL、ACL 80、IPv6 ACL、When the same ACL is applied to different physical interfaces or SVIs, resources can be multiplexed.、ACL Logging、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets、Ingress/Egress ACLs

Data Center Features

PFC, ECN, and other data center features

M-LAG

RDMA

Visualization

gRPC

sFLOW sampling

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities
ACL-based traffic classification
Priority marking/remarking
Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR

Virtualization

Virtual Switching Unit

Buffer Management

Buffer status monitoring and management, and identification of burst traffic

HA Design

GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules

Security Features

Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, and ARP check

Management Mode

SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, syslog, SPAN/RSPAN/ERSPAN, and configuration rollback

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog



Safety and Regulatory Compliance

Specifications

RG-S6520-64CQ

Safety

● IEC 62368-1

● EN 62368-1

● NM EN 62368-1

● NM CEI 62368-1

● BS EN 62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● EN 55035

● NM EN 55035

● BS EN55032

● BS EN 55035

● BS EN 61000-3-2

● BS EN61000-3-3

● EN IEC 61000-3-3

● EN IEC 61000-3-2

● NM EN 61000-3-2

● NM EN 61000-3-3

● EN 300 386

● VCCI-CLSPR 32

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
