SKU: RG-S6510-48VS8CQ
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Product Model
Description

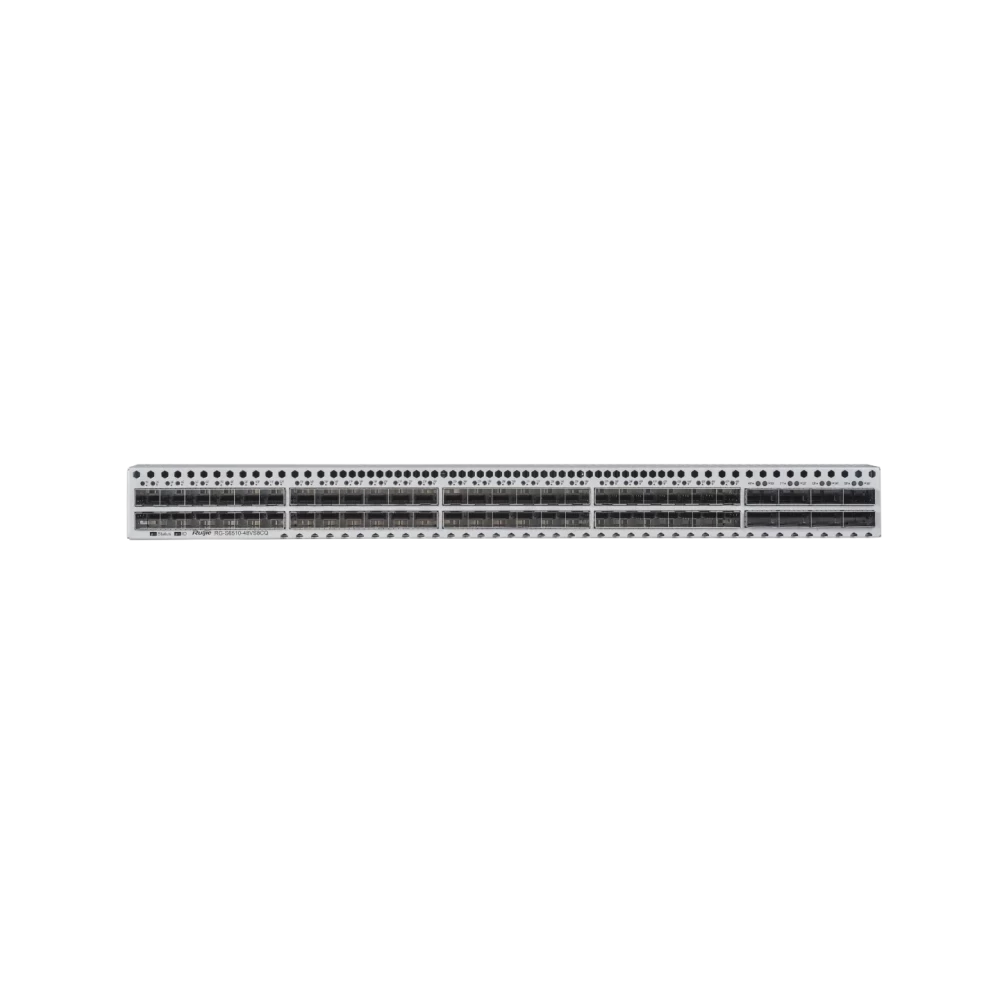

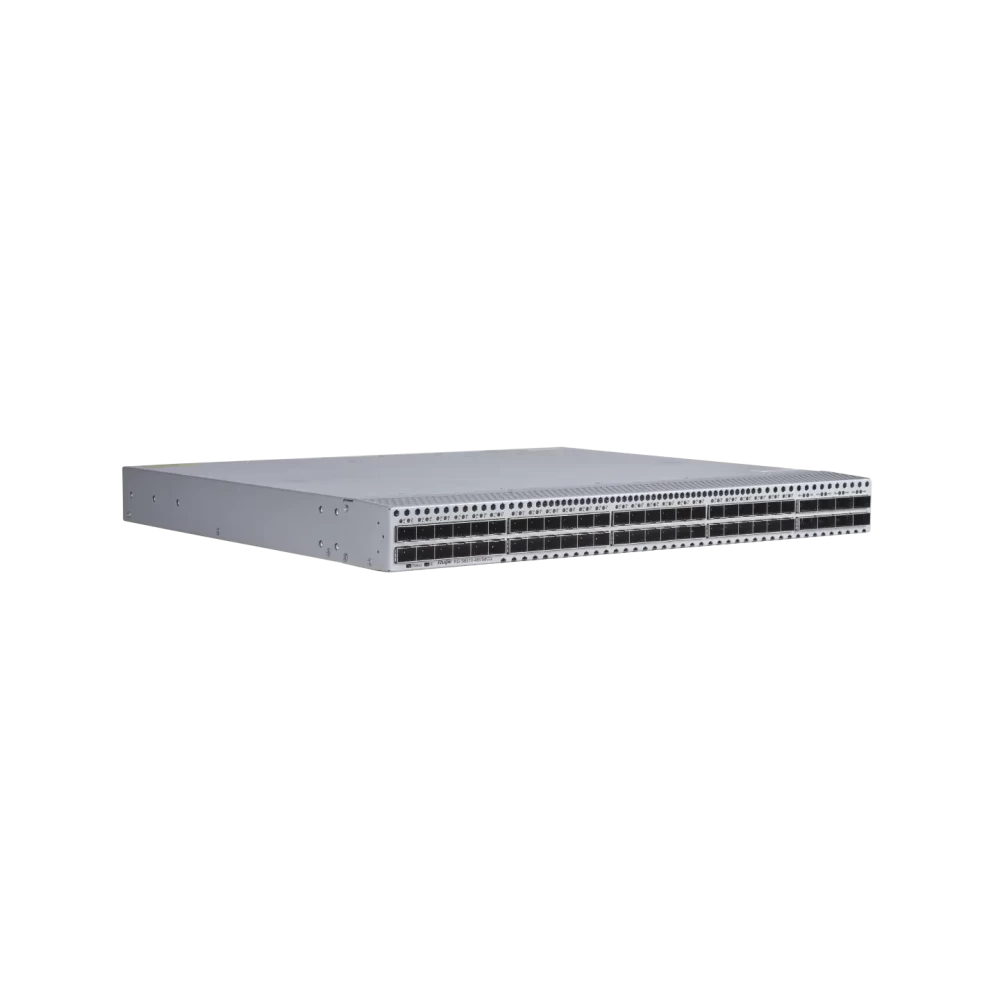

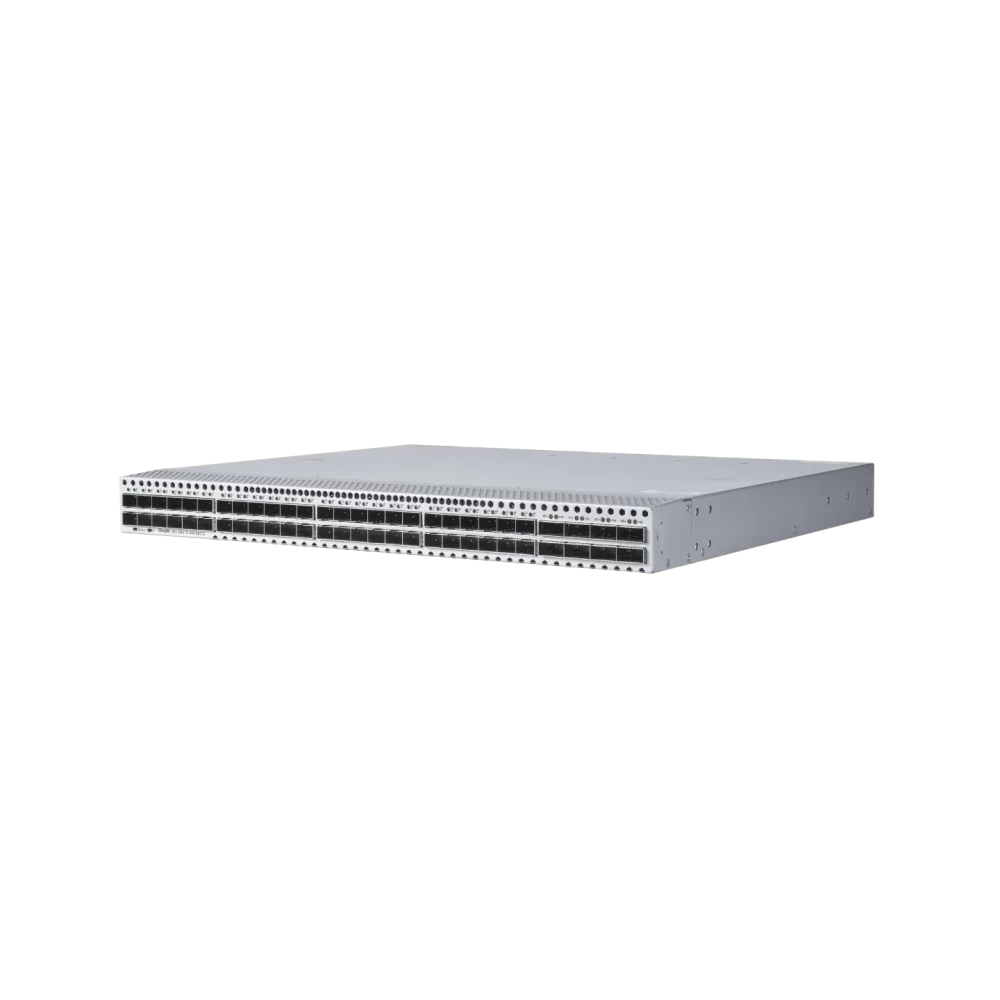

RG-S6510-48VS8CQ
48 × 25GE ports and 8 × 100GE ports.

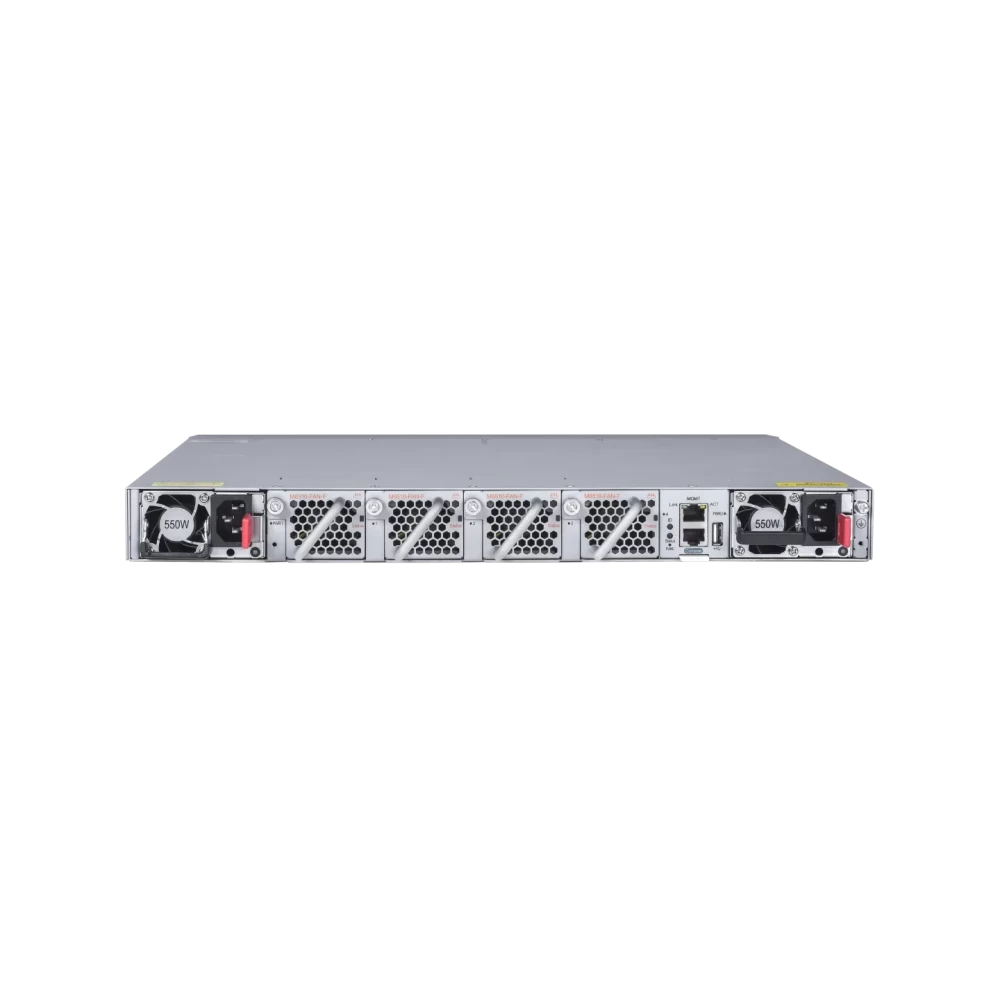

Two power supply module slots and four fan module slots.
The power module model is RG-PA550I-F, and the fan model is M6510-FAN-F.
RG-S6510-32CQ
Provides 32 × 100G ports.
Two power supply module slots and five fan module slots.
The power module model is RG-PA550I-F, and the fan model is M1HFAN I-F.
Fan and Power Supply Modules
Product Model
Description
RG-PA550I-F
550 W power supply module (AC and 240 V HVDC)
RG-PD800I-F
800 W power supply module (48 V LVDC), applicable only to RG-S6510-48VS8CQ
M6510-FAN-F
Fan module of RG-S6510-48VS8CQ, supporting 3+1 redundancy, hot swapping, and front-to-rear ventilation design.
M1HFAN I-F
Fan module of RG-S6510-32CQ, supporting 4+1 redundancy, hot swapping, and front-to-rear ventilation design.
100GBASE Series Optical Modules
Product Model
Description
100G-QSFP-SR-MM850
100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF
100G-QSFP-LR4-SM1310
100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF
100G-QSFP-iLR4-SM1310
100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF
100G-QSFP-ER4-SM1310
100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF
100G-AOC-10M
100G QSFP28 AOC cable, 10 m (32.81 ft.)
100G-AOC-5M
100G QSFP28 AOC cable, 5 m (16.40 ft.)
40GBASE Series Optical Modules
Product Model
Description
40G-QSFP-SR-MM850
40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF
40G-QSFP-LR4-SM1310
40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF
40G-QSFP-LSR-MM850
40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF
40G-QSFP-iLR4-SM1310
40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF
40G-QSFP-LX4-SM1310
40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF
40G-AOC-30M
40G QSFP+ AOC cable, 30 m (98.43 ft.)
40G-AOC-5M
40G QSFP+ AOC cable, 5 m (16.40 ft.)
25GBASE Series Optical Modules
Product Model
Description
VG-SFP-AOC5M
25G SFP28 AOC cable, 5 m (16.40 ft.)
VG-SFP-LR-SM1310
25G LR module, SFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF
VG-SFP-SR-MM850
25G SR module, SFP28 form factor, Duplex LC, 850 nm, 100 m (328.08 ft.) over MMF
10GBASE Series Optical Modules
Product Model
Description
XG-LR-SM1310
10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF
XG-SR-MM850
10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF
XG-SFP-AOC1M
10G SFP+ AOC cable, 1 m (3.28 ft.)
XG-SFP-AOC3M
10G SFP+ AOC cable, 3 m (9.84 ft.)
XG-SFP-AOC5M
10G SFP+ AOC cable, 5 m (16.40 ft.)
XG-SFP-SR-MM850
10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF
XG-SFP-LR-SM1310
10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF
XG-SFP-ER-SM1550
10G ER module, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF
XG-SFP-ZR-SM1550
10G ZR module, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF
1000BASE Series Optical Modules
Product Model
Description
GE-SFP-LH40-SM1310-BIDI
1G LH module, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF
GE-SFP-LX20-SM1310-BIDI
1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF
GE-SFP-LX20-SM1550-BIDI
1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF
MINI-GBIC-LH40-SM1310
1G LH module, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF
MINI-GBIC-LX-SM1310
1G LX module, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF
MINI-GBIC-SX-MM850
1G SR module, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF
MINI-GBIC-ZX80-SM1550
1G ZX module, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF
1000BASE Series Electrical Modules
Product Model
Description
Mini-GBIC-GT(F)
1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a
Mini-GBIC-GT
1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a
Brand: Ruijie
Model Number: RG-S6510-48VS8CQ
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 18/12/2024
Hardware Specifications
System Specifications | RG-S6510-48VS8CQ | RG-S6510-32CQ |
Ports | 48 x 25GE SFP28 ports and 8 × 100GE QSFP28 ports | 32 x 100GE QSFP28 ports |
Expansion Module Slots | Two power module slots, supporting 1+1 redundancy Four fan module slots, supporting 3+1 redundancy | Two power module slots, supporting 1+1 redundancy Five fan module slots, supporting 4+1 redundancy |
Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard | |
Switching Capacity | 4.0Tbps | 6.4 Tbps |
Packet Forwarding Rate | 2000 Mpps | 2030 Mpps |
802.1Q VLAN | 4094 | |
Dimensions and Weight | ||
Dimensions (W × D × H) | 442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in., 1 RU) | 442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in., 1 RU) |
Weight | About 8.2 kg (18.08 lbs, including two power supply modules and four fan modules) | About 11.43 kg (25.20 lbs, including two power supply modules and five fan modules) |
Power Supply and Consumption | ||
AC | ● Rated voltage: 110 V AC/220 V AC ● Rated voltage range: 100 V AC to 240 V AC (50 Hz to 60 Hz) ● Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz) ● Rated input current range: 3.5 A to 7.2 A | |
High-voltage DC | Input voltage range: 192 V DC to 288 V DC Input current: 3.6 A | |
Low-voltage DC | ● Input voltage range: –36 V DC to –72 V DC ● Rated input voltage: –48 V DC ● Rated input current: 23 A | N/A |
Maximum Power Consumption | ● Max: 300 W ● Typical: 172 W ● Static: 98 W | ● Max: 450 W ● Typical: 270 W ● Static: 150 W |
Environment and Reliability | ||
Operating Temperature | 0°C to 45°C (32°F to 113°F) | 0°C to 40°C (32ºF to 104ºF) |
Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) | |
Operating Humidity | 10%RH to 90% RH (Non-condensing) | |
Storage humidity | 5% to 95% RH (non-condensing) | |
Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.) | |
Software Specifications
Software Specifications | RG-S6510-48VS8CQ | RG-S6510-32CQ |
L2 Protocols | IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and Selective QinQ), GVRP | |
L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP | |
IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel | |
Multicast | IGMPv1, v2, v3、IGMP Host Behavior、Member Query and Response、Querier Election、IGMP Proxy、Multicast Static Routing、MSDP、PIM-DM、PIM-SM、PIM-SSM、Enabling PIM on Layer-3 Subinterface、PIM-SMv6、MLD v1 and v2、MLD Proxy、Enabling PIMv6 on Layer-3 Subinterface | |
ACL | Standard IP-based ACL、Extended MAC/IP-based ACL、Expert-level ACL、ACL 80、IPv6 ACL、ACL Logging、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets、Ingress/Egress ACLs | |
When the same ACL is applied to different physical interfaces or SVIs, resources can be multiplexed | N/A | |
Data Center Features | VXLAN routing and VXLAN bridging IPv6 VXLAN over IPv4 and EVPN VXLAN PFC, ECN, and RDMA M-LAG *RoCE over VxLAN OpenFlow 1.3 | |
Visualization | gRPC sFLOW sampling INT | |
QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities | |
Virtualization | Virtual Switching Unit | |
Buffer Management | Buffer status monitoring and management, and identification of burst traffic | |
HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
Security Features | Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management | |
Management Mode | SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, Python, fan and power alarm, and temperature alarm | |
Other Protocols | DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog | |
Safety and Regulatory Compliance
Specification | RG-S6510-48VS8CQ | RG-S6510-32CQ |
Safety | ● IEC 62368-1 ● EN 62368-1 ● NM EN 62368-1 ● NM CEI 62368-1 ● EN IEC 62368-1 ● BS EN IEC 62368-1 ● UL 62368-1 ● CSA C22.2#62368-1 ● GB 4943.1 | ● IEC 62368-1 ● EN 62368-1 ● EN IEC 62368-1 ● UL 62368-1 ● CAS C22.2#62368-1 ● GB 4943.1 |
Electromagnetic Compatibility (EMC) | ● EN 55032 ● EN 55035 ● EN IEC 61000-3-2 ● EN IEC 61000-3-3 ● EN 61000-3-3 ● EN 300 386 ● ETSI EN 300 386 ● NM EN 55035 ● NM EN CEI61000-3-2 ● NM EN 61000-3-3 ● CNS 13438 ● ICES-003 Issue 7 ● ANSI C63.4-2014 ● FCC CFR Title 47, Part 15, Subpart B ● ANSI C63.4-2014 ● VCCI-CLSPR 32 ● GB/T 9254.1 | ● EN 55032 ● EN 55035 ● EN 61000-3-2 ● EN 61000-3-3 ● EN IEC 61000-3-3 ● EN IEC 61000-3-2 ● EN 300 386 ● ETSI EN 300 386 ● CES-003 Issue 7 ● ANSI C63.4-2014 ● FCC CFR Title 47, Part 15,Subpart B ● VCCI-CISPR 32 ● GB/T 9254.1 |
Environment | ● 2011/65/EU EN 50581 ● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 | ● 2011/65/EU EN 50581 ● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
