RG-S6510-32CQ Data Center 100GE RUIJIE DCI Access Switch

SKU: RG-S6510-32CQ

Category: RUIJIE NETWORK SWITCH

Availability: Unlimited

0.00/5 (0 Review)
Quantity:
Total: KD 650.000
Share on:

Description

Chassis

Product Model

Description

RG-S6510-48VS8CQ

48 × 25GE ports and 8 × 100GE ports.
Two power supply module slots and four fan module slots.
The power module model is RG-PA550I-F, and the fan model is M6510-FAN-F.

RG-S6510-32CQ

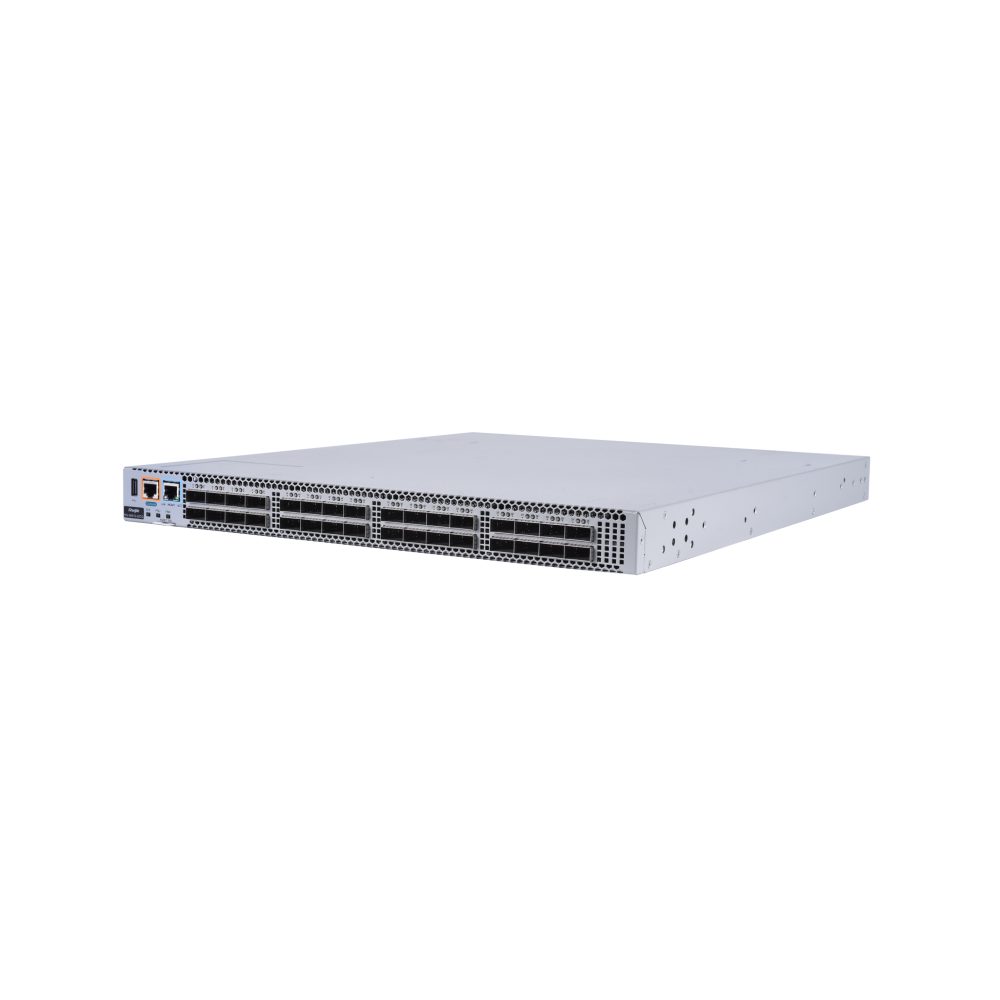

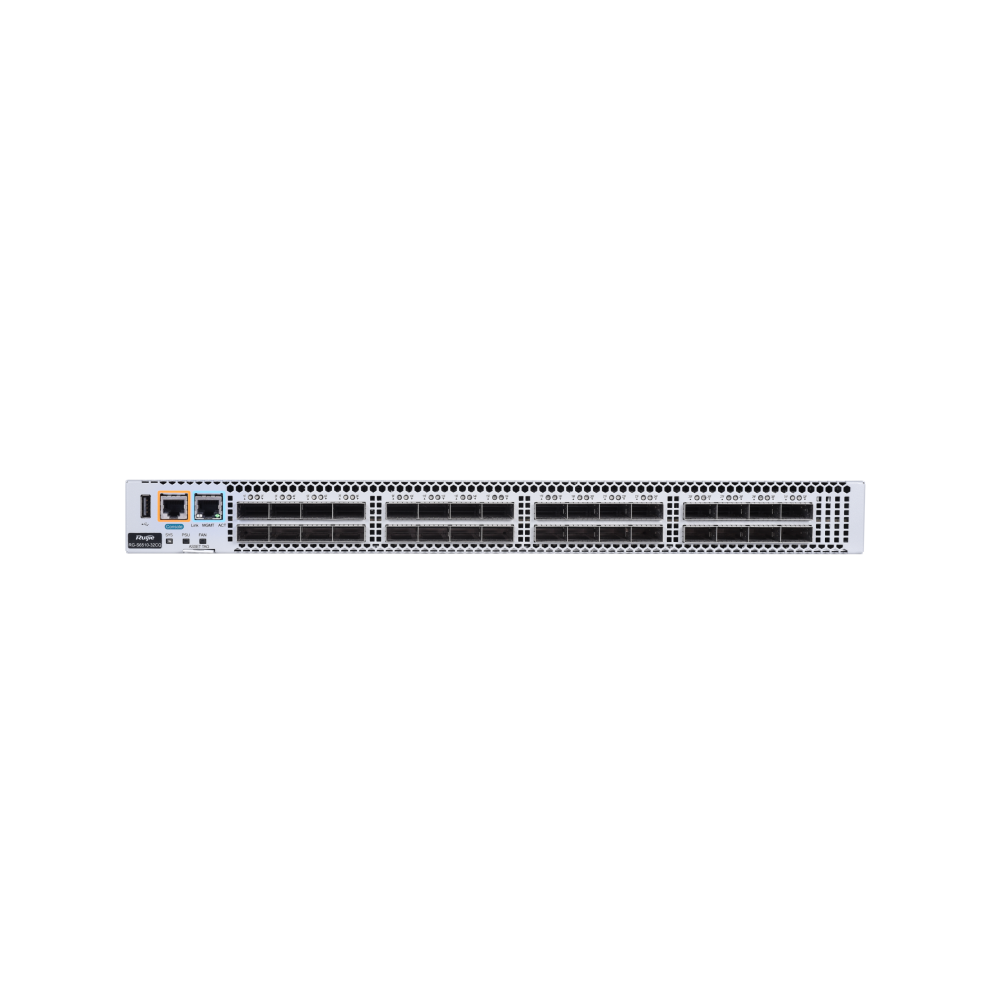

Provides 32 × 100G ports.

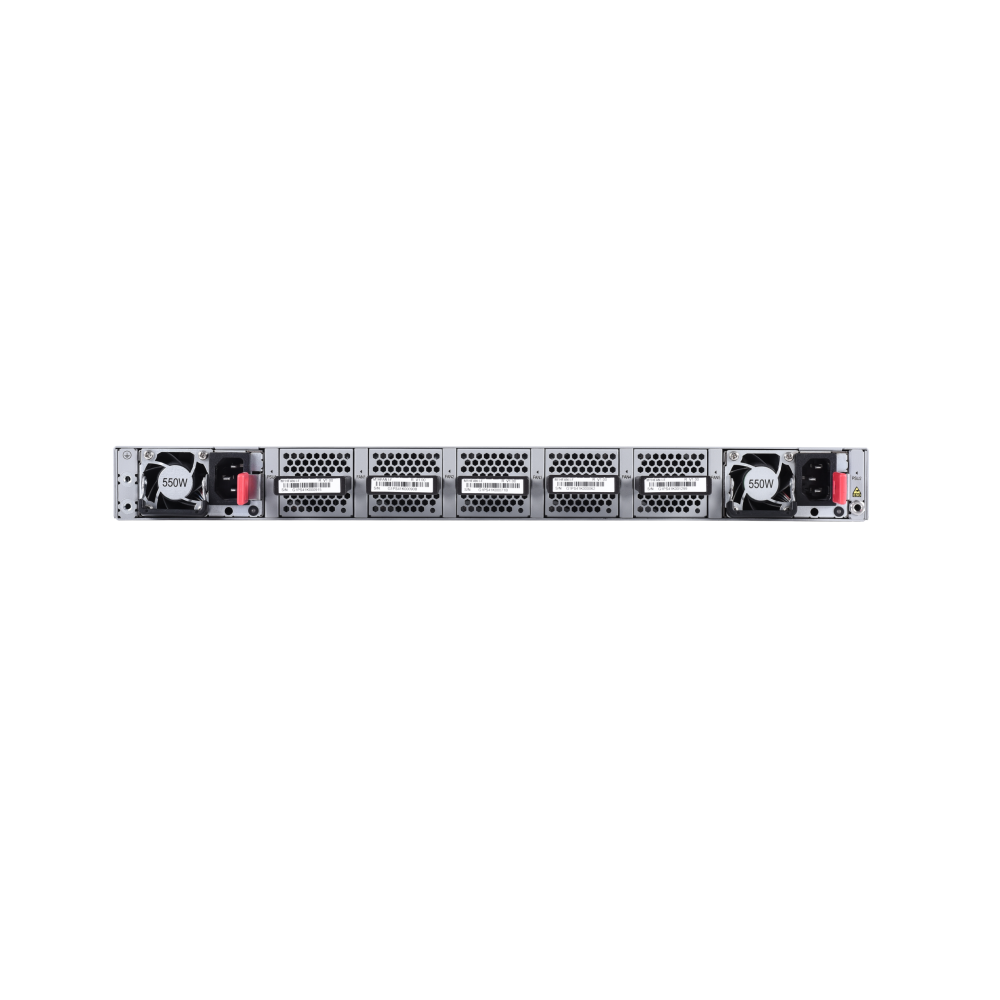

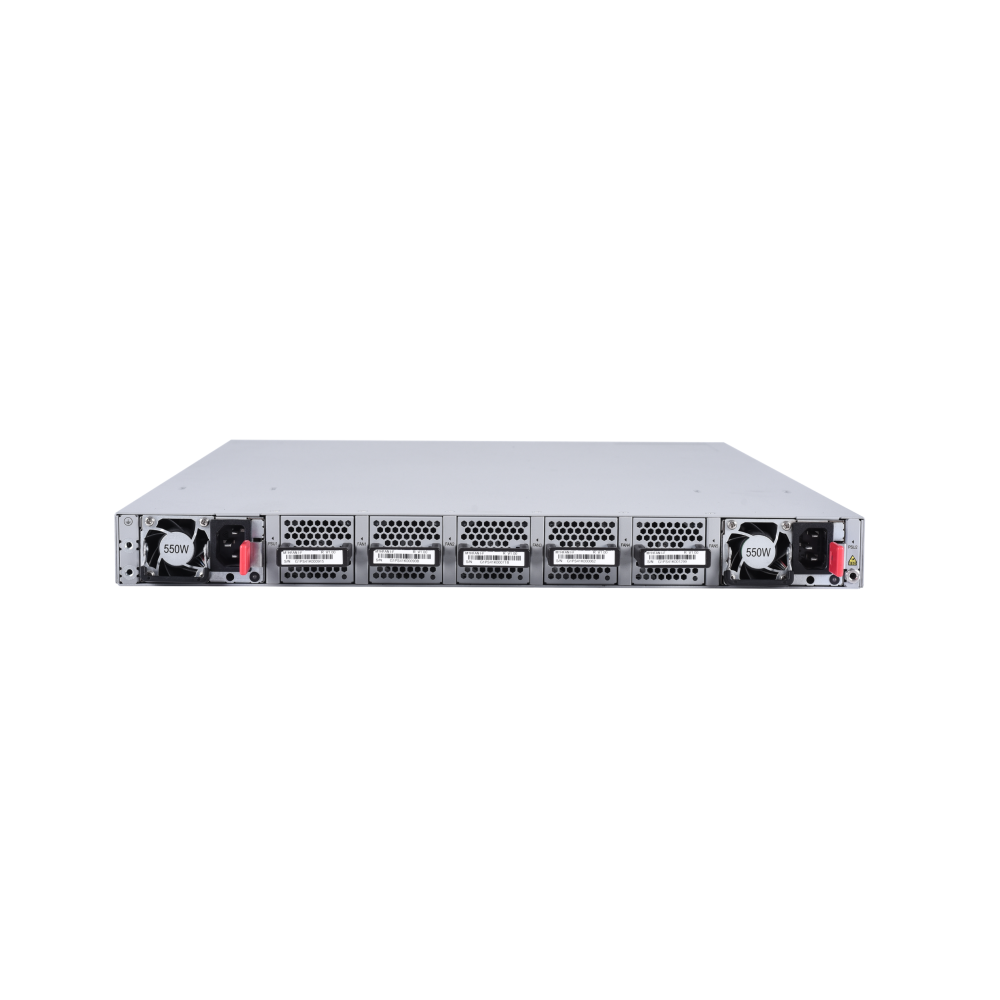

Two power supply module slots and five fan module slots.
The power module model is RG-PA550I-F, and the fan model is M1HFAN I-F.



Fan and Power Supply Modules

Product Model

Description

RG-PA550I-F

550 W power supply module (AC and 240 V HVDC)

RG-PD800I-F

800 W power supply module (48 V LVDC), applicable only to RG-S6510-48VS8CQ

M6510-FAN-F

Fan module of RG-S6510-48VS8CQ, supporting 3+1 redundancy, hot swapping, and front-to-rear ventilation design.

M1HFAN I-F

Fan module of RG-S6510-32CQ, supporting 4+1 redundancy, hot swapping, and front-to-rear ventilation design.



100GBASE Series Optical Modules

Product Model

Description

100G-QSFP-SR-MM850

100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF

100G-QSFP-LR4-SM1310

100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF

100G-QSFP-iLR4-SM1310

100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF

100G-QSFP-ER4-SM1310

100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF

100G-AOC-10M

100G QSFP28 AOC cable, 10 m (32.81 ft.)

100G-AOC-5M

100G QSFP28 AOC cable, 5 m (16.40 ft.)



40GBASE Series Optical Modules

Product Model

Description

40G-QSFP-SR-MM850

40G SR module, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF

40G-QSFP-LR4-SM1310

40G LR4 module, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF

40G-QSFP-LSR-MM850

40G LSR module, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF

40G-QSFP-iLR4-SM1310

40G iLR4 module, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF

40G-QSFP-LX4-SM1310

40G LX4 module, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF

40G-AOC-30M

40G QSFP+ AOC cable, 30 m (98.43 ft.)

40G-AOC-5M

40G QSFP+ AOC cable, 5 m (16.40 ft.)



25GBASE Series Optical Modules

Product Model

Description

VG-SFP-AOC5M

25G SFP28 AOC cable, 5 m (16.40 ft.)

VG-SFP-LR-SM1310

25G LR module, SFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF

VG-SFP-SR-MM850

25G SR module, SFP28 form factor, Duplex LC, 850 nm, 100 m (328.08 ft.) over MMF



10GBASE Series Optical Modules

Product Model

Description

XG-LR-SM1310

10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF

XG-SR-MM850

10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF

XG-SFP-AOC1M

10G SFP+ AOC cable, 1 m (3.28 ft.)

XG-SFP-AOC3M

10G SFP+ AOC cable, 3 m (9.84 ft.)

XG-SFP-AOC5M

10G SFP+ AOC cable, 5 m (16.40 ft.)

XG-SFP-SR-MM850

10G SR module, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF

XG-SFP-LR-SM1310

10G LR module, SFP+ form factor, Duplex LC, 10 km ((32,808.40 ft.) over SMF

XG-SFP-ER-SM1550

10G ER module, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF

XG-SFP-ZR-SM1550

10G ZR module, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF



1000BASE Series Optical Modules

Product Model

Description

GE-SFP-LH40-SM1310-BIDI

1G LH module, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF

GE-SFP-LX20-SM1310-BIDI

1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF

GE-SFP-LX20-SM1550-BIDI

1G LX module, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF

MINI-GBIC-LH40-SM1310

1G LH module, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF

MINI-GBIC-LX-SM1310

1G LX module, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF

MINI-GBIC-SX-MM850

1G SR module, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF

MINI-GBIC-ZX80-SM1550

1G ZX module, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF



1000BASE Series Electrical Modules

Product Model

Description

Mini-GBIC-GT(F)

1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a

Mini-GBIC-GT

1G SFP copper module, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a

Product Specifications

Brand: Ruijie

Model Number: RG-S6510-32CQ

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 999

Listed date: 18/12/2024

Hardware Specifications

System Specifications

RG-S6510-48VS8CQ

RG-S6510-32CQ

Ports

48 x 25GE SFP28 ports and 8 × 100GE QSFP28 ports

32 x 100GE QSFP28 ports

Expansion Module Slots

Two power module slots, supporting 1+1 redundancy

Four fan module slots, supporting 3+1 redundancy

Two power module slots, supporting 1+1 redundancy

Five fan module slots, supporting 4+1 redundancy

Management Port

One management port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

4.0Tbps

6.4 Tbps

Packet Forwarding Rate

2000 Mpps

2030 Mpps

802.1Q VLAN

4094

Dimensions and Weight

Dimensions

(W × D × H)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in., 1 RU)

442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in., 1 RU)

Weight

About 8.2 kg (18.08 lbs, including two power supply modules and four fan modules)

About 11.43 kg (25.20 lbs, including two power supply modules and five fan modules)

Power Supply and Consumption

AC

● Rated voltage: 110 V AC/220 V AC

● Rated voltage range: 100 V AC to 240 V AC (50 Hz to 60 Hz)

● Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)

● Rated input current range: 3.5 A to 7.2 A

High-voltage DC

Input voltage range: 192 V DC to 288 V DC

Input current: 3.6 A

Low-voltage DC

● Input voltage range: –36 V DC to –72 V DC

● Rated input voltage: –48 V DC

● Rated input current: 23 A

N/A

Maximum Power Consumption

● Max: 300 W

● Typical: 172 W

● Static: 98 W

● Max: 450 W

● Typical: 270 W

● Static: 150 W

Environment and Reliability

Operating Temperature

0°C to 45°C (32°F to 113°F)

0°C to 40°C (32ºF to 104ºF)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity

10%RH to 90% RH (Non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.)



Software Specifications

Software Specifications

RG-S6510-48VS8CQ

RG-S6510-32CQ

L2 Protocols

IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and Selective QinQ), GVRP

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel

Multicast

IGMPv1, v2, v3、IGMP Host Behavior、Member Query and Response、Querier Election、IGMP Proxy、Multicast Static Routing、MSDP、PIM-DM、PIM-SM、PIM-SSM、Enabling PIM on Layer-3 Subinterface、PIM-SMv6、MLD v1 and v2、MLD Proxy、Enabling PIMv6 on Layer-3 Subinterface

ACL

Standard IP-based ACL、Extended MAC/IP-based ACL、Expert-level ACL、ACL 80、IPv6 ACL、ACL Logging、ACL Counter (Ingress and egress counters are supported in interface or global configuration modes)、ACL Re-marking、Global ACL、ACL-based Redirection、Displaying ACL Resources、Processing First Packet of TCP Handshake When Binding the ACL to Restrict SIP、Matching Against 5-Tuple of Pass-by VXLAN Inner IP Packets、The expert-level ACL supports matching the IP flag and DSCP fields of VXLAN inner packets、Ingress/Egress ACLs

When the same ACL is applied to different physical interfaces or SVIs, resources can be multiplexed

N/A

Data Center Features

VXLAN routing and VXLAN bridging

IPv6 VXLAN over IPv4 and EVPN VXLAN

PFC, ECN, and RDMA

M-LAG

*RoCE over VxLAN

OpenFlow 1.3

Visualization

gRPC

sFLOW sampling

INT

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities
ACL-based traffic classification
Priority marking/remarking
Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR
Congestion avoidance mechanisms such as WRED and tail discarding

Virtualization

Virtual Switching Unit

Buffer Management

Buffer status monitoring and management, and identification of burst traffic

HA Design

GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules

Security Features

Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management

Management Mode

SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, Python, fan and power alarm, and temperature alarm

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog



Safety and Regulatory Compliance

Specification

RG-S6510-48VS8CQ

RG-S6510-32CQ

Safety

● IEC 62368-1

● EN 62368-1

● NM EN 62368-1

● NM CEI 62368-1

● EN IEC 62368-1

● BS EN IEC 62368-1

● UL 62368-1

● CSA C22.2#62368-1

● GB 4943.1

● IEC 62368-1

● EN 62368-1

● EN IEC 62368-1

● UL 62368-1

● CAS C22.2#62368-1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● EN 55035

● EN IEC 61000-3-2

● EN IEC 61000-3-3

● EN 61000-3-3

● EN 300 386

● ETSI EN 300 386

● NM EN 55035

● NM EN CEI61000-3-2

● NM EN 61000-3-3

● CNS 13438

● ICES-003 Issue 7

● ANSI C63.4-2014

● FCC CFR Title 47, Part 15, Subpart B

● ANSI C63.4-2014

● VCCI-CLSPR 32

● GB/T 9254.1

● EN 55032

● EN 55035

● EN 61000-3-2

● EN 61000-3-3

● EN IEC 61000-3-3

● EN IEC 61000-3-2

● EN 300 386

● ETSI EN 300 386

● CES-003 Issue 7

● ANSI C63.4-2014

● FCC CFR Title 47, Part 15,Subpart B

● VCCI-CISPR 32

● GB/T 9254.1

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572
