Hareware Specifications

RG-S6150-24VS8CQ-X

RG-S6150-48VS8CQ-X

Interface Specifications

Fixed port

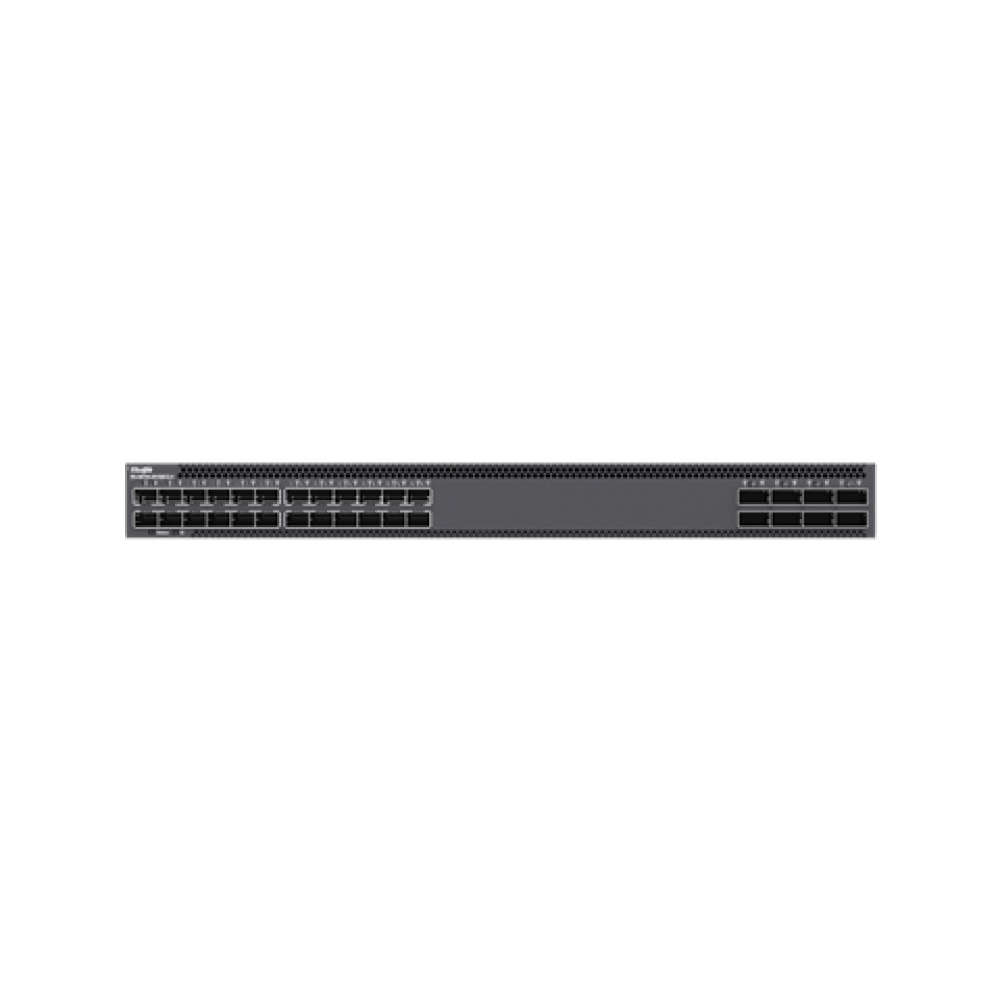

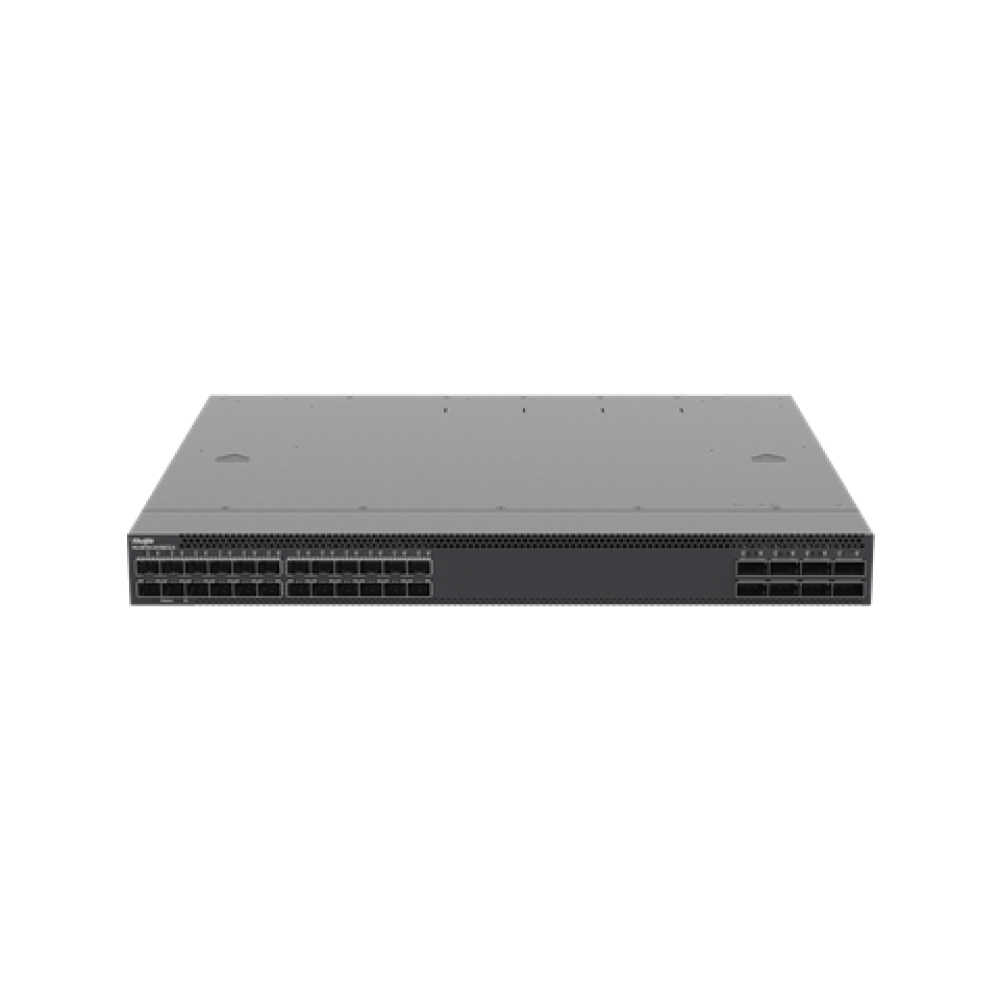

24 x 10GE/25GE (license required for 25G*) SFP28 ports

8 x 40GE/100GE QSFP28 ports

48 x 10GE/25GE (license required for 25G*) SFP28 ports

8 x 40GE/100GE QSFP28 ports

Fan module

4 x fan modules

3+1 redundancy, at least three fan modules required for the system

Fan speed regulating and fault alarming

Power module

2 x hot-swappable power modules

Fixed management port

1 x MGMT port, 1 x console port, and 1 x USB 2.0 port

System Specifications

System switching capacity

2.8 Tbps

4 Tbps

Number of MAC addresses

Number of global MAC addresses: 128,000 (default)

Number of static MAC addresses: 10,000

Number of global MAC addresses: 128,000 (default)

Number of static MAC addresses: 10,000

ARP table size

96,000 (default)

96,000 (default)

ND table size

80,000 (default)

80,000 (default)

Number of IPv4 unicast routes

350,000 (default)

350,000 (default)

Number of IPv4 multicast routes

4,000

4,000

Number of IPv6 unicast routes

65,000 (default)

65,000 (default)

Number of IPv6 multicast routes

2,000

2,000

Number of ACEs

Ingress: 28,000

Egress:4,000

Number of IGMP groups

4,000

Number of MLD groups

1,000

Number of VSU members

4

4

Number of VRFs

1,024

1,024

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.)

Weight (four fan modules and two power modules at full load)

10 kg (22.05 lbs)

10 kg (22.05 lbs)

CPU and Storage

CPU

2.2 GHz quad-core processor

2.2 GHz quad-core processor

Storage

DDR4 4 GB

8 GB flash memory

DDR4 4 GB

8 GB flash memory

Data packet buffer

35 MB

35 MB

Power and Consumption

Maximum power consumption

270 W

300 W

Maximum output power

PA550I II-F:

90–264 V AC or 100–240 VAC, 550 W

PA550I II-F:

90–264 V AC or 100–240 VAC, 550 W

Rated input voltage

AC input: 100 V AC to 240 V AC

Frequency: 50/60 Hz

HVDC input: 240 V DC

Maximum input voltage

AC input: 90 V AC to 264 V AC

HVDC input: 192 V DC to 288 V DC

Environment and Reliability

MTBF

> 200,000 hours

> 200,000 hours

Primary airflow

Front-to-rear airflow

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% RH to 95% RH (non-condensing)

Maximum operating altitude

5000 m (16404.20 ft.)

5000 m (16404.20 ft.)

Interface surge protection

Telecom port: 4 kV (MGMT port)

Telecom port: 4 kV (MGMT port)

Software Specifications

RG-S6150-X Series

Ethernet switching

Jumbo frame (maximum length: 9,216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Maximum number of VLANs that can be created: 4,094

Voice VLAN

Super-VLAN and private VLAN

MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment

GVRP

Basic QinQ and selective QinQ

STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

ERPS (G.8032)

LACP (IEEE 802.3ad)

LLDP/LLDP-MED

IP service

Static and dynamic ARP

DHCP server, DHCP client, DHCP relay, and DHCP snooping

DNS

DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

GRE tunnel

IP routing

Static routing

SVI: 4k supported

RIP and RIPng

OSPFv2 and OSPFv3

GR

IS-ISv4 and IS-ISv6

BGP4 and BGP4+

Equal and Weighted Cost Multi-Path (ECMP)

Packet-based and flow-based load balancing

MCE

Stateless auto configuration

IPv4/IPv6 VRF

IPv4/IPv6 PBR

Multicast

IGMPv1/v2/v3 and IGMP proxy

IGMPv1/v2/v3 snooping

IGMP filtering and IGMP fast leave

PIM-DM, PIM-SM, and PIM-SSM

PIM-SSM for IPv4 and IPv6

MSDP for inter-domain multicast

MLDv1/v2

MLD snooping

MSDP

PIM-SMv6

Multicast source IP address check

Multicast source port check

Multicast querier

MPLS

MPLS L3VPN

6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network

MPLS MIB (RFC1273, 4265, 4382)

ACL and QoS

Standard IP ACLs (hardware ACLs based on IP addresses)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers)

Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)

Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range)

Time-based ACLs

ACL80 and IPv6 ACL

ACL redirection

Port traffic identification

Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

Eight queues on each port

Rate limiting in each queue

Security

Multi-AAA

RADIUS and TACAS+

Filtering of invalid MAC addresses

Broadcast storm suppression

BPDU guard

RADIUS authentication and authorization

Port- and MAC address-based 802.1x authentication

IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication

Web authentication

Hypertext Transfer Protocol Secure (HTTPS)

SSHv1 and SSHv2

Global IP-MAC binding

ICMPv6

IPv6 addressing and Path MTU Discovery

Port isolation and port security

IP source guard

SAVI

ARP spoofing prevention

CPP and NFPP

Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types

3-tuple binding (IP address, MAC address, and port) ARP spoofing prevention

3-tuple binding (IPv6 address, MAC address, and port)

Filtering of invalid MAC addresses

MAB authentication

Portal authentication and Portal 2.0 authentication

ARP check

DAI

ARP packet rate limiting

Gateway ARP spoofing prevention

Broadcast storm suppression

SSH

BPDU guard

Loose and strict RPF

uRPF ignoring default routes

Reliability

REUP

ERPS (G.8032)

RLDP

RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control

Data Link Detection Protocol (DLDP)

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM)

GR for RIP, OSPF, BGP, and other routing protocols

Power modules in 1+1 redundancy mode

Hot swapping of power modules and fan modules

Hot swapping of fan modules

Device virtualization

VSU

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFlow

NTP an SNTP

FTP and TFTP

SNMP v1/v2/c3

RMON (1, 2, 4, 9)

Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups

RMON used to implement Ethernet statistics, historical statistics, and alarm functions

NETCONF

Flow-based mirroring, and N:1 and 1:N port mirroring

CWMP

gRPC

OpenFlow Special 1.3

Flow table analysis defined by all protocols

Transmission of specified packets to the controller

Configuring the controller's IP address and port

Notifying port status changes to the controller

CLI (Telnet/console), SSH, Syslog, SNMP over IPv6, Telnet v6, FTP/TFTP v6, DNS v6, and NTP for IPv6

Ruijie Could-based management

VXLAN

EVPN VXLAN tunnel establishment

LAN access to VXLAN

IPv4 over IPv4

Distributed gateway

IPv6 over IPv4

Using an SVI to connect to the VXLAN network

Using a routed interface to connect to the VXLAN network

Proxy ARP (replying with the actual MAC address))

ND proxy (replying with the actual MAC address)

ND reply (replying with the actual MAC address)

EVPN VXLAN

VXLAN static route

Anycast gateway

VXLAN bridging mode

VXLAN routing mode

Proxy ARP (replying with the gateway MAC address)

Configuring the UDP port number in VXLAN packets

Static VXLAN tunnel creation
