SKU: RG-S5760C-48GT4XS-X
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-S5760C-24GT8XS-X
24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module.

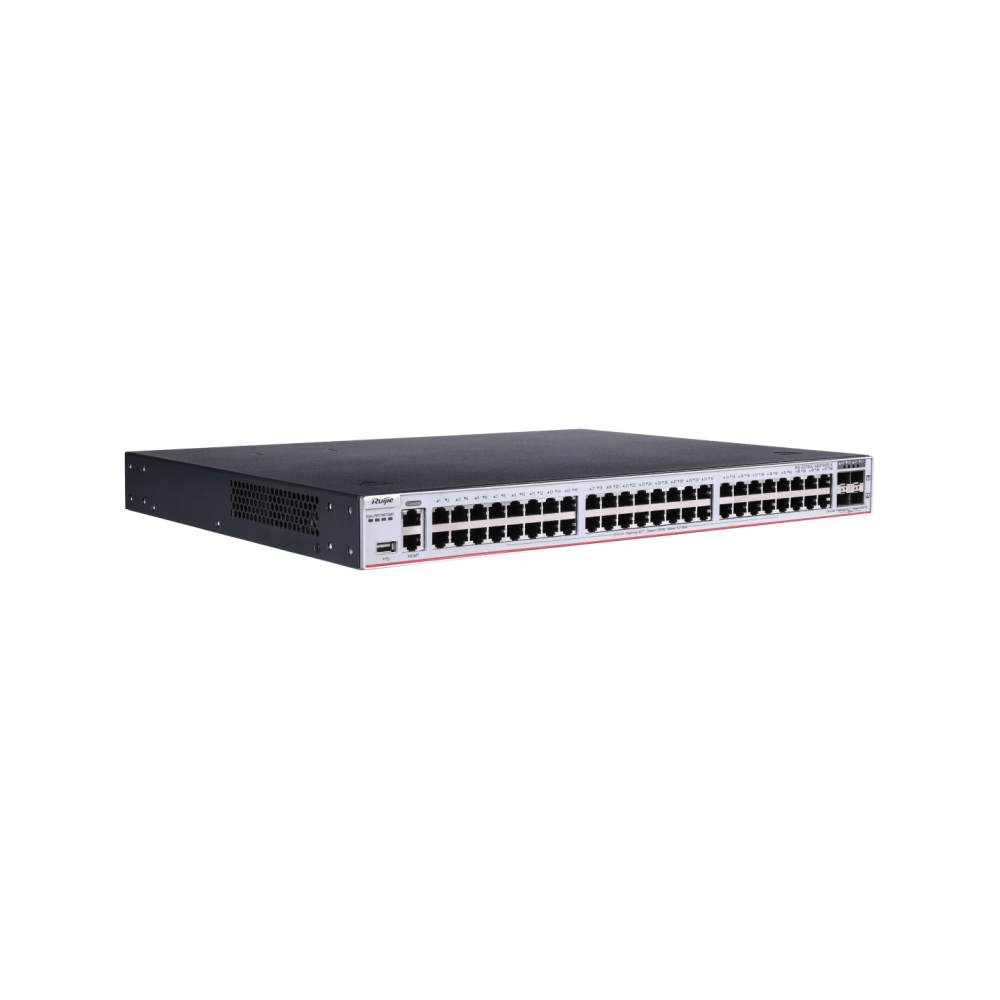

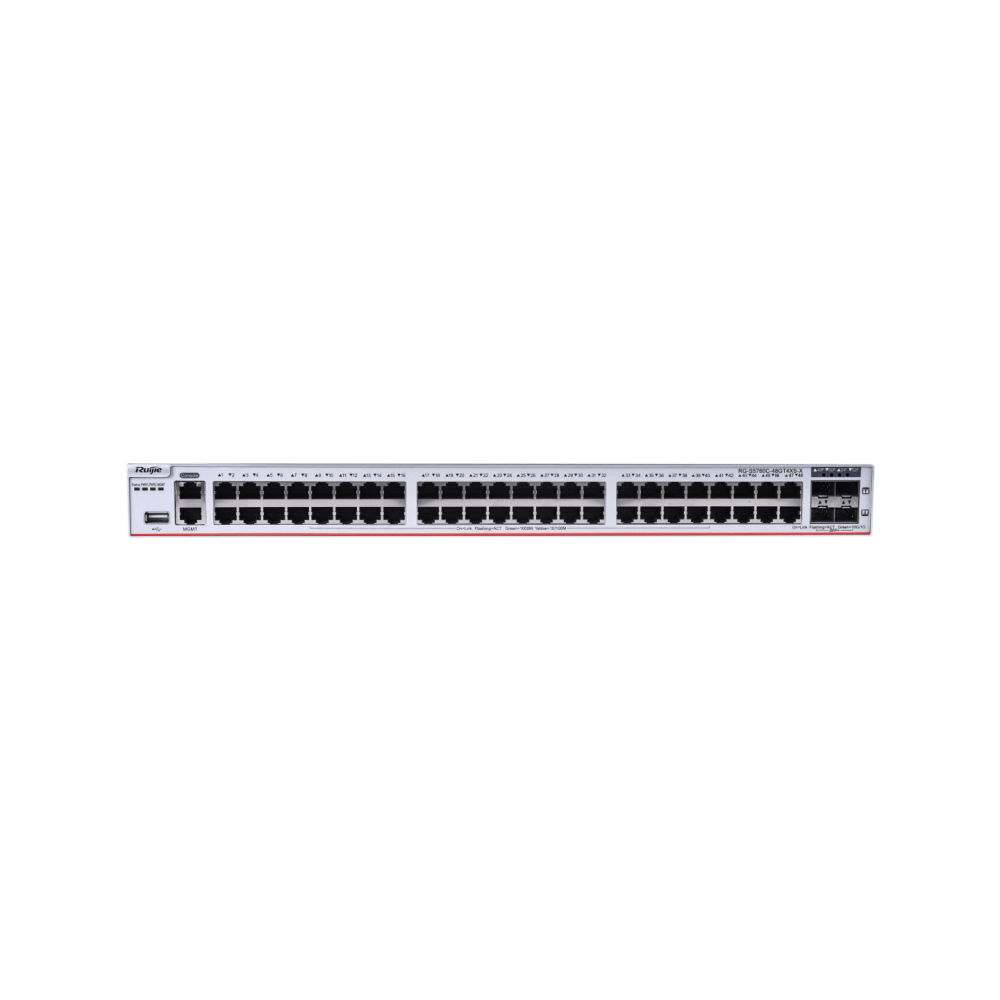

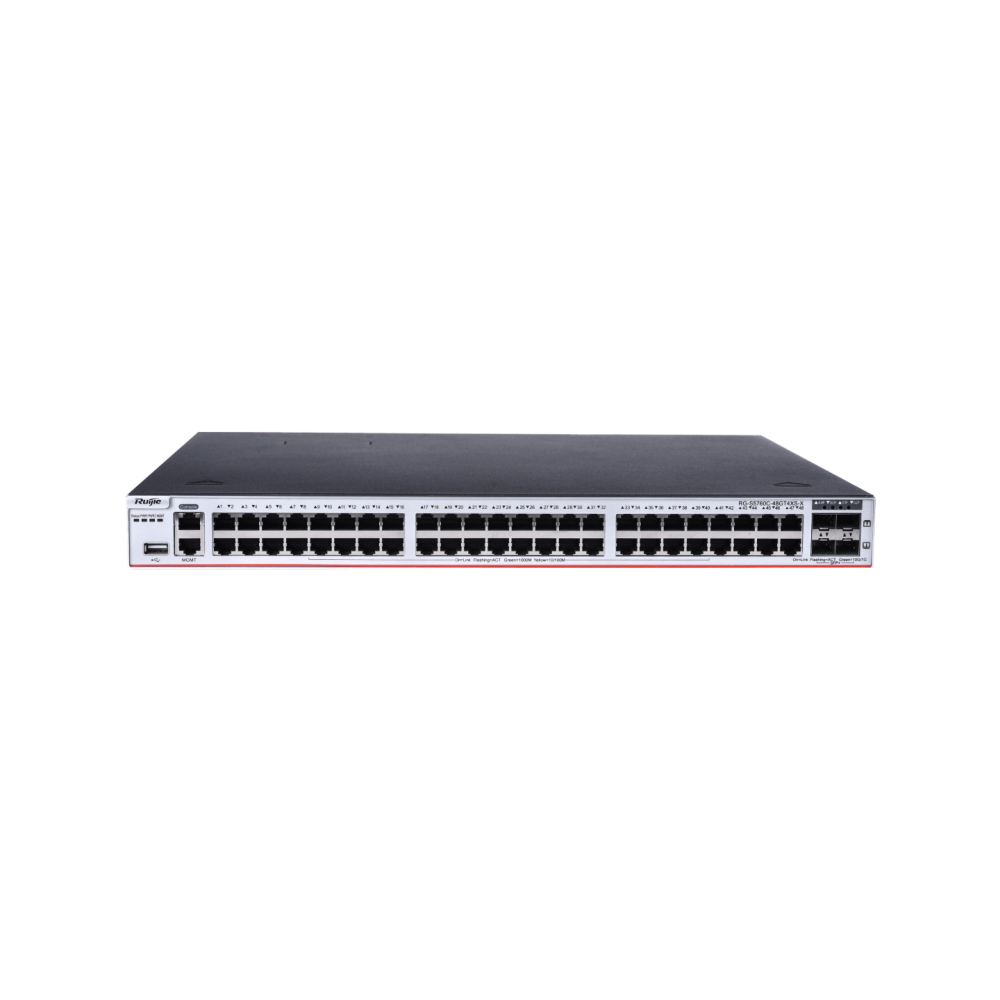

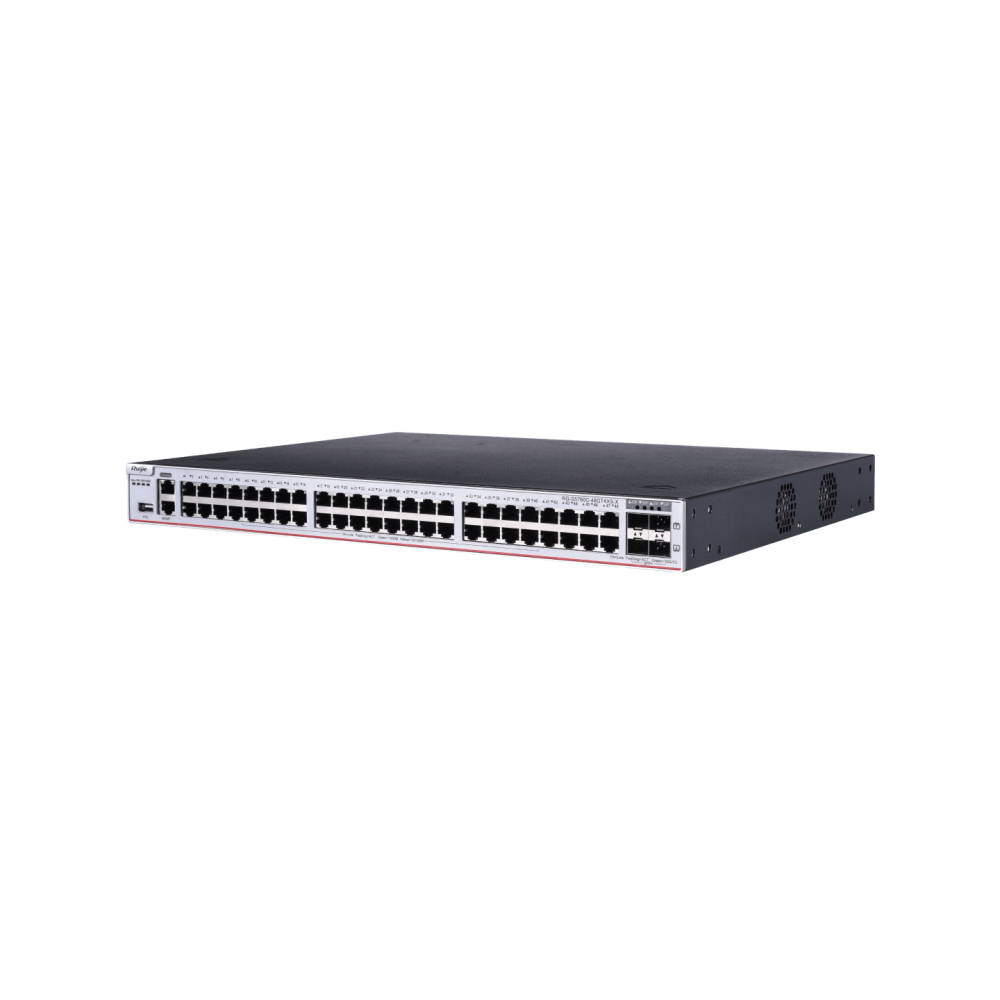

RG-S5760C-48GT4XS-X
48 x 10/100/1000BAST-T ports，4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fixed fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module.
RG-S5760C-24SFP/8GT8XS-X
24 x 1GE SFP ports (ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps, ports 1 to 8 are 10/100/1000BASE-T combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x built-in fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module.
RG-S5760C-48SFP4XS-X
48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots.
Purchase at least one RG-PA150IB-F module.
RG-PA150IB-F
150 W AC power module
RG-PD150IB-F
150 W DC power module
Model
Description
RG-S5760C-48GT4XS-HP-X
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots
Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.
RG-PA600I-P-F
600 W AC power module
RG-PA1000I-P-F
1000 W AC power module
Expansion module
Model
Description
M5000X-4XS2CQ
4 x 1GE/10GE SFP+ ports, 2 x 40GE/100GE QSFP28 ports
Note:
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF
GE-SFP-LX03-SM1310-BIDI-I
1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
GE-SFP-LX03-SM1550-BIDI-I
1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF
10GE
Model
Description
XG-SFP-SR-MM850
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-ZR-SM1550
10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF
XG-SFP-LR10-SM1270-BIDI-I
10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF
XG-SFP-LR10-SM1330-BIDI-I
10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF
XG-SFP-AOC1M
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Model
Description
40G-QSFP-LR4-SM1310
40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF
40G-QSFP-iLR4-SM1310
40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF
40G-AOC-5M
40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Model
Description
100G-QSFP-SR-MM850
100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF
100G-QSFP-LR4-SM1310
100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF
100G-AOC-10M
100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers
Brand: Ruijie
Model Number: RG-S5760C-48GT4XS-X
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 19/11/2024
Port specifications | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
Fixed service port | 24 x 10/100/1000BASE-T ports 8 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BAST-T ports 4 x 1GE/10GE SFP+ ports | 24 x 1GE SFP ports ● Ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps ● Ports 1 to 8 are 10/100/1000BASE-T combo ports 8 x 1GE/10GE SFP+ ports | 48 x 1GE SFP ports 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |

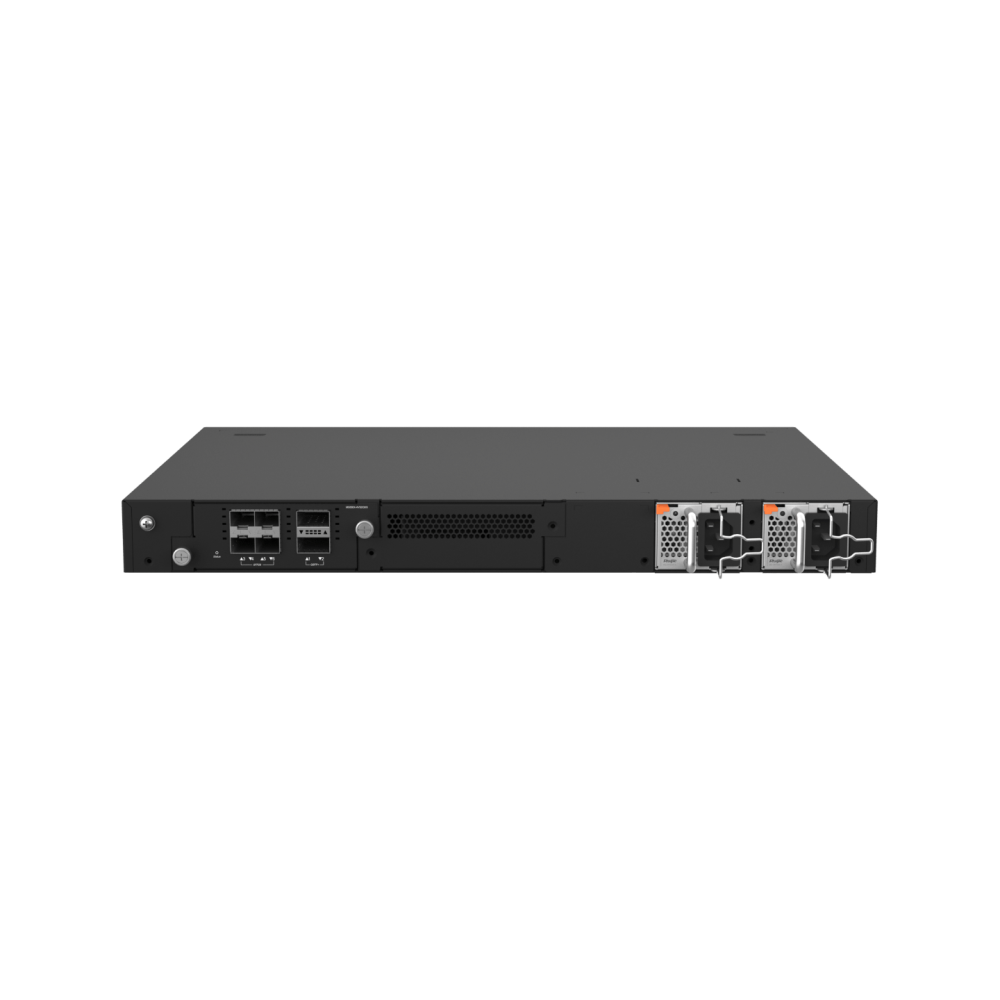

Module slot | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots 3 x fan module slots | 1 x expansion module slot 2 x power module slots 2 x fan module slots |
Expansion module | M5000X-4XS2CQ Note: The V1.X switch needs to be upgraded to version 12.5(4)B0701 or later to support the expansion module. | ||||
Power module | RG-PA150IB-F RG-PD150IB-F | RG-PA150IB-F RG-PD150IB-F | RG-PA150IB-F RG-PD150IB-F | RG-PA150IB-F RG-PD150IB-F | RG-PA600I-P-F RG-PA1000I-P-F |
Fan module | Not Supported | Not Supported | Not Supported | M2SFAN I-F (pre-installed 3) | M2SFAN I-F (pre-installed 2) |
Fixed management port | 1 x RJ45 console port 1 x RJ45 MGMT port | ||||
USB | 1 x USB 2.0 port | ||||
System specifications | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
System packet forwarding rate *1 | 614 Mpps | 586 Mpps | 614 Mpps | 586 Mpps | 586 Mpps |
System switching capacity *2 | 826 Gbps | 787 Gbps | 826 Gbps | 787 Gbps | 787 Gbps |
CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz | ||||
Real-time clock (RTC) | Supported | ||||
BootROM | 16 MB (2 flash chips for 1+1 boot redundancy) | ||||
Flash memory | 4 GB eMMC | ||||
Memory | 1 GB | 1 GB | 1 GB | 2 GB | 2 GB |
Switch buffer | 4 MB | 4 MB | 4 MB | 4 MB | 4 MB |
*1 means the system's packet forwarding rate.
*2 means the system's switching capacity.
Power supply and consumption | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X |
Power supply | 2 x pluggable power modules | |||
Power input | RG-PA150IB-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A RG-PD150IB-F (DC input): ● Rated input voltage: –48 V DC to –60 V DC ● Maximum input voltage: –36 V DC to –75 V DC ● Maximum input current: 5 A | |||
Maximum output power | RG-PA150IB-F: 150 W RG-PD150IB-F: 150 W | |||
Maximum power consumption | 60 W (excluding expansion modules) 85 W (including expansion modules) | 70 W (excluding expansion modules) 95 W (including expansion modules) | 77 W (excluding expansion modules) 102 W (including expansion modules) | 105 W (excluding expansion modules) 125 W (including expansion modules) |
Power supply and consumption | RG-S5760C-48GT4XS-HP-X |
Power supply | 2 x pluggable power modules |
Power input | RG-PA600I-P-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
Maximum output power | RG-PA600I-P-F: 600 W RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
PoE port | Ports 1 to 48 support PoE/PoE+ (IEEE 802.3af/at) power supply |
PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
PoE output power | Each PoE port provides up to 30 W of power The maximum power depends on the configured power supply ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W ● 1 x RG-PA1000I-P-F: 740 W ● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48) Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
Maximum power consumption | 120 W (without PoE load) 1,600 W (full PoE load) |
Dimensions and weight | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
Unit dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) | 442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | |||
Shipping dimensions (W x D x H) | 593 mm x 497 mm x 192 mm (23.35 in. x 19.57 in. x 7.56 in.) | 563 mm x 563 mm x 210 mm (22.17 in. x 22.17 in. x 8.27 in.) | |||
Rack height | 1 RU | 1 RU | |||
Unit weight | 4.4 kg (9.70 lbs) | 4.5 kg (9.92 lbs) | 4.3 kg (9.48 lbs) | 5.3 kg (11.68 lbs) | 5.5 kg (12.13 lbs) |
Shipping weight | 6.20 kg (13.67 lbs) | 6.30 kg (13.89 lbs) | 6.30 kg (13.89 lbs) | 7.80 kg (17.20 lbs) | 7.70kg (16.98 lbs) |
Environment and reliability | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
Temperature | Operating temperature: ● 0°C to 45°C (32°F to 113°F), V1.X without expansion modules or V2.X ● 0ºC to 40ºC (32°F to 104°F), V1.X with expansion modules Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | |||
Note: At an altitude between 1,800 m ( 5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). | |||||
Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) | ||||
Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) | ||||
Mean time between failure (MTBF) | 1,025,280 hours (about 120 years) | 939,840 hours (about 110 years) | 803,136 hours (about 94 years) | 768,960 hours (about 90 years) | 811,680 hours (about 95 years) |
Fan | 2 x fixed fan modules | 2 x fixed fan modules | 2 x fixed fan modules | 3 x pluggable fan modules | 2 x pluggable fan modules |
Heat dissipation | Fan cooling, left-to-right airflow | Fan cooling, front-to-rear airflow | |||
Acoustic noise | 45°C (113°F): 56.2 dB | 45°C (113°F): 57.9 dB | 45°C (113°F): 56.2 dB | 27°C (80.6°F): 50 dB 45°C (113°F): 65 dB | 27°C (80.6°F): 53 dB 45°C (113°F): 68 dB |
Power module redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy | 1+1 redundancy |
Fan redundancy | Not supported | Not supported | Not supported | 2+1 redundancy | 1+1 redundancy |
Power module hot swapping | Supported | ||||
USB hot swapping | Supported | ||||
Cable hot swapping | Supported | ||||
Power supply monitoring | Monitoring of the power supply model and status Power supply failure alarming | ||||
Fan monitoring | Fan speed adjustment: 3 levels Fan failure alarming | ||||
Temperature monitoring | Temperature monitoring, over-temperature alarming | ||||
ESD | ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV | ||||
Surge protection | MGMT port: 4 kV Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV | ||||
Certifications and regulatory compliance | RG-S5760C-24GT8XS-X | RG-S5760C-48GT4XS-X | RG-S5760C-24SFP/8GT8XS-X | RG-S5760C-48SFP4XS-X | RG-S5760C-48GT4XS-HP-X |
Safety regulation | IEC 62368-1 | ||||
EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | ||||
RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | ||||
Software Specifications
Feature | RG-S5760C-X Series |
Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
IEEE 802.1Q (supporting 4K VLANs) | |
Voice VLAN | |
Super-VLAN and private VLAN | |
MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
GVRP | |
Basic QinQ and selective QinQ | |
STP, RSTP, and MSTP | |
ERPS (G.8032) | |
LLDP/LLDP-MED | |
LACP (IEEE 802.3ad) | |
IP service | ARP |
DHCP client, DHCP relay, and DHCP server | |
DHCP snooping | |
DNS | |
DHCPv6 client, DHCPv6 server, and DHCPv6 relay | |
DHCPv6 snooping | |
Neighbor Discovery (ND) and ND snooping | |
IPV6 addressing, ICMPv6, Stateless Address Auto-configuration (SLAAC), and path MTU discovery | |
IP routing | Static routing |
RIP and RIPng | |
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6 | |
BGP4 and BGP4+ | |
ECMP | |
IPv4 and IPv6 VRF | |
IPv4 and IPv6 PBR | |
Multicast | IGMP v1/v2/v3 and IGMP proxy |
IGMP v1/v2/v3 snooping | |
IGMP filtering and IGMP fast leave | |
PIM-DM, PIM-SM, and PIM-SSM | |
MSDP | |
MLD snooping v1/v2 | |
PIM-SMv6 and PIM-SSM v6 | |
MPLS | MPLS L3VPN |
ACL and QoS | Standard IP ACLs Extended IP ACLs Extended MAC ACLs Time-based ACLs Expert-level ACLs ACL80 IPv6 ACL |
ACL redirection | |
Port traffic identification | |
Port traffic rate limiting | |
Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
Congestion avoidance: tail drop, RED, and WRED | |
802.1p/DSCP/ToS traffic classification Eight priority queues per port | |
Security | AAA |
RADIUS and TACAS+ | |
Port-based and MAC address-based 802.1X authentication | |
Web authentication | |
HTTPS | |
SSHv1 and SSHv2 | |
Global IP-MAC binding | |
Port isolation and port security | |
IP source guard | |
SAVI | |
CPP and NFPP | |
Strict and loose RPF uRPF ignoring default routes | |
3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of unauthorized MAC addresses MAC address bypass (MAB) authentication Portal authentication and Portal 2.0 authentication ARP check Dynamic ARP Inspection (DAI) ARP packet rate limiting Gateway ARP anti-spoofing Broadcast storm suppression Hierarchical management of administrators and password protection AAA for device login management MAC Authentication Bypass (SSH) BPDU guard Port protection | |
Reliability | REUP, RLDP, and DLDP |
IPv4 VRRP v2/v3 and IPv6 VRRP | |
GR for RIP, OSPF, BGP, and other routing protocols | |
BFD | |
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) | |
1+1 power module redundancy | |
Hot swapping of power modules and cables | |
3-level fan speed adjustment Fan fault alarm | |
Device virtualization | VSU |
NMS and maintenance | SPAN, RSPAN, and ERSPAN |
sFlow | |
NTP and SNTP | |
FTP and TFTP | |
SNMP v1/v2c/v3 | |
RMON (1, 2, 3, 9) | |
SSHv1 and SSHv2 | |
Syslog | |
NETCONF | |
CWMP (TR-069) | |
gRPC | |
CLI (Telnet/Console), SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for IPv6, and Traceroute v6 | |
PoE | RG-S5760C-48GT4XS-HP-E: IEEE 802.3af and 802.3at, uninterruptible power supply upon hot start, and port priority |
VXLAN | With VXLAN, a Layer 2 logical network can be built based on a Layer 3 network through software upgrade. |
