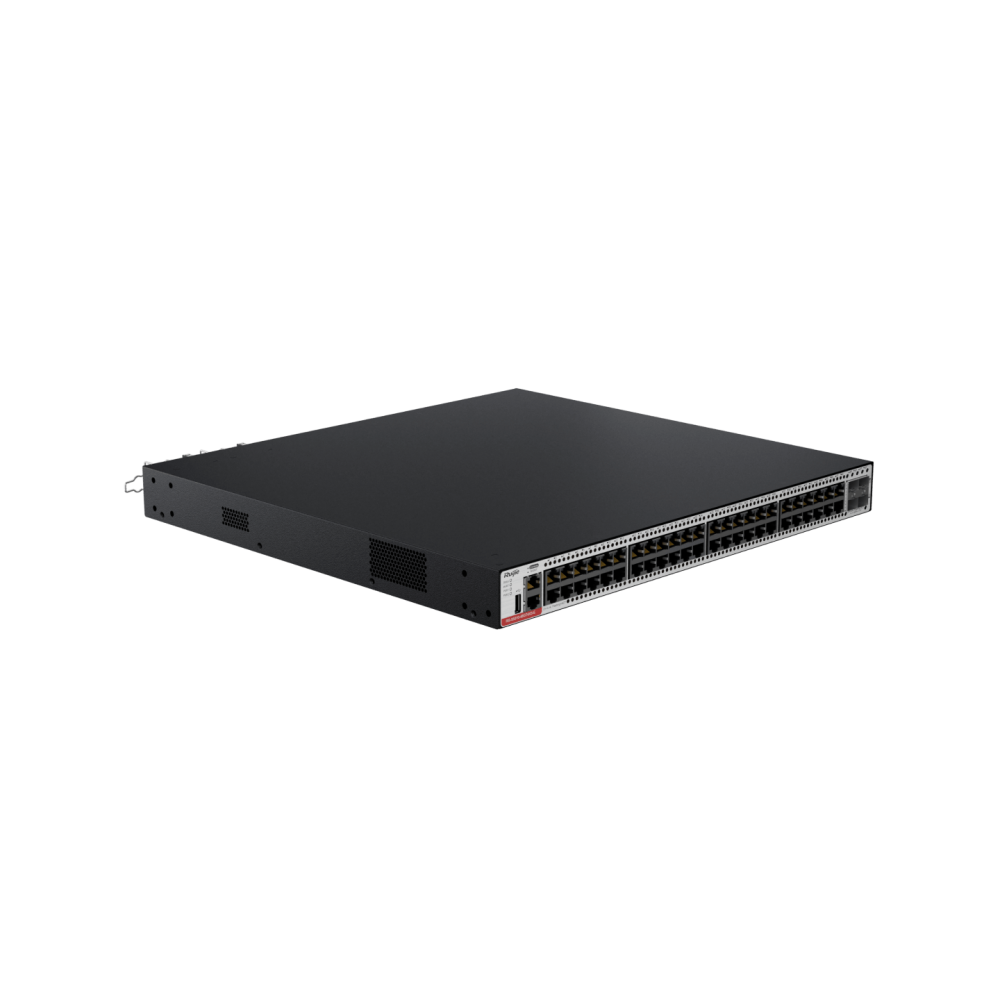

Port specifications

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

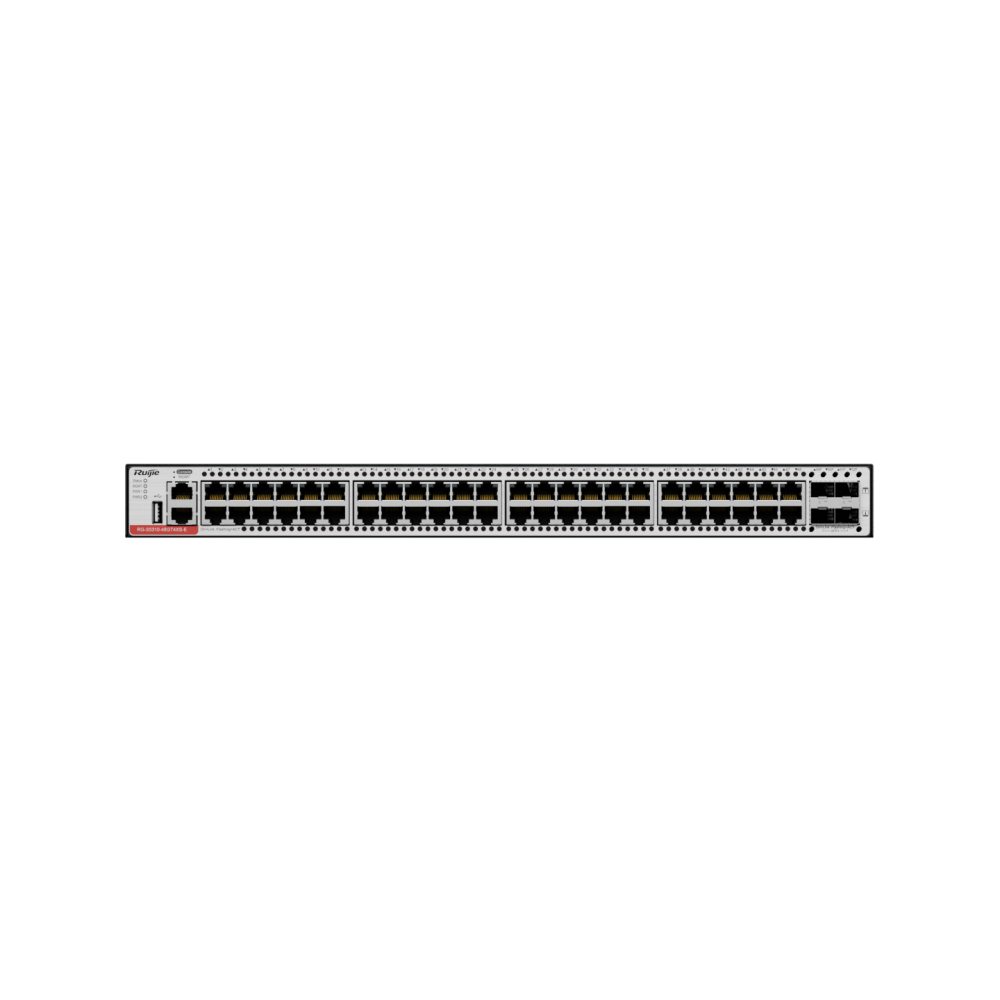

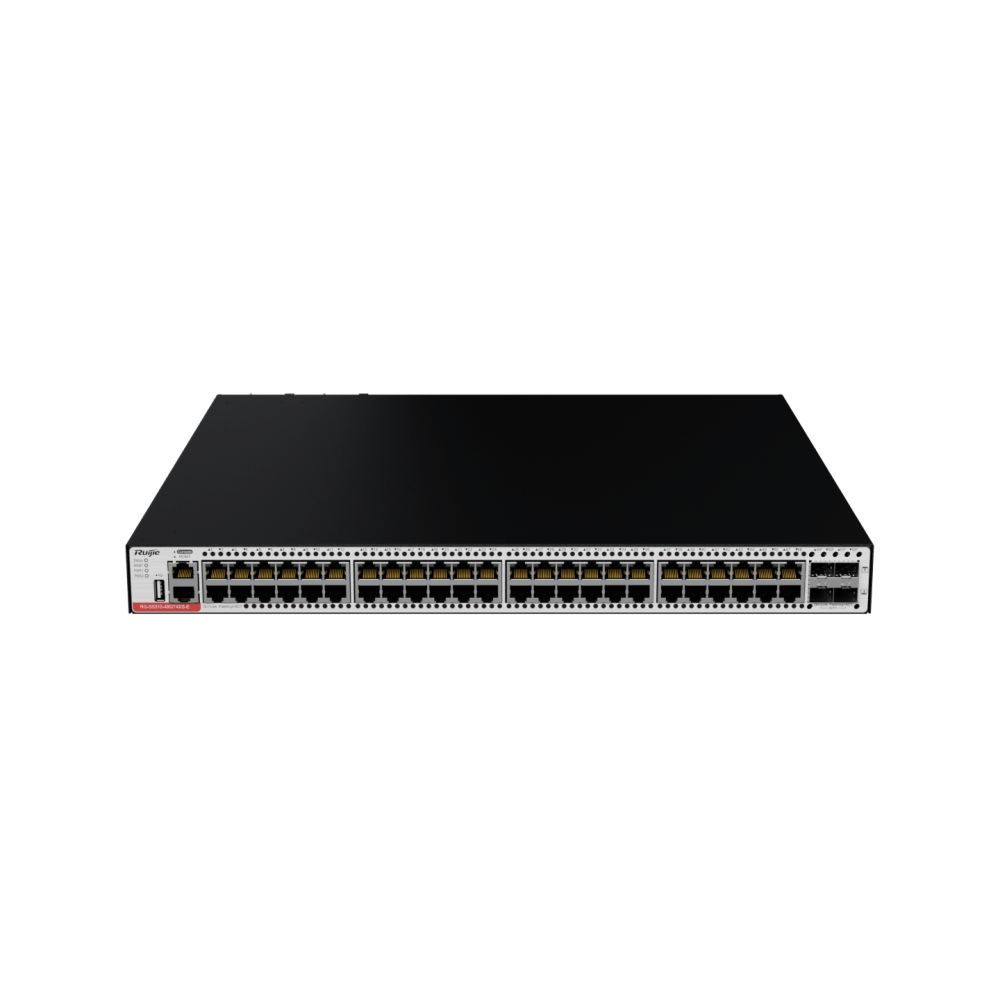

Fixed service port

24 x 10/100/1000BASE-T ports

4 x 1GE/10GE SFP+ ports

48 x 10/100/1000BASE-T ports

4 x 1GE/10GE SFP+ ports

24 x 1GE SPF ports

4 x 1GE/10GE SFP+ ports

48 x 1GE SPF ports

4 x 1GE/10GE SFP+ ports

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

48 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

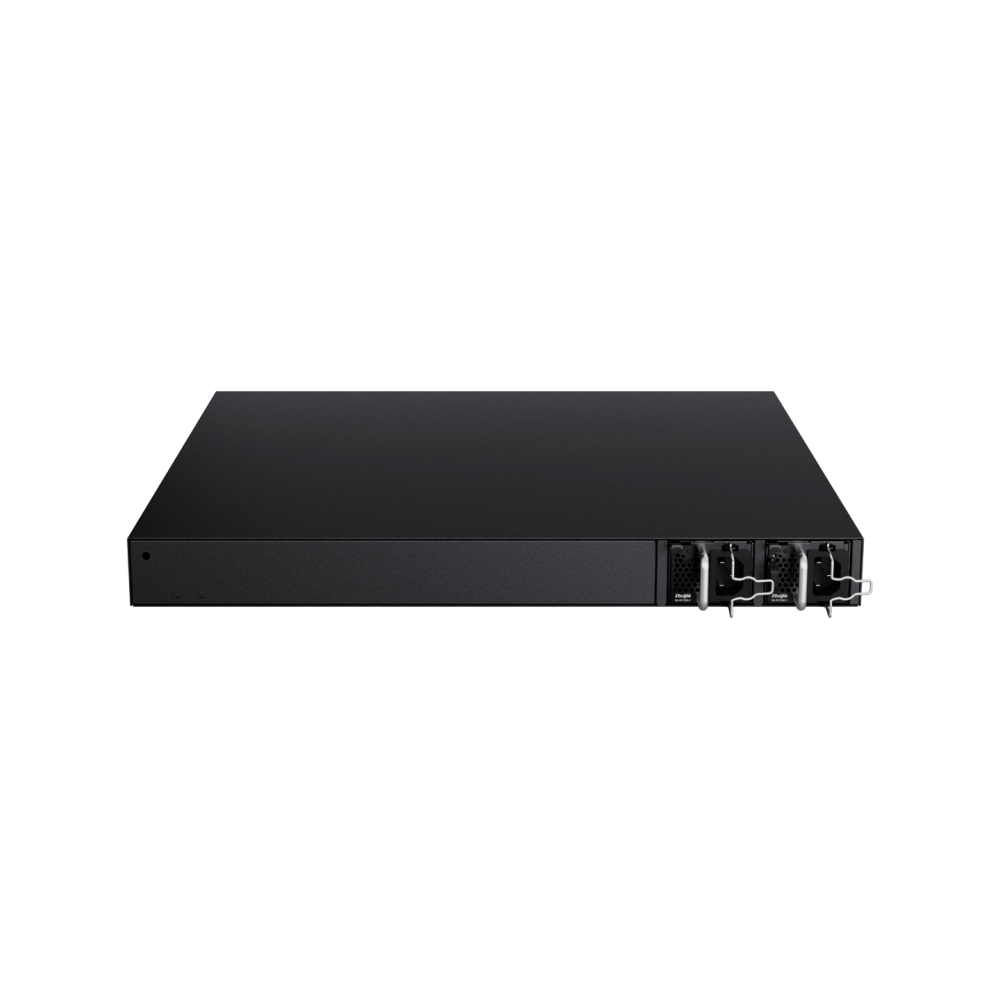

Module slot

2 x power module slots

Power module

RG-PA150IB-F

RG-PD150IB-F

RG-PA70IB

RG-PA150IB-F

RG-PD150IB-F

RG-PA70IB

RG-PA150IB-F

RG-PD150IB-F

RG-PA70IB

RG-PA150IB-F

RG-PD150IB-F

RG-PA600I-P-F

RG-PA1000I-P-F

RG-PA600I-P-F

RG-PA1000I-P-F

Fixed management port

1 x RJ45 console port

1 x RJ45 MGMT port

USB

1 x USB 2.0 port

System Specifications

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

System packet forwarding rate *1

115 Mpps

158 Mpps

115 Mpps

158 Mpps

115 Mpps

158 Mpps

System switching capacity *2

154 Gbps

211 Gbps

154 Gbps

211 Gbps

154 Gbps

211 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.2 GHz

Real-time clock (RTC)

Supported

BootROM

16 MB

Flash memory

2 GB

Memory

1 GB

Switch buffer

3 MB

Number of MAC addresses

32,000

ARP table size

4,000/16,000 (authorized)

ND table size

2,000/8,000 (authorized)

Number of IPv4 unicast routes

8,000/12,000 (authorized)

Number of IPv4 multicast routes

2,500

Number of IPv6 unicast routes

4,000

Number of IPv6 multicast routes

1,200

Number of ACEs

Ingress: 3,500

Egress: 1,500

Number of IGMP groups

2,500

Number of MLD groups

1,000

Number of VSU members

4

Dimensions and weight

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

Unit dimensions (W x D x H)

442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)

Shipping dimensions (W x D x H)

570.0 mm x 565.0 mm x 172.0 mm (22.44 in. x 22.24 in. x 6.77 in.)

Rack height

1 RU

Unit weight

4.0 kg
(8.82 lbs)

4.3 kg
(9.48 lbs)

4.2 kg
(9.26 lbs)

4.5 kg
(9.92 lbs)

4.3 kg
(9.48 lbs)

4.6 kg
(10.14 lbs)

Shipping weight

6.20 kg
(13.67 lbs)

6.50 kg (14.33 lbs)

6.38 kg
(14.07 lbs)

6.58 kg
(14.51 lbs)

6.78 kg
(14.95 lbs)

6.69 kg
(14.75 lbs)

Power supply and consumption

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

Power supply

2 x pluggable power modules

Power input

RG-PA150IB-F (AC input)

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AV to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 3 A

RG-PD150IB-F (DC input):

● Rated input voltage: –48 V DC to –60 V DC

● Maximum input voltage: –36 V DC to –75 V DC

● Maximum input current: 5 A

RG-PA70IB (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 2 A

/

Maximum output power

RG-PA70IB: 70 W

RG-PA150IB-F: 150 W

RG-PD150IB-F: 150 W

RG-PA150IB-F: 150 W

RG-PD150IB-F: 150 W

Maximum power consumption

40 W

55 W

85 W

108 W

Power supply and consumption

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

Power supply

2 x pluggable power modules

Power input

RG-PA600I-P-F (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

RG-PA1000I-P-F (AC input 1):

● Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz

● Maximum input current: 12 A

RG-PA1000I-P-F (AC input 2):

● Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 8 A

Maximum output power

RG-PA600I-P-F: 600 W

RG-PA1000I-P-F:

● 100 V AC to 130 V AC: 930 W

● 200 V AC to 240 V AC: 1000 W

PoE port

Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply

Ports 1 to 48 support PoE/PoE+ (IEEE802.3af/at) power supply

PoE power cable pairs

Mode A (1-2, 3-6 pairs)

PoE output power

Each PoE port provides up to 30 W of power.

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24)

Each PoE port provides up to 30 W of power.

The maximum power depends on the configured power supply.

● 1 x RG-PA600I-P-F: 370 W

● 2 x RG-PA600I-P-F: 740 W

● 1 x RG-PA1000I-P-F: 740 W

● 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 1440 W over 48 ports (30 W x 48)

Maximum power consumption

65 W (without PoE load)

810 W (full PoE load)

75 W (without PoE load)

1,570 W (full PoE load)

Environment and reliability

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Mean time between failure (MTBF)

385,440 hours (about 44 years, dual power modules)

210,240 hours (about 24 years, single power module)

350,400 hours (about 40 years, dual power modules)

201,480 hours (about 23 years, single power module)

306,600 hours (about 35 years, dual power modules)

183,960 hours (about 21 years, single power module)

289,080 hours (about 33 years, dual power modules)

175,200 hours (about 20 years, single power module)

350,400 hours (about 40 years, dual power modules)

201,480 hours (about 23 years, single power module)

306,600 hours (about 35 years, dual power modules)

183,960 hours (about 21 years, single power module)

Fan

1 x fixed fan module

2 x fixed fan modules

1 x fixed fan module

Heat dissipation

Fan cooling, left-to-right and front-to-right airflow

Acoustic noise

27°C (80.6°F): 34.3 dB

45°C (113°F): 56.5 dB

27°C (80.6°F): 40.8 dB

45°C (113°F): 52.4 dB

27°C (80.6°F): 38.9 dB

45°C (113°F): 53.7 dB

27°C (80.6°F): 38.9 dB

45°C (113°F): 53.7 dB

27°C (80.6°F): 51.6 dB

45°C (113°F): 57.4 dB

27°C (80.6°F): 51.6 dB

45°C (113°F): 58.3 dB

Power module redundancy

1+1 redundancy

Only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported.

Power module hot swapping

Supported

USB hot swapping

Supported

Cable hot swapping

Supported by all ports

Power supply monitoring

Monitoring of power supply model and status

Power supply failure alarming

Fan monitoring

Fan speed adjustment: 3 levels

Fan failure alarming

Temperature monitoring

Temperature monitoring, over-temperature alarming

If the ambient temperature exceeds a certain value, the device will be reset.

ESD

Air discharge: 8 kV

Contact discharge: 6 kV

Surge protection

MGMT port: 4 kV

Service port: 10 kV

Power port: common mode 6 kV, differential mode 6 kV

Certifications and regulatory compliance

RG-S5310-24GT4XS-E

RG-S5310-48GT4XS-E

RG-S5310-24SFP4XS-E

RG-S5310-48SFP4XS-E

RG-S5310-24GT4XS-P-E

RG-S5310-48GT4XS-P-E

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

RoHS

European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Feature

RG-S5310-E Series

Ethernet Switching

IEEE 802.1Q (supporting 4K VLANs)

Jumbo frame (maximum length: 9,216 bytes)

Maximum number of VLANs that can be created: 4,094

Voice VLAN

Super VLAN and private VLAN

MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment

GVRP

Basic QinQ and selective QinQ

STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

Auto errdisable recovery

BPDU filter

BPDU guard

Port fast

Root guard

ERPS (G.8032)

LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE

IP Service

Static and dynamic ARP, ARP proxy, and ARP entry timeout

DHCP client, DHCP relay, DHCP server, and DHCP snooping

DHCPv6 client, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping

DNS client, DNS proxy, and DNSv6 client

MAC address filtering

Setting the MAC address aging time

Neighbor Discovery (ND), ND proxy, and ND snooping

GRE tunnel

IP Routing

IPv4 and IPv6 static routing

RIP and RIPng

OSPFv2, OSPFv3, and GR

IS-ISv4 and IS-ISv6

BGP4 and BGP4+

IPv4/IPv6 VRF

IPv4/IPv6 PBR

Multicast

IGMPv1/v2/v3

IGMPv1/v2 snooping

IGMP fast leave

PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6

MSDP for inter-domain multicast

MLDv1/v2 and MLD proxy

MLDv1/v2 snooping

PIM-SMv6

Multicast source IP address check

Multicast source port check

Multicast querier

ACL and QoS

Standard IP ACLs (hardware ACLs based on IP addresses)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers)

Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)

Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range)

Time based ACLS, ACL 80, and IPv6 ACL

Global ACLs

ACL redirection

Port traffic identification

Port traffic rate limiting

802.1p/DSCP/ToS traffic classification

Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

Eight priority queues per port

Rate limiting in each queue

Security

Multiple AAA modes

RADIUS authentication and authorization

RADIUS and TACACS+

IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication

Web authentication

Hypertext Transfer Protocol Secure (HTTPS)

SSHv1 and SSHv2

Global IP-MAC binding

ICMPv6

Port security

IP source guard

SAVI

ARP spoofing prevention

CPP and NFPP

Multiple attack defense functions

3-tuple binding (IP address, MAC address, and port)

3-tuple binding (IPv6 address, MAC address, and port)

Filtering of invalid MAC addresses

Port- and MAC address-based 802.1x authentication

MAB authentication

Portal authentication and Portal 2.0 authentication

ARP check

DAI

ARP packet rate limiting

Gateway ARP spoofing prevention

Broadcast storm suppression

Hierarchical management of administrators and password protection

BPDU guard

Port protection

Reliability

REUP

RLDP

RLDP, Layer 2 link connectivity detection, and unidirectional link detection

DLDP

IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP

BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection

Basic LACP

Inter-VSU AP

Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM)

Hot swapping of power modules

Device virtualization

VSU

Local and remote stacking

Inter-chassis link binding in a stack

Virtualization through standard service interfaces

NMS and maintenance

RSPAN and ERSPAN

sFlow

NTP client, NTP server, NTPv6 client, and NTPv6 server

SNTP

CLI (Telnet/Console)

FTP client, FTP server, FTPv6 client, and FTPv6 server

TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server

FTP and TFTP

SNMP v1/v2/c3

Web

Syslog/Debug

RMON (1, 2, 3, 9)

Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups

RMON used to implement Ethernet statistics, historical statistics, and alarm functions

NETCONF

MACC

CWMP

gRPC

OpenFlow Special 1.3

Flow table analysis defined by all protocols

Transmission of specified packets to the controller

Configuring the controller's IP address and port

Notifying port status changes to the controller

RNS, configuration rollback, and 802.3ah

1:1 mirroring

N:1 mirroring

1:N mirroring

Flow-based local and remote mirroring

VXLAN

VXLAN (authorized)

PoE

RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E:

IEEE 802.3af and 802.3at power supply standards

Automatic and energy-saving power supply management modes

Uninterrupted power supply in hot start mode

Scheduled power-on or power-off of PoE ports based on the time policy

Port priority
