SKU: RG-S5300-48GT4XS-E
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Switches
Model
Description
RG-S5300-24GT4XS-E
24 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports

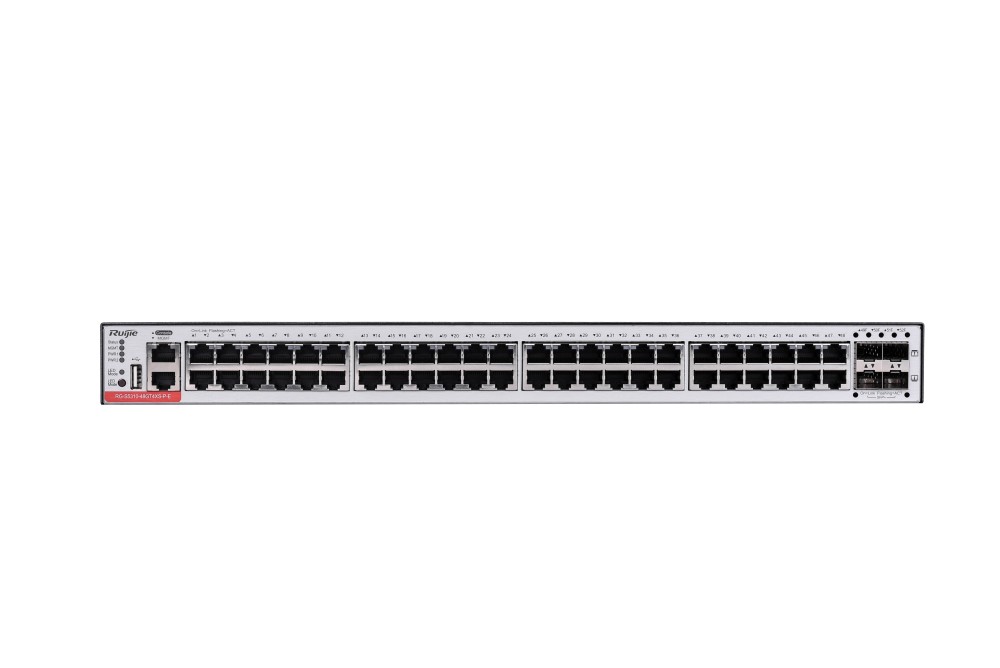

RG-S5300-48GT4XS-E
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports
RG-S5300-24GT4XS-P-E
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ and a maximum PoE output power of 370 W, 4 x 1GE/10GE SFP+ ports
Note:
4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and10GE SFP+ transceivers.
Optical Transceivers and Cables
1GE
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
Mini-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
Mini-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
Mini-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, TX1310/RX1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, TX1550/RX1310, BiDi LC, 40 km over SMF
GE-SFP-LX03-SM1310-BIDI-I
1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
GE-SFP-LX03-SM1550-BIDI-I
1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
Model
Description
XG-SFP-T
10GBASE-T, copper SFP+ transceiver, RJ45, 100 m over Cat 6a/7
XG-SFP-SR-MM850
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-ZR-SM1550
10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF
XG-SFP-LR10-SM1270-BIDI-I
10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF
XG-SFP-LR10-SM1330-BIDI-I
10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF
XG-SFP-AOC1M
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Brand: Ruijie
Model Number: RG-S5300-48GT4XS-E
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 26/11/2024
Hardware Specifications
Port specifications | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
Fixed service port | 24 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports | 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
Fixed management port | 1 x RJ45 console port 1 x RJ45 MGMT port | ||
USB | 1 x USB 2.0 port | ||
System specifications | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
System packet forwarding rate *1 | 115 Mpps | 158 Mpps | 115 Mpps |
System switching capacity *2 | 154 Gbps | 211 Gbps | 154 Gbps |
CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz | ||
Real-time clock (RTC) | Supported | ||
BootROM | 16 MB | ||
Flash memory | 2 GB | ||
Memory | 1 GB | ||
Switch buffer | 3 MB | ||
Number of MAC addresses | 32,000 | ||
ARP table size | 2,000 | ||
ND table size | 1,000 | ||
Number of IPv4 unicast routes | 4,000 | ||
Number of IPv4 multicast routes | 2,500 | ||
Number of IPv6 unicast routes | 2,000 | ||
Number of IPv6 multicast routes | 1,200 | ||
Number of ACEs | Ingress: 3,500 Egress: 1,500 | ||
Number of VSU members | 4 | ||
Number of IGMP groups | 2,500 | ||
Number of MLD groups | 1,000 | ||
Number of VRFs | 512 | ||
*1 means the system's packet forwarding rate.
*2 means the system's switching capacity.
Power supply and consumption | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
Power supply | 1 x fixed power supply | 1 x fixed power supply | 1 x fixed power supply |
Power input | AC input: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 1.5 A | AC input: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Maximum input current: 2 A | AC input: ● Rated input voltage: 100 V to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 6 A |
PoE port | Not supported | Not supported | Ports 1 to 24 support PoE/PoE+ (IEEE802.3af/at) power supply |
PoE power cable pairs | / | / | Mode A (1-2, 3-6 pairs) |
PoE output power | / | / | Each PoE port provides up to 30 W of power The maximum power is 370 W |
Maximum power consumption | 40 W | 55 W | 65 W (without PoE load) 410 W (full PoE load) |
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
Dimensions and weight | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
Unit dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) | ||
Shipping dimensions (W x D x H) | 550 mm x 350 mm x 186 mm (21.65 in. x 13.78 in. x 7.32 in.) | ||
Rack height | 1 RU | ||
Unit weight | 2.7 kg (5.95 lbs) | 3.0 kg (6.61 lbs) | 3.0 kg (6.61 lbs) |
Shipping weight | 3.83 kg (8.44 lbs) | 4.20 kg (9.26 lbs) | 4.60 kg (10.14 lbs) |
Environment and reliability | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). | ||
Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) | ||
Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) | ||
Mean time between failure (MTBF) | 200,000 hours (about 22 years) | ||
Fan | 1 x fixed fan module | ||
Heat dissipation | Fan cooling, left-to-right and front-to-right airflow | ||
Acoustic noise | 27°C (80.6°F): 40.9 dB 45°C (113°F): 48.8 dB | 27°C (80.6°F): 40.3 dB 45°C (113°F): 53.1dB | 27°C (80.6°F): 33.5 dB 45°C (113°F): 53.9 dB |
USB hot swapping | Supported | ||
Cable hot swapping | Supported by all ports | ||
Fan monitoring | Fan speed adjustment: 3 levels Fan failure alarming | ||
Temperature monitoring | Temperature monitoring, over-temperature alarming If the ambient temperature exceeds a certain value, the device will be reset. | ||
ESD | Air discharge: 8 kV Contact discharge: 6 kV | ||
Surge protection | MGMT port: 4 kV Service port: 10 kV (common mode) Power port: common mode 6 kV, differential mode 6 kV | ||
Certifications and regulatory compliance | RG-S5300-24GT4XS-E | RG-S5300-48GT4XS-E | RG-S5300-24GT4XS-P-E |
Safety regulation | IEC 62368-1 | ||
EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | ||
RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 | ||
Software Specifications
Feature | RG-S5300-E Series |
Ethernet switching | IEEE 802.1Q (supporting 4K VLANs) |
Jumbo frame (maximum length: 9,216 bytes) | |
Maximum number of VLANs that can be created: 4,094 | |
Voice VLAN | |
Super VLAN and private VLAN | |
MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
GVRP | |
Basic QinQ and selective QinQ | |
STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
Auto errdisable recovery BPDU filter BPDU guard Port fast Root guard | |
ERPS (G.8032 v1/v2), sing ring, tangent ring, intersecting ring, and load balancing | |
LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE | |
MAC address filtering Setting the MAC address aging time | |
IP service | Static and dynamic ARP, ARP proxy, and ARP entry timeout |
DHCP client, DHCP relay, DHCP server, and DHCP snooping | |
DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | |
DNS client, DNS proxy, and DNSv6 client | |
Neighbor Discovery (ND), ND proxy, and ND snooping | |
IPv6 addressing, IPv6 ping, and IPv6 tracert | |
GRE tunnel | |
IP routing | IPv4 and IPv6 static routing |
RIP and RIPng | |
OSPFv2 and OSPFv3 | |
IS-ISv4 and IS-ISv6 | |
BGP4 and BGP4+ | |
Routing policy | |
IPv4/VRF | |
IPv4/IPv6 PBR | |
Multicast | IGMPv1/v2/v3 |
IGMPv1/v2 snooping | |
IGMP fast leave | |
PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6 | |
MSDP for inter-domain multicast | |
MLDv1/v2 and MLD proxy | |
MLDv1/v2 snooping | |
PIM-SMv6 | |
Multicast source IP address check Multicast source port check | |
ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
Time based ACLs, ACL 80, and IPv6 ACL | |
Global ACLs | |
ACL redirection | |
Port traffic identification | |
Port traffic rate limiting | |
802.1p/DSCP/ToS traffic classification | |
Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
Congestion avoidance: tail drop, RED, and WRED | |
Eight priority queues per port | |
Security | Multiple AAA modes |
RADIUS | |
RADIUS and TACACS+ | |
IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
Web authentication | |
Hypertext Transfer Protocol Secure (HTTPS) | |
SSHv1 and SSHv2 | |
Global IP-MAC binding | |
ICMP | |
Port security | |
IP source guard | |
SAVI | |
ARP spoofing prevention | |
CPP and NFPP | |
Multiple attack defense functions | |
3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1X authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard Port protection | |
Reliability | REUP |
RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | |
Data Link Detection Protocol (DLDP) | |
IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP | |
BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection | |
Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
Device virtualization | VSU Local and remote stacking Inter-chassis link binding in a stack Virtualization through standard service interfaces |
NMS and maintenance | SPAN, RSPAN, and ERSPAN |
sFlow | |
NTP client, NTP server, NTPv6 client, and NTPv6 server | |
SNTP | |
CLI (Telnet/Console) | |
FTP client, FTP server, FTPv6 client, and FTPv6 server | |
TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server | |
FTP and TFTP | |
SNMP v1/v2c/c3 | |
Web | |
Syslog/Debugging | |
RMON (1, 2, 3, 9) Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups RMON used to implement Ethernet statistics, historical statistics, and alarm functions | |
NETCONF | |
MACC | |
CWMP | |
gRPC | |
OpenFlow Special 1.3 Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller's IP address and port Notifying port status changes to the controller | |
RNS, configuration rollback, and 802.3ah | |
PoE | RG-S5300-24GT4XS-P-E: IEEE 802.3af and 802.3at power supply standards Automatic and energy-saving power supply management modes Uninterrupted power supply in hot start mode Scheduled power-on or power-off of PoE ports based on the time policy Port priority |
