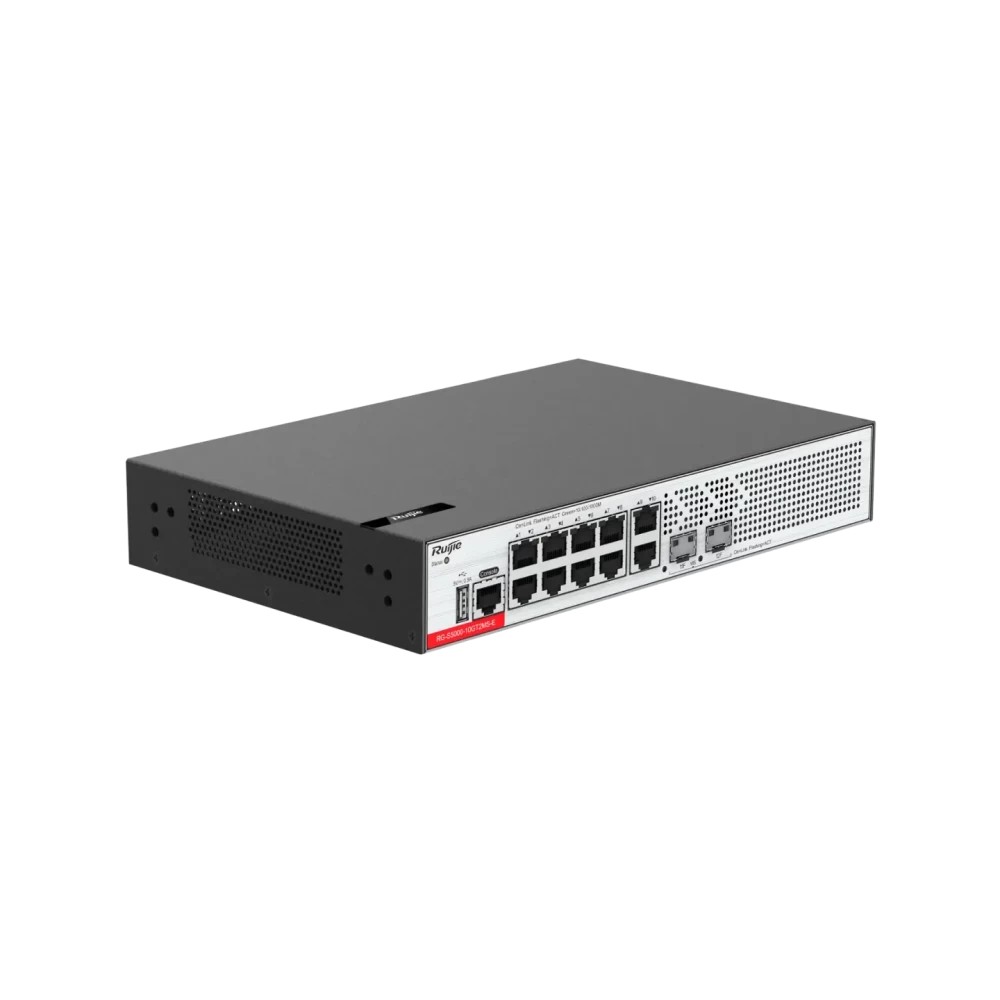

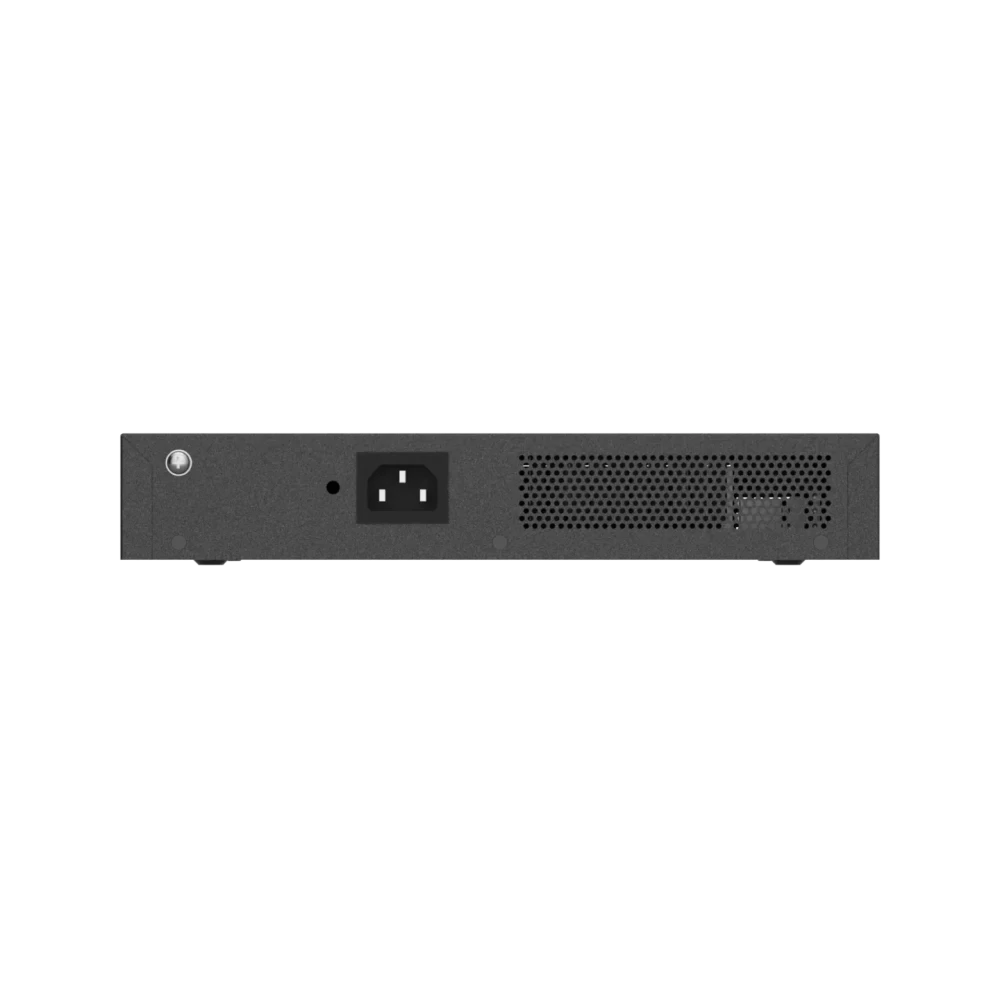

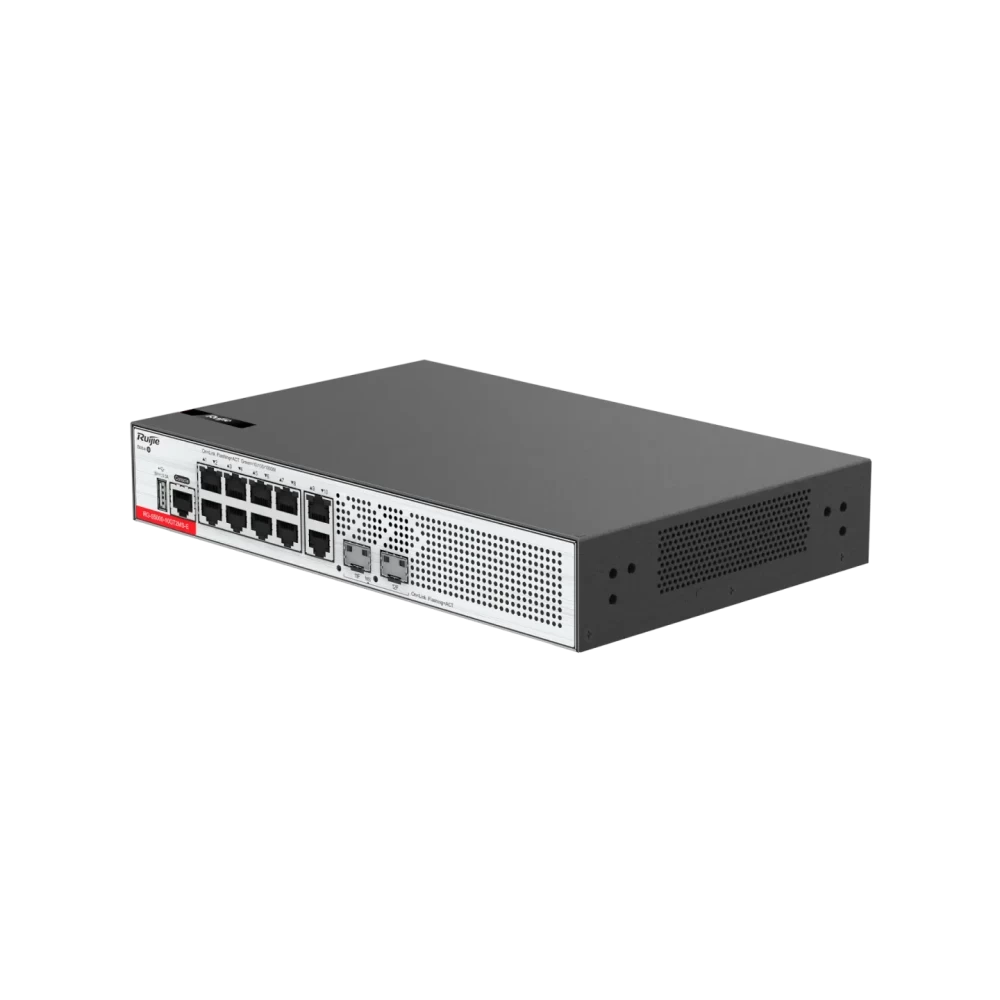

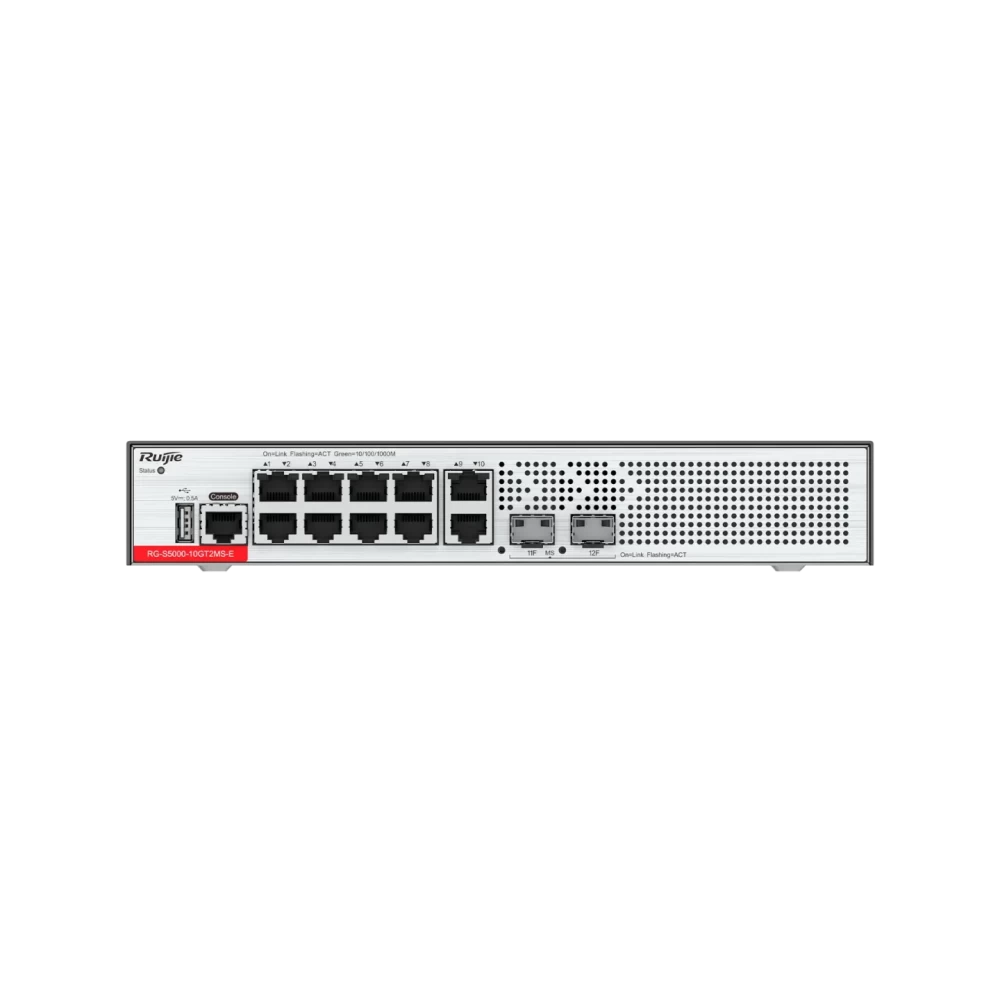

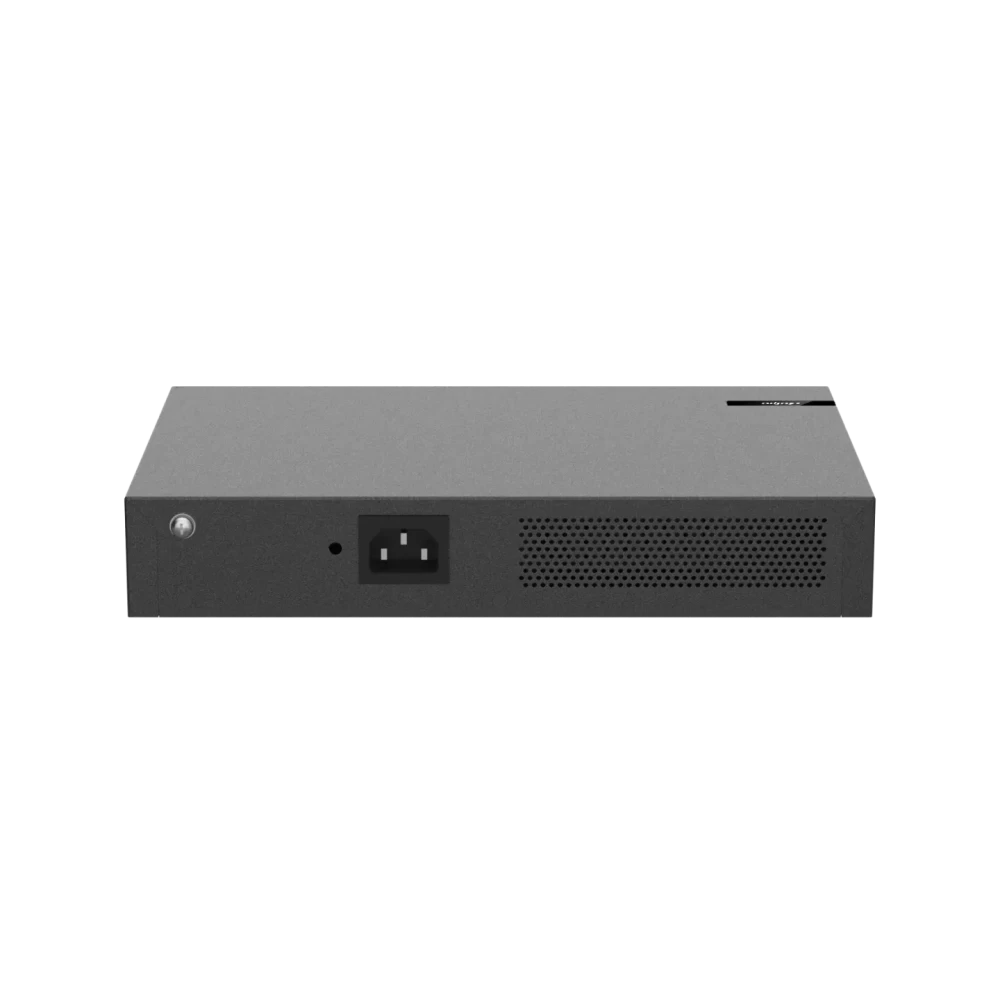

RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports
In stock

RG-S5000-10GT2MS-E 10-Port Gigabit RUIJIE Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports

SKU: RG-S5000-10GT2MS-E 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports

Category: RUIJIE NETWORK SWITCH

Availability: Unlimited

0.00/5 (0 Review)
Quantity:
Total: KD 220.000
Share on:

Description

Switches

Model

Description

RG-S5000-10GT2MS-E

10 x 10/100/1000BASE-T ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply

RG-S5000-24GT4MS-E

24 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply

RG-S5000-48GT4MS-E

48 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply

RG-S5000-10GT2MS-P-E

10 x 10/100/1000BASE-T ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply, ports 1 to 8 supporting PoE/PoE+ power supply, and maximum PoE output power of 125 W

RG-S5000-24GT4MS-P-E

24 x 10/100/1000BASE-T ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply, PoE/PoE+ power supply, and maximum PoE output power of 370 W



Optical Transceivers and Cables

1GE

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation

MINI-GBIC-SX-MM850

1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF

MINI-GBIC-LX-SM1310

1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF

MINI-GBIC-LH40-SM1310

1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF

MINI-GBIC-ZX80-SM1550

1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF

GE-SFP-LX20-SM1310-BIDI

1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF

GE-SFP-LX20-SM1550-BIDI

1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF

GE-SFP-LH40-SM1310-BIDI

1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF

GE-SFP-LH40-SM1550-BIDI

1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF

GE-SFP-LX03-SM1310-BIDI-I

1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

GE-SFP-LX03-SM1550-BIDI-I

1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.



2.5GE

Model

Description

2.5G-SFP-LX03-SM1310-BIDI-I

2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF

2.5G-SFP-LX03-SM1550-BIDI-I

2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Product Specifications

Brand: Ruijie

Model Number: RG-S5000-10GT2MS-E 10-Port Gigabit Layer 2+ Managed Switch with Two 2.5GE Uplink SFP Ports

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 999

Listed date: 16/11/2024

Hardware Specifications

Port specifications

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

Fixed service port

10 x 10/100/1000BASE-T ports

2 x 1GE/2.5GE SFP ports

24 x 10/100/1000BASE-T ports

4 x 1GE/2.5GE SFP ports

48 x 10/100/1000BASE-T ports

4 x 1GE/2.5GE SFP ports

10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+

2 x 1GE/2.5GE SFP ports

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/2.5GE SFP ports

Fixed management port

1 x RJ45 console port

USB

1 x USB port



System Specifications

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

System packet forwarding rate *1

27 Mpps

61 Mpps

104 Mpps

27 Mpps

61 Mpps

System switching capacity *2

36 Gbps

82 Gbps

139 Gbps

36 Gbps

82 Gbps

CPU

Single-core CPU, with the clock speed of 1.2 GHz

Flash memory

64 MB

64 MB

64 MB

64 MB

64 MB

Memory

DDR4 512 MB

DDR4 512 MB

DDR4 512 MB

DDR4 512 MB

DDR4 512 MB

Switch buffer

512 KB

512 KB

512 KB

512 KB

512 KB

MAC address

16000

ARP table size

512

ND table size

256

Number of IPv4 unicast routes

64

Number of IPv6 unicast routes

64

Number of ACEs

500

*1 means the system's packet forwarding rate.

*2 means the system's switching capacity.

Dimensions and weight

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

Unit dimensions (W x D x H)

260 mm x 170 mm x 43.6 mm (10.24 in. x 6.69 in. x 1.72 in.)

440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.)

440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.)

297 mm x 170 mm x 43.6 mm (11.69 in. x 6.69 in. x 1.72 in.)

440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.)

Shipping dimensions (W x D x H)

485 mm x 410 mm x 390 mm (19.04 in. x 16.14 in. x 15.35 in.)

570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.)

570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.)

580 mm x 450 mm x 380 mm (22.83 in. x 17.72 in. x 14.96 in.)

570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.)

Rack height

1 RU

1 RU

1 RU

1 RU

1 RU

Unit weight

2.0 kg (4.41 lbs)

2.5 kg (5.51 lbs)

2.8 kg (6.17 lbs)

2.5 kg (5.51 lbs)

2.8 kg (6.17 lbs)

Shipping weight

2.40 kg (5.25 lbs)

3.70 kg (8.15 lbs)

3.60 kg (7.94 lbs)

3.18 kg (7.01 lbs)

4.13 kg (9.11 lbs)

Mounting

Mounting on a workbench/wall or in a rack (cabinet)



Power supply and consumption

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

Power supply

1 x fixed power supply

Power input

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 0.6 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 0.6 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 1.5 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 3 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 6 A

Maximum output power

Fixed power supply: 16 W

Fixed power supply: 15.6 W

Fixed power supply: 30 W

Fixed power supply: 141 W

Fixed power supply: 430 W

PoE port

Not supported

Not supported

Not supported

Ports 1 to 8 support PoE/PoE+ (IEEE802.3af/at) power supply

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

PoE power cable pairs

Not supported

Not supported

Not supported

Mode A (1-2, 3-6 pairs)

Mode A (1-2, 3-6 pairs)

PoE output power

Not supported

Not supported

Not supported

Each port of ports 1 to 8 provides up to 30 W of power

The maximum power is 125 W

Each PoE port provides up to 30 W of power

The maximum power is 370 W

Maximum power consumption

16 W

15.6 W

30 W

16 W (without PoE load)

141 W (full PoE load)

33 W (without PoE load)

403 W (full PoE load)

Energy saving

Energy Efficient Ethernet (EEE)

Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.



Environment and reliability

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.)

Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.)

Mean time between failure (MTBF)

200,000 hours (about 22 years)

Fan

Fanless

Fanless

2 x fixed fan modules

1 x fixed fan module

2 x fixed fan modules

Heat dissipation

Fanless design, natural heat dissipation

Fanless design, natural heat dissipation

Forced air cooling

Forced air cooling

Forced air cooling

Acoustic noise

Fanless

Fanless

27℃ (80.6°F): 40 dB

27℃ (80.6°F): 40 dB

27℃ (80.6°F): 40 dB

USB hot swapping

Supported

Supported

Supported

Supported

Supported

Cable hot swapping

Supported by all ports

Supported by all ports

Supported by all ports

Supported by all ports

Supported by all ports

Fan monitoring

Fanless design

Fanless design

Fan speed control and fan failure alarming

Fan speed control and fan failure alarming

Fan speed control and fan failure alarming

Temperature monitoring

Temperature monitoring, over-temperature alarming

If the ambient temperature exceeds a certain value, the device will be reset.

ESD

Air discharge: 8 kV/15 kV

Contact discharge: 6 kV/8 kV

Surge protection

Service port: 10 kV

Power port: common mode 6 kV, differential mode 2 kV



Certifications and regulatory compliance

RG-S5000-10GT2MS-E

RG-S5000-24GT4MS-E

RG-S5000-48GT4MS-E

RG-S5000-10GT2MS-P-E

RG-S5000-24GT4MS-P-E

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

RoHS

European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863



Software Specifications

Feature

RG-S5000-E Series

Ethernet switching

Jumbo frame (maximum length: 9216 bytes)

802.3az EEE

IEEE 802.1Q (4K VLANs)

Voice VLAN

Port-based VLAN assignment

Basic QinQ and selective QinQ

STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

ERPS (G.8032)

LLDP/LLDP-MED

IP service

Static and dynamic ARP

DHCP client

DHCP relay

DHCP server

DHCP snooping

DNS client

Neighbor Discovery (ND)

IP routing

Static routing

RIP and RIPng

OSPFv2

Multicast

IGMP snooping v1/v2

IGMP fast leave

ACL and QoS

Standard IP ACLs (IP-based hardware ACLs)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers)

MAC-based extended ACLs (ACLs based on source or destination MAC addresses)

Expert ACLs

IPv6 ACL

ACL 80

Global ACLs

ACL redirection

Flow-based rate limiting at the ingress

Port rate limiting

Traffic classification based on 802.1p or DSCP priorities

Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences

Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop

Eight queues on each port

Rate limiting in each queue

Security

Filtering of invalid MAC addresses

RADIUS authentication and authorization

RADIUS and TACACS+

IEEE 802.1X authentication

MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication

Web authentication

Hypertext Transfer Protocol Secure (HTTPS)

SSHv1.5 and SSHv2.0

ICMPv6

IP source guard

Proxy ARP and ARP entry aging

Hardware CPP and NFPP

Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types

Reliability

RLDP

LACP

Load balancing modes

Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, and unidirectional link detection

NMS and maintenance

RSPAN

sFlow (sFlow is a network detection technology based on packet sampling, which is mainly used for traffic statistics analysis in super-heavy network traffic scenarios)

NTP (NTP client and NTP server)

TFTP (TFTP client)

SNMPv1/v2c/v3

CWMP

SSH v1.5/v2.0

PoE

RG-S5000-10GT2MS-P-E and RG-S5000-24GT4MS-P-E:

l IEEE 802.3af and 802.3at

l Automatic and energy-saving power supply management mode

l Uninterrupted power supply in hot start mode

l Scheduled powering on or off PoE ports

l Port priority

Cloud

WIS

Customer Feedback

0

0 Verified ratings
0%
0%
0%
0%
0%

No review found.

Delivery Info

Flat Rate

Free Shipping on Flat Rate starts from order amount KD 0.000

Choose your Location

Door Delivery

Door Delivery

Pickup Location

Pickup Location

Return Policy

Return Policy

Easy Return, Quick Refund. See more.

Shoping Cart

0 Item’s selected

Subtotal

KD 0.000
