Switches
Model
Description
RG-S2915-48GT4MS-L
48 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply
RG-S2915-24GT4MS-L
24 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply

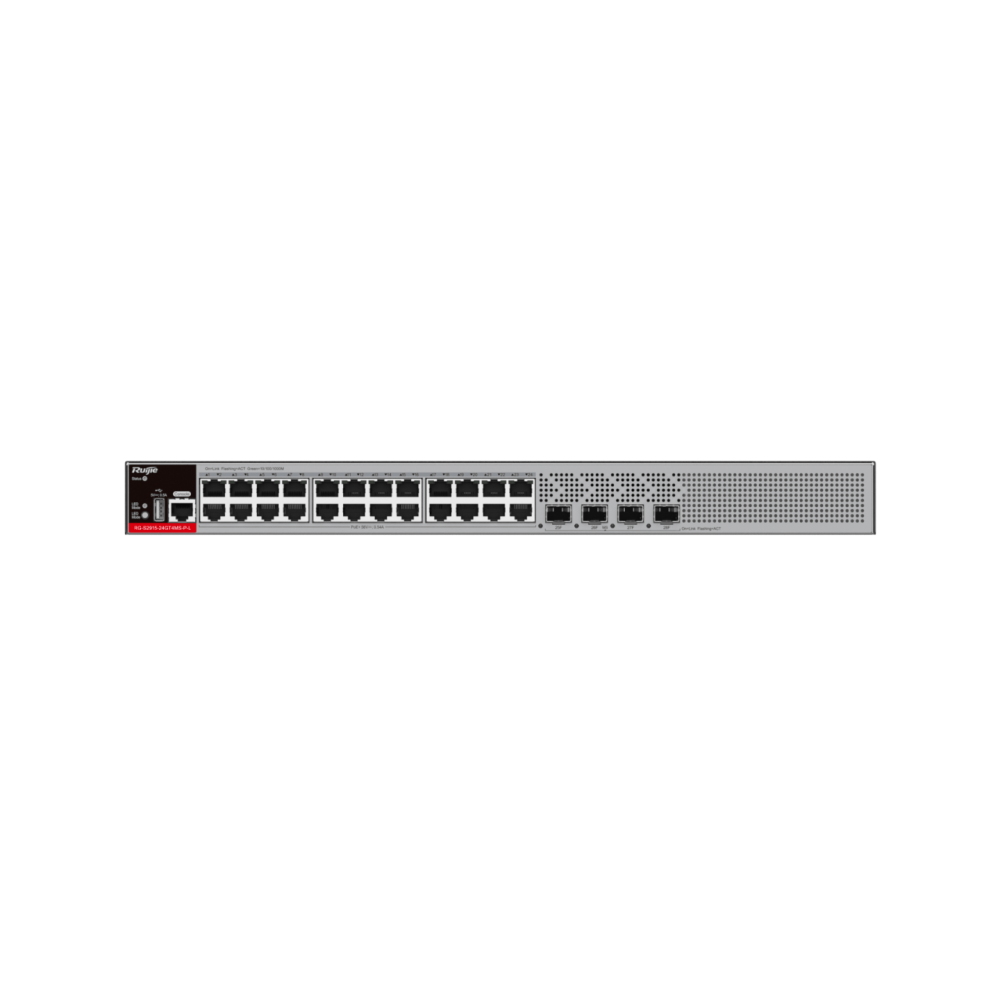

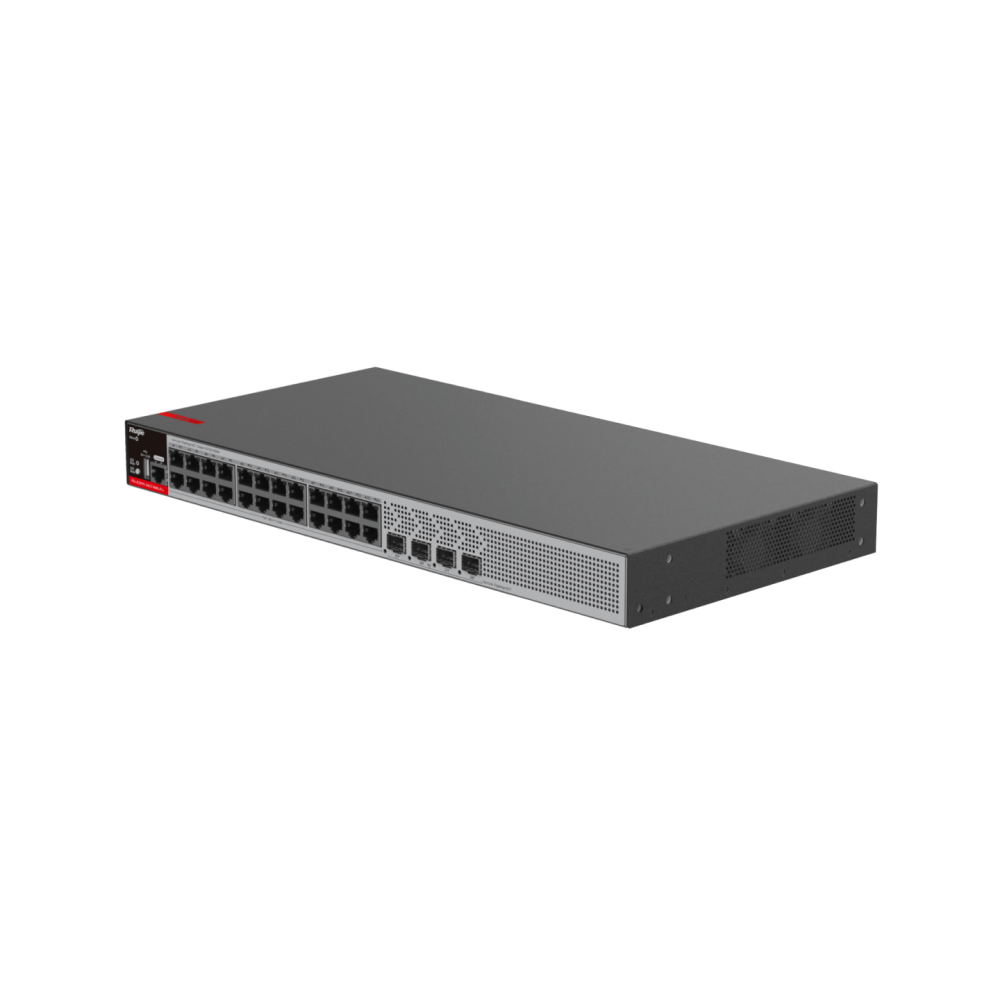

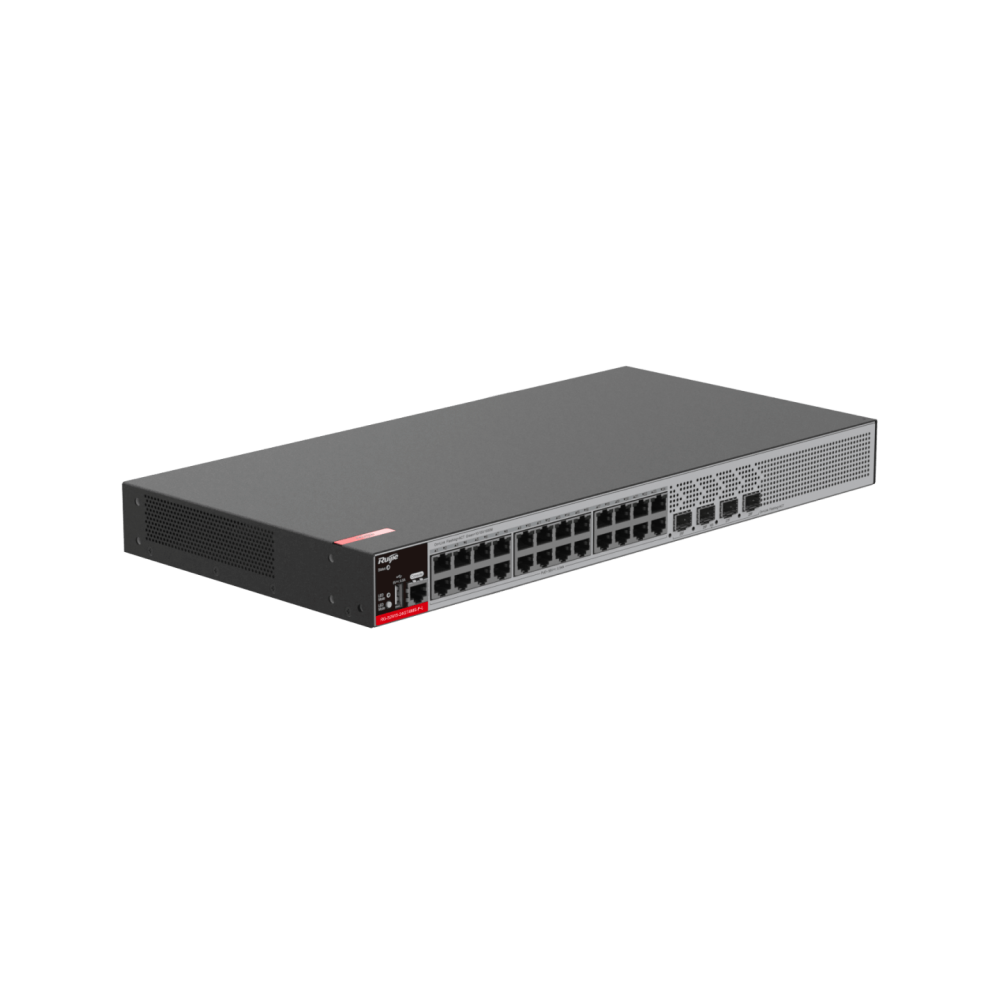

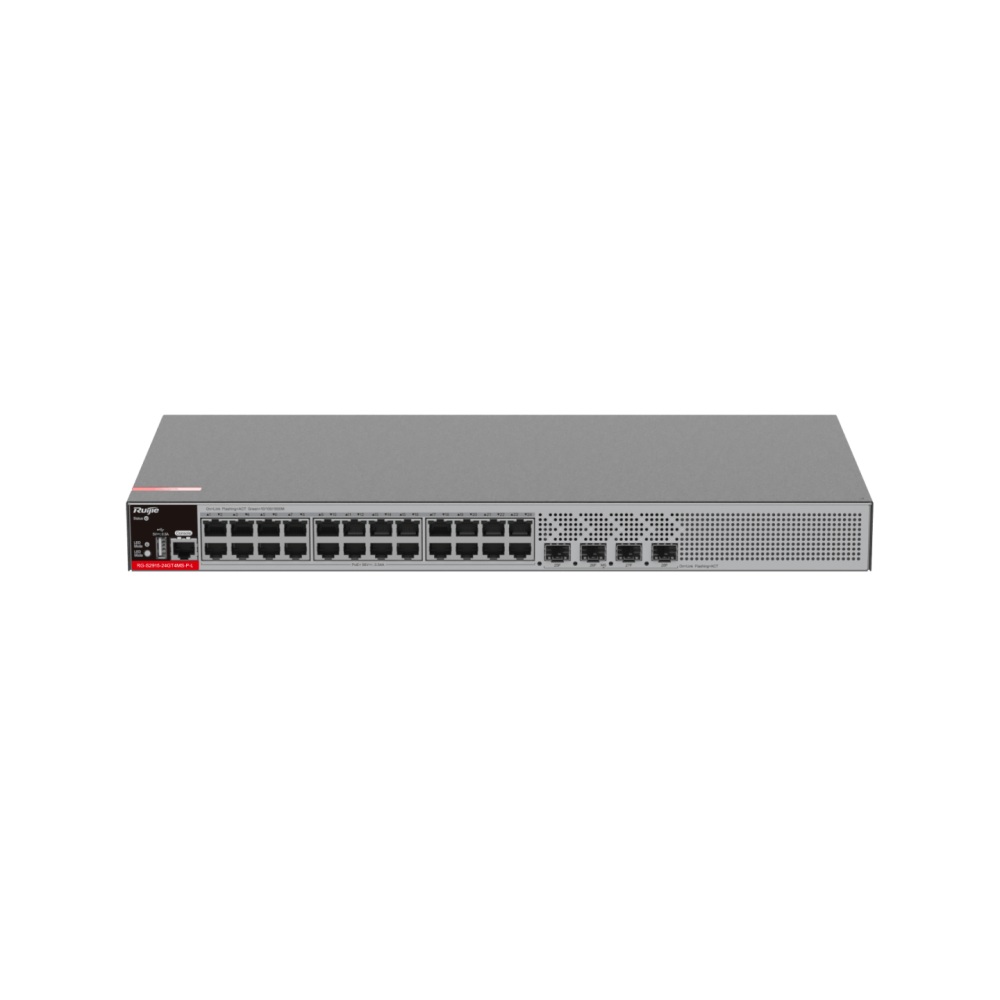

RG-S2915-24GT4MS-P-L
24 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply, PoE/PoE+ power supply, 370 W PoE power supply
RG-S2915-10GT2MS-P-L
10 x 10/100/1000BASE-T ports, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply, PoE/PoE+ power supply, 125 W PoE power supply
Note:
4 x 1GE/2.5GE SFP portssupport 1GE SFP transceivers and 5GE SFP transceivers.
2 x 1GE/2.5GE SFP portssupport 1GE SFP transceivers and 5GE SFP transceivers.
Optical Transceivers
1GE
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
2.5GE
Model
Description
2.5G-SFP-LX03-SM1310-BIDI-I
2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
2.5G-SFP-LX03-SM1550-BIDI-I
2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF
Brand: Ruijie
Model Number: RG-S2915-24GT4MS-P-L
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 25/11/2024
Hardware Specifications
Port Specifications
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Fixed Service Ports
48 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE SFP ports
24 x 10/100/1000BASE-T ports
4 x 1GE/2.5GE SFP ports
24 x
10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE SFP ports
10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+,
2 x 1GE/2.5GE SFP ports
Fixed management port
1 x RJ45 console port
1 x RJ45 console port
1 x RJ45 console port
1 x RJ45 console port
USB
1 x USB port
1 x USB port
1 x USB port
1 x USB port
System Specifications
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Packet forwarding rate
87 Mpps
51 Mpps
51 Mpps
22.5 Mpps
Switching capacity
116 Gbps
68 Gbps
68 Gbps
30 Gbps
CPU
Built-in single-core CPU, with the clock speed of 1.2 GHz
Flash memory
64 MB
Memory
DDR4 512 MB
Switch buffer
512 KB
MAC Table Capacity
16,000
ARP table
512
Routing Table Size (IPv4/IPv6)
64
ACL entries
500
Dimensions and Weight
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Unit dimensions (W x D x H)
440 mm x 220 mm x 43.5 mm (17.32 in. x 8.66 in. x 1.71 in.)
440 mm x 220 mm x 43.5 mm (17.32 in. x 8.66 in. x 1.71 in.)
440 mm x 292 mm x 43.6 mm (17.32 in. x 11.50 in. x 1.72 in.)
297 mm x 170 mm x 44.5 mm (11.69 in. x 6.69 in. x 1.75 in.)
Shipping dimensions
(W x D x H) 1*
570 mm x 490 mm x 390 mm
(22.44 in. x 19.29 in. x 15.35 in.)
570 mm x 490 mm x 390 mm
(22.44 in. x 19.29 in. x 15.35 in.)
570 mm x 490 mm x 390 mm
(22.44 in. x 19.29 in. x 15.35 in.)
580 mm x 450 mm x 380 mm
(22.83 in. x 17.72 in. x 14.96 in.)
Rack height
1 RU
1 RU
1 RU
1 RU
Unit weight
2.8 kg (6.17 lbs)
2.5 kg (5.51 lbs)
2.8 kg (6.17 lbs)
2.5 kg (5.51 lbs)
Shipping weight 1*
20.43 kg
(45.04 lbs)
18.18 kg
(40.08 lbs)
20.93 kg
(46.14 lbs)
15.98 kg
(35.23 lbs)
1* with five devices included.
Power Supply and Consumption
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Power supply
1 x fixed power supply
1 x fixed power supply
1 x fixed power supply
1 x fixed power supply
Power input
AC input:
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 1.5 A
AC input:
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 0.6 A
AC input:
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 6 A
AC input:
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 3 A
Maximum power consumption
30 W
15.6 W
33 W (non-PoE)
403 W (full PoE load)
16 W (non-PoE)
141 W (full PoE load)
PoE port
Not supported
Not supported
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
Ports 1-8 support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs
/
/
Mode A (1-2, 3-6 pairs)
Mode A (1-2, 3-6 pairs)
PoE output power
/
/
Each PoE port provides up to 30 W of power.
The maximum power is 370 W
Each PoE port provides up to 30 W of power.
The maximum power is 125 W
Energy saving
Energy Efficient Ethernet (EEE)
Energy Efficient Ethernet (EEE)
Energy Efficient Ethernet (EEE)
Energy Efficient Ethernet (EEE)
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
Environment and Reliability
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Temperature
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)
Altitude
0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)
200,000 hours (about 22 years)
Fan
2 x fixed fan modules
/
2 x fixed fan modules
1 x fixed fan module
Heat dissipation
Forced air cooling
Fanless design, natural heat dissipation
Forced air cooling
Forced air cooling
Acoustic noise
≤ 37 dB
Fanless
≤ 39 dB
≤ 37 dB
Cable hot swapping
Cable hot swapping for all ports
Cable hot swapping for all ports
Cable hot swapping for all ports
Cable hot swapping for all ports
Fan monitoring
Fan speed control and fan failure alarming
Fanless design
Fan speed control and fan failure alarming
Fan speed control and fan failure alarming
ESD
Air discharge: 8 kV/15 kV
Contact discharge: 6 kV/8 kV
Air discharge: 8 kV/15 kV
Contact discharge: 6 kV/8 kV
Air discharge: 8 kV/15 kV
Contact discharge: 6 kV/8 kV
Air discharge: 8 kV/15 kV
Contact discharge: 6 kV/8 kV
Surge protection
Power port: 6 kV/2 kV
Telecom port: 10 kV
Power port: 6 kV/2 kV
Telecom port: 10 kV
Power port: 6 kV/2 kV
Telecom port: 10 kV
Power port: 6 kV/2 kV
Telecom port: 10 kV
Certifications and Regulatory Compliance
RG-S2915-48GT4MS-L
RG-S2915-24GT4MS-L
RG-S2915-24GT4MS-P-L
RG-S2915-10GT2MS-P-L
Safety regulation
IEC 62368-1
EMC regulation
EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Software Specifications
Feature
Description
Ethernet switching
Jumbo frame (maximum length: 9216 bytes)
802.3az EEE
IEEE 802.1Q (4,094 VLANs)
Voice VLAN
Port based VLAN
Basic QinQ
Selective QinQ
STP (IEEE 802.1.d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
ERPS (G.8032)
LLDP/LLDP-MED
LACP (IEEE 802.3ad)
IP service
ARP
DHCP client, DHCP relay, and DHCP server
DHCP snooping
DNS
IP routing
Static routing
RIP, RIPng
OSPFv2
ACL and QoS
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Expert-level ACLs
ACL 80
IPv6 ACL
ACL redirection
Port traffic rate limiting
802.1p, DSCP, IP precedence traffic prioritization (IEEE 802.1p) for real-time classification
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
Congestion avoidance: tail drop
Eight priority queues per interface
Security
RADIUS and TACACS+
Port-based and MAC-based 802.1x authentication
Web authentication
HTTPS
SSHv1, SSHv2
IGMP V1,V2 snooping
IP Source Guard
CPP and NFPP
Reliability
RLDP
Hot swapping of power modules and cables
Temperature Monitoring
Temperature Alarm
Overtemperature Protection
NMS and maintenance
RSPAN
sFlow
NTP
TFTP client
SNMP v1/v2c/v3
CLI (telnet/console), syslog/debug, Web, MACC public cloud
CWMP (TR-069) standard protocol
gRPC
PoE
IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start
Port priority
