SKU: RG-RSR830W-P
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-RSR830
2x GE WAN ports, 8 x GE RJ45 LAN ports
RG-RSR830W
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI
RG-RSR830-P
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting PoE power supply, and maximum PoE output power of 110 W

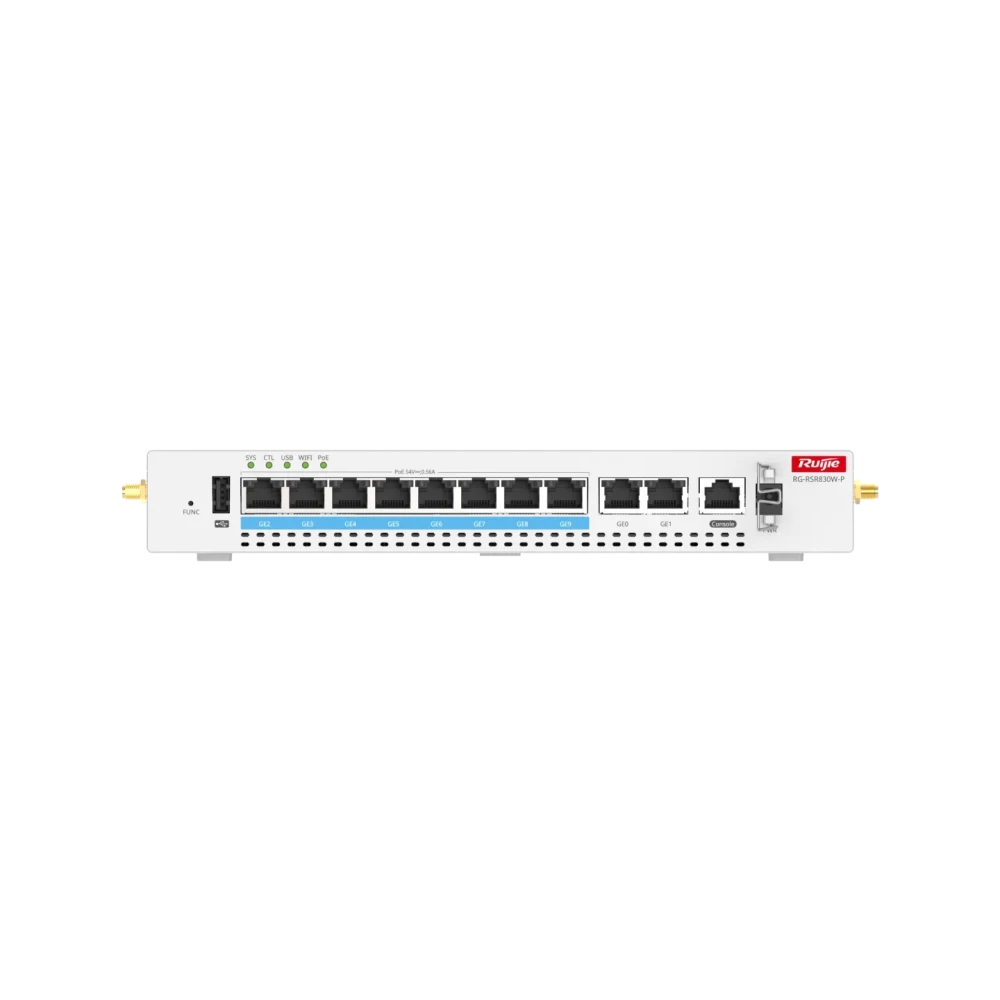

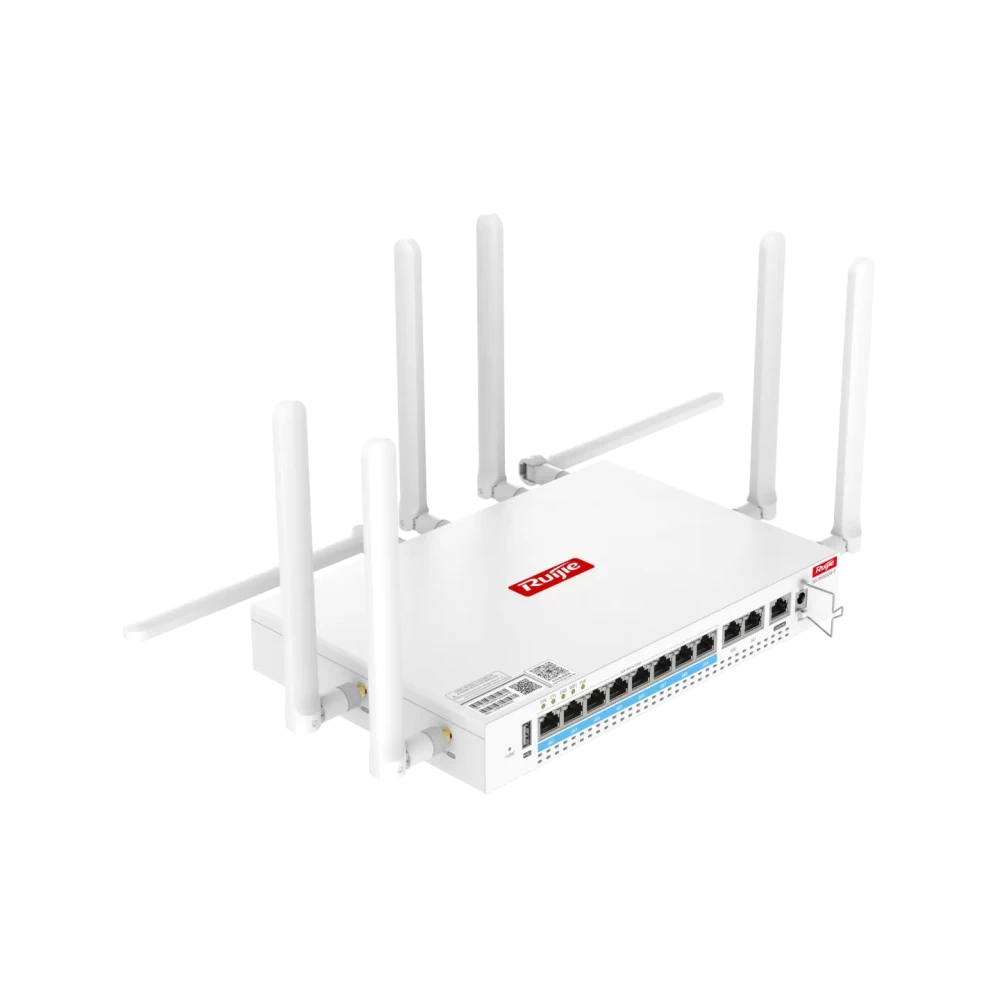

RG-RSR830W-P
2x GE WAN ports, 8 x GE RJ45 LAN ports, supporting 802.11 b/g/n/ac/ax WIFI, supporting PoE power supply, and maximum PoE output power of 110 W
Expansion Module
Model
Description
SIC-5G-G
5G NR small-sized card, supporting dual SIM single standby, 4 x SMA-K antenna interfaces

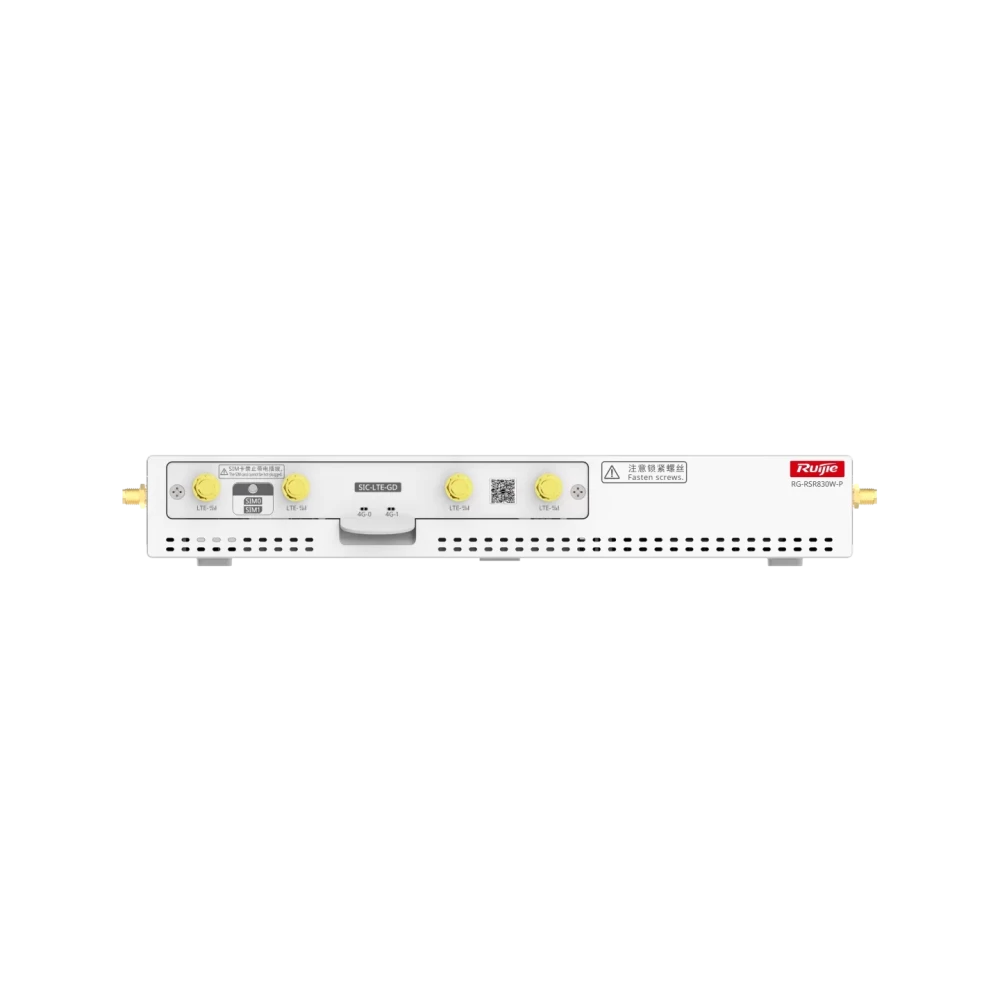

SIC-LTE-GD
4G LTE small-sized card, supporting dual SIM dual standby and global D band (double)
SIC-LTE-GS
4G LTE small-sized card, supporting dual SIM single standby and global S band (single)
SIC-2SFP
GE expansion card of optical modules, 2 x 1GE SFP ports
Brand: Ruijie
Model Number: RG-RSR830W-P
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 03/12/2024
Hardware Specifications
Hardware Specifications | RG-RSR830 | RG-RSR830W | RG-RSR830-P | RG-RSR830W-P | |
Forwarding performance | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | |
Fixed service port | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports
| Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ | |
Fixed management port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | |
USB | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | |
Memory | 2 GB | 2 GB | 2 GB | 2 GB | |
Flash Memory | 4 GB | 4 GB | 4 GB | 4 GB | |
VPN performance (256- bit AES encryption) | 400 Mbps | 400 Mbps | 400 Mbps | 400 Mbps | |
Number of IPsec VPN Tunnels | 100 | 100 | 100 | 100 | |
Expansion Module | ● SIC-LTE-GS LTE card (Cat-6, 2 x SIM, active-standby) ● SIC-LTE-GD LTE card (Cat-6, 2 x SIM, active-active) ● SIC-5G-G 5G NR in global bands single card, small plug-in card ● SIC-2SFP Expansion gigabit optical module plug-in card | ||||
Wi-Fi Port | N/A | 802.11 b/g/n/ac/ax | N/A | 802.11 b/g/n/ac/ax | |
Unit Dimensions (W x D x H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. x 6.73 in. x 1.50 in.) With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. X 6.73 in. X 1.50 in.) With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) | |
Unit weight | 0.95 kg (2.09 lbs) | 1.04 kg (2.29 lbs) | 1.05 kg (2.31 lbs) | 1.14 kg (2.51 lbs) | |
Maximum Power Consumption | 36 W (including module power) | 36 W (including module power) | 150 W (including PoE power and module power) | 150 W (including PoE power and module power) | |
Input power supply | 36 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W | 36 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W | 150 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W | 150 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W | |
Recommended number of user | 300 | 300 | 300 | 300 | |
External Power Supply | N/A | N/A | Each port provides up to 30 W of power. The device provides up to 110 W of power. | Each port provides up to 30 W of power. The device provides up to 110 W of power. | |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | |
Humidity | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | |
Altitude | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | |
IP rating | IP30 | IP30 | IP30 | IP30 | |
Software Specifications
Software Specifications | RG- RSR830 Series |
Ethernet | Jumbo frame forwarding (max. size: 1974) Frame format: Ethernet II Change of the MTUs (link MTU and IP MTU) in the forwarding plane Forcibly converting the 1000M optical port into the electrical port in auto-negotiation mode (100M/1000M) LAN/WAN switching Interface auto-negotiation factor Interface WAN/LAN mode switching |
ACL and QoS | IP standard ACL IP extended ACL Association with the egress ACL based on a Layer 3 interface (SVI/routed port/L3 AP) HQoS: DSCP/IP-PRE/COS HQoS: PQ\WFQ\LPQ methods of congestion scheduling |
IPv4 application protocol features | DHCP client Option 43/52/138 |
IPv4 application protocol features | DHCP server Option 138 Option 43 Option 82 Large address pool Alarm (Syslog) |
IPv4 application protocol features | Configuring DHCP snooping in a VLAN Configuring DHCP snooping on a logical interface (including the physical interface and aggregate interface) Trusted interface |
DNS DNS client | |
FTP client | |
NTP client NTP server TFTP client TFTP server | |
IPv6 application protocol features | DHCPv6 client Option 18 Option 37 |
DHCPv6 server Option 52 DHCPv6 Snooping ND Snooping | |
FTP server TFTP server TFTP client NTP server NTP client | |
Layer 2 features | LLDP |
Layer 2 features | MAC address filter Interface-based MAC address learning Static MAC address Global MAC address learning Enforcing deletion of a MAC address using a command MAC address aging time Port based VLAN Spanning Tree Protocol |
Layer 3 features | Proxy ARP ARP entry aging |
Ping Traceroute | |
Layer 3 features | GRE tunnel PBR/ACL/QoS/NAT for IPv4 & IPv6 services on a GRE interface Inner and outer VRF configuration |
IPv4 & IPv6 VRF | |
BGP4/BGP4+ IS-IS v4/v6 OSPF v2/v3 RIP v1/v2 PBR | |
VAG | Intelligent routing Load balancing Active/Standby scheduling for undefined applications Controller management Disaster recovery |
WLAN features | WLAN services: SSID configuration SSID-based VLAN configuration UTF8 SSID |
Wireless security: WPA3 User isolation: Layer 2 isolation |
WLAN features | RF resources: Channel configuration Channel width configuration Power configuration Automatic RF optimization (channel, channel width) WMM configuration 802.11 b/g/n/ac/ax |
Security features | AAA and web authentication |
EXEC authorization, RADIUS, interworking with the SAM/SMP/ACS server, and specifying the source IP address (through the source interface) | |
Account allocation by user and login authentication (password, none) | |
Encrypted transmission and storage of static passwords, password lifetime check, and reuse limitation | |
Security features | Application identification，url Filtering, IDS/IPS, blacklist and whitelist |
CPP and NFPP | |
Management features | gRPC framework |
NETCONF | |
TACACS | |
SNMP v1/v2/v3 | |
SSH | |
Syslog | |
IPv4 supported by the Telnet server | |
HTTP server V1.1 HTTPS server Out-of-the-box web management | |
Eweb 2.0 | |
Hostname configuration YANG model | |
USB-based deployment | |
Obtaining device information through gRPC |
