Hardware Specifications | RG-RSR830 | RG-RSR830W | RG-RSR830-P | RG-RSR830W-P |
Forwarding performance | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps | 0.5 Mpps |
Fixed service port | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ | Uplink WAN ports: 2 x 10/100/1000BASE-T ports Downlink LAN ports: 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports LAN ports 2 to 9 support PoE/PoE+ |
Fixed management port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port | 1 x RJ45 console port |
USB | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive | 1 x USB 2.0 port, for connecting to the USB flash drive |
Memory | 2 GB | 2 GB | 2 GB | 2 GB |
Flash Memory | 4 GB | 4 GB | 4 GB | 4 GB |
VPN performance (256- bit AES encryption) | 400 Mbps | 400 Mbps | 400 Mbps | 400 Mbps |
Number of IPsec VPN Tunnels | 100 | 100 | 100 | 100 |

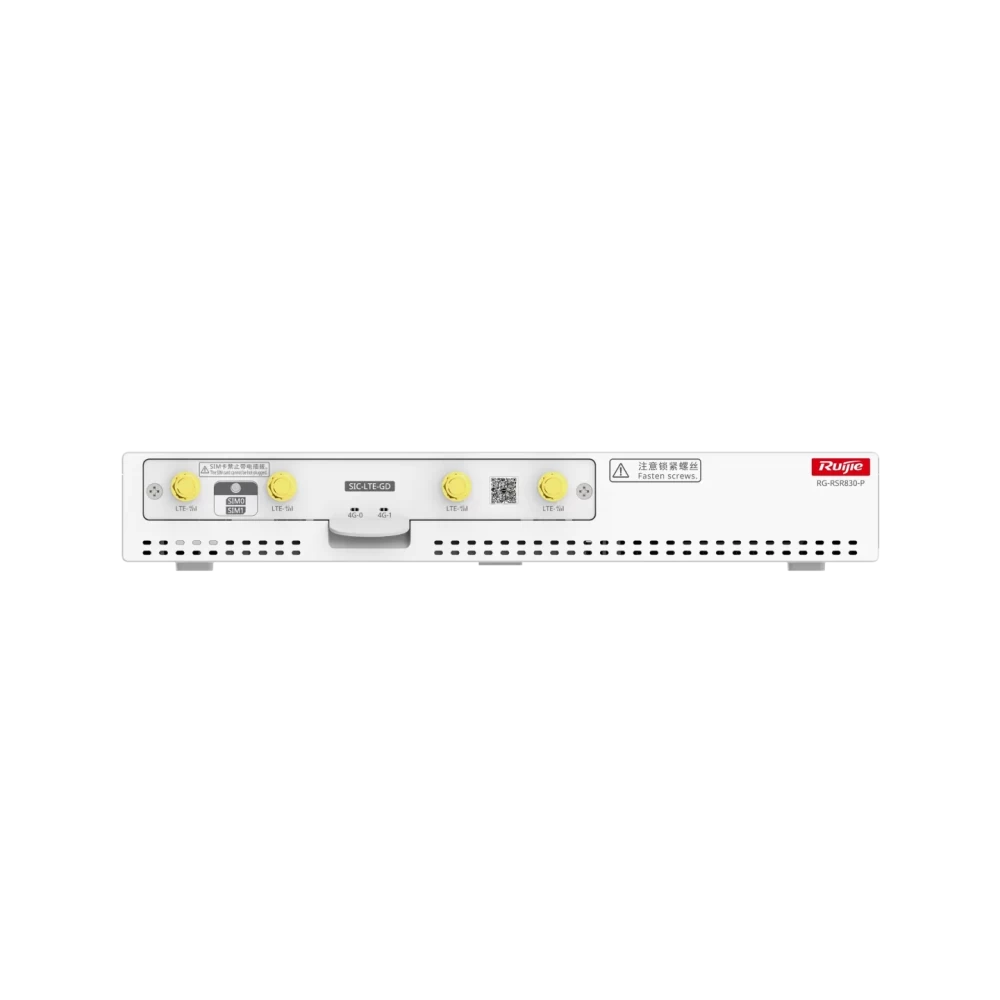

Expansion Module | ● SIC-LTE-GS LTE card (Cat-6, 2 x SIM, active-standby) ● SIC-LTE-GD LTE card (Cat-6, 2 x SIM, active-active) ● SIC-5G-G 5G NR in global bands single card, small plug-in card ● SIC-2SFP Expansion gigabit optical module plug-in card |
Wi-Fi Port | N/A | 802.11 b/g/n/ac/ax | N/A | 802.11 b/g/n/ac/ax |
Unit Dimensions (W x D x H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. x 6.73 in. x 1.50 in.) With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) | Without external antennas: 278 mm x 171 mm x 38 mm (10.94 in. X 6.73 in. X 1.50 in.) With external antennas: 350 mm x 171 mm x 88 mm (13.78 in. x 6.73 in. x 3.46 in.) |
Unit weight | 0.95 kg (2.09 lbs) | 1.04 kg (2.29 lbs) | 1.05 kg (2.31 lbs) | 1.14 kg (2.51 lbs) |
Maximum Power Consumption | 36 W (including module power) | 36 W (including module power) | 150 W (including PoE power and module power) | 150 W (including PoE power and module power) |
Input power supply | 36 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W | 36 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max. ● Output: 12 V DC, 3 A max, 36 W | 150 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W | 150 W Power Adapter: ● Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 2 A max. ● Output: 56 V DC, 2.68 A, 150 W |
Recommended number of user | 300 | 300 | 300 | 300 |
External Power Supply | N/A | N/A | Each port provides up to 30 W of power. The device provides up to 110 W of power. | Each port provides up to 30 W of power. The device provides up to 110 W of power. |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Humidity | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
Altitude | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.) Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
IP rating | IP30 | IP30 | IP30 | IP30 |
