Hardware Specifications

RG-RSR830

RG-RSR830W

RG-RSR830-P

RG-RSR830W-P

Forwarding performance

1Gbps

1Gbps

1Gbps

1Gbps

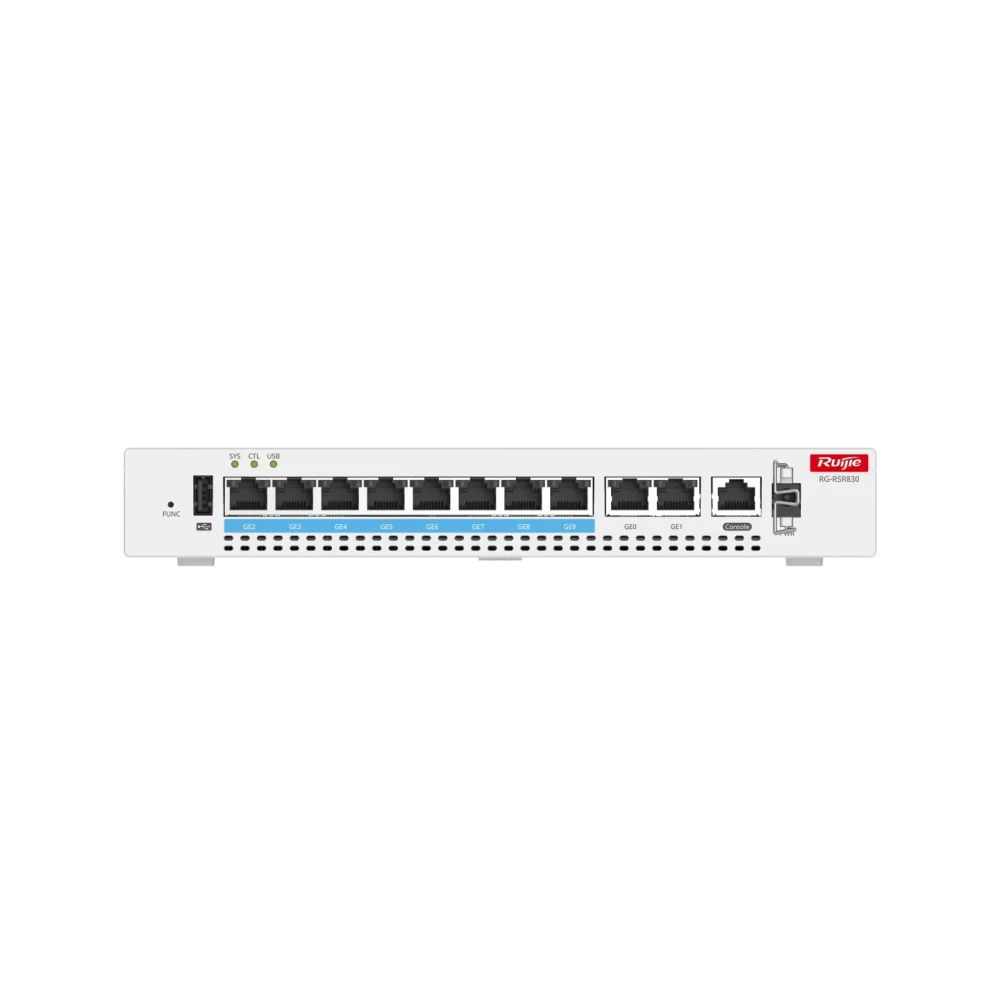

Fixed Interfaces

WAN: GE * 2

WAN: GE * 2

WAN: GE * 2

WAN: GE * 2

LAN: GE * 8

LAN: GE * 8

LAN: GE * 8

LAN: GE * 8

1 * USB2.0

1 * USB2.0

1 * USB2.0

1 * USB2.0

1 * RJ45 Console

1 * RJ45 Console

1 * RJ45 Console

1 * RJ45 Console

Memory Capacity

2GB

2GB

2GB

2GB

Flash

4GB

4GB

4GB

4GB

VPN performance (256- bit AES encryption)

400Mbps4

400Mbps

400Mbps

400Mbps

Number of IPsec VPN Tunnels

100

100

100

100

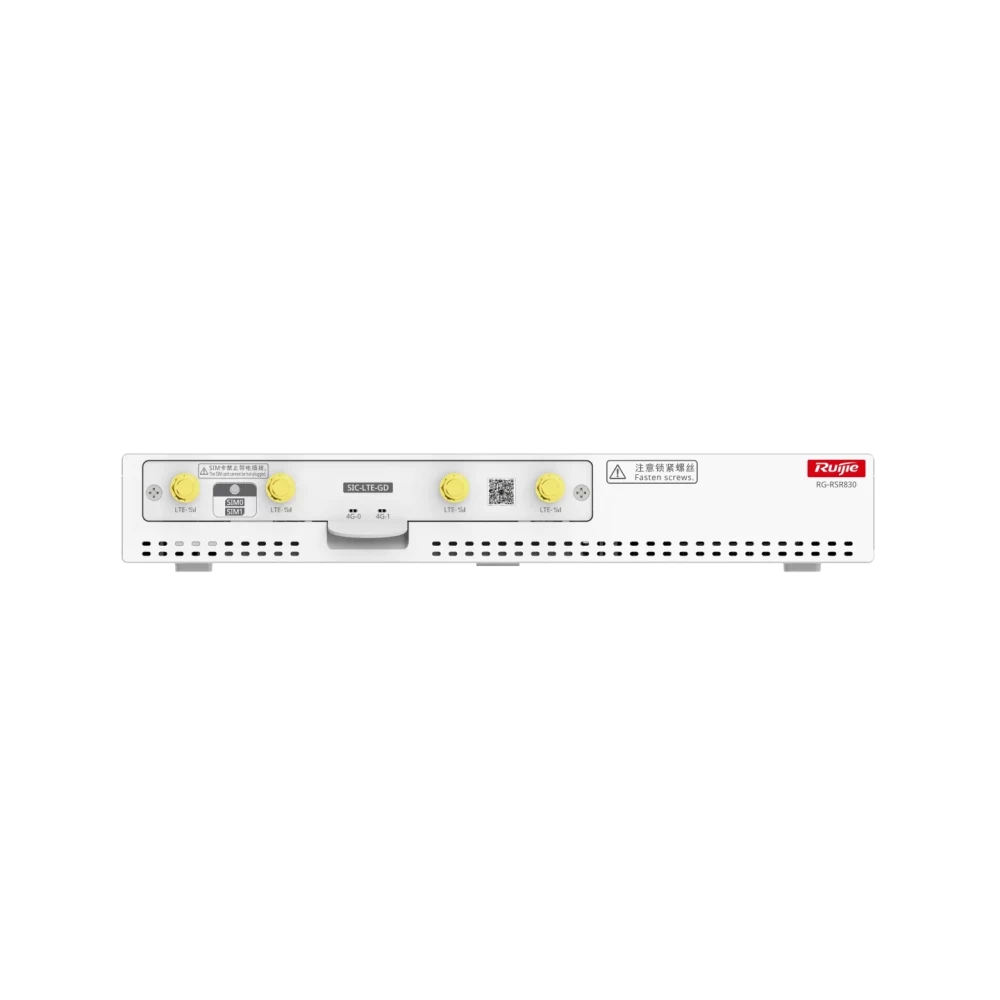

SIC Card

● SIC-LTE-GS

LTE card (Cat-6, 2*SIM, Active-Standby)

● SIC-LTE-GD

LTE card (Cat-6, 2*SIM, Active-Active)

● SIC-5G-G

5G NR in Global Bands Single Card, Small Plug-in Card

● SIC-2SFP

Expansion Gigabit Optical Module Plug-in Card

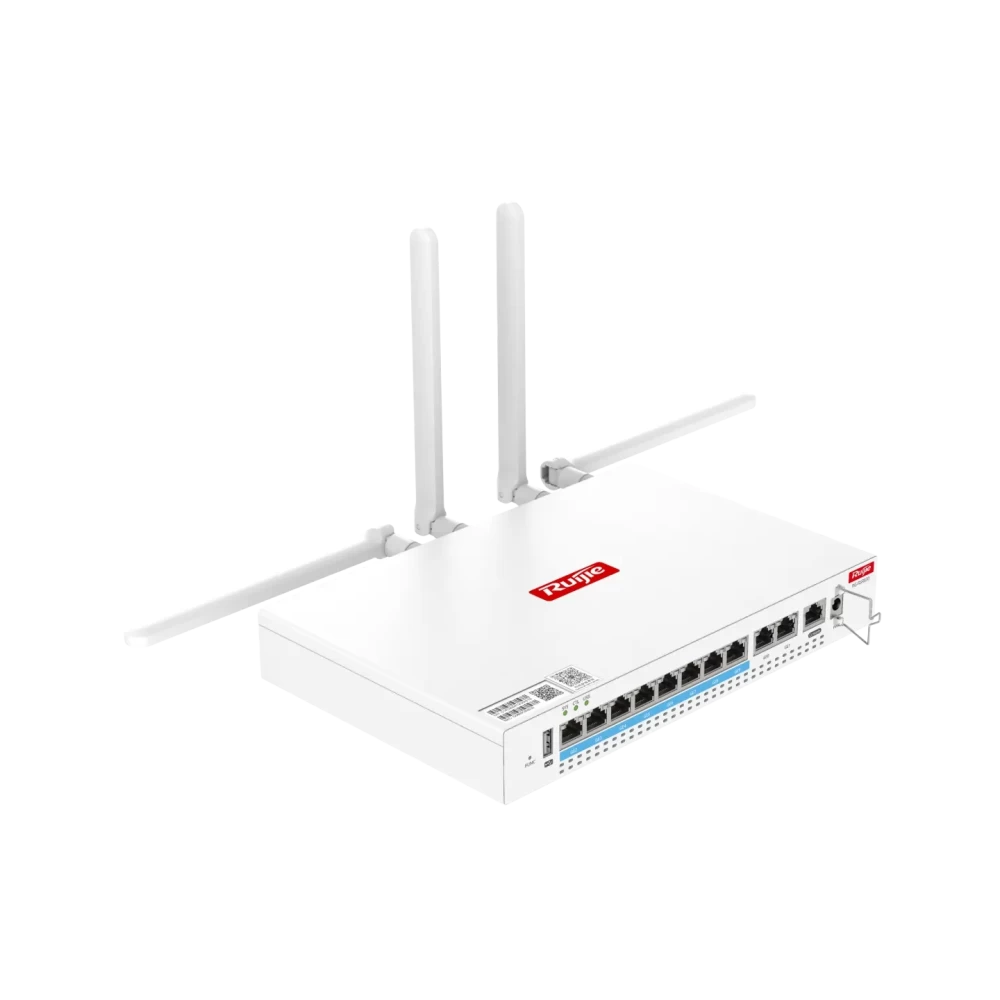

Wi-Fi

NA

802.11 b/g/n/ac/ax

NA

802.11 b/g/n/ac/ax

Dimensions (W × D × H)

278 mm × 171 mm × 38 mm
(Without external antenna)

350 mm × 171 mm × 88 mm
(With external antenna)

260 mm × 171 mm × 38 mm

278 mm × 171 mm × 38 mm
(Without external antenna)

350 mm × 171 mm × 88 mm
(With external antenna)

260 mm × 171 mm × 38 mm

Power Consumption

< 36 W (including module power)

< 36 W (including module power)

< 150 W (including PoE power and module power)

< 150 W (including PoE power and module power)

Power supply

36 W Power Adapter:

Input: 100 V AC to 240 V AC;
50 Hz to 60 Hz;0.9 A max.

Output: 12 V; 3 A max; 36 W

36 W Power Adapter:

Input: 100 V AC to 240 V AC;
50 Hz to 60 Hz;0.9 A max.

Output: 12 V; 3 A max; 36 W

150 W Power Adapter:

Input: 100 V AC to 240 V AC; 50 Hz to 60 Hz; 2 A max.

Output: 56 V; 2.68 A; 150 W

150 W Power Adapter:

Input: 100 V AC to 240 V AC; 50 Hz to 60 Hz; 2 A max.

Output: 56 V; 2.68 A; 150 W

Recommended number of user

100 - 500

100 - 500

100 - 500

100 - 500

PoE Output Power

NA

NA

110W

110W

PoE Ports

NA

NA

Ports 2-9 support PoE/PoE+

Ports 2-9 support PoE/PoE+

Operating Temperature

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

–40°C to +70°C (–40°F to +158°F)

–40°C to +70°C (–40°F to +158°F)

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% RH to 95% RH

(non-condensing)

10% RH to 95% RH

(non-condensing)

10% RH to 95% RH

(non-condensing)

10% RH to 95% RH

(non-condensing)

Storage Humidity

5% RH to 95% RH

(non-condensing)

5% RH to 95% RH

(non-condensing)

5% RH to 95% RH

(non-condensing)

5% RH to 95% RH

(non-condensing)

IP Protection

IP30

IP30

IP30

IP30

Software Specifications

Ethernet

Jumbo frame forwarding (max. size: 1974)

Frame format: Ethernet II

Change of the MTUs (link MTU and IP MTU) in the forwarding plane

Forcibly converting the 1000M optical port into the electrical port in auto-negotiation mode (100M/1000M)

LAN/WAN switching

Interface auto-negotiation factor Interface

WAN/LAN mode switching

ACL and QoS

IP standard ACL IP extended ACL

Association with the egress ACL based on a Layer 3 interface (SVI/routed port/L3 AP)

HQoS: DSCP/IP-PRE/COS

HQoS: PQ\WFQ\LPQ methods of congestion scheduling

IPv4 application protocol features

DHCP client

Option 43/52/138

IPv4 application protocol features

DHCP server

Option 138

Option 43

Option 82

Large address pool Alarm (Syslog)

IPv4 application protocol features

Configuring DHCP snooping in a VLAN

Configuring DHCP snooping on a logical interface (including the physical interface and aggregate

interface)

Trusted interface

DNS

DNS client

FTP client

NTP client

NTP server

TFTP client

TFTP server

IPv6 application protocol features

DHCPv6 client

Option 18

Option 37

DHCPv6 server

Option 52

DHCPv6 Snooping

ND Snooping

FTP server

TFTP server

TFTP client

NTP server

NTP client

Layer 2 features

LLDP

Layer 2 features

MAC address filter

Interface-based MAC address learning

Static MAC address

Global MAC address learning

Enforcing deletion of a MAC address using a command

MAC address aging time

Port based VLAN

Spanning Tree Protocol

Layer 3 features

Proxy ARP

ARP entry aging

Ping

Traceroute

Layer 3 features

GRE tunnel

PBR/ACL/QoS/NAT for IPv4 & IPv6 services on a GRE interface Inner and outer VRF configuration

IPv4 & IPv6 VRF

BGP4/BGP4+

IS-IS v4/v6

OSPF v2/v3

RIP v1/v2

PBR

VAG

Intelligent routing

Load balancing

Active/Standby scheduling for undefined applications

Controller management

Disaster recovery

WLAN features

WLAN services:

SSID configuration

SSID-based VLAN configuration

UTF8 SSID

Wireless security: WPA3

User isolation: Layer 2 isolation

WLAN features

RF resources:

Channel configuration

Channel width configuration

Power configuration

Automatic RF optimization (channel, channel width)

WMM configuration

802.11 b/g/n/ac/ax

Security features

AAA and web authentication

EXEC authorization, RADIUS, interworking with the SAM/SMP/ACS server, and specifying the source IP address (through the source interface)

Account allocation by user and login authentication (password, none)

Encrypted transmission and storage of static passwords, password lifetime check, and reuse limitation

Security features

Application identification，url Filtering, IDS/IPS, blacklist and whitelist

CPP and NFPP

Management features

gRPC framework

NETCONF

TACACS

SNMP v1/v2/v3

SSH

Syslog

IPv4 supported by the Telnet server

HTTP server V1.1

HTTPS server

Out-of-the-box web management

Eweb 2.0

Hostname configuration

YANG model

USB-based deployment

Obtaining device information through gRPC
