Hardware Specifications

Hardware Specifications

RG-RSR77-XA-03

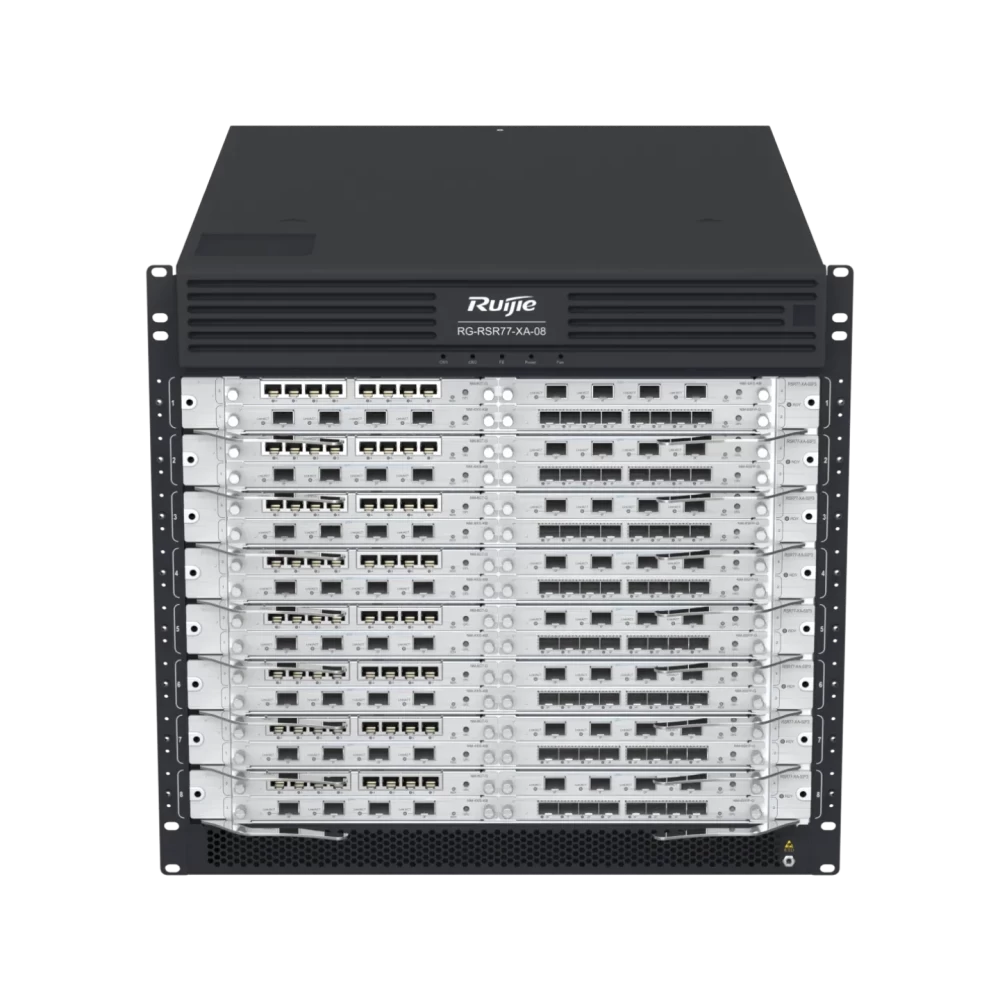

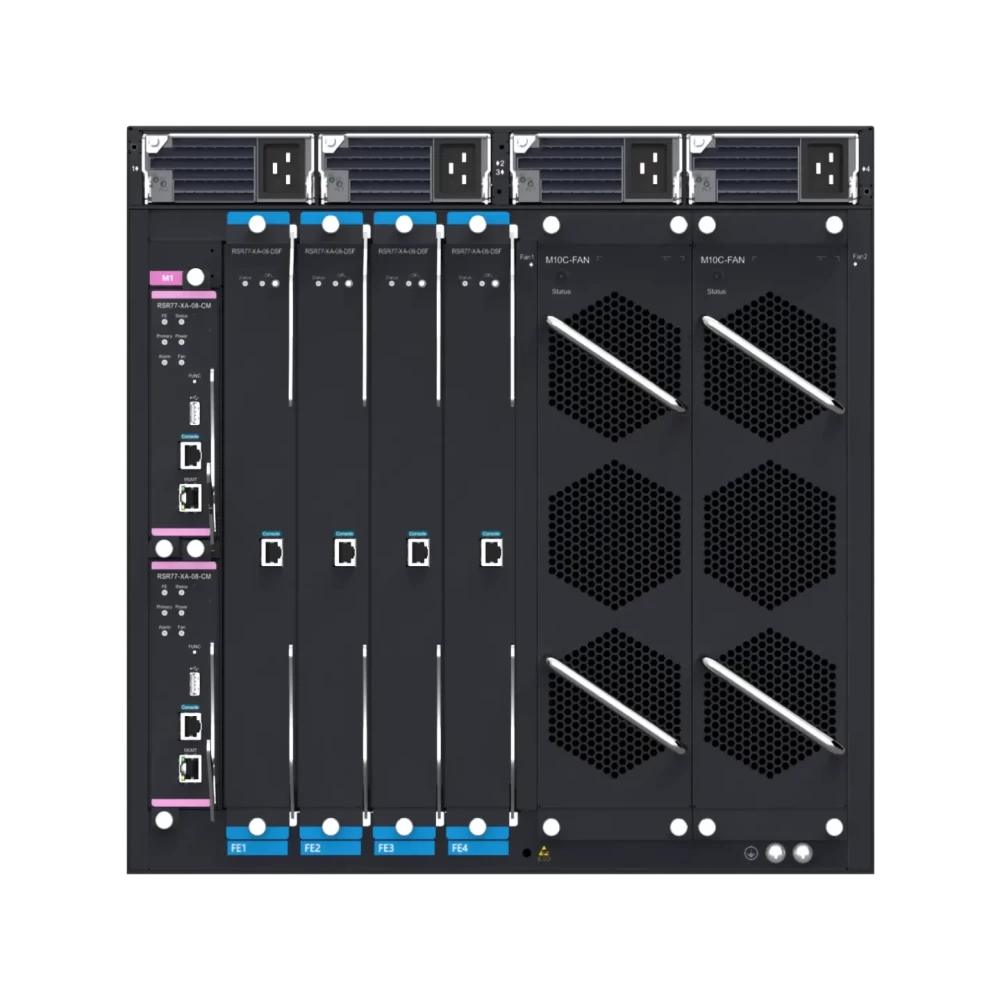

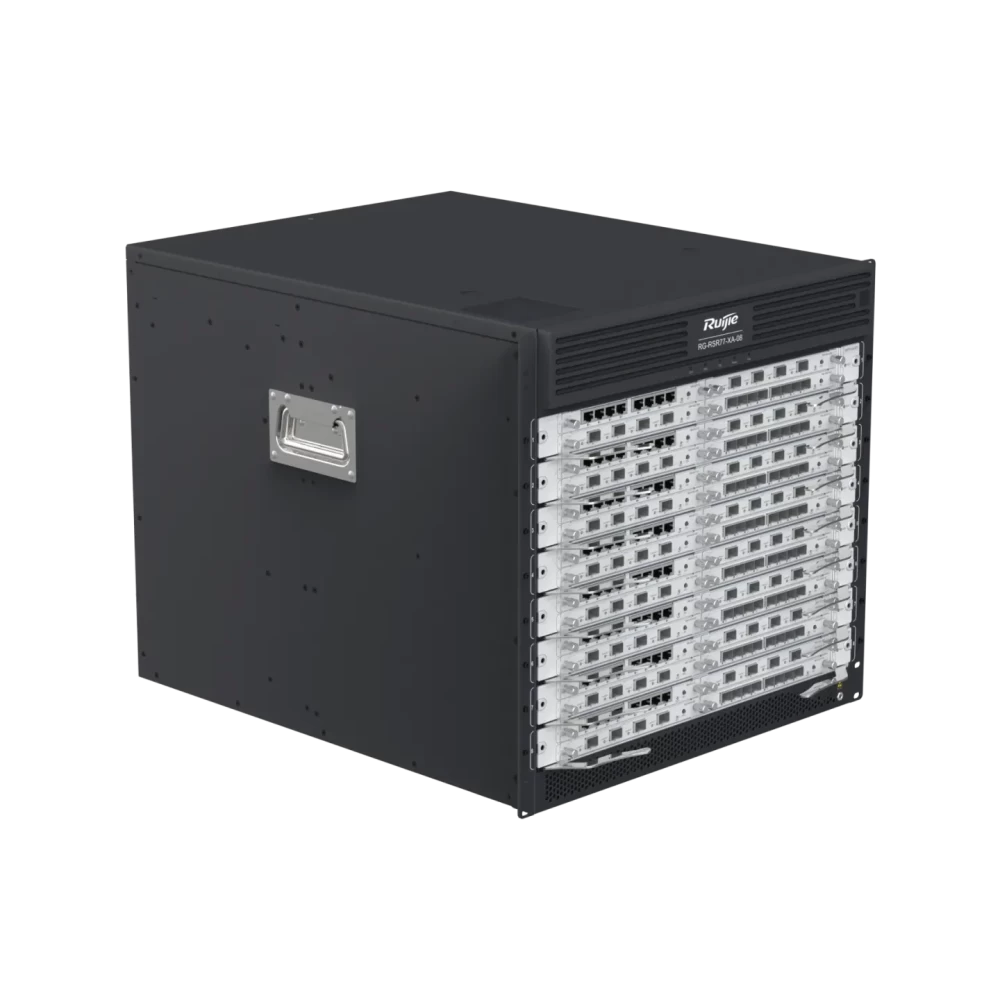

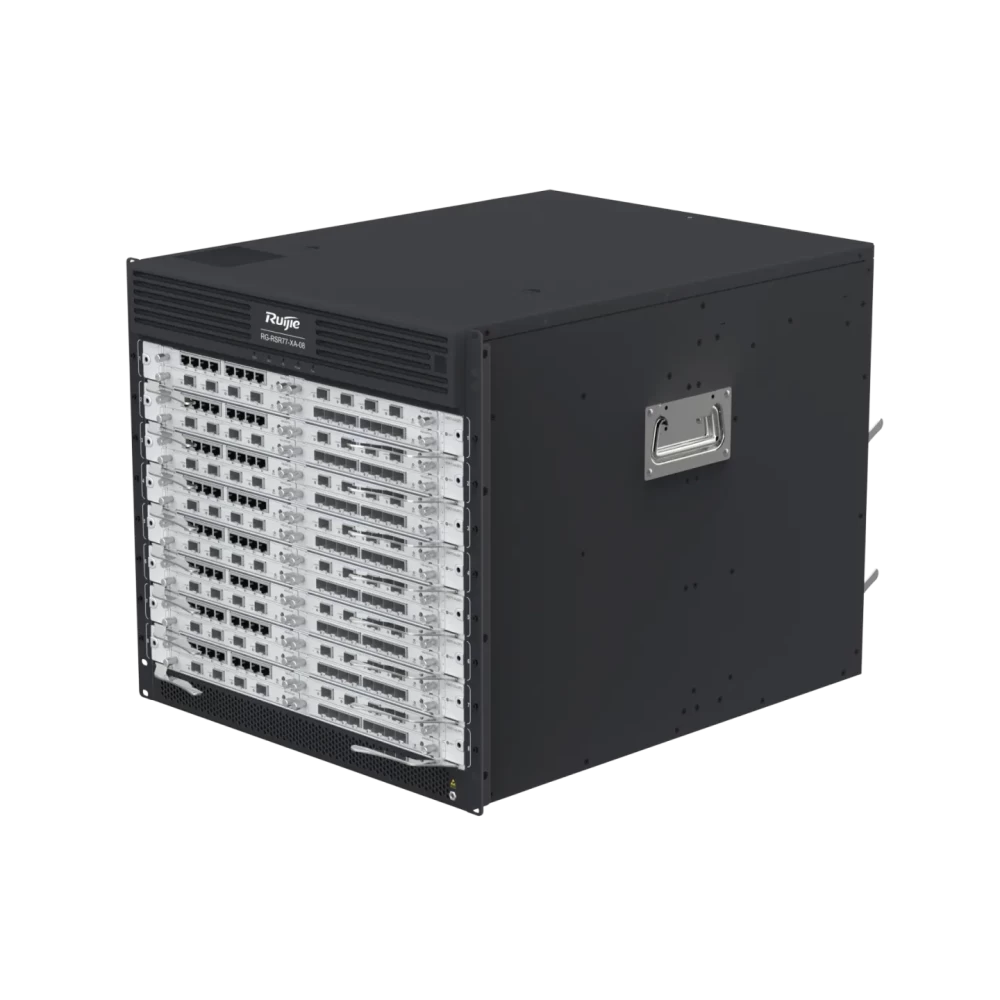

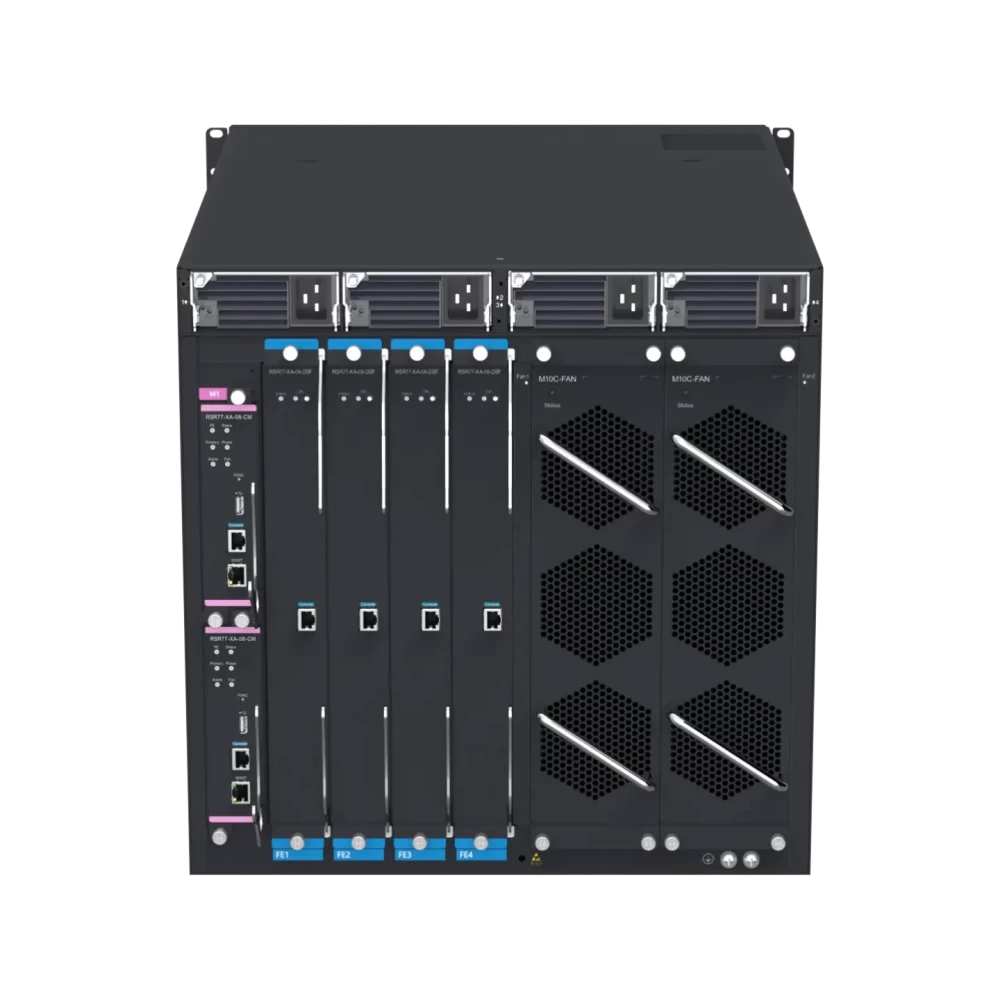

RG-RSR77-XA-08

Port Specifications

Module management port

RSR77-XA-03-CM:

● 1 x RJ45 console port

● 1 x 10/100/1000BASE-T RJ45 MGMT port

RSR77-XA-08-CM:

● 1 x RJ45 console port

● 1 x 10/100/1000BASE-T RJ45 MGMT port

RSR77-XA-08-DSF & RSR77-XA-08-DSF II:

● 1 x RJ45 console port

Module slot

2 x supervisor module slots

3 x modular line card slots（A maximum of 12 modular port adapters are supported.）

4 x power module slots

1 x fan module slot

2 x supervisor module slots

8 x modular line card slots（A maximum of 32 modular port adapters are supported.）

4 x switch fabric module slots

4 x power module slots

2 x fan module slots

Module hot swapping

Supported

Supported

Supervisor module redundancy

1+1 redundancy

1+1 redundancy

Switch fabric module

2 x integrated switch fabric modules

4 x independent switch fabric modules

System Specifications

Switching capacity

1.2 Tbps

3.2 Tbps

Packet forwarding rate

72 Mpps

192 Mpps

ARP table size

40,000 (Modular port adapter)

40,000 (Modular port adapter)

Number of IPv4 unicast routes

2,600,000

2,600,000

Number of IPv4 multicast routes

2,048

2,048

Number of IPv6 unicast routes

1,000,000

1,000,000

Number of IPv6 multicast routes

1,024

1,024

Number of IGMP Groups

1,000

1,000

Number of MLD Groups

1,000

1,000

Number of ACEs

32,000

32,000

Dimensions and Weight

Unit dimensions (W x D x H)

442 mm×500 mm×219.5 mm (17.40 in. x 19.69 in. x 8.64 in)

The depth of the chassis with the cable management bracket is 555 mm (21.85 in.)

442 mm x 606.7 mm x 442.5 mm (17.40 in. x 23.89 in. x 17.42 in.)

The depth of the device with the cable management bracket is 670.1 mm (26.38 in.).

Rack height

5 RU

10 RU

Unit weight

12.5 kg (27.56 lbs)

43.55 kg (96.01 lbs)

Power Supply and Consumption

Power supply

4 x power modules（N+M redundancy）

4 x power modules（N+M redundancy）

Power input

RG-PA460-RI (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V to 290 V AC, 45 Hz to 65 Hz

● Maximum input current: 6 A

RG-PA1600I (AC Input)：

● Rated input voltage: 100 V to 240 V AC, 50Hz~60Hz

● Max. input voltage: 90 V to 290V AC, 47Hz to 63Hz

● Max. input current: 16 A

RG-PD600I (DC Input)：

● Rated input voltage: -48 V to -60 V DC

● Max. input voltage: -38 V to -75 V DC

● Max. input current: 20 A

Power output

RG-PA460-RI (AC input):

● Output voltage: 12 V

● Maximum output current: 36 A

RG-PA1600I：

● 90V to 176V AC Input：

 ○ Output Voltage: 12 V DC

 ○ Maximum output current: 100 A

● 176V to 290V AC Input:

 ○ Output Voltage: 12 V DC

 ○ Maximum output current: 133.4 A

RG-PD600I：

● DC Input：

 ○ Output voltage: 12 V DC

 ○ Maximum output current: 50 A

Maximum output power

RG-PA460-RI：

● 90 V AC to 290 V AC：460W

RG-PA1600I:

90 V AC to 176 V AC, 1200 W

176 V to 290 V AC, 1600 W

RG-PD600I: 600 W

Module power consumption

Supervisor module:

● RSR77-XA-03-CM: ＜ 50 W

Line card:

● RSR77-XA-SIP3 (modular line card): ＜ 180 W

○ NM-4XS-KB: ＜ 14 W

○ NM-2XS-KA: ＜ 11 W

○ NM-8GT-G: ＜ 7 W

○ NM-8SFP-G: ＜ 16 W

○ DNM-1CQ-KC: ＜ 21 W

Fan module:

● FAN: ＜ 216 W

Supervisor module:

● RSR77-XA-08-CM: < 70 W

Switch fabric module:

● RSR77-XA-08-DSF: ＜ 87 W

● RSR77-XA-08-DSF II: ＜ 160 W

Line card:

● RSR77-XA-SIP3 (modular line card): ＜ 180 W

○ NM-4XS-KB: ＜ 14 W

○ NM-2XS-KA: ＜ 11 W

○ NM-8GT-G: ＜ 7 W

○ NM-8SFP-G: ＜ 16 W

○ DNM-1CQ-KC: ＜ 21 W

Fan module:

● M10C-FAN: ＜ 216 W

Environment and Reliability

Mean time between failure (MTBF)

216,000 hours (24 years)

342,000 hours (39 years)

Temperature

Operating temperature: 0ºC to 45ºC (32ºC to +113ºC)

Storage temperature: –40ºC to 70ºC (–40ºF to +158ºF)

Humidity

Operating humidity: 10% RH to 90% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Altitude

● Maximum operating altitude: 4,000 m (13123.36 ft.)

● Maximum storage altitude: 5,000 m (16404.20 ft.)

● Long-term operating altitude: 45ºC (113ºF) at an altitude of 1800 m (5905.51 ft.)

Acoustic noise

Noise in room temperature: ≤ 70 dB

Maximum noise: < 77 dB

35°C (95°F): 60 dB

50°C (122°F): 75 dB

Software Specifications

RG-RSR77-XA Series

Model

Description

Ethernet switching

Jumbo frame length: 1,578 bytes

802.3az EEE

LLDP/LLDP-MED

IP service

Static and dynamic ARP

DHCP server, DHCP relay, and DHCP client

FTP, TFTP, FTPv6, and TFTPv6

NTP, SNTP, and NTPv6

NAT

Strict and loose RPF

uRPF ignoring default routes

ND

FTP, TFTP, FTPv6, and TFTPv6

DNS

IPv4/IPv6 VRF

DHCP server, DHCPv6 client, and DHCPv6 relay

ND and ND snooping

IPv6 GRE tunnel

IP routing

IPv4 and IPv6 static routing, and static blackhole routes

RIP v1/v2 and RIPng

OSPFv2 and OSPFv3

IS-ISv4 and IS-ISv6

BGP and BGP4+

Routing policies

BGP4, BGP4+, and MP-BGP

IPv4 VRRP v2/v3 and IPv6 VRRP v3

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3

Static multicast routing

PIM-DM, PIM-SM, PIM-SSM, PIM-SSMv6, PIM-SMv6, and other multicast routing protocols

MSDP for inter-domain multicast

MLDv1/v2

MPLS/SR

Basic MPLS functions

MPLS forwarding

6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network

MPLS MIB (RFC 1273, 4265, 4382)

L3VPN

LSP

LDP

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

IPv6 ACLs

Applying ACLs to interfaces

MPLS QoS

HQoS

Security

Multiple AAA modes

RADIUS authentication, authorization, and accounting

TACACS+

Attack defense

Password security

RNFP

CPP

FPM

PKI

IPsec VPN

VPDN

SSHv1 and SSHv2

Global IP-MAC binding

Login authentication and password security

Reliability

BFD

GR

DLDP

ECMP

NSR

Hot swapping

NMS and maintenance

SPAN and ERSPAN

SNMP v1/v2/v3

System operation logging

IPFIX

Command line configuration through console, AUX Modem, Telnet, and SSH

RMON (1, 2, 3, 9)

NETCONF

CWMP

gRPC
