Hardware Specifications

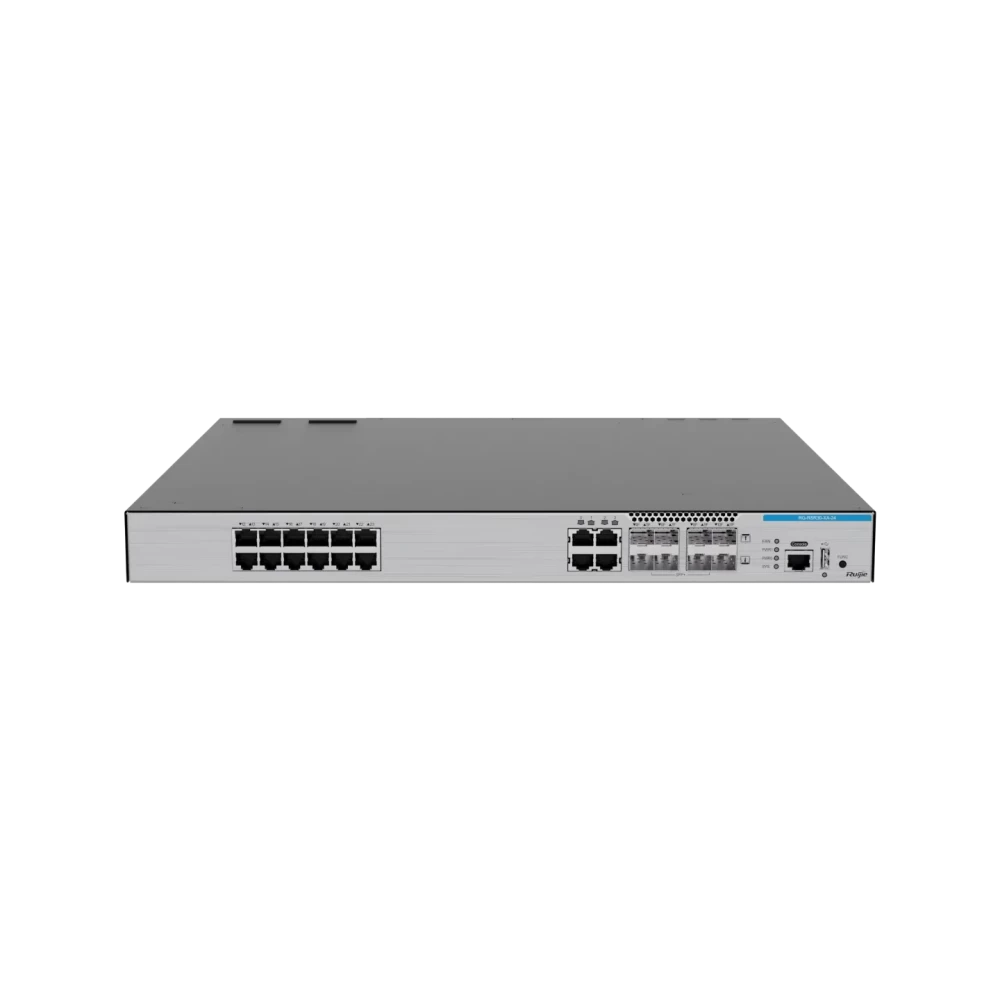

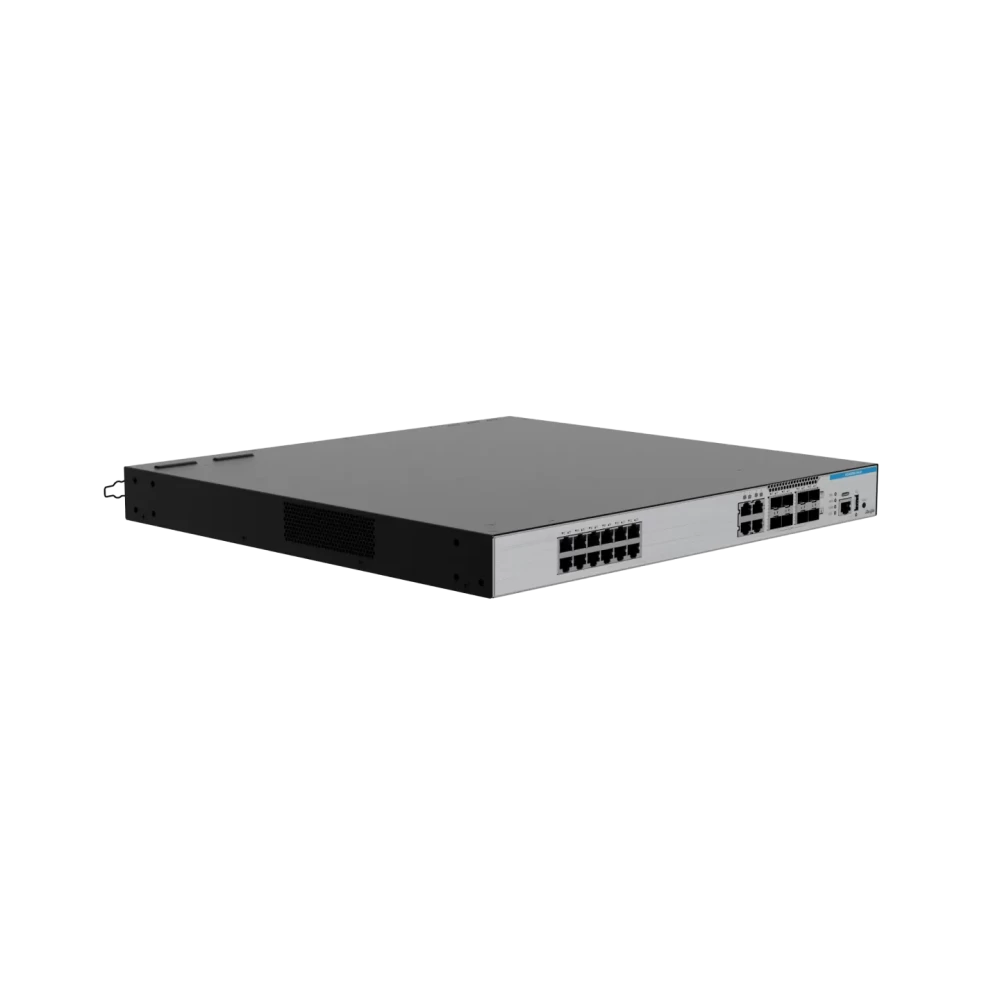

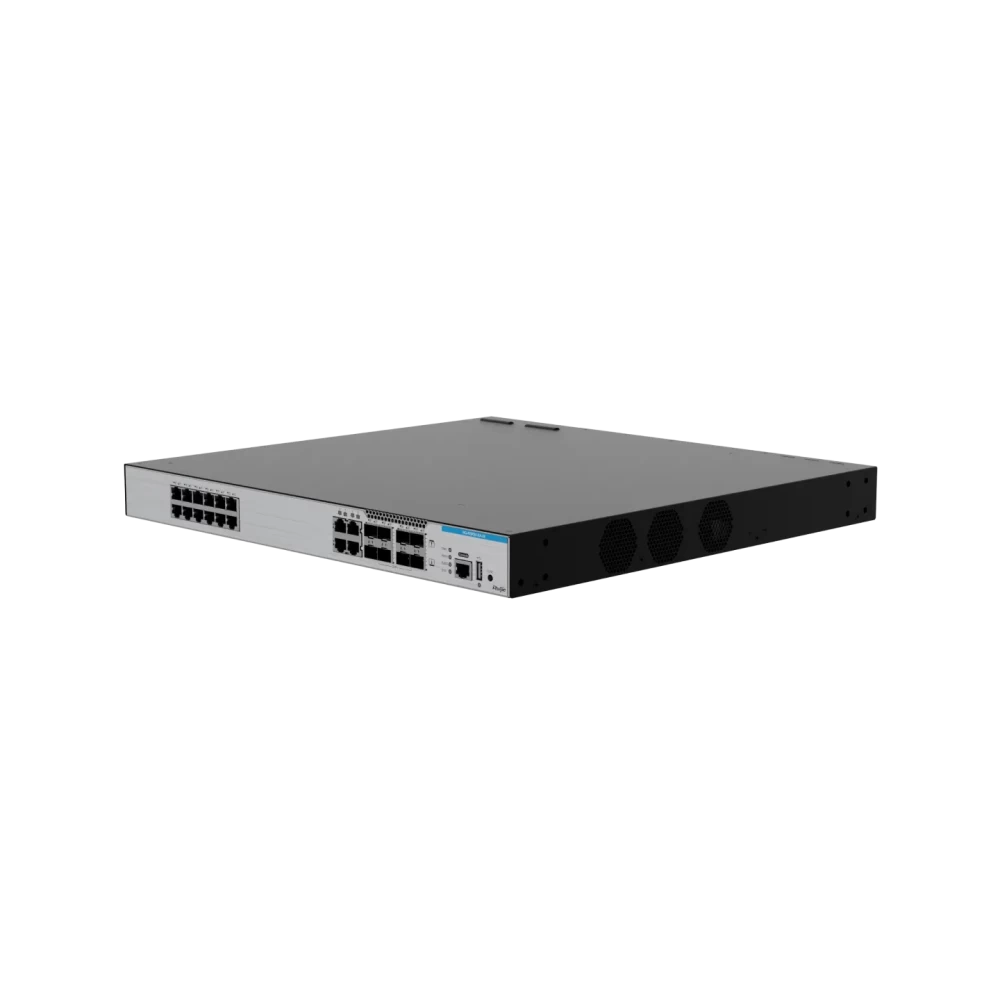

RG-RSR30-XA-24

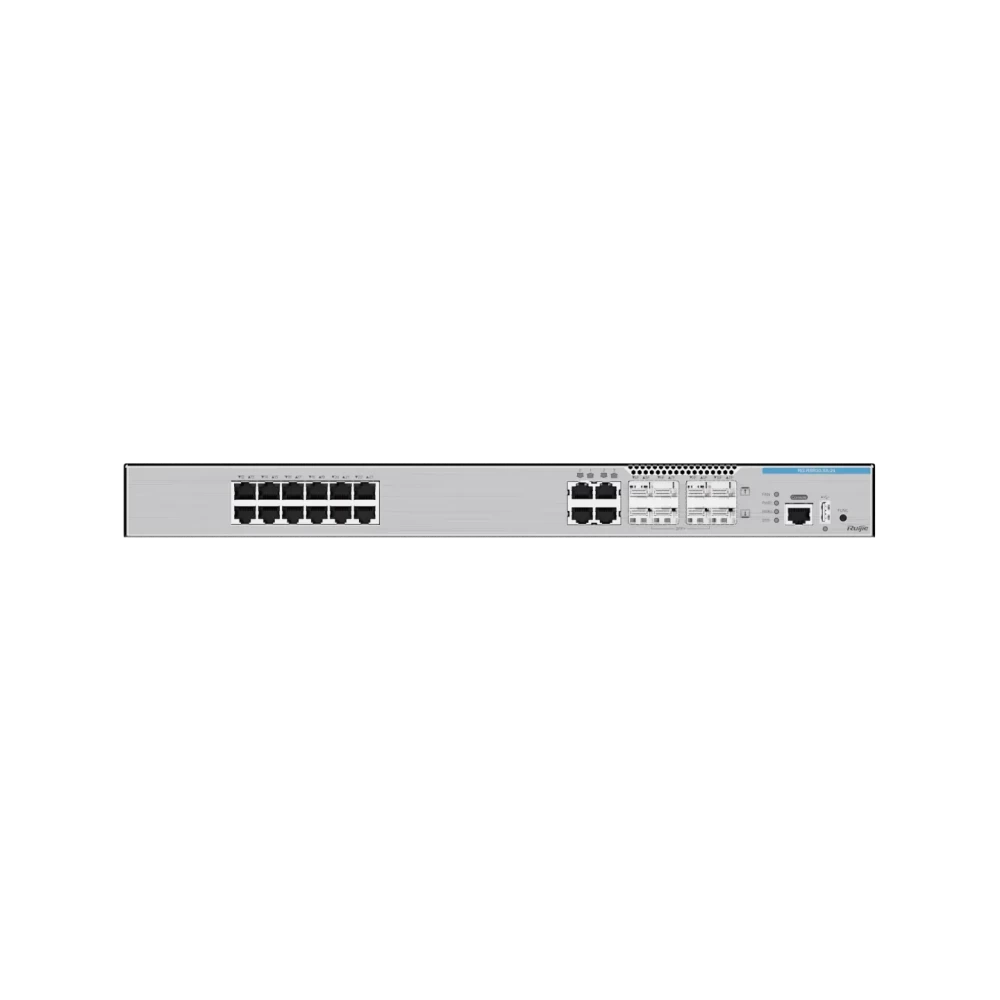

Port Specifications

Fixed service port

16 x 10/100/1000BASE-T ports

8 x 10GE SFP+ ports

Fixed management port

1 x RJ45 console port

USB

1 x USB 2.0 port (Type-A connector)

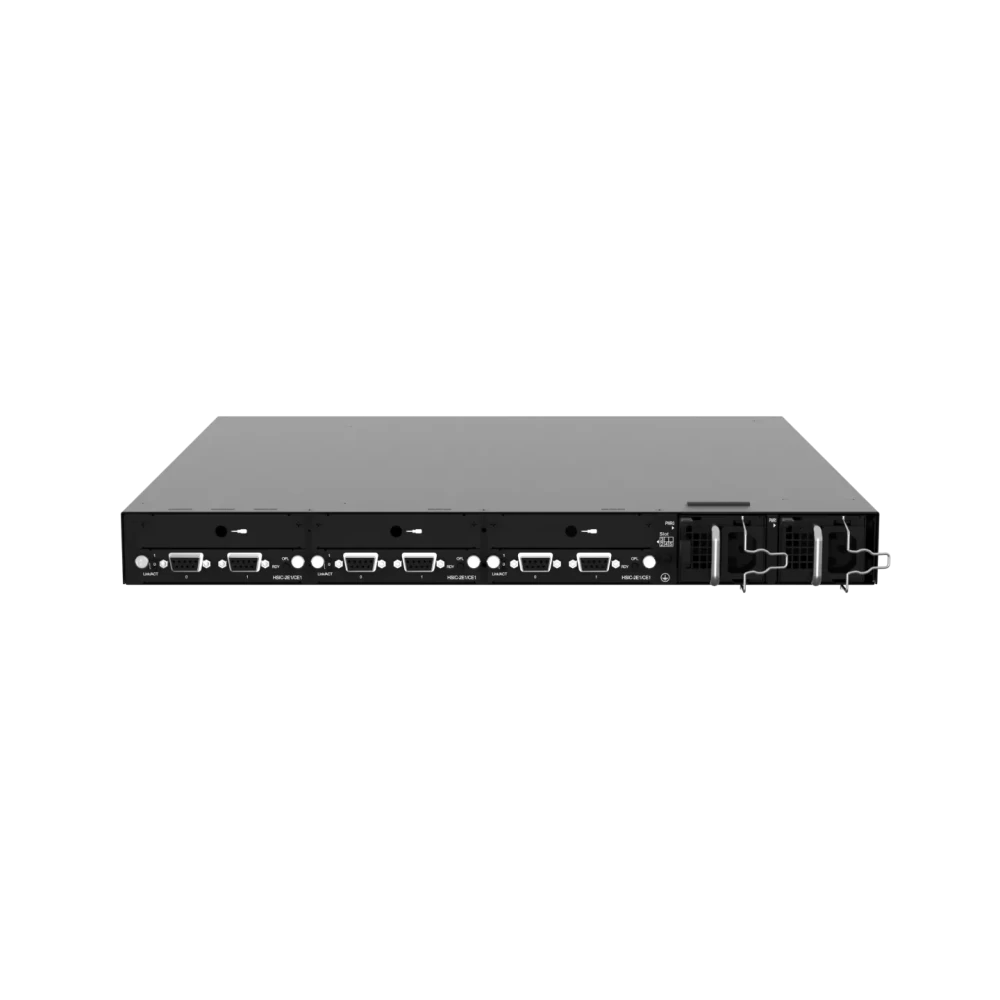

Module slot

4 x expansion module slots

2 x power module slots

System Specifications

Switching capacity

272 Gbps

Packet forwarding rate

4 Mpps

ARP table size

24,000

Number of IPv4 unicast routes

300,000

Number of IPv4 multicast routes

2,048

Number of IPv6 unicast routes

300,000

Number of IPv6 multicast routes

300,000

Number of IGMP groups

1,000

Number of MLD groups

1,000

Number of ACEs

16,000

Dimensions and Weight

Unit dimensions (W x D x H)

440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.)

Rack height

1 RU

Unit weight

< 7.8 kg (17.19 lbs, full configuration without packaging materials, with the nameplate at the bottom)

Power supply and consumption

Maximum power consumption

150 W

Power module redundancy

1+1 redundancy

Power input

RG-PA150IB-F (AC input)：

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V  AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 3 A

RG-PD150IB-F (DC input)：

● Rated input voltage: -48V~-60V DC

● Maximum input voltage: -36V~-75V DC

● Maximum input current: 5 A

Power output

RG-PA150IB-F (AC input):

● Output voltage: 12 V

● Maximum output corrent: 12.5 A

RG-PD150IB-F (DC input):

● Output voltage: 12 V

● Maximum output corrent: 12.5 A

Maximum output power

RG-PA150IB-F: 150 W

RG-PD150IB-F: 150 W

Environment and Reliability

Temperature

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: –40°C to 70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Surge protection

6 kV

Software Specifications

RG-RSR30-XA Series

Ethernet switching

Jumbo frame length: 2,000 bytes

802.3az EEE

LLDP/LLDP-MED

IP service

Static and dynamic ARP

DHCP server, DHCP relay, and DHCP client

FTP, TFTP, FTPv6, and TFTPv6

NTP, SNTP, and NTPv6

NAT

Strict and loose RPF

uRPF ignoring default routes

ND

DNS

IPv4/IPv6 VRF

DHCP server, DHCPv6 client, and DHCPv6 relay

ND and ND snooping

IPv6 GRE tunnel

IP routing

IPv4 and IPv6 static routing, and static blackhole routes

RIP v1/v2 and RIPng

OSPFv2 and OSPFv3

IS-ISv4 and IS-ISv6

BGP and BGP4+

Routing policies

BGP4, BGP4+, and MP-BGP

IPv4 VRRP v2/v3 and IPv6 VRRP v3

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3

Static multicast routing

PIM-DM, PIM-SM, PIM-SSM, PIM-SSMv6, PIM-SMv6, and other multicast routing protocols

MSDP for inter-domain multicast

MLDv1/v2

MPLS

Basic MPLS functions

MPLS forwarding

6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network

MPLS MIB (RFC 1273, 4265, 4382)

L3VPN

LSP

LDP

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

IPv6 ACLs

Applying ACLs to interfaces

MPLS QoS

Security

Multiple AAA modes

RADIUS authentication, authorization, and accounting

TACACS+

Attack defense

Password security

RNFP

CPP

FPM

PKI

IPsec VPN

VPDN

SSHv1 and SSHv2

Global IP-MAC binding

Login authentication and password security

Reliability

BFD

GR

DLDP

ECMP

Hot swapping

NMS and maintenance

SPAN and ERSPAN

SNMP v1/v2c/v3

System operation logging

IPFIX

Command line configuration through console, AUX Modem, Telnet, and SSH

RMON (1, 2, 3, 9)

NETCONF

CWMP

gRPC

Interface

Ethernet interface, E1/CE1 interface, and 4G interface
