SKU: RG-RSR30-XA
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Chassis
Model
Description

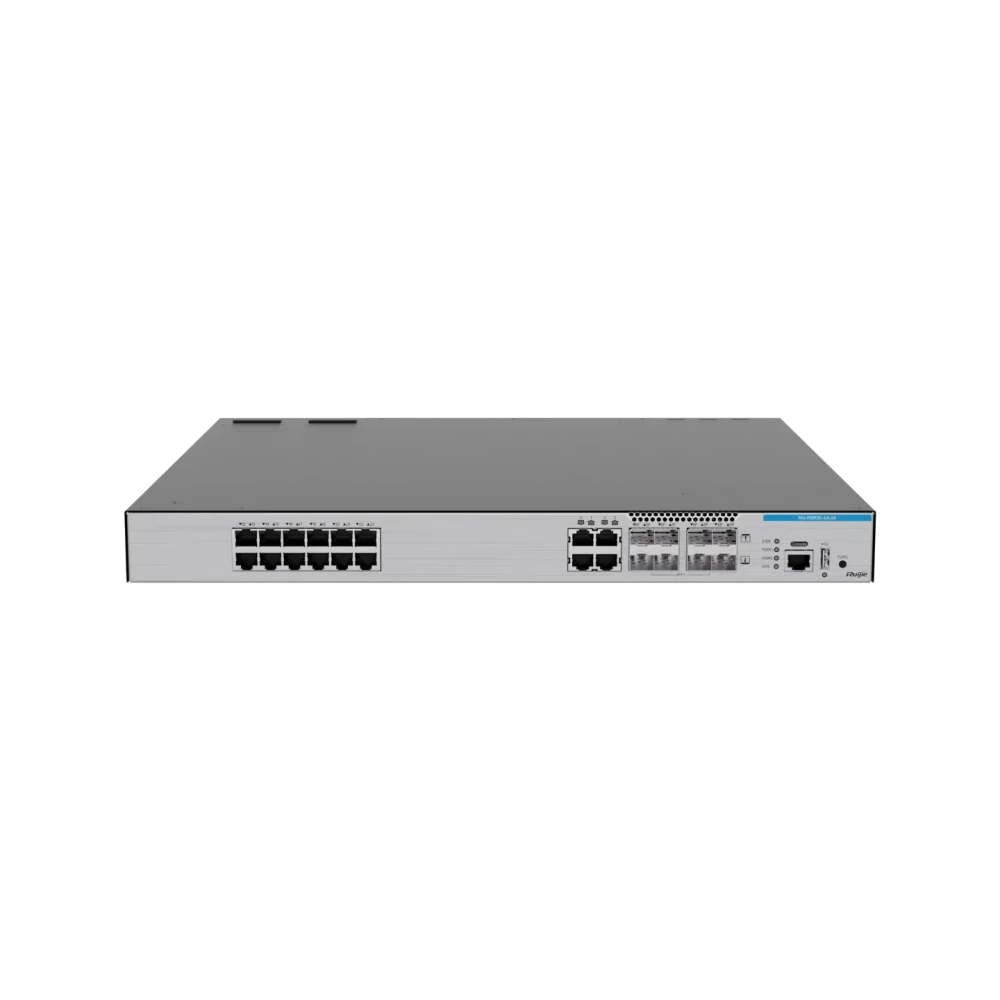

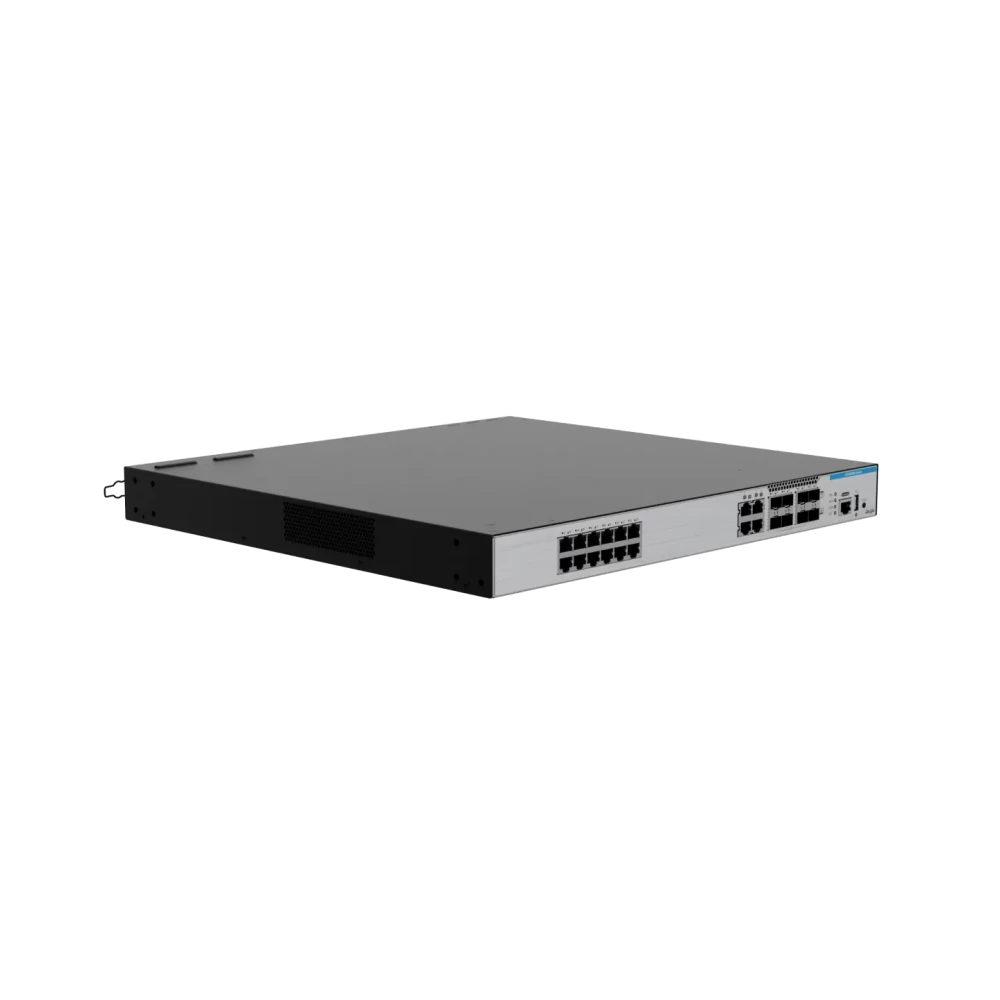

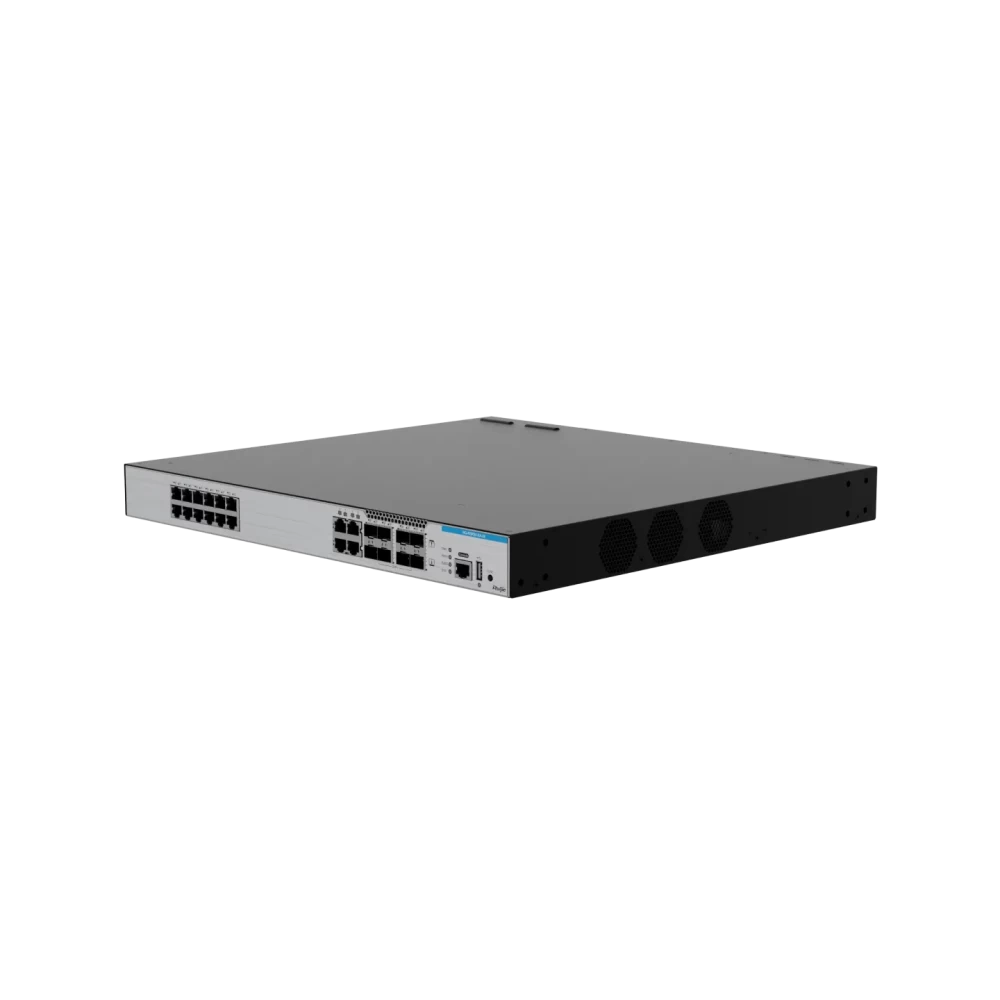

RG-RSR30-XA-24

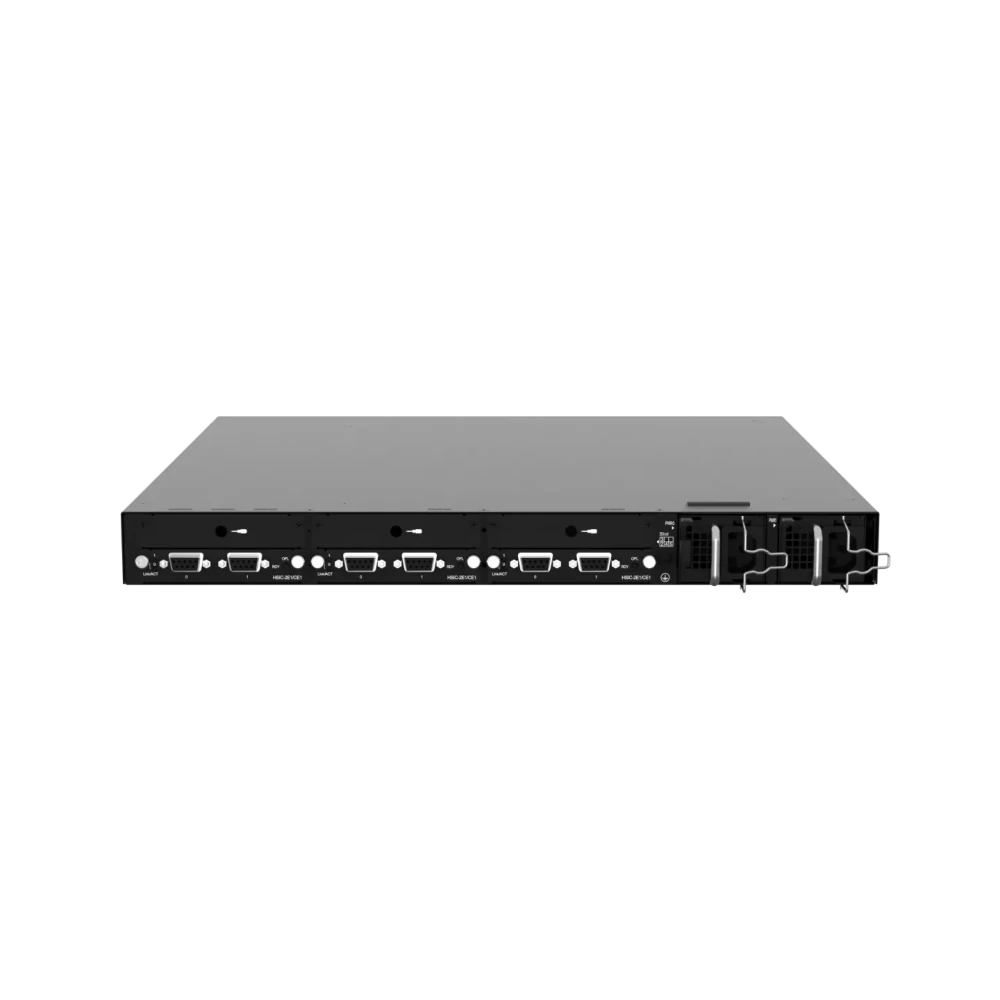

RG-RSR30-XA-24 chassis, 8 x 10GE optical WAN ports and 16 x GE electrical WAN ports, 4 x Expansion slots, 1 x USB 2.0 port, 1 x console port
Power Modules
Model
Description
RG-PA150IB-F
150 W AC power module
Line Card
Model
Description
HSIC-2E1/CE1
2-port E1/CE1 module (the cable needs to be purchased separately)
HSIC-4G-LTE-G
1-port full-mode 4G and encryption module (the antenna needs to be purchased separately)
*HSIC-5G-NR
1-port full-mode 5G and encryption module (the antenna needs to be purchased separately)
*HSIC-1POS-STM1
1-port OC-3c/STM-1c POS interface card (the optical module needs to be purchased separately)
Note: The item marked with the asterisk (*) will be available in the future.
Brand: Ruijie
Model Number: RG-RSR30-XA
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/08/2024
Hardware Specifications | RG-RSR30-XA-24 |
Interface Specifications | |
Fixed WAN port | 8 x 10GE optical ports 16 x GE electrical ports |
Power modules | 2 redundant power modules (hot swapping) |
Fixed management ports | 1 x console port, 1 x USB 2.0 port |
Expansion slot | 4 |
System Specifications | |
Switching capacity | 10 Gbps |
ARP table size | 24,000 |
Number of IPv4 unicast routes | 300,000 |
Number of IPv4 multicast routes | 2,048 |
Number of IPv6 unicast routes | 300,000 |
Number of IPv6 multicast routes | 1,024 |
Number of IGMP groups | 1,000 |
Number of MLD groups | 1,000 |
Number of ACEs | Ingress: 16,000 Egress: 16,000 |
Dimensions and Weight | |
Dimensions (W x D x H) | 440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.), 1 RU |
Weight (full configuration) | < 7.8 kg (17.20 lbs) (excluding packaging) |
Power and Consumption | |
Maximum power consumption | < 150 W |
Maximum output power | RG-PA150IB-F: 150 W @ 10 A power cord |
Rated input voltage | RG-PA150IB-F: 100 V AC to 240 V AC, 50 Hz to 60 Hz |
Maximum input voltage | RG-PA150IB-F: 90 V AC to 264 V AC, 47Hz~63Hz |
Environment and Reliability | |
MTBF | > 100,000 hours |
Operating temperature | 0°C to 50°C (32°F to 122°F) |
Storage temperature | –40°C to +70°C (–40°F to +158°F) |
Operating humidity | 10% to 90% RH (non-condensing) |
Storage humidity | 5% to 95% RH (non-condensing) |
Interface surge protection | 6 kV |
Operating altitude | 0–3000 m (0–9,842.52 ft.) |
Software Specifications | RG-RSR30-XA Series |
Ethernet switching | Jumbo frame length: 1578 bytes |
802.3az EEE | |
LLDP/LLDP-MED | |
IP service | Static and dynamic ARP |
DHCP server, DHCP relay, and DHCP client | |
FTP, TFTP, FTPv6, and TFTPv6 | |
NTP, SNTP, and NTPv6 | |
NAT | |
Strict and loose RPF uRPF ignoring default routes | |
ND | |
DNS | |
IPv4/IPv6 VRF | |
DHCP server, DHCPv6 client, and DHCPv6 relay | |
ND and ND snooping | |
IPv6 GRE tunnel | |
IP routing | IPv4 and IPv6 static routing, and static blackhole routes |
RIP v1/v2 and RIPng | |
OSPFv2 and OSPFv3 | |
IS-ISv4 and IS-ISv6 | |
BGP and BGP4+ | |
Routing policies | |
BGP4, BGP4+, and MP-BGP | |
IPv4 VRRP v2/v3 and IPv6 VRRP v3 | |
IPv4 and IPv6 PBR | |
Multicast | IGMP v1/v2/v3 |
Static multicast routing | |
PIM-DM, PIM-SM, PIM-SSM, PIM-SSMv6, PIM-SMv6, and other multicast routing protocols | |
MSDP for inter-domain multicast | |
MLDv1/v2 | |
MPLS | Basic MPLS functions |
MPLS forwarding | |
6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network | |
MPLS MIB (RFC 1273, 4265, 4382) | |
L3VPN | |
LSP | |
LDP | |
ACL and QoS | Standard IP ACLs |
Extended IP ACLs | |
Extended MAC ACLs | |
IPv6 ACLs | |
Applying ACLs to interfaces | |
MPLS QoS | |
Security | Multiple AAA modes |
RADIUS authentication, authorization, and accounting | |
TACACS+ | |
Attack defense | |
Password security | |
RNFP | |
CPP | |
FPM | |
PKI | |
IPsec VPN | |
VPDN | |
SSHv1 and SSHv2 | |
Global IP-MAC binding | |
Login authentication and password security | |
Reliability | BFD |
GR | |
DLDP | |
ECMP | |
Hot swapping | |
NMS and maintenance | SPAN and ERSPAN |
SNMP v1/v2c/v3 | |
System operation logging | |
IPFIX | |
Command line configuration through console, AUX Modem, Telnet, and SSH | |
RMON (1, 2, 3, 9) | |
NETCONF | |
CWMP | |
gRPC | |
Interface | Ethernet interface, E1/CE1 interface, and 4G interface |
Note: The item marked with the asterisk (*) will be available in the future.
