Hardware Specifications

Hardware Specifications

RG-RSR20-XA-24

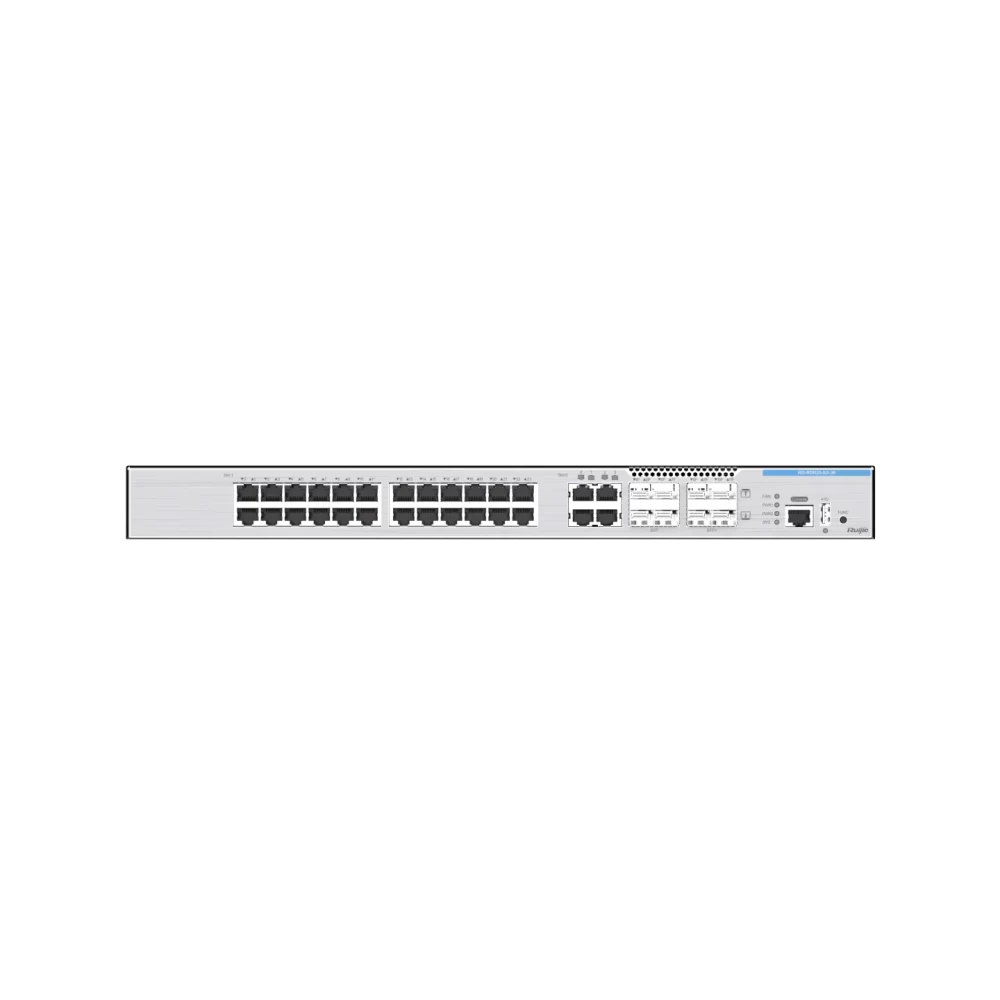

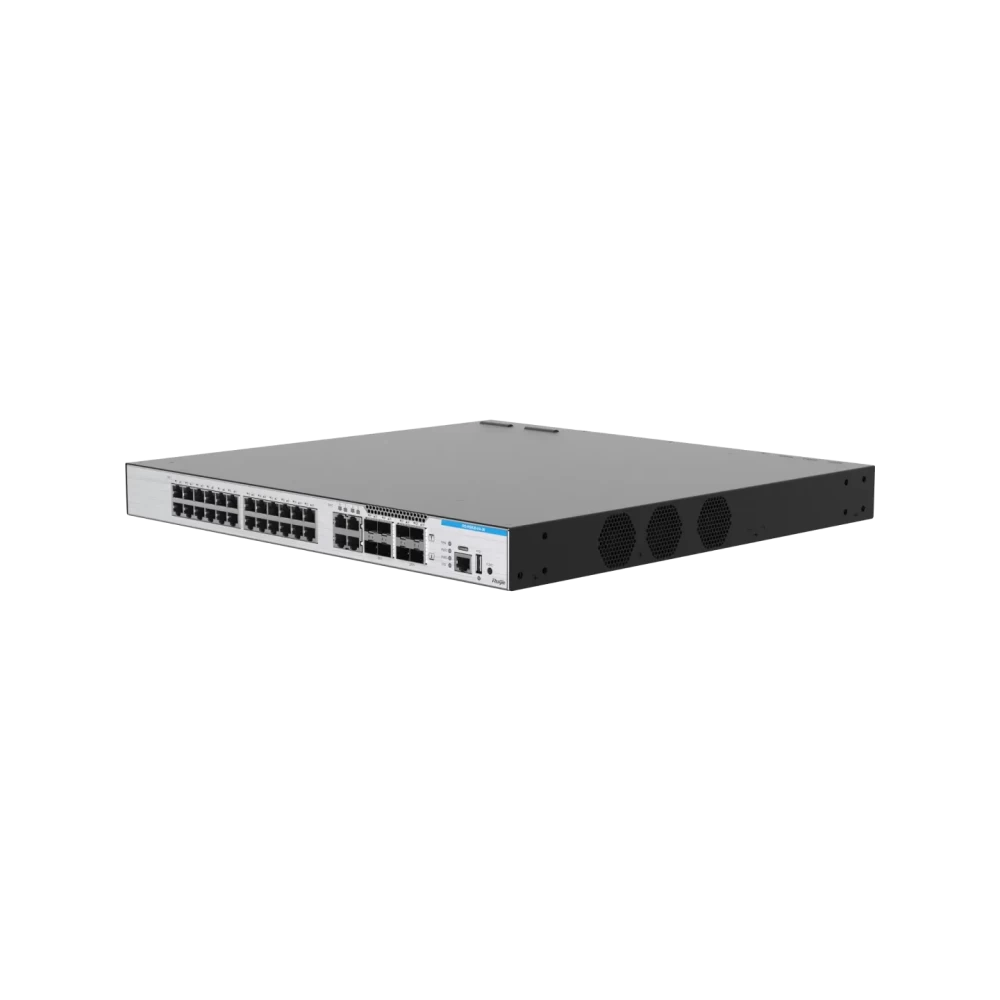

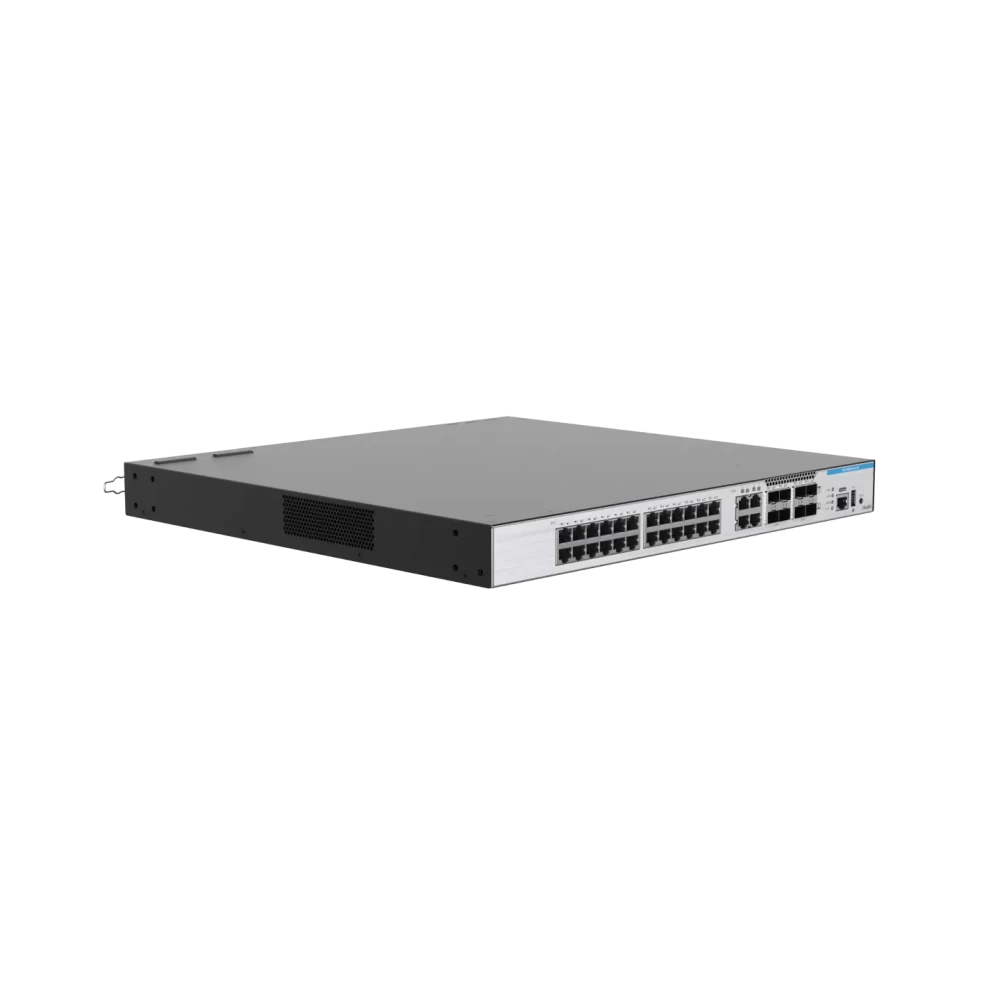

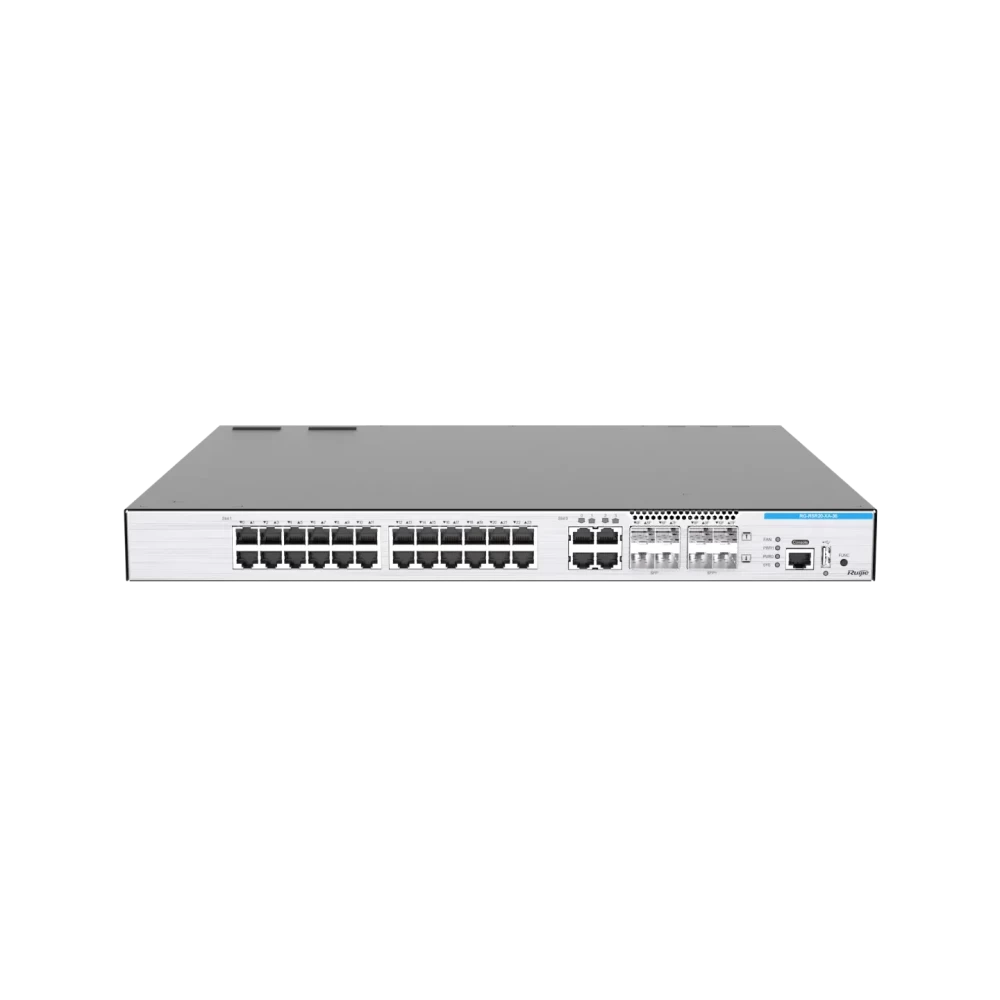

RG-RSR20-XA-36

RG-RSR20-XA-54

Port Specifications

Fixed service port

WAN ports:

● 4 x 10GE SFP+ ports

● 4 x 1GE SPF ports

● 4 x 10/100/1000BASE-T ports

LAN ports (supporting LAN/WAN switching):

● 12 x 10/100/1000BASE-T ports

WAN ports:

● 4 x 10GE SFP+ ports

● 4 x 1GE SPF ports

● 4 x 10/100/1000BASE-T ports

LAN ports (supporting LAN/WAN switching):

● 24 x 10/100/1000BASE-T ports

WAN ports:

● 2 x 10GE SFP+ ports

● 4 x 10/100/1000BASE-T ports

LAN ports (supporting LAN/WAN switching):

● 48 x 10/100/1000BASE-T ports

Fixed management port

1 x RJ45 console port

1 x RJ45 console port

1 x RJ45 console port

USB

1 x USB 2.0 port (Type-A connector)

1 x USB 2.0 port (Type-A connector)

1 x USB 2.0 port (Type-A connector)

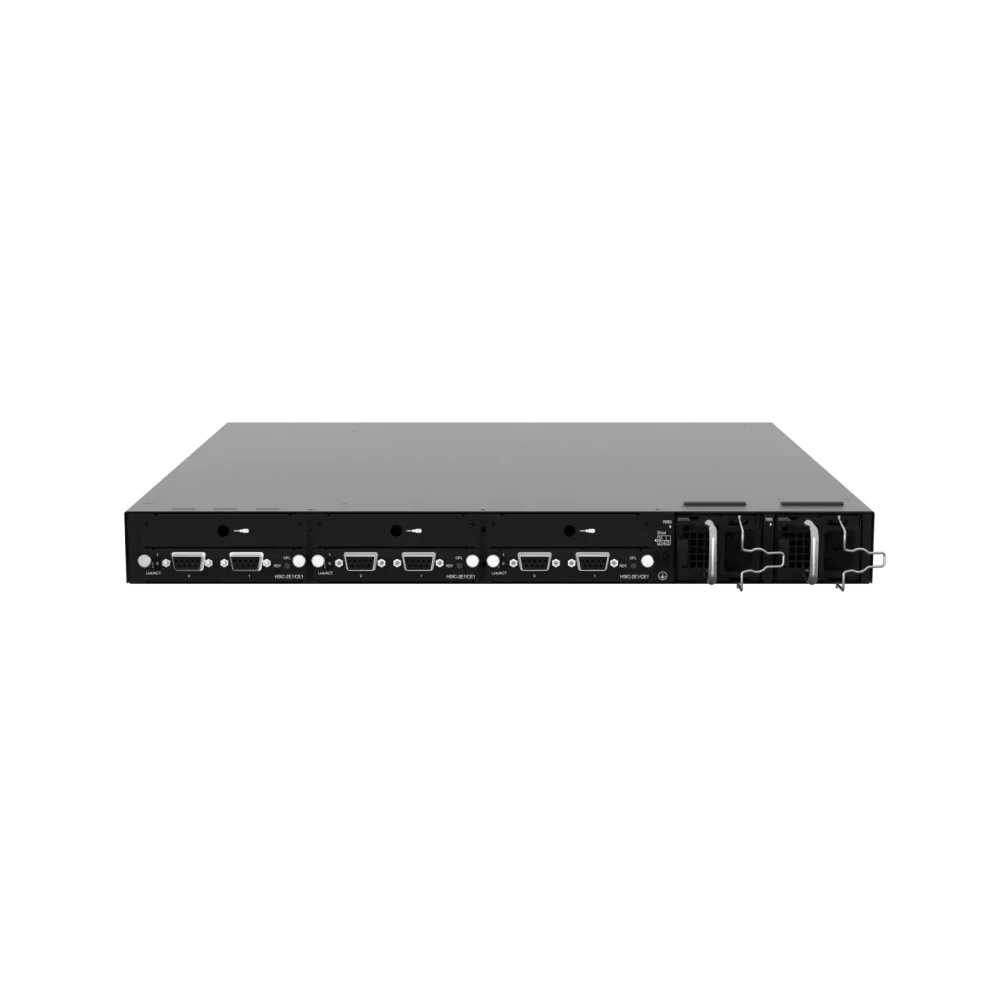

Module slot

4 x expansion module slots

2 x power module slots

4 x expansion module slots

2 x power module slots

4 x expansion module slots

2 x power module slots

System Specifications

Switching capacity

224 Gbps

Packet forwarding rate

4 Mpps

Number of MAC addresses

Number of global MAC addresses: 10,000

Number of static MAC addresses: 4,000

ARP table size

24,000

Number of IPv4 unicast routes

100,000

Number of IPv4 multicast routes

2,048

Number of IPv6 unicast routes

100,000

Number of IPv6 multicast routes

1,024

Number of IGMP Groups

1,000

Number of MLD Groups

1,000

Number of ACEs

4,000

Dimensions and Weight

Unit dimensions (W x D x H)

440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.)

Rack height

1 RU

Unit weight

< 7.8 kg (17.19 lbs, full configuration without packaging materials, with the nameplate at the bottom)

Power supply and consumption

Maximum power consumption

150 W

Power module redundancy

1+1 redundancy

Power input

RG-PA150IB-F (AC input)：

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V  AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 3 A

RG-PD150IB-F (DC input)：

● Rated input voltage: -48V~-60V DC

● Maximum input voltage: -36V~-75V DC

● Maximum input current: 5 A

Power output

RG-PA150IB-F (AC input):

● Output voltage: 12 V

● Maximum output corrent: 12.5 A

RG-PD150IB-F (DC input):

● Output voltage: 12 V

● Maximum output corrent: 12.5 A

Maximum output power

RG-PA150IB-F: 150 W

RG-PD150IB-F: 150 W

Environment and Reliability

Temperature

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: –40°C to 70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Surge protection

6 kV

Software Specifications

RG-RSR20-XA Series

Model

Description

Ethernet switching

Jumbo frame length: 2000 bytes

Voice VLAN

MAC address-based and interface-based VLAN assignment

STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

LLDP/LLDP-MED

IP service

DHCP server, DHCP relay, DHCP client, and DHCP snooping

Static and dynamic NAT and VPN NAT

DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping

Neighbor Discovery (ND)

IPv6 GRE tunnel

IP routing

IPv4/IPv6 static routing

RIP v1/v2 and RIPng

OSPFv2 and OSPFv3

GR

IS-ISv4 and IS-ISv6

BGP and BGP4+

Routing policies

IPv4/IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMPv1/v2/v3

Static multicast routing

PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols

PIM-SSM for IPv4 and IPv6

MSDP for inter-domain multicast

MLDv1/v2

PIM-SMv6

MPLS

MPLS forwarding

Two MPLS VPN modes: inter-AS Option B and Option C

MPLS L3VPN

6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network

MPLS MIB (RFC 1273, 4265, 4382)

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

Expert-level ACLs (ACLs based on source and destination IP addresses and ports, and specified protocol)

IPv6 ACLs

Security

Multiple AAA modes

RADIUS authentication and authorization

TACACS+

IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication

MAC address allowlist, and bindings of VLAN IDs, interface numbers, and MAC addresses

SSHv1 and SSHv2

ICMP (interface discards ICMP traffic of which the rate exceeds the threshold)

Port security

L2TP, IPsec, and GRE

uRPF

Login authentication and password security

CPP

Strict and loose RPF

uRPF ignoring default routes

Reliability

RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control

DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

ECMP

BFD

GR for OSPF/IS-IS/BGP

BFD for VRRP, OSPF, BGP4, IS-IS, IS-ISv6, MPLS, and static routing

SDN technology

NETCONF

NMS and maintenance

SPAN and ERSPAN

NTP and SNTP

NTP server and NTP client

FTP and TFTP

SNMP v1/v2/v3

System operation logging

Command line through console, AUX Modem, Telnet, and SSH

RMON (1, 2, 3, 9)

CWMP

gRPC
