Port Specifications

RG-N18010-E

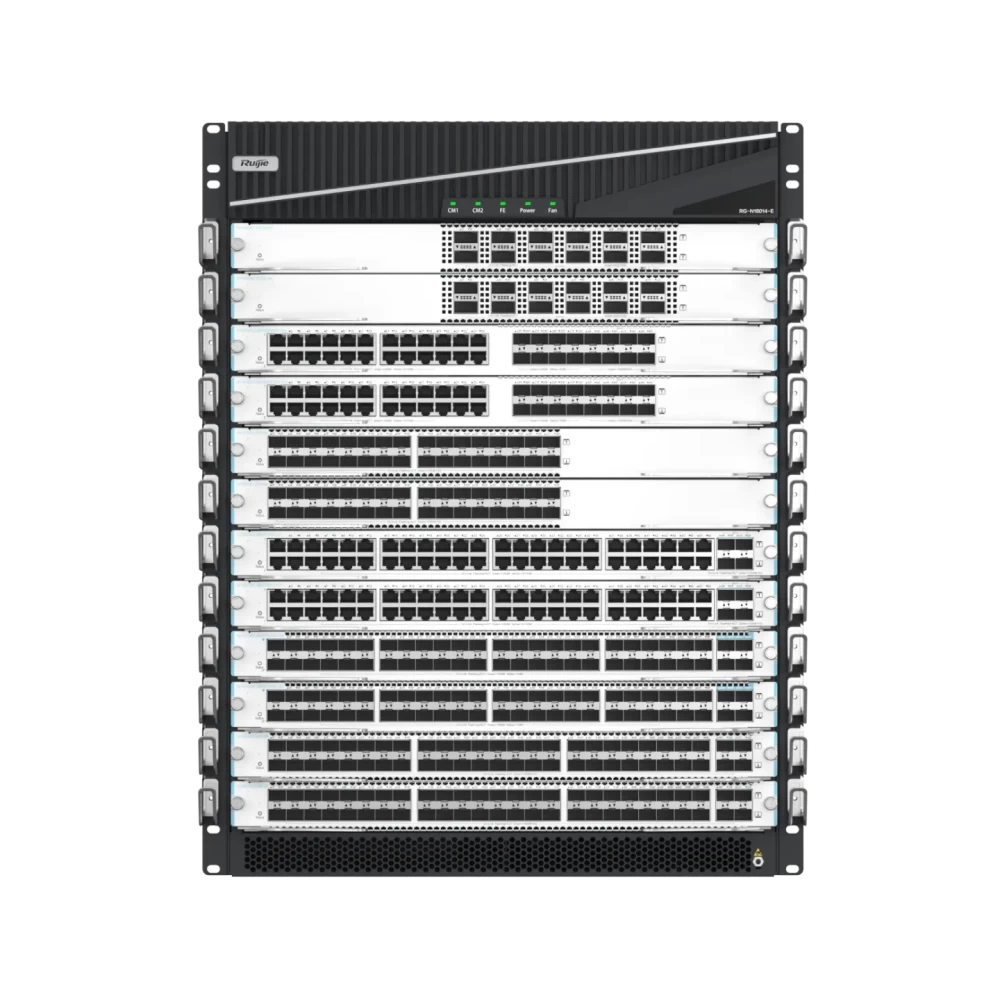

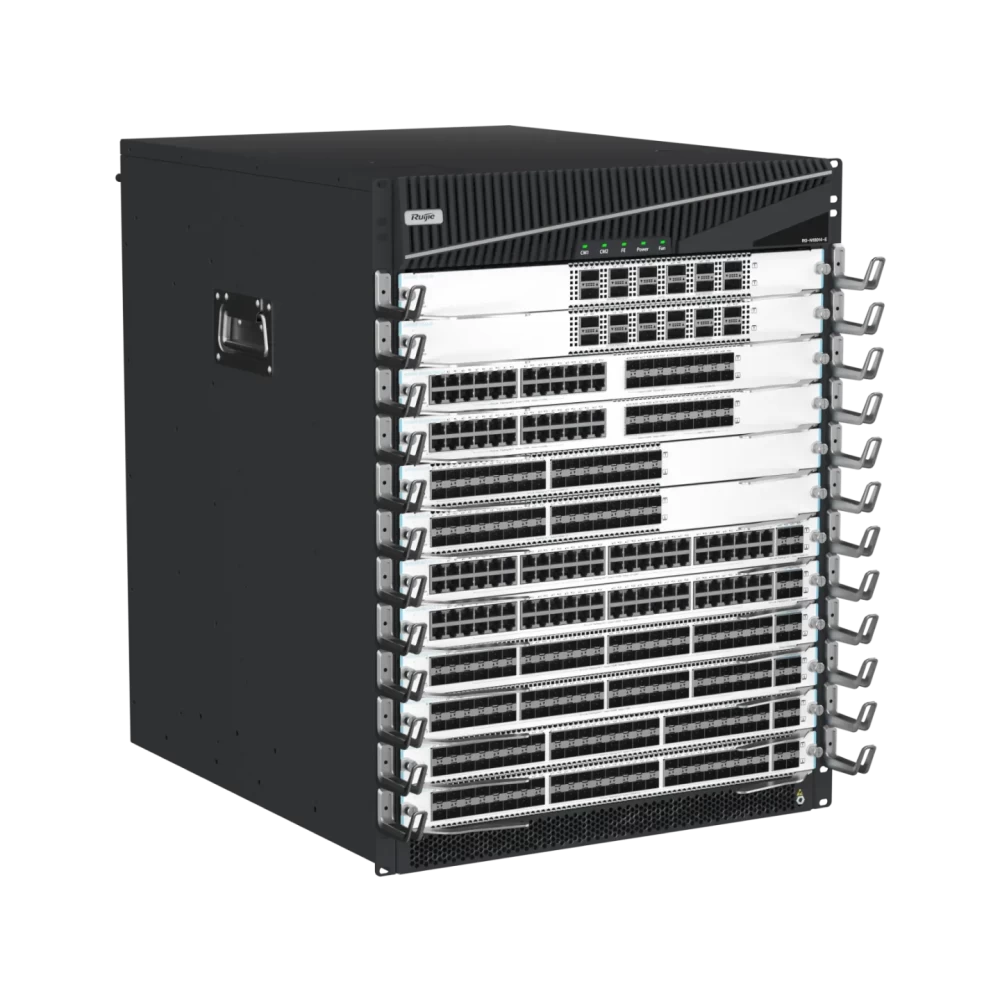

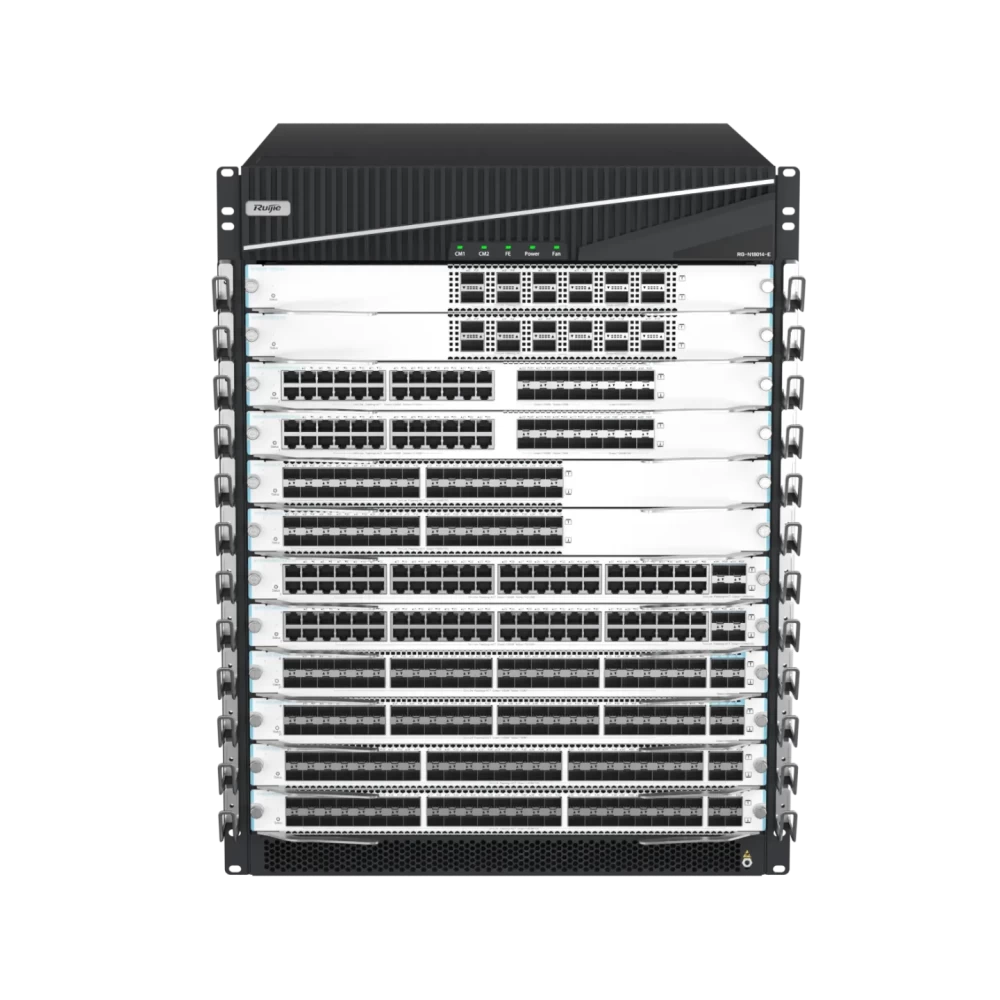

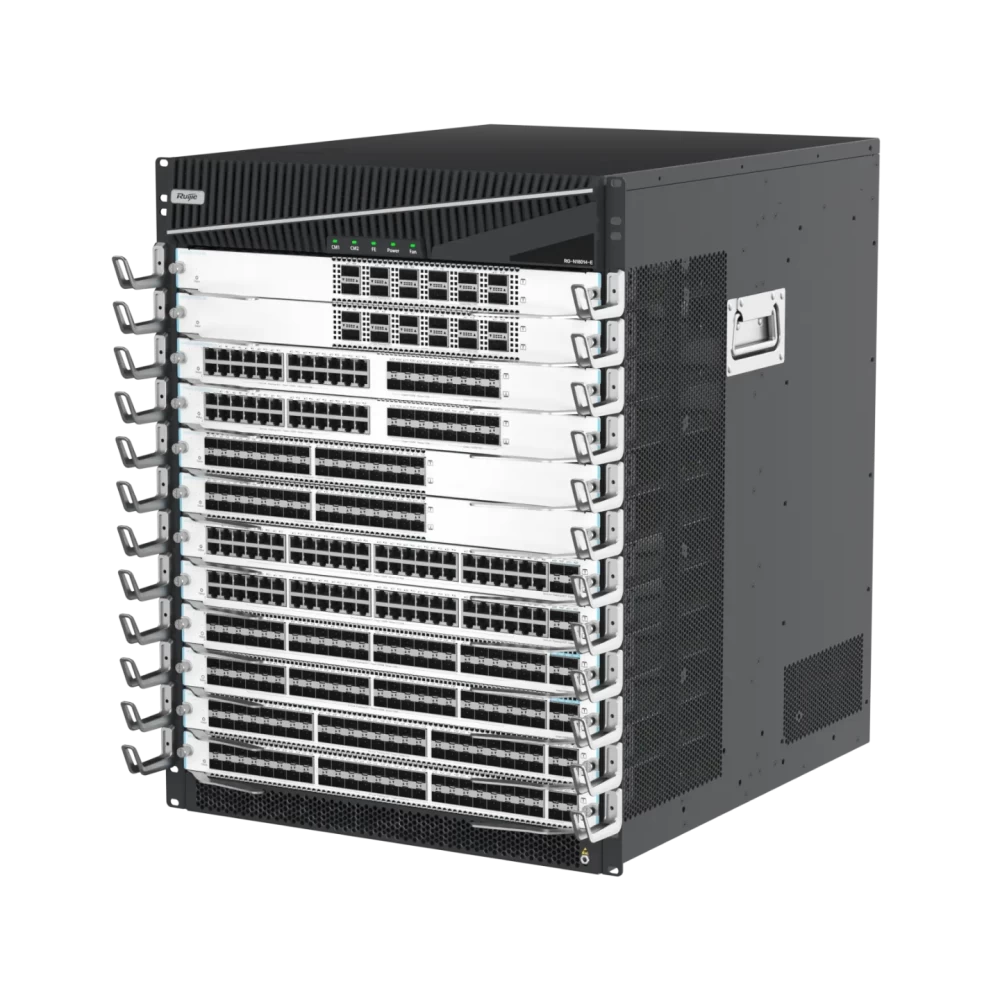

RG-N18014-E

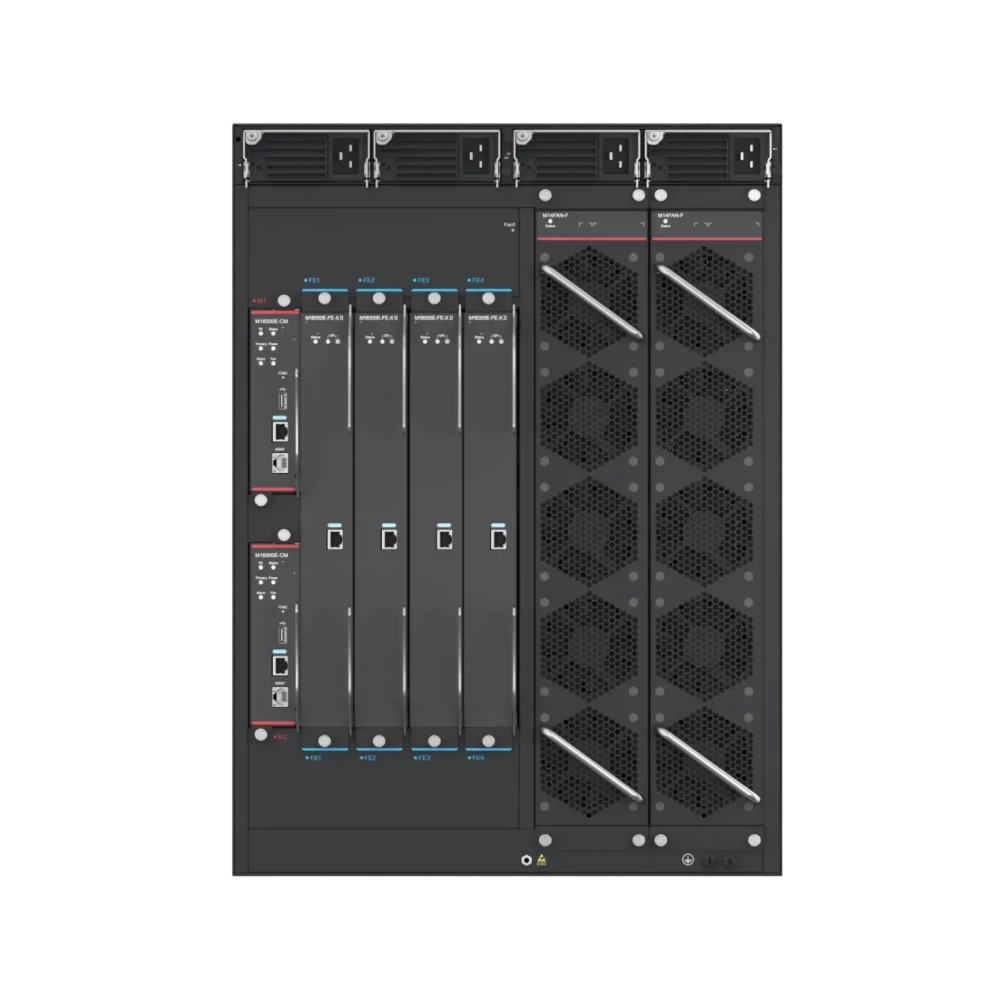

Module slot

2 x supervisor module slots

8 x line card slots

4 x switch fabric module slots

4 x power module slots

2 x fan module slots

2 x supervisor module slots

12 x line card slots

4 x switch fabric module slots

4 x power module slots

2 x fan module slots

Supervisor module

M18000E-CM

M18000E-CM II

Note: The supervisor modules of the M18000E-CM and M18000E-CM II are incompatible with each other. Do not insert them into the same chassis. The main program versions of the two supervisor modules are independent.

Switch fabric module

M18010E-FE-X I

M18000E-FE-X II

M18000E-FE-X II

Line card

M18000E-48GT4XS-XA

M18000E-48SFP4XS-XA

M18000E-24GT8SFP8XS-XA

M18000E-32XS-XB

M18000E-52XS-XB

M18000E-12CQ-XB

M18000E-8SFG

M18000E-8SFX

M18000E-HCA (modular line card)

● HCA-4CQ (modular port adapter)

● HCA-20XS (modular port adapter)

Power module

RG-PA600I

RG-PA1600I

Fan module

M10C-FAN (pre-installed 2)

M14FAN-F (pre-installed 2)

Module management port

Supervisor module:

● 1 x RJ45 console port

● 1 x RJ45 MGMT port

Switch fabric module:

● 1 x RJ45 console port

USB

Supervisor module: 1 x USB 2.0 port (no capacity limit, 2G/4G/8G/16G/32G capacity tested)

System Specifications

RG-N18010-E

RG-N18014-E

System packet forwarding rate *1

14,200 Mpps

21,000 Mpps

System switching capacity *2

19.2 Tbps

28.8 Tbps

CPU

Supervisor module:

● M18000E-CM: quad-core CPU, each core with the clock speed of 2.2 GHz

● M18000E-CM II: octa-core CPU, each core with the clock speed of 2.2 GHz

Switch fabric module:

● Quad-core CPU, each core with the clock speed of 2.2 GHz

Line card:

● M18000E-XA/XB/CWDM card: quad-core CPU, each core with the clock speed of 2.2 GHz

● M18000E-HCA: octa-core CPU, each core with the clock speed of 2.2 GHz

Real-time clock (RTC)

M18000E-CM/CM II: supported

BootROM

M18000E-CM/CM II: 16 MB

XA/XB/CWDM/FE card: 16 MB

M18000E-HCA: 16 MB

Flash memory

M18000E-CM: 8 GB

M18000E-CM II: 16 GB

XA/XB/CWDM/FE card: 8 GB

M18000E-HCA: 16 GB

Memory

M18000E-CM: 4 GB DDR4

M18000E-CM II: 16 GB DDR4

XA/XB/CWDM/FE card: 4 GB DDR4

M18000E-HCA: 16 GB DDR4

Switch buffer

XA card: 4 MB

XB/CWDM/HCA card: 35 MB

Number of MAC address

Number of static MAC addresses

● XA card: 4,000

● XB card: 10,000

● HCA card: 10,000

Number of global MAC addresses

● XA card: 96,000 (installed without the HCA card); 150,000 (installed with the HCA card)

● XB card: 256,000 (installed without the HCA card); 512,000 (installed with the HCA card)

● HCA card: 512,000

ARP table size

XA card: 40,000 (installed without the HCA card); 64,000 (installed with the HCA card)

XB card: 96,000

HCA card: 96,000

Number of IPv4 unicast routes

XA card: 64,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card)

XB card: 350,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card)

HCA card: 1,500,000 (shared with IPv6 routes)

Number of IPv4 multicast routes

XA card: 4,000

XB card: 4,000

HCA card: 4,000

Number of IPv6 unicast routes

XA card: 15,000 (≤ 64 bytes, shared with IPv4 routes, installed without the HCA card); 1,000,000 (installed with the HCA card)

XB card: 65,000 (installed without the HCA card); 1,000,000 (installed with the HCA card)

HCA card: 1,000,000

Number of IPv6 multicast routes

XA card: 2,000

XB card: 2,000

HCA card: 2,000

Number of ACEs

XA card:

● Ingress: 7,000

● Egress: 1,500

XB card:

● Ingress: 28,000 (installed without the HCA card); 24,000 (installed with the HCA card)

● Egress: 4,000

HCA card:

● Ingress: 24,000

● Egress: 4,000

Number of VSU members

2

Power Supply and Consumption

RG-N18010-E

RG-N18014-E

Power supply

4 x pluggable power modules

Power input

RG-PA600I (AC input):

● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 10 A

RG-PA1600I (AC input):

● Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz

● Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz

● Maximum input current: 16 A

Maximum output power

RG-PA600I: 600 W

RG-PA1600I:

● 100 V AC to 176 V AC: 1200 W

● 176 V AC to 240 V AC: 1600 W

Module power consumption

Supervisor module:

● M18000E-CM: < 60 W

● M18000E-CM II: < 70 W

Switch fabric module:

● M18000E-FE-X II: < 160 W

Line card:

● M18000E-48GT4XS-XA: < 85 W

● M18000E-48SFP4XS-XA: < 117 W

● M18000E-24GT8SFP8XS-XA: < 95 W

● M18000E-32XS-XB: < 149 W

● M18000E-52XS-XB: < 250 W

● M18000E-12CQ-XB: < 240 W

● M18000E-8SFG: < 250 W

● M18000E-8SFX: < 250 W

● M18000E-HCA: < 280 W

● HCA-20XS: < 30 W

● HCA-4CQ: < 20 W

Switch fabric module:

● M18000E-FE-X I: < 50 W

Fan module:

● M10C-FAN: < 216 W

Fan module:

● M14FAN-F: < 360 W

Dimensions and Weight

RG-N18010-E

RG-N18014-E

Unit dimensions (W x D x H)

442.0 mm x 561.0 mm x 442.5 mm (17.40 in. x 22.09 in. x 17.42 in., cable management bracket excluded)

442.0 mm x 670.1 mm x 442.5 mm (17.40 in. x 26.38 in. x 17.42 in., cable management bracket included)

442.0 mm x 561.0 mm x 605.1 mm (17.40 in. x 22.09 in. x 23.82 in., cable management
bracket excluded)

442.0 mm x 670.1 mm x 605.1 mm (17.40 in. x 26.38 in. x 23.82 in., cable management
bracket included)

Shipping dimensions (W x D x H)

845.0 mm x 685.0 mm x 770.0 mm
(33.27 in. x 26.97 in. x 30.31 in.)

860.0 mm x 670.0 mm x 887.0 mm
(33.86 in. x 26.38 in. x 34.92 in.)

Rack height

10 RU

14 RU

Unit weight

43.6 kg (96.12 lbs, empty chassis with 2 fan modules)

68.3 kg (150.58 lbs, empty chassis with 2 fan modules)

Shipping weight

68.3 kg (150.58 lbs)

82.5 kg (181.88 lbs)

Environment and Reliability

RG-N18010-E

RG-N18014-E

Temperature

Operating temperature: 0°C to 50°C (32°F to 122°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Mean time between failure (MTBF)

342,000 hours (about 39 years)

Fan

2 x pluggable fan modules (pre-installed)

Heat dissipation

Supervisor module and switch fabric module: front-to-rear airflow

Line card: right-to-rear airflow

Acoustic noise

35°C (95°F): 55.9 dB

50°C (122°F): 73.4 dB

Supervisor module redundancy

1+1 redundancy

Switch fabric module redundancy

1+N redundancy

Power module redundancy

N+M redundancy (same model)

Fan redundancy

1+1 redundancy

Module hot swapping

Supported

Power module hot swapping

Supported

Fan module hot swapping

Supported

Cable hot swapping

All ports on line cards support hot swapping of cables.

The switch-mode power supply supports hot swapping of power cords.

Power supply monitoring

Monitoring of the model, temperature, power, and voltage of the power module

Power supply failure alarming

Control of line card power-on based on the power supply status

Fan monitoring

Fan speed adjustment: 256 levels

Fan failure alarming

Temperature monitoring

Over-temperature alarming

ESD

ESD contact/air discharge: 6 kV/8 kV

ESD susceptibility contact/air discharge: 8 kV/15 kV

Surge protection

MGMT port: 4 kV

Service port: 4 kV

Power port: common mode 6 kV, differential mode 6 kV

Certifications and regulatory compliance

RG-N18010-E

RG-N18014-E

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

RoHS

European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Feature

RG-N18000-E Series

Ethernet Switching

Jumbo frame (maximum length: 9,216 bytes)

IEEE 802.3az EEE

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super-VLAN and private VLAN

MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment

GVRP

Basic QinQ and selective QinQ

STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

ERPS (G.8032)

LLDP/LLDP-MED

IP Service

Static and dynamic ARP

DHCP client

DHCP relay

DHCP server

DHCP snooping

DNS

DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IPv4 and IPv6 GRE tunnel

IPv6 manual tunnel, IPv6 automatic tunnel, and IPv6 ISATAP tunnel

IP Routing

Static routing

RIP and RIPng

OSPFv2 and OSPFv3

GR

IS-ISv4 and IS-ISv6

BGP4 and BGP4+

IPv4/IPv6 VRF

IPv4/IPv6 PBR

Multicast

IGMPv1/v2/v3

IGMPv1/v2 snooping

IGMP proxy

IGMP fast leave

PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols

Multicast static routing

PIM-SM, PIM-SSM, PIM-SMv6, and PIM-SSMv6

MSDP for inter-domain multicast

MLDv1/v2

MLDv1 snooping

Multicast source IP address check

Multicast source port check

Validity check of IGMP packets

Multicast querier

MPLS

MPLS L3VPN

MPLS 6VPE and MPLS 6PE

MPLS IPv6

MPLS MIB (RFC 1273, 4265, 4382)

ACL and QoS

Standard IP ACLs (hardware ACLs based on IP addresses)

Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers)

Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)

Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range)

ACL80 and IPv6 ACL

Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range)

ACL redirection

Port traffic identification

Port traffic rate limiting

IEEE 802.1p

Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences

Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, SP+WFR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

Rate limiting based on the inbound or outbound interface

Eight queues on each port

Security

Multi-AAA

RADIUS authentication, authorization, and accounting

TACACS+

IEEE 802.1X

IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication

Web authentication

Hypertext Transfer Protocol Secure (HTTPS)

SSHv1 and SSHv2

Global IP-MAC binding

ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface)

Port security

IP source guard

SAVI

ARP spoofing prevention

CPP and NFPP

Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types

Loose and strict RPF

uRPF ignoring default routes

Reliability

REUP

Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control

Data Link Detection Protocol (DLDP)

IPv4/IPv6 ECMP

IPv4 VRRP v2/v3 and IPv6 VRRP v3

BFD

Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM)

1+1 redundancy for supervisor modules

1+N redundancy for switch fabric modules

N+M redundancy for power modules

1+1 redundancy for fan modules.

Hot patching for online patch upgrade

GR for OSPF/IS-IS/BGP

BFD for VRRP/OSPF/BGP4/IS-IS/IS-ISv6/static routing

Hot swapping of supervisor modules, switch fabric modules, power modules, and fan modules

Device Virtualization

VSU

NMS and Maintenance

SPAN, RSPAN, and ERSPAN

sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios)

N:1 mirroring, 1:N mirroring, and flow-based mirroring

VLAN mirroring

NTP and SNTP

FTP, SFTP, TFTP, and Xmodem

SNMP v1/v2/c3

RMON (1, 2, 3, 9)

Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups

RMON used to implement Ethernet statistics, historical statistics, and alarm functions

NETCONF

CWMP

gRPC

OpenFlow Special 1.3

Flow table analysis defined by all protocols

Transmission of specified packets to the controller

Configuring the controller's IP address and port

Notifying port status changes to the controller

Web-based NMS

VXLAN

EVPN VXLAN tunnel establishment

LAN access to VXLAN

IPv4 over IPv4

Distributed gateway

IPv6 over IPv6

Using an SVI to connect to the VXLAN network

Using a routed interface to connect to the VXLAN network

Proxy ARP (replying with the actual MAC address))

ND proxy (replying with the actual MAC address)

ND reply (replying with the actual MAC address)

VXLAN static route

Anycast gateway

VXLAN bridging mode

VXLAN routing mode

Proxy ARP (replying with the gateway MAC address)

Configuring the UDP port number in VXLAN packets

Static VXLAN tunnel creation

Layer 2 VXLAN bridge

Layer 3 VXLAN gateway

EVPN VXLAN
