Order the RG-AM5532 (i-Share+ solution master AP) first. Then order the RG-MAP852(V3) (i-Share+ solution micro AP).
Model
Description
RG-AM5532
The master AP of the i-Share+ solution APs with 24 downlink 1000 Mbps PoE ports, four uplink 1000 Mbps PoE electrical ports and four uplink 10GE SFP+ ports in auto negotiation mode. The uplink ports support three mutually exclusive modes: two 1000 Mbps electrical ports and two 10GE optical ports (supporting up to two settled APs), four 1000 Mbps electrical ports (supporting up to three settled APs) and four 10GE optical ports (not supporting settled APs). The master AP supports up to 24 i-Share micro APs. Each master AP uses four wireless controller licenses.
RG-MAP852(V3)

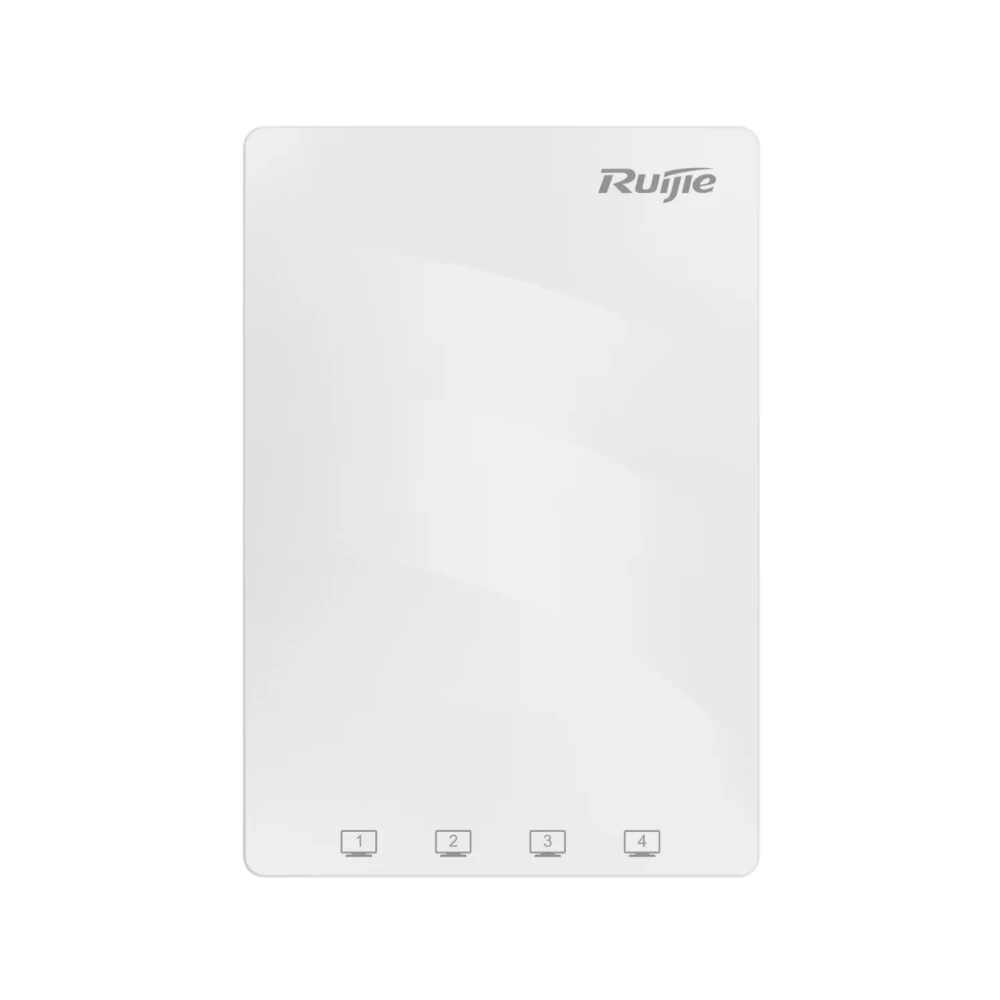

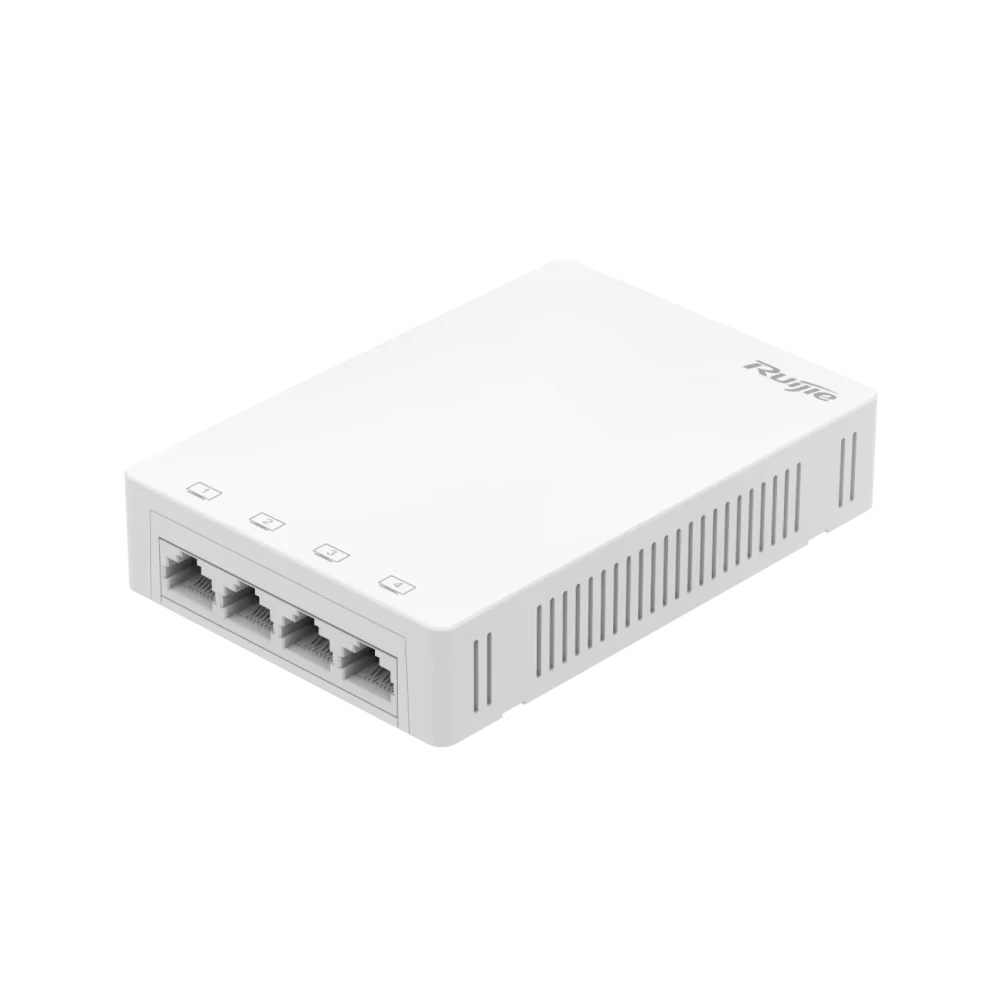

A universal Wi-Fi 6 dual-radio i-Share micro AP. The AP supports up to four spatial streams and the maximum access rate of 2.976 Gbps. It complies with IEEE 802.11b/g/n/ax and IEEE 802.11a/n/ac/ax standards. The AP provides one 1000 Mbps uplink port and four 1000 Mbps downlink ports. The AP can be can be mounted on a wall, ceiling, or junction box.
Brand: Ruijie
Model Number: RG-MAP852(V3),
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 16/11/2024
Dimensions and Weight | RG-MAP852(V3) |
Unit dimensions(W x D x H) | 125 mm × 86 mm × 30 mm (4.92 in x 3.38 in x 1.18 in) |
Shipping dimensions(W x D x H) | 180 mm x 137 mm x 52 mm (7.09 in x 5.39 in x 2.05 in) |
Unit weight | 0.31 kg (0.68 lbs) |
Shipping weight | 0.35 kg (0.77 lbs) |

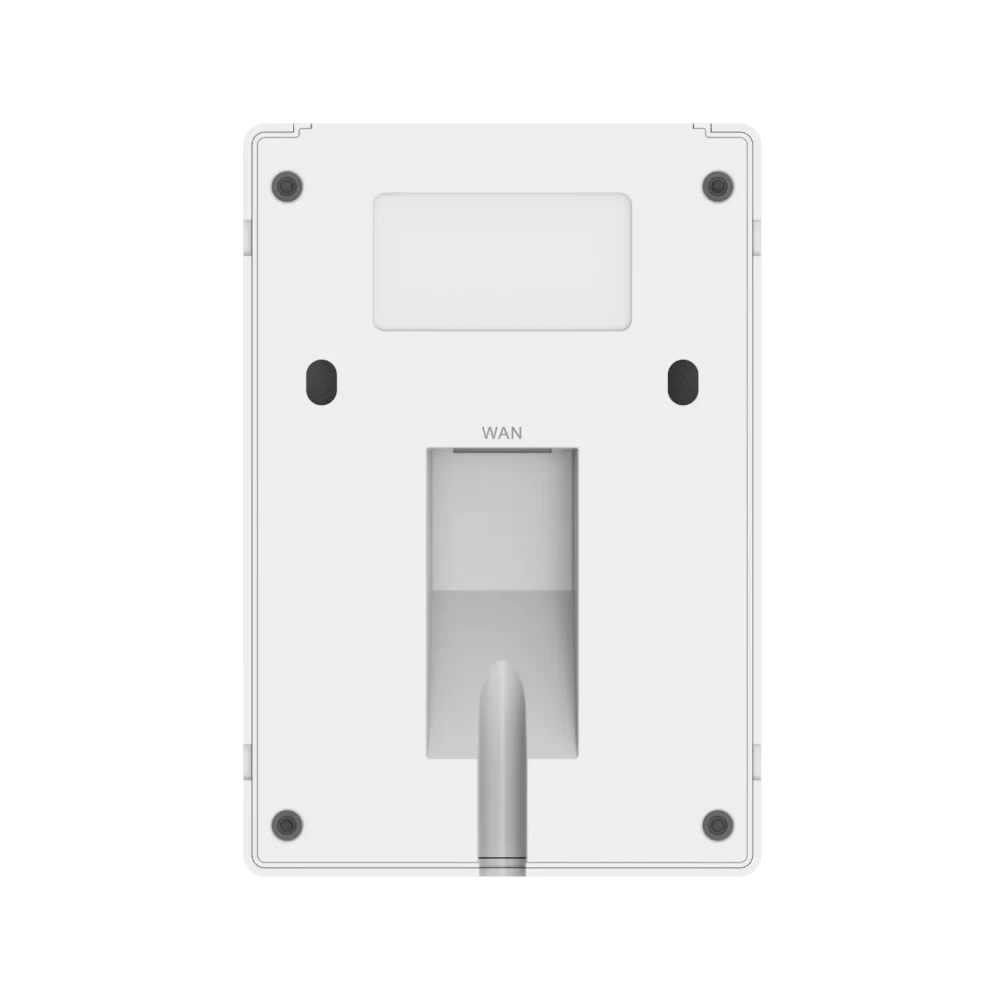

Mounting | Wall/Ceiling/In-wall-mount |
Wi-Fi Radio | RG-MAP852(V3) |
Radio design | Dual-radio, four spatial streams per device Radio 1: 2.4 GHz, 2 spatial streams: 2x2, MU-MIMO Radio 2: 5 GHz, 2 spatial streams: 2x2, MU-MIMO |
Operating frequencies | Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Country-specific restrictions apply. |
Date rates | Combined peak data rate: 2.976 Gbps Radio1: 2.4GHz, 574Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client device (max.) ● Two spatial stream SU MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client device (typical) Radio2: 5GHz, 2.402Gbps ● Two spatial stream Single SU MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client device (max.) ● Two spatial stream SU MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client device (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24 ,36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 1732 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT160) ● 802.11ax: 8.6 to 2402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) |
Packet aggregation | 802.11n/ac/ax: A-MPDU, A-MSDU |
Antenna type | Build-in ominidirectional antenna (2 x 2.4 GHz antennas, 2 x 5 GHz antennas) |
Antenna gain | 2.4GHz: 2dBi 5GHz: 2dBi |
Max. transmit power | 2.4 GHz radio: 21 dBm (18 dBm per chain) 5 GHz radio: 21 dBm (18 dBm per chain) Note: The transmit power is limited by local regulatory requirements. |
Power increment | Configurable in increments of 1 dBm or in percentage (recommended) |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-MAP852(V3) | ||
Frequency Band and Protocol | Data Rate | Max. Transmit Power per Transmit Chain | Max. Receive Sensitivity per Receive Chain |
2.4GHz 802.11b | 1 Mbps | 18 dBm | –91 dBm |
2 Mbps | 17 dBm | –91 dBm | |
5.5 Mbps | 16 dBm | –90 dBm | |
11 Mbps | 15 dBm | –87 dBm | |
2.4GHz 802.11g | 6 Mbps | 18 dBm | –89 dBm |
24 Mbps | 16 dBm | –82 dBm | |
36 Mbps | 16 dBm | –78 dBm | |
54 Mbps | 15 dBm | –72 dBm | |
2.4GHz 802.11n (HT20) | MCS0 | 18 dBm | –85 dBm |
MCS7 | 15 dBm | –67 dBm | |
2.4GHz 802.11n (HT40) | MCS0 | 18 dBm | –82 dBm |
MCS7 | 15 dBm | –64 dBm | |
2.4GHz 802.11ax (HE20) | MCS0 | 18 dBm | –85 dBm |
MCS11 | 12 dBm | –58 dBm | |
2.4GHz 802.11ax (HE40) | MCS0 | 18 dBm | –82 dBm |
MCS11 | 12 dBm | –54 dBm | |
5GHz 802.11a | 6 Mbps | 18 dBm | –89 dBm |
24 Mbps | 16 dBm | –82 dBm | |
36 Mbps | 16 dBm | –78 dBm | |
54 Mbps | 15 dBm | –72 dBm | |
5GHz 802.11n (HT20) | MCS0 | 18 dBm | –85 dBm |
MCS7 | 15 dBm | –67 dBm | |
5GHz 802.11n (HT40) | MCS0 | 18 dBm | –82 dBm |
MCS7 | 15 dBm | –64 dBm | |
5GHz 802.11ac (VHT20) | MCS0 | 18 dBm | –85 dBm |
MCS9 | 15 dBm | –60 dBm | |
5GHz 802.11ac (VHT40) | MCS0 | 18 dBm | –82 dBm |
MCS9 | 15 dBm | –57 dBm | |
5GHz 802.11ac (VHT80) | MCS0 | 18 dBm | –79 dBm |
MCS9 | 15 dBm | –53 dBm | |
5GHz 802.11ax (HE20) | MCS0 | 18 dBm | –85 dBm |
MCS11 | 12 dBm | –58 dBm | |
5GHz 802.11ax (HE40) | MCS0 | 18 dBm | –82 dBm |
MCS11 | 12 dBm | –54 dBm | |
5GHz 802.11ax (HE80) | MCS0 | 18 dBm | –79 dBm |
MCS11 | 12 dBm | –52 dBm | |
5GHz 802.11ax (HE160) | MCS0 | 16 dBm | –75 dBm |
MCS11 | 9 dBm | –47 dBm |
Port Specifications | RG-MAP852(V3) |

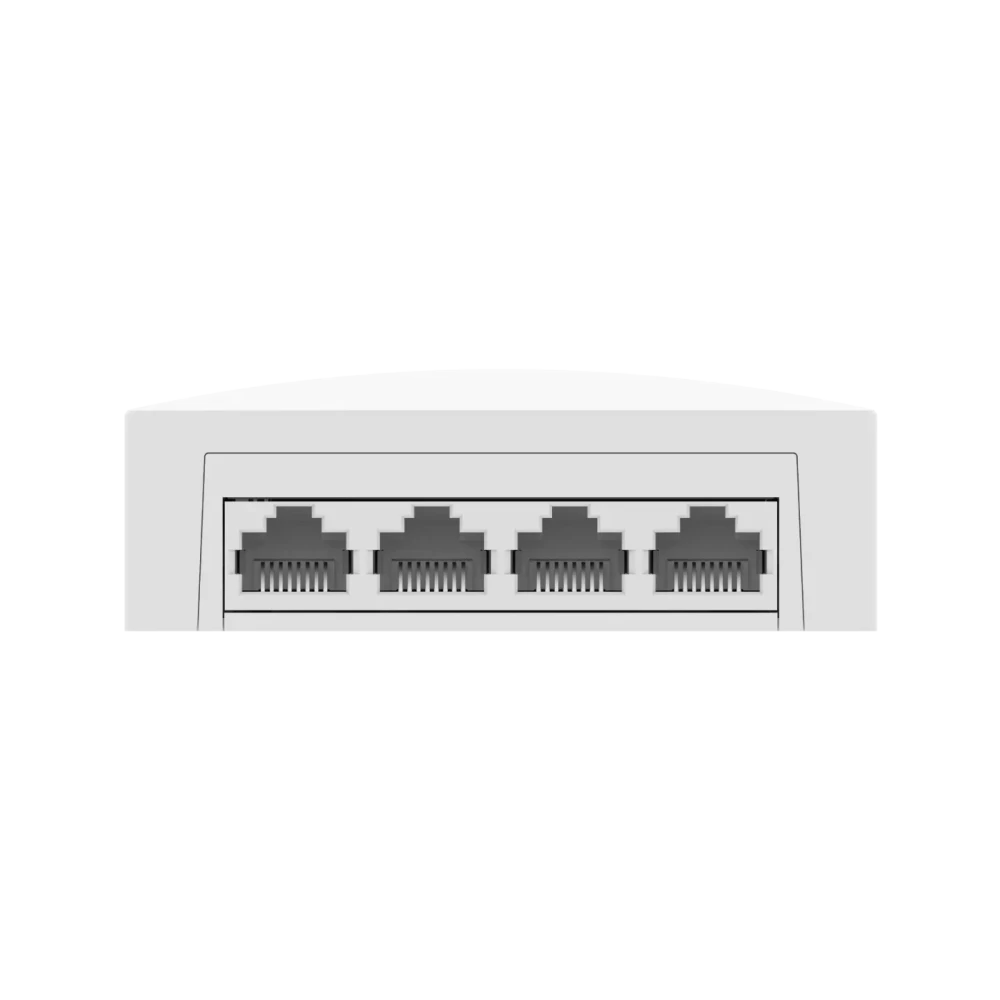

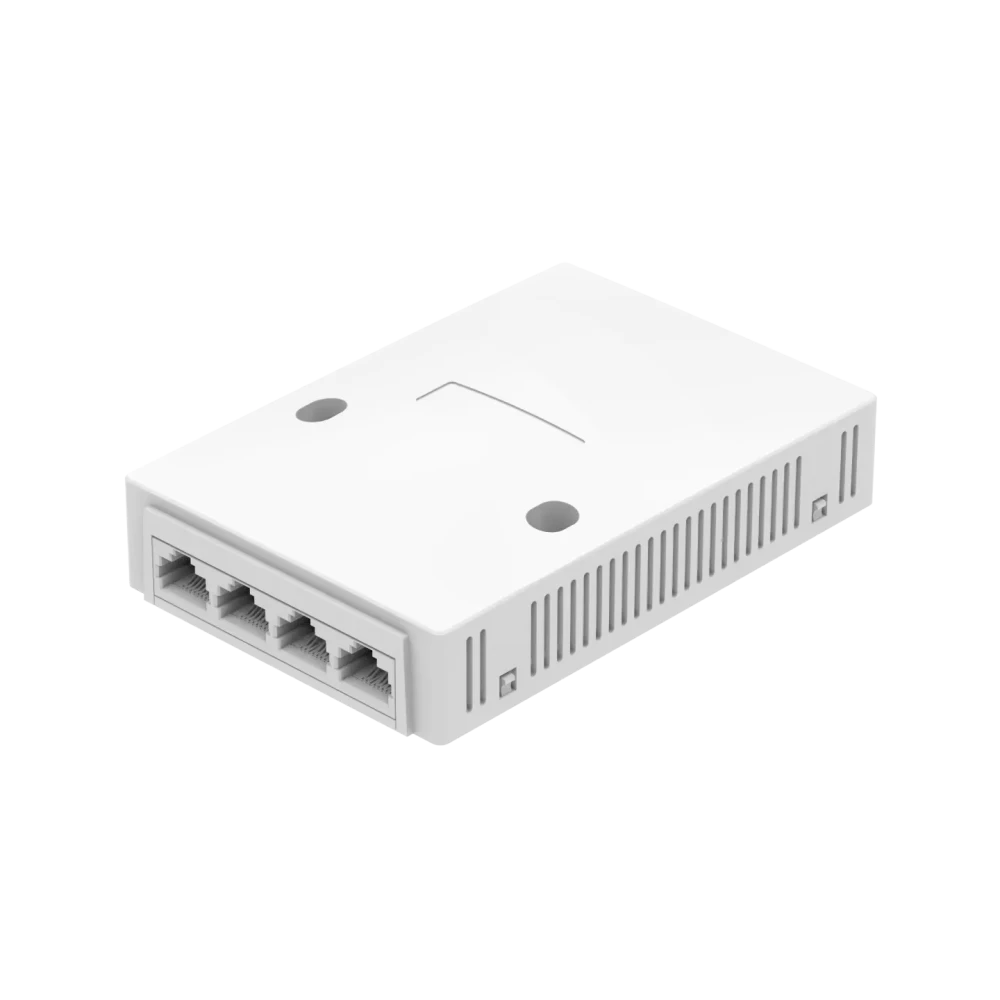

Fixed service port | Uplink: One 10/100/1000Base-T Ethernet port with auto-negotiation, supporting IEEE 802.3af/at/bt-compliant PoE Downlink: Four 10/100/1000Base-T Ethernet ports with auto-negotiation |
Fixed management port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Power Supply and Consumption | RG-MAP852(V3) |
Input power supply | PoE/PoE+/PoE++ (IEEE 802.3af/at/bt-compliant), powered by an i-Share+ master AP |
Max. power consumption | 9 W |
Environment and Reliability | RG-MAP852(V3) |
Temperature | Operating temperature: –10°C to +45°C (14°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 167 m (548 ft), the maximum temperature decreases by 1°C (1.8°F). |
Humidity | Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
Environment standard | Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Certifications and Regulatory Compliance | RG-MAP852(V3) |
Regulatory compliance | EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 300 328 EN 301 893 EN 300 440 FCC Part 15 EN IEC 62311 IEC 62368-1 EN 62368-1 |
* For more country-specific regulatory information and approvals, contact your local sales agency.
Software | RG-MAP852(V3) |
Applicable software version | RGOS11.9(6)W2B5 or higher |
WLAN | RG-MAP852(V3) |
Max. number of associated STAs | 1,024 (up to 512 STAs per radio) |
Max. number of BSSIDs | 16 (up to 8 BSSIDs per radio) |
Max. number of WLAN IDs | 8 |
STA management | SSID hiding Band steering Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Intelligent load balancing based on the STA quantity or traffic Rate set settings |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
CAPWAP | IPv4 / IPv6 CAPWAP CAPWAP through NAT MTU setting and fragmentation over CAPWAP tunnels Encryption over CAPWAP data channels |
Data forwarding | Centralized and local forwarding |
Wireless roaming | Layer 2 and Layer 3 roaming |
Wireless locating | MU and TAG device locating |
Security and Authentication | RG-MAP852(V3) |
Authentication and encryption | PSK and web authentication QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES) |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | Wireless Intrusion Detection System(WIDS) User isolation Rogue AP detection and containment |
ACL | Dynamic ACL assignment based on 802.1X authentication MAC extended ACLACL based on a Layer 2 interface ACL based on a Layer 3 interface Ingress ACL based on a wireless interface |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
Routing and Switching | RG-MAP852(V3) |
MAC | Static and filtered MAC addresses MAC address table size: 1,024 Max. number of static MAC addresses: 1,024 Max. number of filtered MAC addresses: 1,024 |
Ethernet | Jumbo frame length: 1518 Full-duplex and half-duplex modes of interfaces IEEE802.1p and IEEE802.1Q Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
VLAN | Interface-based VLAN assignment Max. number of VLANs: 4094 VLAN ID range: 1–4094 |
ARP | ARP entry aging and proxy ARP Max. number of ARP entries: 1,024 ARP check |
IPv4 services | Static and dynamic IPv4 addresses |
IPv6 services | IPv6 addressing, ND, ICMPv6, IPv6 ping |
IP routing | IPv4/IPv6 static routing Max. number of static IPv4 routes: 1,024 Max. number of static IPv6 routes: 1,000 |
Multicast | Multicast-to-unicast conversion |
Network Management and Monitoring | RG-MAP852(V3) |
Network management | SNMPv1/v2C/v3 Fault detection and alarm Information statistics and logging |
Network management platform | Web management (Eweb) |
User access management | Telnet andTFTP |
