SKU: RG-EAP602 AC1200
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited

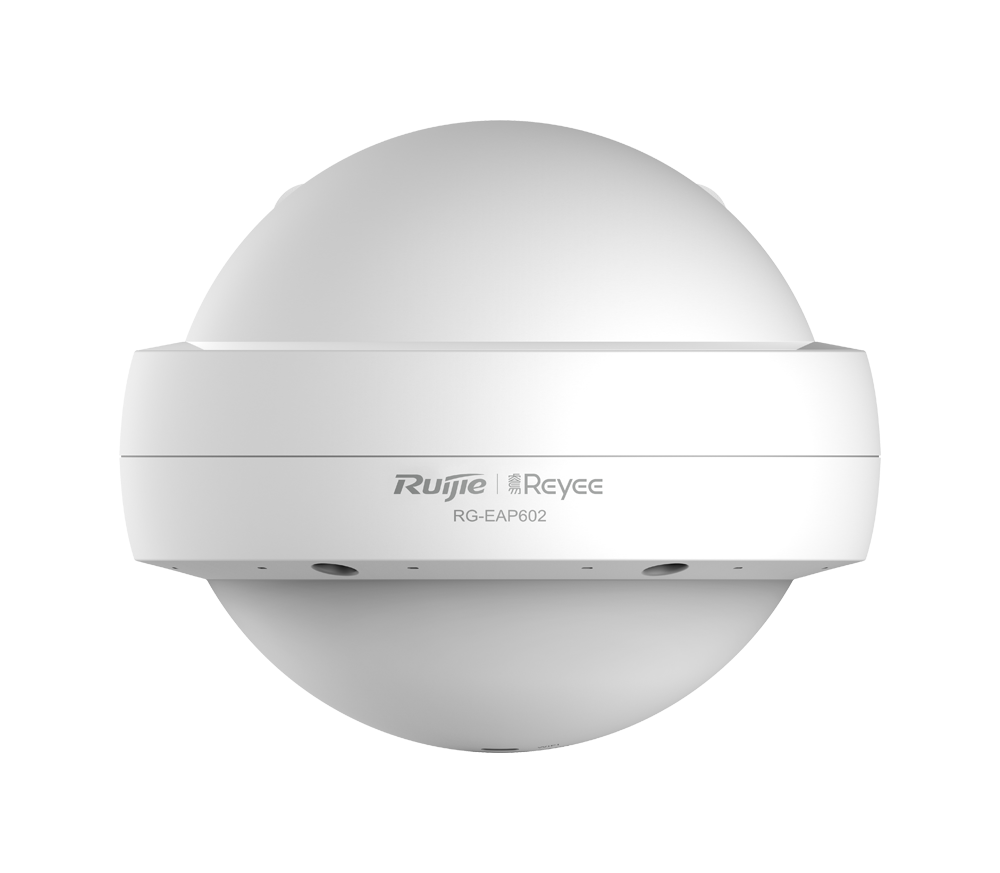

Ruijie Reyee Series RG-EAP602 is a high-power outdoor omnidirectional dual-band wireless access point supporting 802.11b/g/n/ac, which is designed for villages, villas, parks, scenic spots, plazas, etc. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, which can provide 300Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1167Mbps per AP. The built-in omnidirectional high-gain antennas provide excellent coverage for the users.
RG-EAP602 supports Self-organizing network features, which realizes auto-discovery, auto-networking and auto-configuration of devices without the need for controllers or Internet access. With the mobile app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. Users can perform comprehensive local management or remote management of the equipment in the entire network via the mobile app, web management, Ruijie Cloud platform, Router, etc. Users can also share the network to third party for collaborative management, thereby offering a simpler, easier to use, more secure and convenient enterprise network.
Highlight：
Brand: Ruijie
Model Number: RG-EAP602 AC1200
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 13/11/2024
Hardware specifications | |
Model | RG-EAP602 |
Radio | 2.4GHz & 5GHz dual-band dual-stream |
Protocol | 2.4GHz: 802.11 b/g/n；5GHz: 802.11a/b/g/n/ac |
Spatial Streams | 2.4GHz: 2 Spatial Streams, 2x2 MIMO |
Max Throughput | 2.4GHz: 300Mbps 5GHz: 867Mbps Up to 1167Mbps per AP |
Transmit Power | ≤500mw（27dBm，RF transmit power only） |
Dimensions | 200mm*220mm*166mm (excluding mounting kits) |
Weight | 1kg (excluding mounting kits) |
Service Ports | 2 10/100/1000Mbps Ethernet ports（one of which supports 802.3af/at PoE） 1 reset button |
Reset | 1 DC 12V power socket |
LED Indicators | Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator |
Power Supply | 802.3af / 802.3at DC 12V 1.5A |
Built-in Antennas | Built-in omnidirectional antennas (basic gain 3dBi) |
Power Consumption | ＜12.95W |
Coverage Radius | Open and unobstructed direction: 2.4G 100m，5G 300m （the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals） |
Surge Protection | 6000V |
IP Rating | Above IP68 |
Environment | Operating temperature: -30°C～65°C |
Storage temperature: -40°C～85°C | |
Operating humidity: 0%～100% (non-condensing) | |
Storage humidity: 0%～100% (non-condensing) | |
MTBF | >250000H |
Software Features | |
WLAN | Maximum number of clients: 164 |
Recommended number of clients: 96 | |
Up to 8 SSIDs | |
Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
SSID-based and radio-based STA limit | |
Support Layer 2 user isolation | |
Security | Support PSK authentication |
Support static blacklist and whitelist | |
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
Routing | Support static IP address and DHCP |
Management and maintenance | Support local or remote management with app Support local management with web Support remote management with Ruijie Cloud platform |
Platform management features | Automatic RF adjustment via the platform |
Unified configuration via the platform | |
Unified monitoring via the platform | |
