SKU: RG-CS85-48SFP4XS-D
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-CS85-24GT8XS-D
24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)

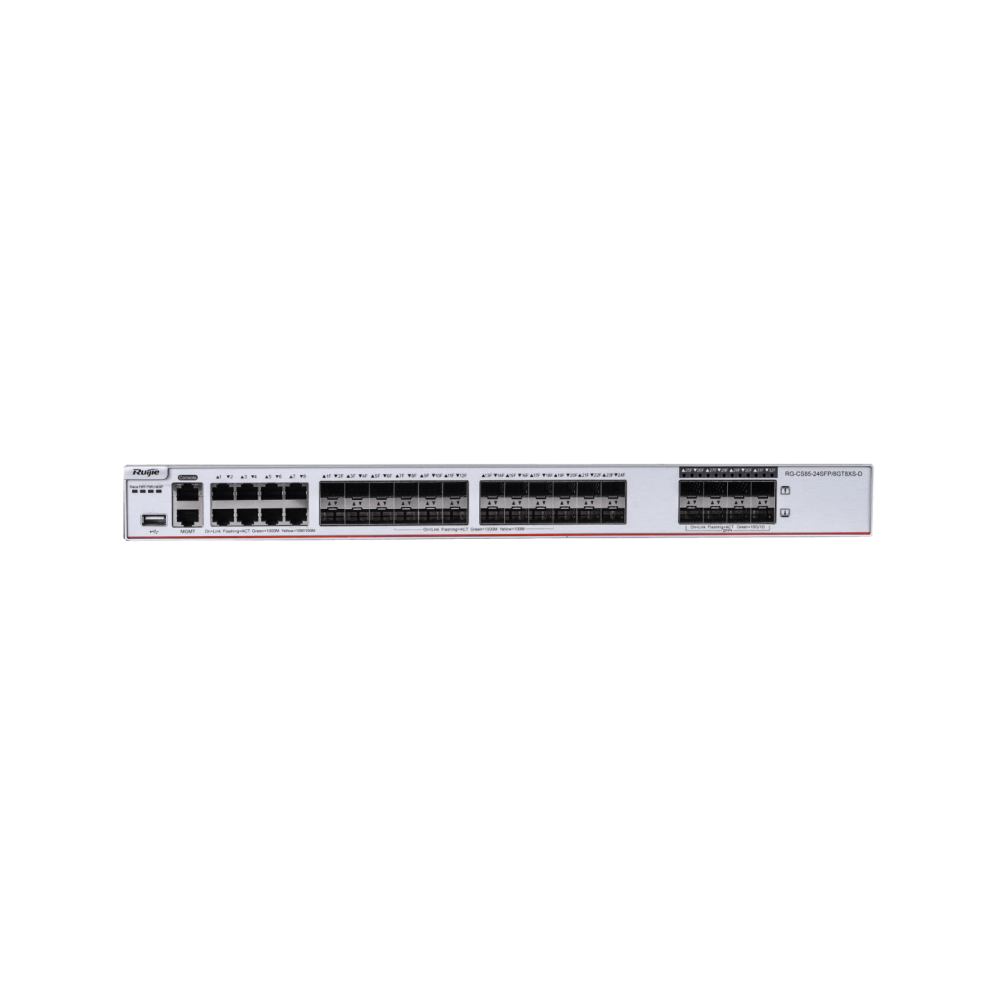

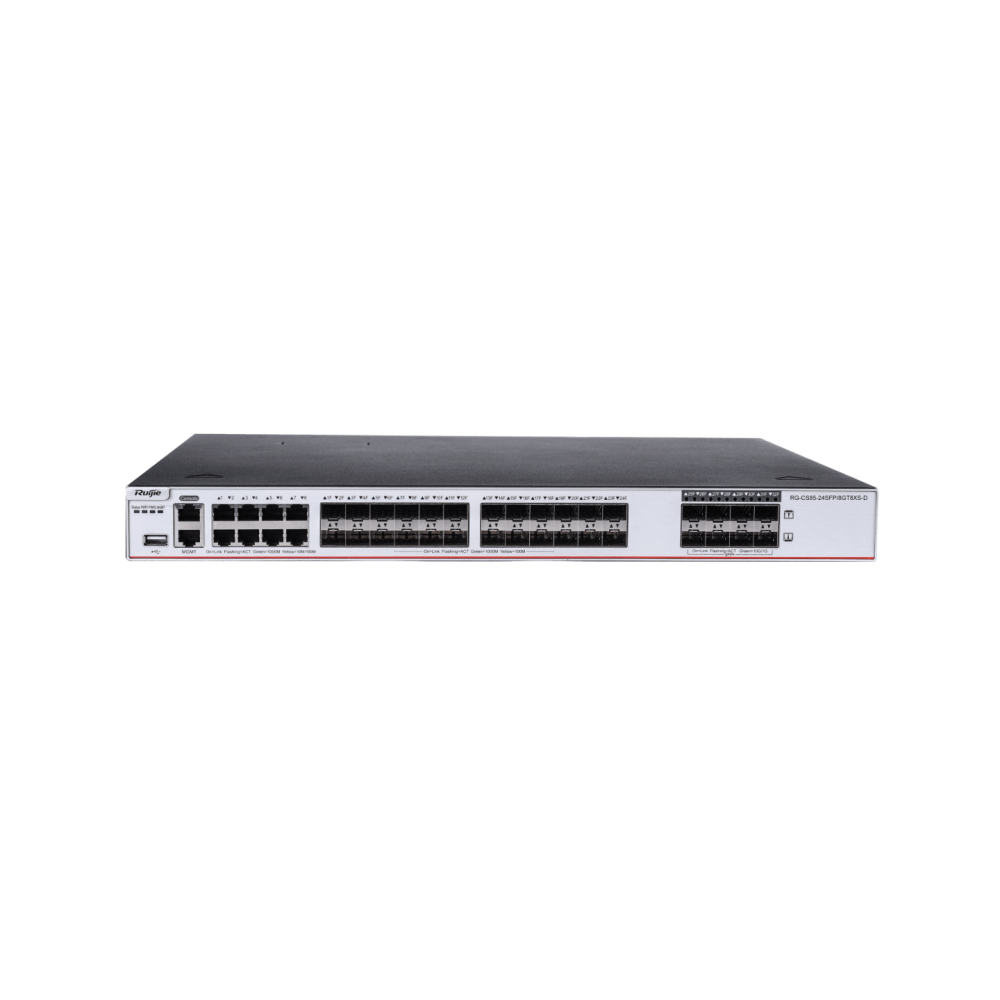

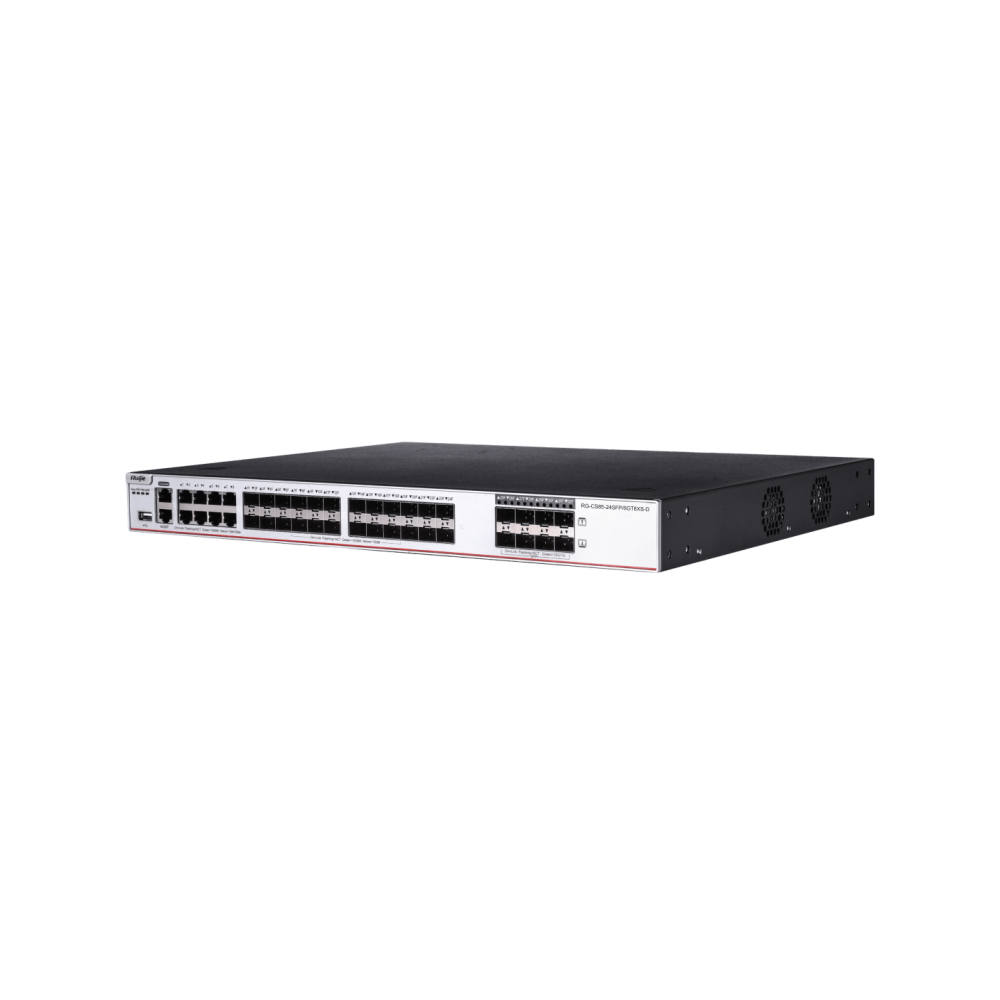

RG-CS85-24SFP/8GT8XS-D
24 x 1GE SFP ports (ports 1 to 16 are 100M/1GE SFP ports, ports 1 to 8 are 1GE SFP/RJ45 combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48GT4XS-D
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48SFP4XS-D
48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48GT4XS-HPD
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.)
CM85-4XS2CQ
Expansion module, 4 x 1GE/10GE SFP+ ports and 2 x 40GE/100GE QSFP28 ports
RG-PA150IB-F
150 W AC power module
RG-PA600I-P-F
600 W AC power module
RG-PA1000I-P-F
1000 W AC power module
Note:
Optical Transceivers and Cables
1GE
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
Model
Description
XG-SFP-SR-MM850
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-AOC1M
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Model
Description
40G-QSFP-SR-MM850
40GBASE-SR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 150 m over OM4 MMF, 100 m over OM3 MMF
40G-QSFP-LSR-MM850
40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF
40G-QSFP-LR4-SM1310
40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF
40G-QSFP-iLR4-SM1310
40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF
40G-QSFP-LX4-SM1310
40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF
40G-AOC-5M
40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
40G-AOC-30M
40GBASE, QSFP+ active optical cable (AOC), 30 m, including one cable and two optical transceivers
100GE
Model
Description
100G-QSFP-SR-MM850
100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF
100G-QSFP-LR4-SM1310
100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF
100G-QSFP-iLR4-SM1310
100GBASE-iLR4, QSFP28 transceiver, 1310 nm, Duplex LC, 2 km over SMF
100G-AOC-5M
100GBASE, QSFP28 active optical cable (AOC), 5 m, including one cable and two optical transceivers
100G-AOC-10M
100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers
Brand: Ruijie
Model Number: RG-CS85-48SFP4XS-D
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/12/2024
Hardware Specifications
Port Specifications | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D | RG-CS85-48GT4XS-HPD |
Fixed service port | 24 x 10/100/1000BASE-T ports 8 x 1GE/10GE SFP+ ports | 24 x 1GE SFP ports ● Ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps ● Ports 1 to 8 are 10/100/1000BASE-T combo ports 8 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports 4 x 1GE/10GE SFP+ ports | 48 x 1GE SFP ports 4 x 1GE/10GE SFP+ ports | 48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports |
Module slot | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots | 1 x expansion module slot 2 x power module slots 3 x fan module slots | 1 x expansion module slot 2 x power module slots 2 x fan module slots |
Expansion module | CM85-4XS2CQ | ||||
Power module | RG-PA150IB-F | RG-PA150IB-F | RG-PA150IB-F | RG-PA150IB-F | RG-PA600I-P-F RG-PA1000I-P-F |
Fan module | / | / | / | M2SFAN I-F (pre-installed 3) | M2SFAN I-F (pre-installed 2) |
Module service port | CM85-4XS2CQ: ● 4 x 1GE/10GE SFP+ ports ● 2 x 40GE/100GE QSFP28 ports | ||||
Fixed management port | 1 x RJ45 console port 1 x RJ45 MGMT port | ||||
USB | 1 x USB 3.0 port | ||||
System Specifications | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D | RG-CS85-48GT4XS-HPD |
Packet forwarding rate | 512 Mpps | 512 Mpps | 488 Mpps | 488 Mpps | 488 Mpps |
Switching capacity | 688 Gbps | 688 Gbps | 656 Gbps | 656 Gbps | 656 Gbps |
CPU | Dual-core CPU, each core with the clock speed of 1.2 GHz | ||||
Real-time clock (RTC) | Supported | Supported | Supported | Supported | Supported |
BootROM | 16 MB (2 flash chips for 1+1 boot redundancy) | ||||
Flash Memory | 4 GB | ||||
Memory | 1 GB | 1 GB | 1 GB | 2 GB | 2 GB |
Switch buffer | 4 MB | ||||
MAC address table size | 64,000 | ||||
ARP table size | 24,000 | ||||
Number of IPv4 unicast routes | 24,000 | ||||
Number of IPv4 multicast routes | 4,000 | ||||
Number of IPv6 unicast routes | 14,000 | ||||
Number of IPv6 multicast routes | 2,000 | ||||
Number of ACEs | Ingress: 7,000 Egress:1,500 | ||||
Number of VSU members | 4 | ||||
Dimensions and Weight | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D | RG-CS85-48GT4XS-HPD | ||
Unit dimensions (W x D x H) | 440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) | |||||
Shipping dimensions (W x D x H) | 593 mm x 497 mm x 192 mm (23.35 in. x 14.57 in. x 7.56 in.) | 563 mm x 563 x mm 210 mm (22.17 in. x 22.17 in. x 8.27 in.) | |||||
Rack height | 1 RU | ||||||
Unit weight | 4.4 kg (9.70 lbs) | 4.3 kg (9.48 lbs) | 4.5 kg (9.92 lbs) | 5.3 kg (11.68 lbs) | 5.7 kg (12.57 lbs) | ||
Shipping weight | 6.20 kg (13.67 lbs) | 6.62 kg (14.59 lbs) | 6.30 kg (13.89 lbs) | 7.70 kg (16.98 lbs) | 7.80 kg (17.20 lbs) | ||
Power Supply and Consumption | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D |
Power supply | 2 x pluggable power modules | |||
Power module redundancy | 1+1 power redundancy | |||
Power module hot swapping | Supported | |||
Power input | RG-PA150IB-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 3 A | |||
Maximum output power | RG-PA150IB-F: 150 W | |||
Maximum power consumption | 60 W (excluding expansion modules) 85 W (including expansion modules) | 77 W (excluding expansion modules) 102 W (including expansion modules) | 70 W (excluding expansion modules) 95 W (including expansion modules) | 105W (excluding expansion modules) 125W (including expansion modules) |
Power Supply and Consumption | RG-CS85-48GT4XS-HPD |
Power supply | 2 x pluggable power modules |
Power module redundancy | 1+1 power redundancy |
Power input | RG-PA600I-P-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 10 A RG-PA1000I-P-F (AC input 1): ● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz ● Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): ● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 8 A |
Maximum output power | RG-PA600I-P-F: 600 W RG-PA1000I-P-F: ● 100 V AC to 130 V AC: 930 W ● 200 V AC to 240 V AC: 1000 W |
Maximum power consumption | 120 W (without PoE) 1,600 W (full PoE load) |
PoE port | All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply |
PoE power cable pairs | Mode A (1-2, 3-6 pairs) |
PoE output power | Each PoE port provides up to 30 W of power, with a maximum power of 1440 W over 48 ports (30 W x 48). The maximum power depends on the configured power supply ● 1 x RG-PA600I-P-F: 370 W ● 2 x RG-PA600I-P-F: 740 W ● 1 x RG-PA1000I-P-F: 740 W ● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48) Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device. |
Energy saving | Supported |
Environment and Reliability | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D | RG-CS85-48GT4XS-HPD |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) | ||||
Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) | ||||
Altitude | Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.) | ||||
Mean time between failure (MTBF) | 1,051,000 hours (about 120 years) | 823,000 hours (about 94 years) | 963,000 hours (about 110 years) | 788,000 hours (about 90 years) | 832,000 hours (about 95 years) |
Fan | 3 x fixed fan modules | 3 x fixed fan modules | 3 x fixed fan modules | 3 x pluggable fan modules (pre-installed) | 2 x pluggable fan modules (pre-installed) |
Heat dissipation | Fan cooling, left-to-right airflow | Fan cooling, left-to-right airflow | Fan cooling, left-to-right airflow | Fan cooling, front-to-rear airflow | Fan cooling, front-to-rear airflow |
Acoustic noise | 45°C (113°F): 56.2 dB | 45°C (113°F): 56.2 dB | 45°C (113°F): 57.9 dB | 45°C (113°F): 56.2 dB | 45°C (113°F): 57.9 dB |
Power module hot swapping | Supported | ||||
USB hot swapping | Supported | ||||
Cable hot swapping | Supported | ||||
Power supply monitoring | Monitoring of power supply model and status Power supply failure alarming | ||||
Fan monitoring | Fan speed adjustment: 3 levels Fan failure alarming | ||||
Temperature monitoring | Temperature monitoring, over-temperature alarming | ||||
ESD | ESD Contact/Air Discharge: 6kV/8kV ESD Susceptibility Contact/Air Discharge: 8 kV/15kV | ||||
Surge protection | MGMT port: 4 kV Service port: 10 kV Power port: common mode 6 kV, differential mode 6 kV | ||||
Conformal coating | Protects circuits against moisture, salt spray, mold, electrical shock and leakage, and so on | ||||
Certifications and Regulatory Compliance | RG-CS85-24GT8XS-D | RG-CS85-24SFP/8GT8XS-D | RG-CS85-48GT4XS-D | RG-CS85-48SFP4XS-D | RG-CS85-48GT4XS-HPD |
Safety regulation | IEC 62368-1 | ||||
EMC regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | ||||
