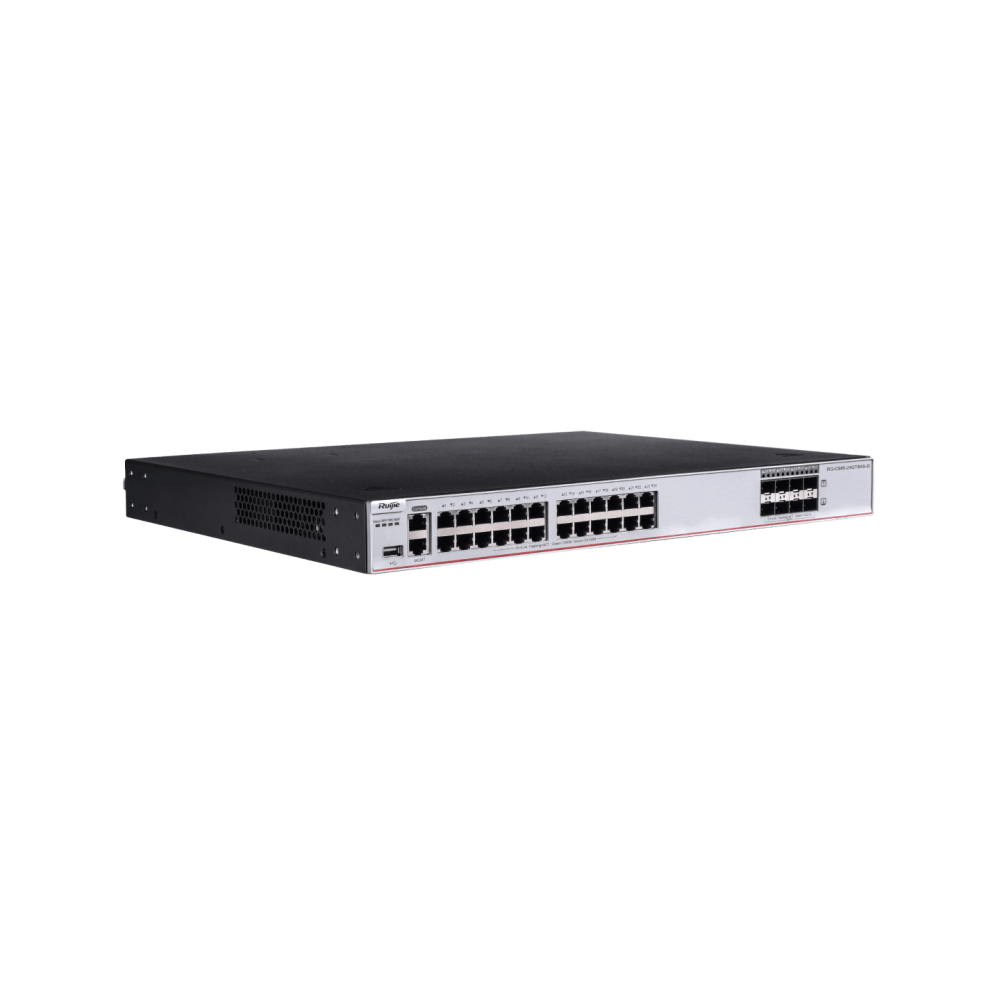

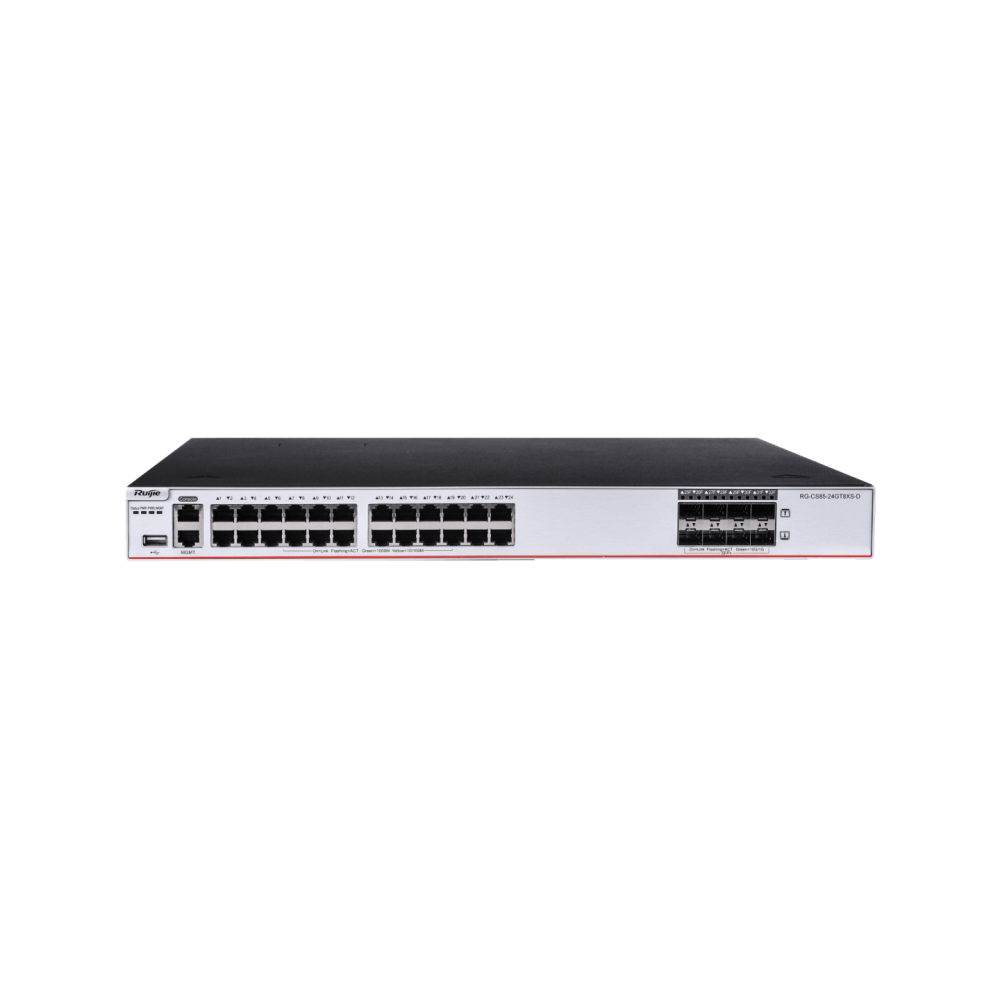

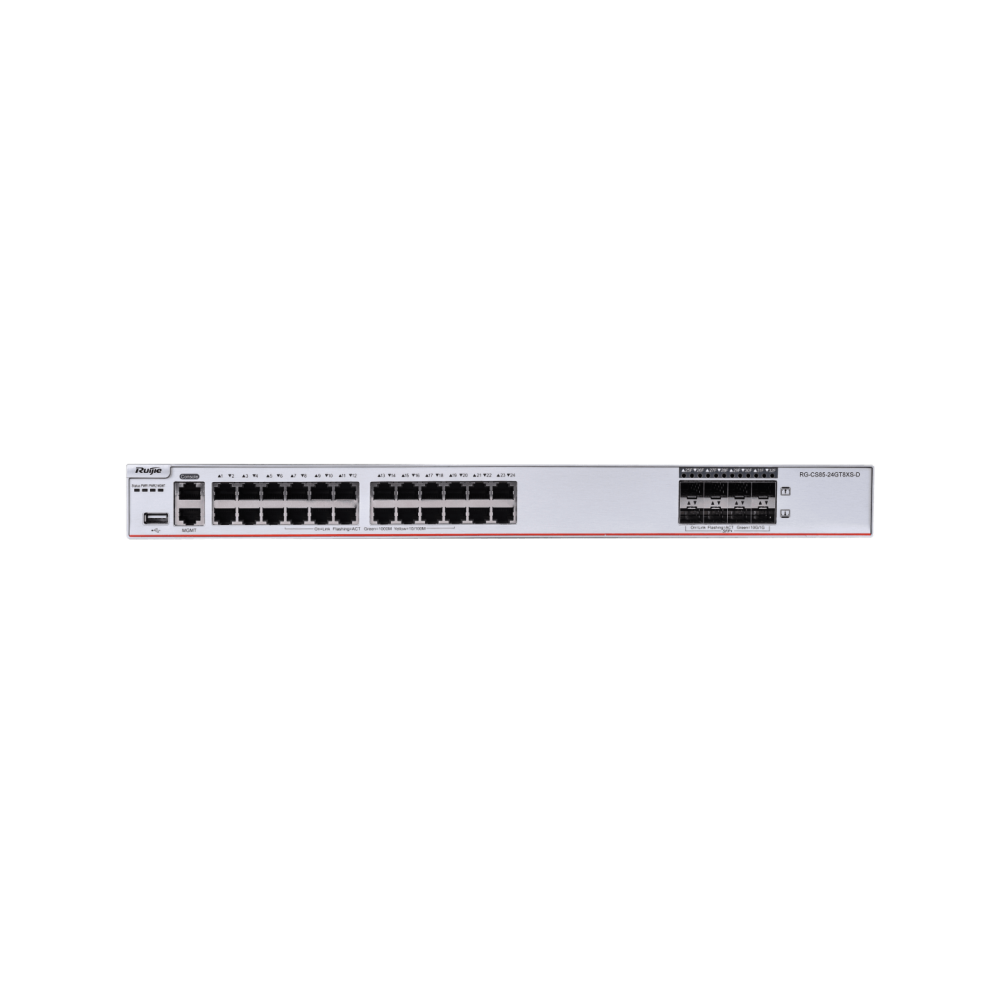

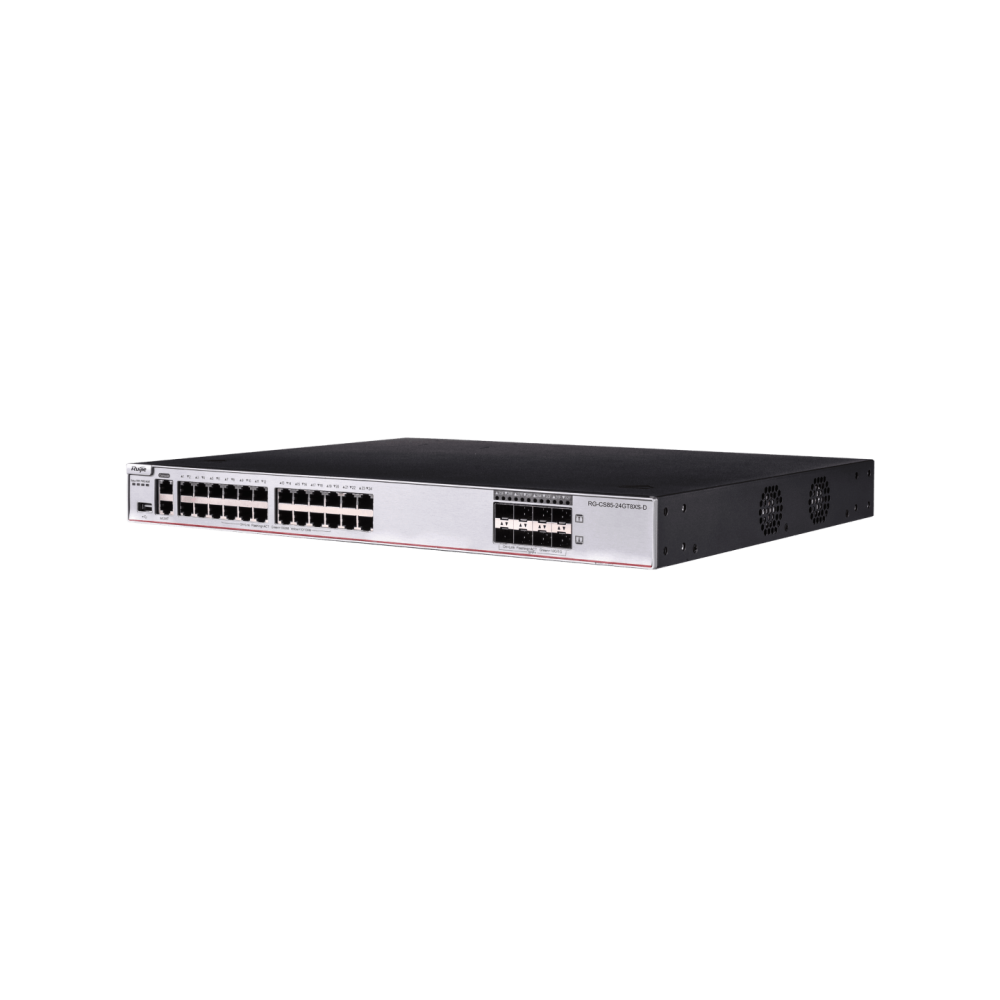

SKU: RG-CS85-24GT8XS-D
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-CS85-24GT8XS-D
24 x 10/100/1000BASE-T ports, 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-24SFP/8GT8XS-D
24 x 1GE SFP ports (ports 1 to 16 are 100M/1GE SFP ports, ports 1 to 8 are 1GE SFP/RJ45 combo ports), 8 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48GT4XS-D
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x built-in fixed fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48SFP4XS-D
48 x 1GE SFP ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 3 x modular fans, 2 x power module slots (Purchase at least one RG-PA150IB-F module.)
RG-CS85-48GT4XS-HPD
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, 1 x expansion slot, 2 x modular fans, 2 x power module slots (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.)
CM85-4XS2CQ
Expansion module, 4 x 1GE/10GE SFP+ ports and 2 x 40GE/100GE QSFP28 ports
RG-PA150IB-F
150 W AC power module
RG-PA600I-P-F
600 W AC power module
RG-PA1000I-P-F
1000 W AC power module
Note:
Optical Transceivers and Cables
1GE
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
Model
Description
XG-SFP-SR-MM850
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-AOC1M
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Model
Description
40G-QSFP-SR-MM850
40GBASE-SR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 150 m over OM4 MMF, 100 m over OM3 MMF
40G-QSFP-LSR-MM850
40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF
40G-QSFP-LR4-SM1310
40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF
40G-QSFP-iLR4-SM1310
40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF
40G-QSFP-LX4-SM1310
40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF
40G-AOC-5M
40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
40G-AOC-30M
40GBASE, QSFP+ active optical cable (AOC), 30 m, including one cable and two optical transceivers
100GE
Model
Description
100G-QSFP-SR-MM850
100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF
100G-QSFP-LR4-SM1310
100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF
100G-QSFP-iLR4-SM1310
100GBASE-iLR4, QSFP28 transceiver, 1310 nm, Duplex LC, 2 km over SMF
100G-AOC-5M
100GBASE, QSFP28 active optical cable (AOC), 5 m, including one cable and two optical transceivers
100G-AOC-10M
100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers
Brand: Ruijie
Model Number: RG-CS85-24GT8XS-D
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/12/2024
Hardware Specifications
Port Specifications
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
RG-CS85-48GT4XS-HPD
Fixed service port
24 x 10/100/1000BASE-T ports
8 x 1GE/10GE SFP+ ports
24 x 1GE SFP ports
● Ports 1 to 16 support the rate of 100Mbps, ports 17 to 24 do not support the rate of 100Mbps
● Ports 1 to 8 are 10/100/1000BASE-T combo ports
8 x 1GE/10GE SFP+ ports
48 x 10/100/1000BASE-T ports
4 x 1GE/10GE SFP+ ports
48 x 1GE SFP ports
4 x 1GE/10GE SFP+ ports
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports

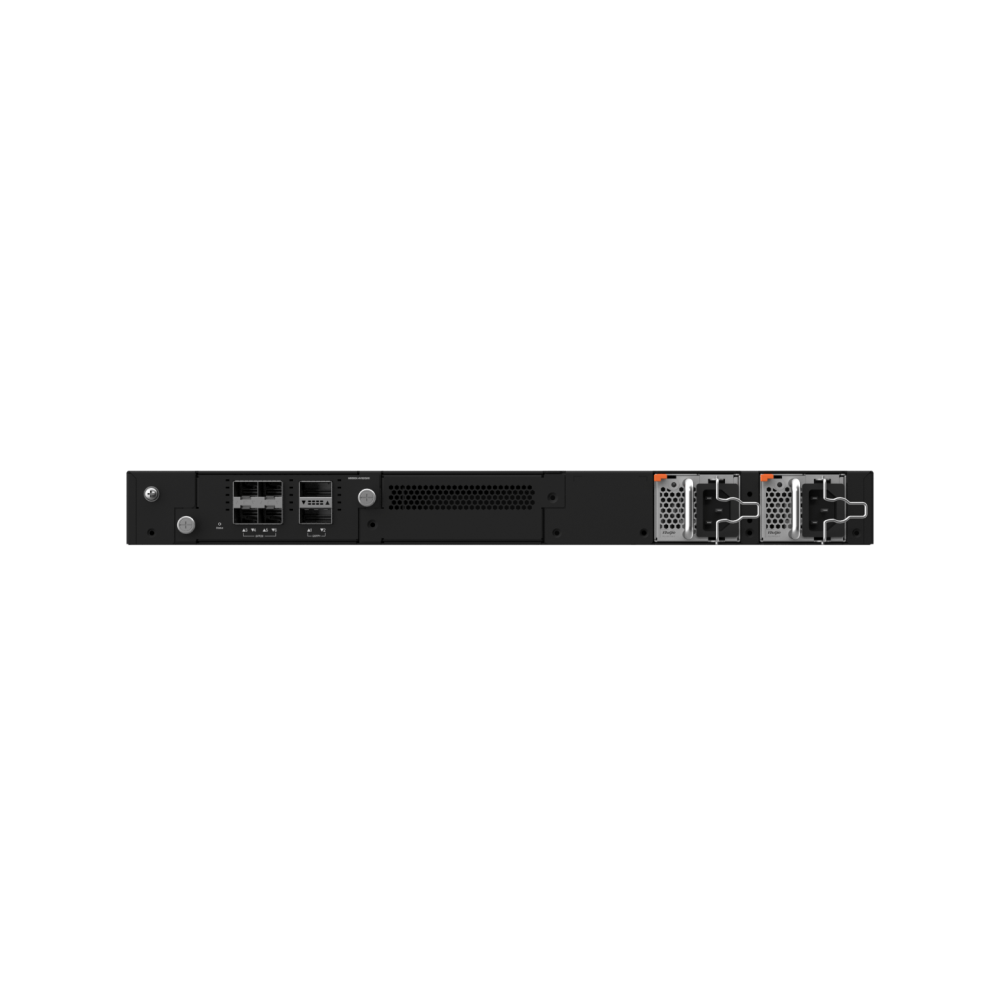

Module slot
1 x expansion module slot
2 x power module slots
1 x expansion module slot
2 x power module slots
1 x expansion module slot
2 x power module slots
1 x expansion module slot
2 x power module slots
3 x fan module slots
1 x expansion module slot
2 x power module slots
2 x fan module slots
Expansion module
CM85-4XS2CQ
Power module
RG-PA150IB-F
RG-PA150IB-F
RG-PA150IB-F
RG-PA150IB-F
RG-PA600I-P-F
RG-PA1000I-P-F
Fan module
/
/
/
M2SFAN I-F (pre-installed 3)
M2SFAN I-F (pre-installed 2)
Module service port
CM85-4XS2CQ:
● 4 x 1GE/10GE SFP+ ports
● 2 x 40GE/100GE QSFP28 ports
Fixed management port
1 x RJ45 console port
1 x RJ45 MGMT port
USB
1 x USB 3.0 port
System Specifications
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
RG-CS85-48GT4XS-HPD
Packet forwarding rate
512 Mpps
512 Mpps
488 Mpps
488 Mpps
488 Mpps
Switching capacity
688 Gbps
688 Gbps
656 Gbps
656 Gbps
656 Gbps
CPU
Dual-core CPU, each core with the clock speed of 1.2 GHz
Real-time clock (RTC)
Supported
Supported
Supported
Supported
Supported
BootROM
16 MB (2 flash chips for 1+1 boot redundancy)
Flash Memory
4 GB
Memory
1 GB
1 GB
1 GB
2 GB
2 GB
Switch buffer
4 MB
MAC address table size
64,000
ARP table size
24,000
Number of IPv4 unicast routes
24,000
Number of IPv4 multicast routes
4,000
Number of IPv6 unicast routes
14,000
Number of IPv6 multicast routes
2,000
Number of ACEs
Ingress: 7,000
Egress:1,500
Number of VSU members
4
Dimensions and Weight
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
RG-CS85-48GT4XS-HPD
Unit dimensions
(W x D x H)
440 mm x 340 mm x 44 mm
(17.32 in. x 13.39 in. x 1.73 in.)
442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Shipping dimensions
(W x D x H)
593 mm x 497 mm x 192 mm
(23.35 in. x 14.57 in. x 7.56 in.)
563 mm x 563 x mm 210 mm
(22.17 in. x 22.17 in. x 8.27 in.)
Rack height
1 RU
Unit weight
4.4 kg
(9.70 lbs)
4.3 kg
(9.48 lbs)
4.5 kg
(9.92 lbs)
5.3 kg
(11.68 lbs)
5.7 kg
(12.57 lbs)
Shipping weight
6.20 kg
(13.67 lbs)
6.62 kg
(14.59 lbs)
6.30 kg
(13.89 lbs)
7.70 kg
(16.98 lbs)
7.80 kg
(17.20 lbs)
Power Supply and Consumption
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
Power supply
2 x pluggable power modules
Power module redundancy
1+1 power redundancy
Power module hot swapping
Supported
Power input
RG-PA150IB-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 3 A
Maximum output power
RG-PA150IB-F: 150 W
Maximum power consumption
60 W (excluding expansion modules)
85 W (including expansion modules)
77 W (excluding expansion modules)
102 W (including expansion modules)
70 W (excluding expansion modules)
95 W (including expansion modules)
105W (excluding expansion modules)
125W (including expansion modules)
Power Supply and Consumption
RG-CS85-48GT4XS-HPD
Power supply
2 x pluggable power modules
Power module redundancy
1+1 power redundancy
Power input
RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 10 A
RG-PA1000I-P-F (AC input 1):
● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz
● Maximum input current: 12 A
RG-PA1000I-P-F (AC input 2):
● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 8 A
Maximum output power
RG-PA600I-P-F: 600 W
RG-PA1000I-P-F:
● 100 V AC to 130 V AC: 930 W
● 200 V AC to 240 V AC: 1000 W
Maximum power consumption
120 W (without PoE)
1,600 W (full PoE load)
PoE port
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs
Mode A (1-2, 3-6 pairs)
PoE output power
Each PoE port provides up to 30 W of power, with a maximum power of 1440 W over 48 ports (30 W x 48).
The maximum power depends on the configured power supply
● 1 x RG-PA600I-P-F: 370 W
● 2 x RG-PA600I-P-F: 740 W
● 1 x RG-PA1000I-P-F: 740 W
● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48)
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
Energy saving
Supported
Environment and Reliability
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
RG-CS85-48GT4XS-HPD
Temperature
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)
Altitude
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)
1,051,000 hours (about 120 years)
823,000 hours (about 94 years)
963,000 hours (about 110 years)
788,000 hours (about 90 years)
832,000 hours (about 95 years)
Fan
3 x fixed fan modules
3 x fixed fan modules
3 x fixed fan modules
3 x pluggable fan modules (pre-installed)
2 x pluggable fan modules (pre-installed)
Heat dissipation
Fan cooling, left-to-right airflow
Fan cooling, left-to-right airflow
Fan cooling, left-to-right airflow
Fan cooling, front-to-rear airflow
Fan cooling, front-to-rear airflow
Acoustic noise
45°C (113°F): 56.2 dB
45°C (113°F): 56.2 dB
45°C (113°F): 57.9 dB
45°C (113°F): 56.2 dB
45°C (113°F): 57.9 dB
Power module hot swapping
Supported
USB hot swapping
Supported
Cable hot swapping
Supported
Power supply monitoring
Monitoring of power supply model and status
Power supply failure alarming
Fan monitoring
Fan speed adjustment: 3 levels
Fan failure alarming
Temperature monitoring
Temperature monitoring, over-temperature alarming
ESD
ESD Contact/Air Discharge: 6kV/8kV
ESD Susceptibility Contact/Air Discharge: 8 kV/15kV
Surge protection
MGMT port: 4 kV
Service port: 10 kV
Power port: common mode 6 kV, differential mode 6 kV
Conformal coating
Protects circuits against moisture, salt spray, mold, electrical shock and leakage, and so on
Certifications and Regulatory Compliance
RG-CS85-24GT8XS-D
RG-CS85-24SFP/8GT8XS-D
RG-CS85-48GT4XS-D
RG-CS85-48SFP4XS-D
RG-CS85-48GT4XS-HPD
Safety regulation
IEC 62368-1
EMC regulation
EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Software Specifications
RG-CS85 Series
Feature
Description
Ethernet switching
Jumbo frame (maximum length: 9,216 bytes)
IEEE 802.1Q (supporting 4K VLANs)
Voice VLAN
Super VLAN, Private VLAN
MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN
GVRP
Basic QinQ
Flexible QinQ
STP, RSTP, and MSTP
ERPS (G.8032)
LLDP/LLDP-MED
LACP (IEEE 802.3ad)
IP service
ARP
DHCP client, DHCP relay, and DHCP server
DHCP snooping
DNS
DHCPv6 client and DHCPv6 relay
DHCPv6 snooping
Neighbor Discovery (ND) and ND snooping
IP routing
Static routing
RIP and RIPng
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
BGP4 and BGP4+
IPv4 and IPv6 VRF
IPv4 and IPv6 PBR
Multicast
IGMP v1/v2/v3, and IGMP proxy
IGMP v1/v2/v3 snooping
PIM-DM, PIM-SM, and PIM-SSM
MSDP
MLD v1/v2
MLD snooping v1/v2
PIM-SMv6 and PIM-SSM v6
MPLS
MPLS L3VPN
ACL and QoS
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL
ACL redirection
Port traffic rate limiting
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
Congestion avoidance: tail drop, RED, and WRED
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
Security
Multiple AAA modes
RADIUS and TACAS+
Port-based and MAC-based 802.1x authentication
Web authentication
HTTPS
SSHv1, SSHv2
Global IP-MAC binding
Port isolation and port security
IP source guard
SAVI
CPP and NFPP
Strict and loose RPF
uRPF ignoring default routes
Reliability
REUP, RLDP, DLDP
IPv4 VRRP v2/v3 and IPv6 VRRP
BFD
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
Hot swapping of power modules and cables
3-level fan speed adjustment
Fan fault alarm
Device virtualization
Virtual Switching Unit (VSU)
NMS and maintenance
SPAN, RSPAN, and ERSPAN
sFLOW
NTP and SNTP
FTP and TFTP
SNMP v1/v2/v3
RMON (1, 2, 3, 9)
NETCONF
CWMP (TR-069) standard protocol
gRPC
Cloud and SON
PoE
IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start
Port priority
No review found.
Free Shipping on Flat Rate starts from order amount KD 0.000
Easy Return, Quick Refund. See more.
