SKU: RG-CS83-48GT4XS-PD
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Switches and Power Modules
Model
Description
RG-CS83-24GT4XS-PD
24 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, supporting PoE remote power supply and the maximum PoE output power of 740 W. (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.)
RG-CS83-48GT4XS-PD
48 x 10/100/1000BASE-T ports, 4 x 1GE/10GE SFP+ ports, supporting PoE remote power supply and the maximum PoE output power of 1480 W. (Purchase at least one RG-PA600I-P-F/RG-PA1000I-P-F module.)
RG-PA600I-P-F
600 W AC power module, PoE power module
RG-PA1000I-P-F
1000 W AC power module, PoE power module
Note: 4 x 1GE/10GE SFP+ ports support 1GE SFP transceivers and 10GE SFP+ transceivers.
Optical Transceivers and Cables
1GE
Model
Description
Mini-GBIC-GT
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a
The port needs to be configured with auto-negotiation
Mini-GBIC-SX-MM850
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
Mini-GBIC-LX-SM1310
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
Mini-GBIC-LH40-SM1310
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI
1000BASE-LX, SFP transceiver, Tx1310/Rx1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI
1000BASE-LX, SFP transceiver, Tx1550/Rx1310, BiDi LC, 20 km over SMF
GE-SFP-LH40-SM1310-BIDI
1000BASE-LH, SFP transceiver, Tx1310/Rx1550, BiDi LC, 40 km over SMF
GE-SFP-LH40-SM1550-BIDI
1000BASE-LH, SFP transceiver, Tx1550/Rx1310, BiDi LC, 40 km over SMF
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE
Model
Description
XG-SFP-SR-MM850
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-AOC1M
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M
10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
Brand: Ruijie
Model Number: RG-CS83-48GT4XS-PD
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/12/2024
Hardware Specifications
Port Specifications
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD

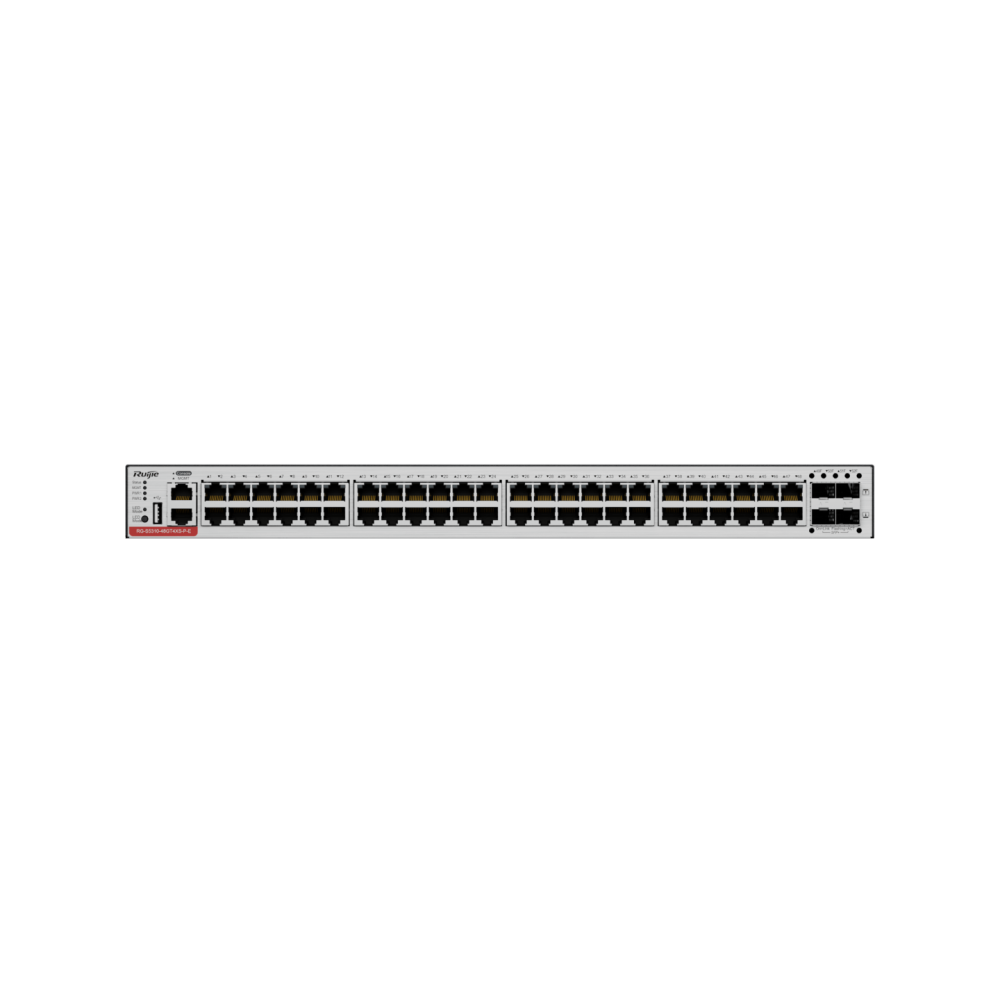

Fixed service port
24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports
Module slot

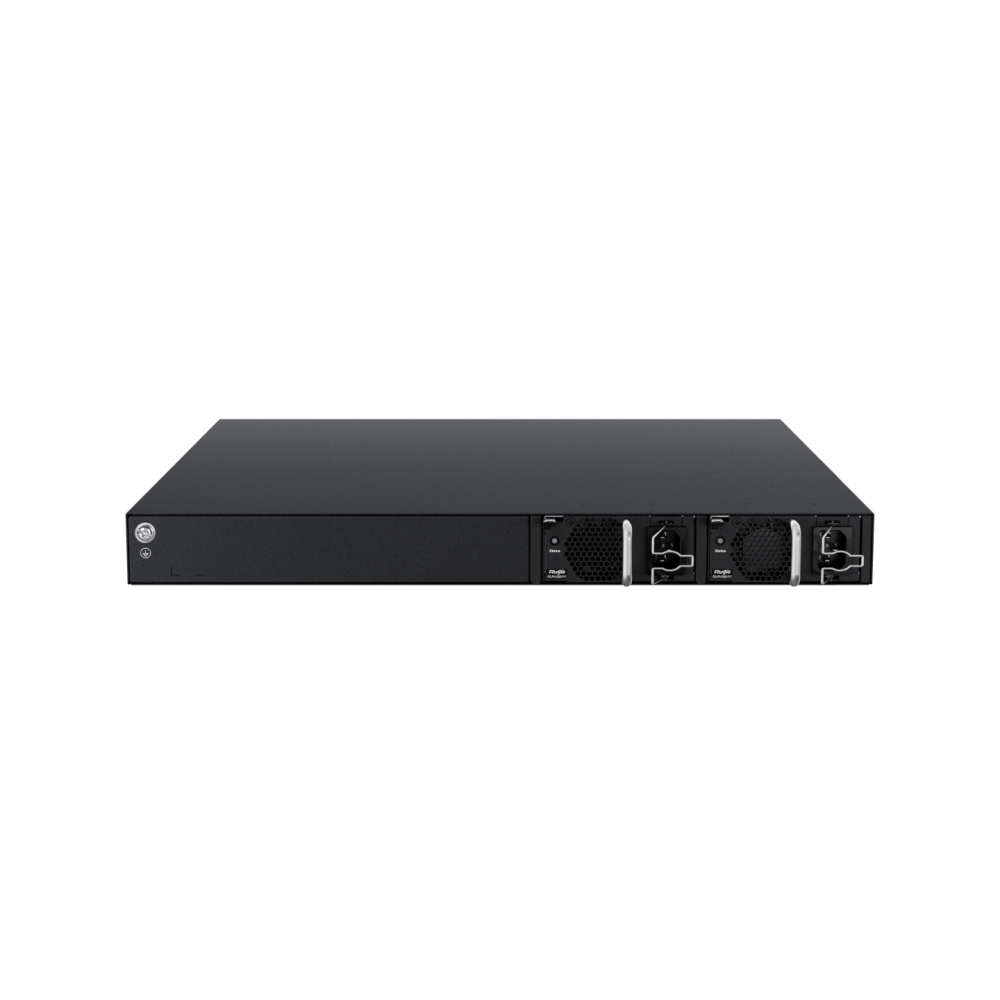

2 x power module slots
Power module
RG-PA600I-P-F
RG-PA1000I-P-F
Fixed management ports
1 x RJ45 console port
1 x RJ45 MGMT port
USB
1 x USB port
System Specifications
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD
Packet forwarding rate
96 Mpps
132 Mpps
Switching capacity
128 Gbps
176 Gbps
CPU
Dual-core CPU, each core with the clock speed of 1.2 GHz
BootROM
16 MB
Flash memory
2 GB
Memory
1 GB
Switch buffer
3 MB
MAC address table size
32,000
ARP table size
4,000
Number of IPv4 unicast routes
8,000
Number of IPv4 multicast routes
2,500
Number of IPv6 unicast routes
4,000
Number of IPv6 multicast routes
1,200
Number of ACEs
Ingress: 3,500
Egress:1,500
Number of VSU members
4
VLAN translation
4,094
Dimensions and Weight
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD
Unit dimensions (W x D x H)
442 mm x 420 mm x 43.6 mm (17.40 in.x 16.54 in.x 1.72 in.)
Shipping dimensions (W x D x H)
570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.)
Rack height
1 RU
Unit weight
4.3 kg (9.48 lbs)
4.6 kg (10.14 lbs)
Shipping weight
6.78 kg (14.95 lbs)
6.98 kg (15.39 lbs)
Power Supply and Consumption
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD
Power supply
2 x pluggable power modules
Power module redundancy
For dual power supplies, 1+1 power redundancy is supported only when the total PoE load of the device is less than the PoE output power of a single power supply
Power input
RG-PA600I-P-F (AC input):
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 8 A
RG-PA1000I-P-F (AC input 1):
● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz
● Maximum input current: 12 A
RG-PA1000I-P-F (AC input 2):
● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 8 A
Maximum output power
RG-PA600I-P-F: 600 W
RG-PA1000I-P-F:
● 100 V AC to 130 V AC: 930 W
● 200 V AC to 240 V AC: 1000 W
Maximum power consumption
65 W (non-PoE)
810 W (full PoE load)
75 W (non-PoE)
1570 W (full PoE load)
PoE port
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs
Mode A (1-2, 3-6 pairs)
PoE output power
Each PoE port provides up to 30 W of power
The maximum power depends on the configured power supply.
● 1 x RG-PA600I-P-F: 370 W
● 2 x RG-PA600I-P-F: 740 W; 1 x RG-PA1000I-P-F: 740 W; 2 x RG-PA1000I-P-F: 1480 W; a maximum output of 720 W over 24 ports (30 W x 24)
Each PoE port provides up to 30 W of power
The maximum power depends on the configured power supply.
● 1 x RG-PA600I-P-F: 370 W
● 2 x RG-PA600I-P-F: 740 W
● 1 x RG-PA1000I-P-F: 740 W
● 2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48)
Energy saving
Supported
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
Environment and Reliability
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD
Temperature
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)
Altitude
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)
356,000 hours (about 41 years, dual power modules)
208,000 hours (about 24 years, single power module)
315,000 hours (about 36 years, dual power modules)
193,000 hours (about 22 years, single power module)
Fan
1 x fixed fan module
Heat dissipation
Left-to-right and front-to-right airflow
Acoustic noise
27°C (80.6°F): 51.6 dB
45°C (113°F): 57.4 dB
27°C (80.6°F): 51.6 dB
45°C (113°F): 58.3 dB
Power module hot swapping
Supported
USB hot swapping
Supported
Cable hot swapping
Supported
Power supply monitoring
Monitoring of power supply model and status
Power supply fault alarming
Fan monitoring
Fan speed adjustment: 3 levels
Automatic speed adjustment
Fan failure alarming
Temperature monitoring
Temperature monitoring, over-temperature alarming
If the ambient temperature exceeds a certain value, the device will perform reset protection
ESD
ESD contact/air discharge: 6 kV/8 kV
ESD susceptibility contact/air discharge: 8 kV/15 kV
Surge protection
MGMT port: 4 kV
Service port: 10 kV
Power port: common mode 6 kV, differential mode 6 kV
Conformal coating
Conformal coating supported (key components only)
Certifications and Regulatory Compliance
RG-CS83-24GT4XS-PD
RG-CS83-48GT4XS-PD
Safety regulation
IEC 62368-1
EMC regulation
EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Communication standard
IEEE 802.3-2005 Ethernet standard
IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication
Software Specifications
RG-CS83-PD Series
Feature
Description
Ethernet switching
Jumbo frame (maximum length: 9216 bytes)
IEEE 802.1Q (4K VLANs)
Voice VLAN
Super VLAN and private VLAN
MAC VLAN, port-based VLAN, protocol-based VLAN, and IP-subnet based VLAN
GVRP
Basic QinQ
Selective QinQ
STP, RSTP, and MSTP
ERPS (G.8032)
LLDP/LLDP-MED
LACP (IEEE 802.3ad)
IP service
ARP
DHCP client, DHCP relay, and DHCP server
DHCP snooping
DNS
DHCPv6 client and DHCPv6 relay
DHCPv6 snooping
Neighbor Discovery (ND) and ND snooping
IP routing
Static routing
RIP, RIPng
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
BGP4 and BGP4+
IPv4 and IPv6 VRF
IPv4 and IPv6 PBR
Multicast
IGMP v1/v2/v3, and IGMP proxy
IGMP v1/v2/v3 snooping
PIM-DM, PIM-SM, and PIM-SSM
MSDP
MLD v1/v2
MLD snooping v1/v2
PIM-SMv6, PIM-SSM v6
ACL and QoS
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
ACL80
IPv6 ACL
ACL redirection
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per interface
Traffic policing: CAR
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
Congestion avoidance: tail drop, RED, and WRED
Rate limiting in each queue
Security
Multiple AAA modes
RADIUS and TACAS+
Port-based and MAC-based 802.1x authentication
Web authentication
Allowlist
HTTPS
SSHv1, SSHv2
Global IP-MAC binding
ICMP
Port isolation and port security
IP Source Guard
SAVI
Gateway ARP anti-spoofing
CPP(CPU Protection Policy)
NFPP( Network Foundation Protection Policy)
Strict and loose RPF
uRPF ignoring default routes
Reliability
REUP, RLDP, DLDP
IPv4 VRRP v2/v3 and IPv6 VRRP
BFD
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
Hot swapping of power modules and cables
3-level fan speed adjustment
Fan fault alarm
Device virtualization
Virtual Switching Unit (VSU)
NMS and maintenance
SPAN, RSPAN, and ERSPAN
sFlow
NTP and SNTP
FTP and TFTP
SNMP v1/v2/v3
RMON (1, 2, 3, 9)
NETCONF
CWMP (TR-069) standard protocol
gRPC
Cloud and SON
PoE
IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start
Port priority
