Hardware Specifications

Port Specifications

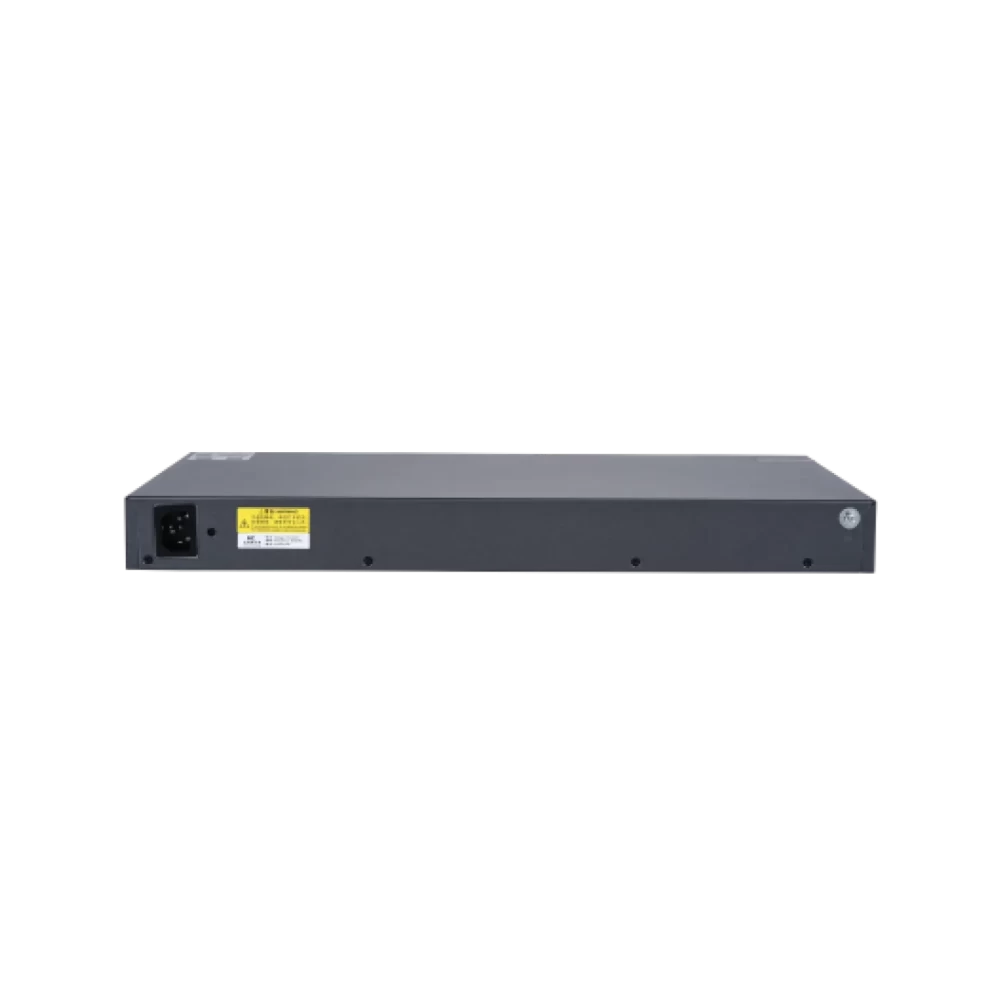

RG-CS83-24GT4XS

RG-CS83-48GT4XS

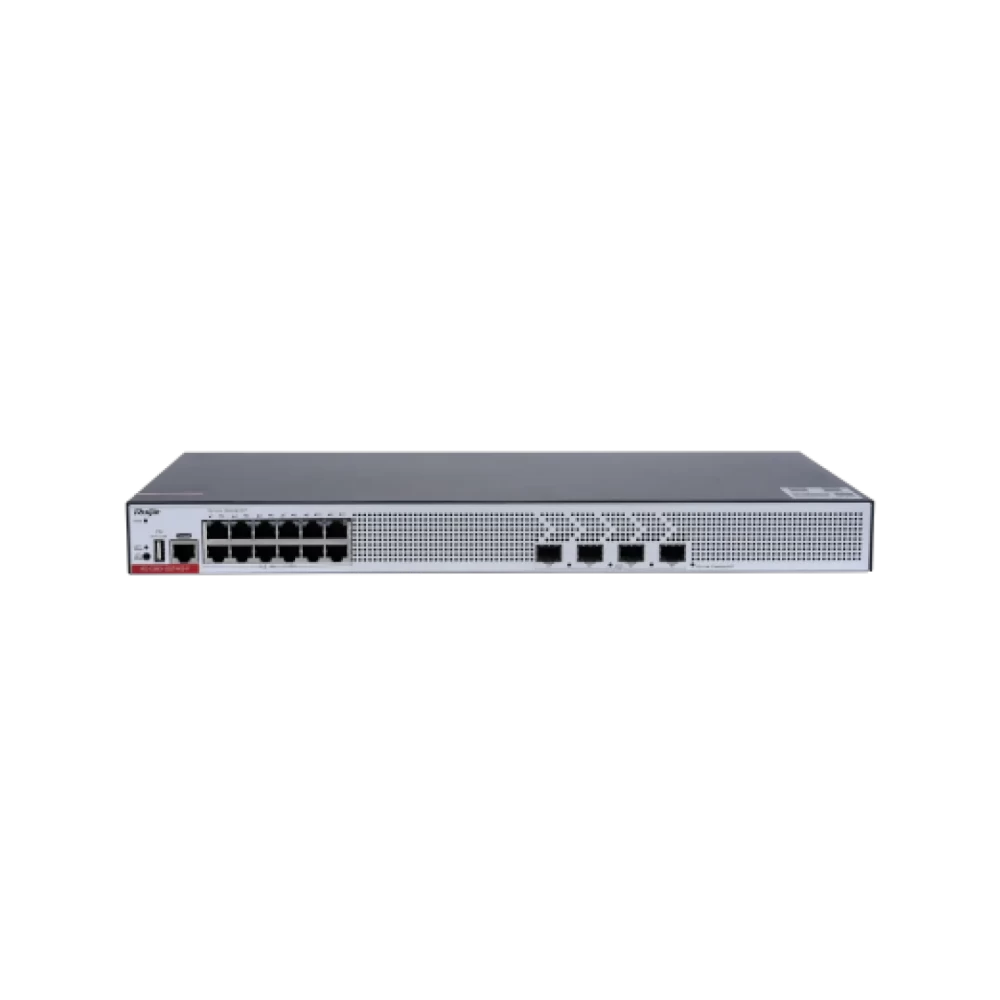

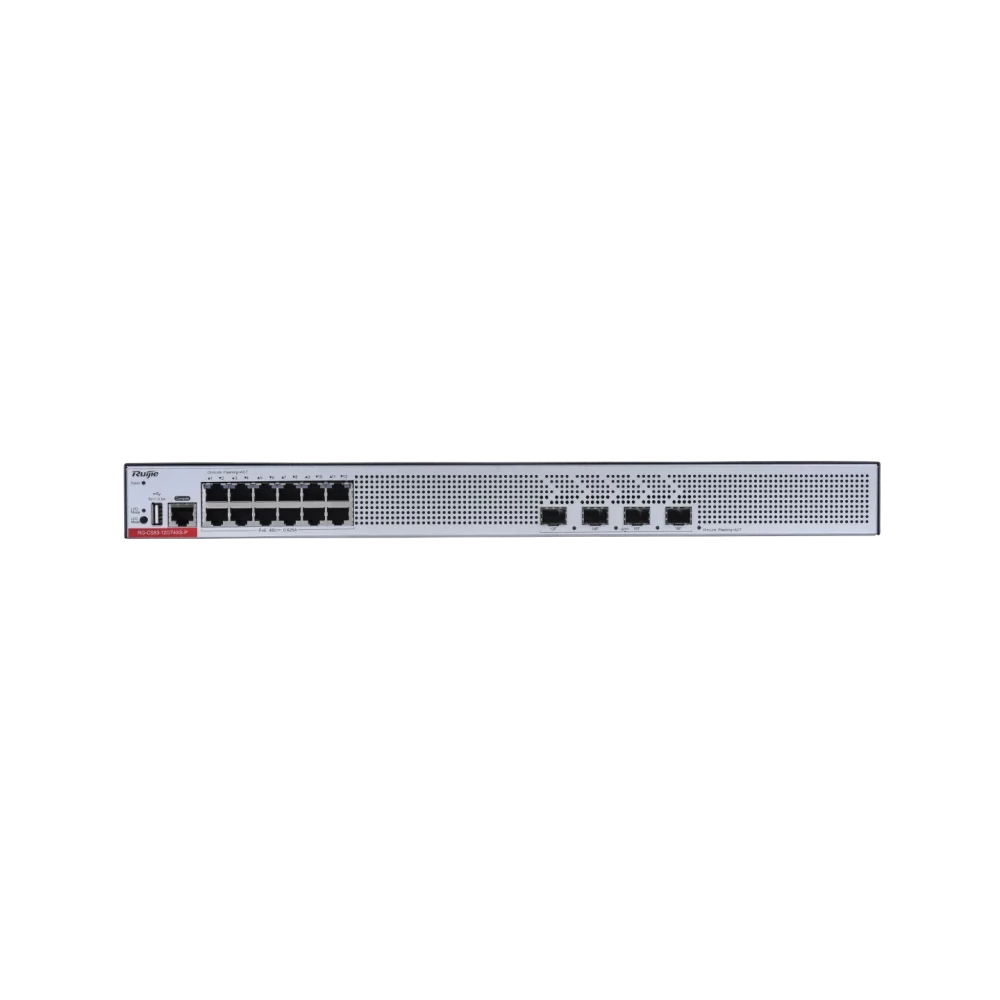

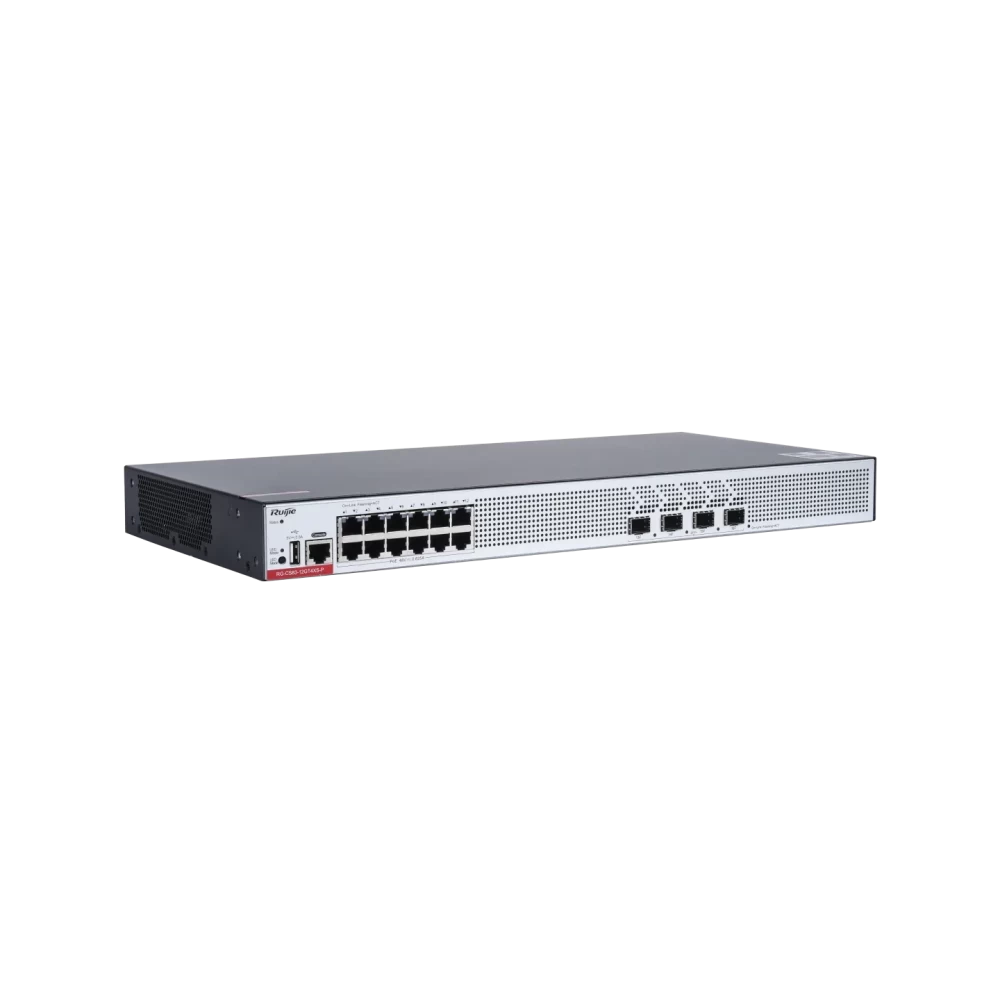

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Fixed service ports

24 x 10/100/1000BASE-T ports

4 x 1GE/10GE SFP+ ports

48 x 10/100/1000BASE-T ports

4 x 1GE/10GE SFP+ ports

12 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

48 x 10/100/1000BASE-T ports, supporting PoE/PoE+

4 x 1GE/10GE SFP+ ports

Fixed management port

1 x RJ45 console port

USB

1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)

System Specifications

RG-CS83-24GT4XS

RG-CS83-48GT4XS

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Packet forwarding rate

96 Mpps

132 Mpps

78 Mpps

96 Mpps

132 Mpps

Switching capacity

128 Gbps

176 Gbps

104 Gbps

128 Gbps

176 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.0 GHz

BootROM

16 MB (storing boot software for 1+1 boot redundancy)

Flash memory

512 MB (storing boot software for 1+1 boot redundancy)

Memory

1 GB

Switch buffer

4 MB

MAC address table size

16,000

ARP table size

4,000

Number of IPv4 unicast routes

6,000

Number of IPv4 multicast routes

1,000

Number of IPv6 unicast routes

2,000

Number of IPv6 multicast routes

750

Number of ACEs

Ingress: 1,750

Egress: 800

Number of VSU members

4

Dimensions and Weight

RG-CS83-24GT4XS

RG-CS83-48GT4XS

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Unit dimensions (W x D x H)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

Shipping dimensions (W x D x H)

540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)

Rack height

1 RU

Unit weight

3.1 kg (6.83 lbs)

3.25 kg (7.17 lbs)

3.3 kg (7.28 lbs)

3.4 kg (7.50 lbs)

4.0 kg (8.82 lbs)

Shipping weight

4.10 kg

(9.04 lbs)

4.10 kg

(9.04 lbs)

4.18 kg

(9.22 lbs)

4.25 kg

(9.37 lbs)

4.90 kg

(10.80 lbs)

Power supply and Consumption

RG-CS83-24GT4XS

RG-CS83-48GT4XS

Power supply

1 x fixed power supply

1 x fixed power supply

Power input

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 0.6 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 1.5 A

Maximum output power

Built-in power supply: 25 W

Built-in power supply: 40 W

Maximum power consumption

25 W

40 W

Energy saving

Supported

Supported

Power supply and Consumption

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Power supply

1 x fixed power supply

1 x fixed power supply

1 x fixed power supply

Power input

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 6 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 6 A

AC input

● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz

● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz

● Maximum input current: 6 A

Maximum output power

Built-in power supply: 409 W

Built-in power supply: 409 W

Built-in power supply: 460 W

Maximum power consumption

35 W (non-PoE)

405 W (PoE full load)

35 W (non-PoE)

405 W (PoE full load)

52 W (non-PoE)

460 W (PoE full load)

PoE port

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply

PoE power cable pairs

Mode A (1-2, 3-6 pairs)

Mode A (1-2, 3-6 pairs)

Mode A (1-2, 3-6 pairs)

PoE output power

Each PoE port provides up to 30 W of power

The maximum power is 370 W

Each PoE port provides up to 30 W of power

The maximum power is 370 W

Each PoE port provides up to 30 W of power

The maximum power is 405 W

Energy saving

Supported

Supported

Supported

Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.

Environment and Reliability

RG-CS83-24GT4XS

RG-CS83-48GT4XS

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)

Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Mean time between failure (MTBF)

207,962 hours (about 23 years)

208,926 hours (about 23 years)

211,466 hours (about 24 years)

209,714 hours (about 23 years)

200,253 hours (about 22 years)

Fan

No fan

1 x fixed fan module

1 x fixed fan module

1 x fixed fan module

1 x fixed fan module

Heat dissipation

Fanless design, natural heat dissipation

Front-to-right and left-to-right airflow

Acoustic noise

Fanless, quiet, < 20 dB

27℃ (80.6°F): 32 dB

27℃ (80.6°F): 35 dB

27℃ (80.6°F): 32 dB

27℃ (80.6°F): 35 dB

Cable hot swapping

Cable hot swapping for all ports

Fan monitoring

Fanless design

PID-based multi-level speed adjustment

Fan speed control (manual configuration not supported)

Fan failure alarming

PID-based multi-level speed adjustment

Fan speed control (manual configuration not supported)

Fan failure alarming

PID-based multi-level speed adjustment

Fan speed control (manual configuration not supported)

Fan failure alarming

PID-based multi-level speed adjustment

Fan speed control (manual configuration not supported)

Fan failure alarming

Temperature monitoring

Supported

Supported

Supported

Supported

Supported

ESD

ESD contact/air discharge: 6 kV/8 kV

ESD susceptibility contact/air discharge: 8 kV/15 kV

Surge protection

Power port: common mode 6 kV, differential mode 6 kV

Communication port: 10 kV

Power port: common mode 6 kV, differential mode 6 kV

Communication port: 10 kV

Power port: common mode 6 kV, differential mode 8 kV

Communication port: 10 kV

Power port: common mode 6 kV, differential mode 8 kV

Communication port: 10 kV

Power port: common mode 6 kV, differential mode 8 kV

Communication port: 10 kV

Conformal coating

Conformal coating supported (key components only)

Certifications and Regulatory Compliance

RG-CS83 Series

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035,

EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,

EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Communication standard

IEEE 802.3-2005 Ethernet standard

IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication

RoHS

Supported

Software Specifications

RG-CS83 Series

Feature

Description

Ethernet switching

Jumbo frame (maximum length: 9,216 bytes)

802.3az EEE

IEEE 802.1Q (4K VLANs)

Voice VLAN

Super-VLAN and private VLAN

MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN

GVRP

Basic QinQ

Selective QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

IP service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client, DHCPv6 relay, and DHCPv6 server

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP routing

Static routing

RIP and RIPng

OSPFv2 and OSPFv3

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

ACL and QoS

Standard IP ACLs

Extended IP ACLs

Extended MAC ACLs

Time-based ACLs

Expert-level ACLs

ACL80

IPv6 ACL

ACL redirection

Traffic rate limiting on an interface

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop

802.1p/DSCP/ToS traffic classification

Eight priority queues per interface

Security

Multiple AAA modes

RADIUS and TACAS+

Interface-based and MAC address-based 802.1x authentication

Web authentication

HTTPS

SSHv1 and SSHv2

Global IP-MAC binding

Port isolation and port security

IP source guard

SAVI

CPP and NFPP

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)

Dual-Boot Redundancy

Fan speed adjustment

Fan fault alarm

Device virtualization

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN

sFlow

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

CWMP (TR-069)

gRPC

Cloud and SON

PoE

RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P:

IEEE 802.3af and 802.3at

Warm start

Interface priority
