SKU: RG-AP820-L
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-AP820-L(V2)

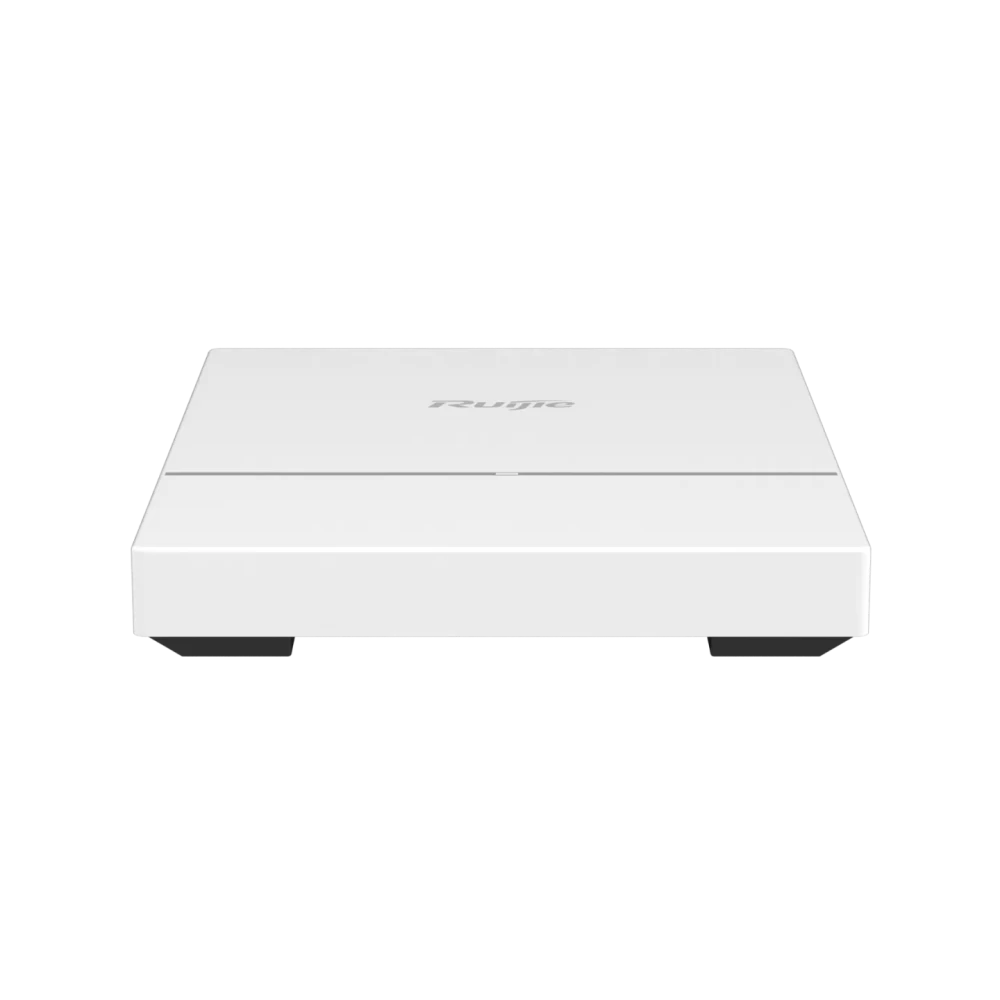

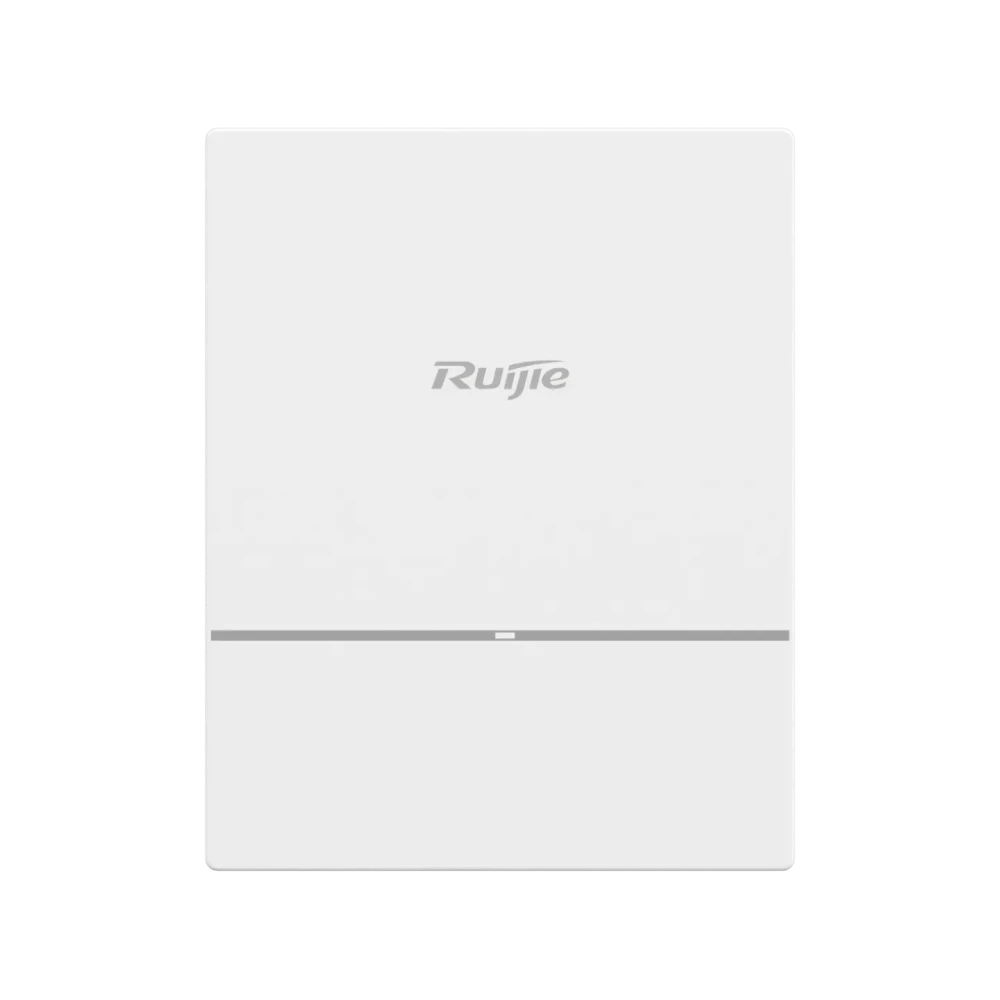

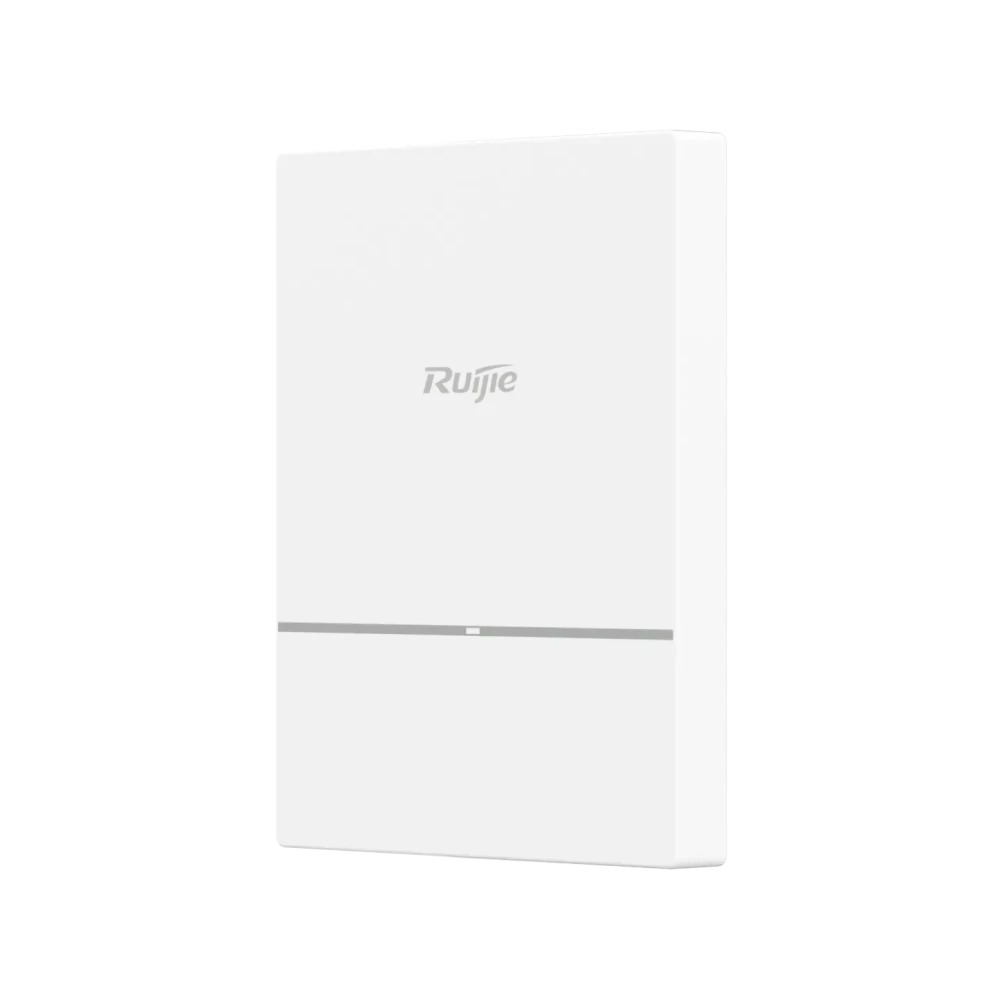

Wi-Fi 6 dual-radio indoor wireless access point
In compliance with IEEE 802.11a/b/g/n/ac and IEEE 802.11ax standards
Built-in omnidirectional antennas
Up to four spatial streams
Combined peak data rate of 2.402 Gbps
Fat/Fit mode switchover
IEEE 802.3af-compliant PoE and local power supply
Note:
● The PSE needs to be purchased separately.
● The local power adapter needs to be purchased separately. The output voltage and current need to be 48 V and 0.3 A, respectively.
RG-E-120(E)
PoE adapter:
1 x 1000BASE-T port
In compliance with IEEE 802.3af standard (PoE)
Brand: Ruijie
Model Number: RG-AP820-L
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 21/11/2024
Dimensions and Weight | RG-AP820-L(V2) |
Unit dimensions (W x D x H) | 153 mm x 193 mm x 26 mm (6.02 in. x 7.60 in. x 1.02 in.) |
Shipping dimensions (W x D x H) | 176 mm x 200 mm x 59 mm (6.93 in. x 7.87 in. x 2.32 in.) |
Unit weight | Main unit: 0.42 kg (0.93 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
Shipping weight | 0.87 kg (1.92 lbs) |

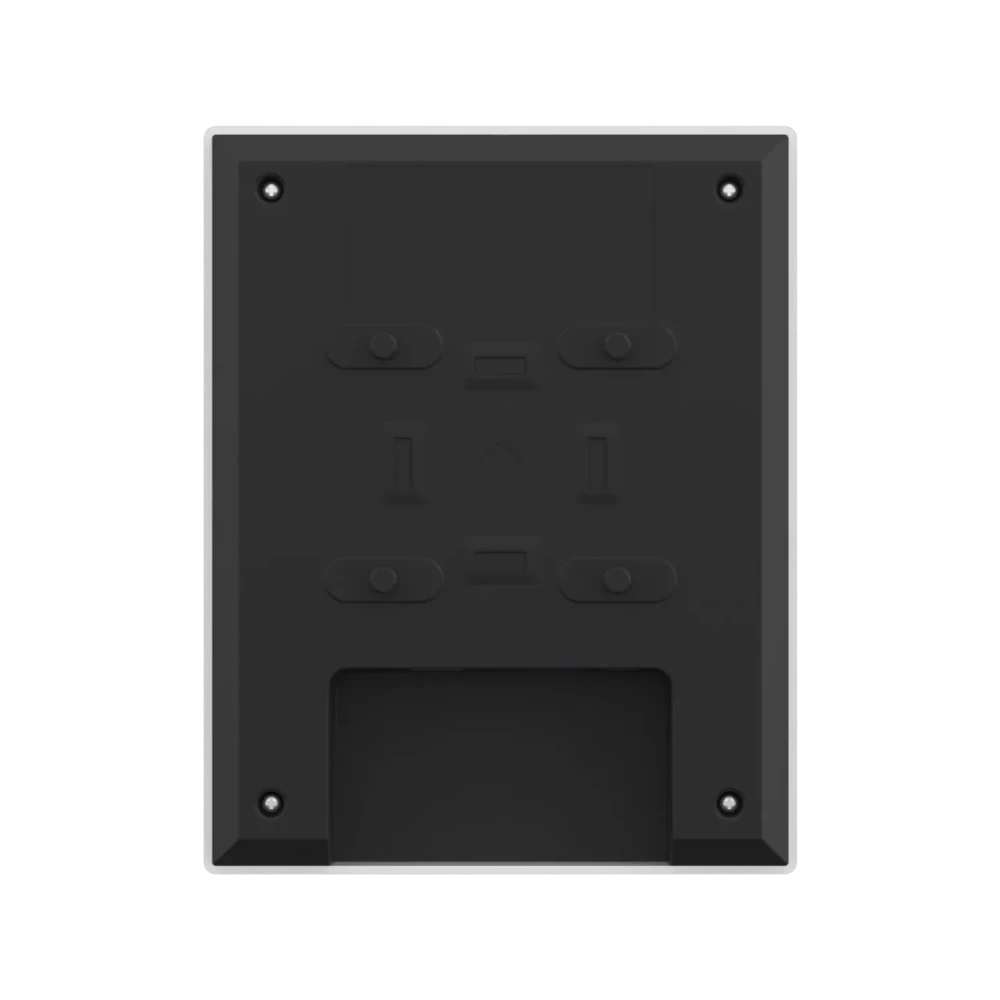

Mounting | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit.) |
Color | White |
Lock option | Securing latch and Kensington lock |
Wi-Fi Radio | RG-AP820-L(V2) |
Radio design | Dual-radio design and four spatial streams ● Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2, MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2, MU-MIMO |
Operating frequency bands | Radio 1: 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz ISM, channels 1 to 13 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see For details, see WLAN Country or Region Codes and Channel Compliance. |
Data rates | Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps 5 GHz + 5 GHz, 2.402 Gbps Radio 1: 2.4 GHz, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz, 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client device (maximum) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client device (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) Radio 2: 5 GHz, 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client device (maximum) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client device (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in omnidirectional antennas ● 2 x 2.4 GHz antennas (Radio 1) ● 4 x 5 GHz antennas (Radio 1 & Radio 2) |
Antenna gain | 2.4 GHz: 5 dBi 5 GHz: 5 dBi |
Maximum transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain) 5 GHz radio: 20 dBm (17 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see For details, see WLAN Country or Region Codes and Channel Compliance. |
Power increment | Configurable in increments of 1 dBm |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: OFDMA |
Modulation types | 802.11b: BPSK, QPSK, and CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Performance | RG-AP820-L(V2) | ||
Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
2.4 GHz, 802.11b | 1 Mbps | 23 dBm | –93 dBm |
2 Mbps | 23 dBm | –93 dBm | |
5.5 Mbps | 23 dBm | –92 dBm | |
11 Mbps | 21 dBm | –89 dBm | |
2.4 GHz, 802.11g | 6 Mbps | 23 dBm | –91 dBm |
24 Mbps | 22 dBm | –87 dBm | |
36 Mbps | 22 dBm | –80 dBm | |
54 Mbps | 20 dBm | –74 dBm | |
2.4 GHz, 802.11n (HT20) | MCS0 | 23 dBm | –87 dBm |
MCS7 | 19 dBm | –69 dBm | |
2.4 GHz, 802.11n (HT40) | MCS0 | 23 dBm | –84 dBm |
MCS7 | 19 dBm | –66 dBm | |
2.4 GHz, 802.11ax (HE20) | MCS0 | 23 dBm | –87 dBm |
MCS11 | 15 dBm | –60 dBm | |
2.4 GHz, 802.11ax (HE40) | MCS0 | 23 dBm | –84 dBm |
MCS11 | 15 dBm | –56 dBm | |
5 GHz, 802.11a | 6 Mbps | 21 dBm | –91dBm |
24 Mbps | 21 dBm | –85 dBm | |
36 Mbps | 20 dBm | –78dBm | |
54 Mbps | 19 dBm | –74 dBm | |
5 GHz, 802.11n (HT20) | MCS0 | 21 dBm | –87 dBm |
MCS7 | 18 dBm | –69 dBm | |
5 GHz, 802.11n (HT40) | MCS0 | 21 dBm | –84 dBm |
MCS7 | 18 dBm | –66 dBm | |
5 GHz, 802.11ac (VHT20) | MCS0 | 21 dBm | –87 dBm |
MCS9 | 17 dBm | –64 dBm | |
5 GHz, 802.11ac (VHT40) | MCS0 | 21 dBm | –84 dBm |
MCS9 | 17 dBm | –59 dBm | |
5 GHz, 802.11ac (VHT80) | MCS0 | 21 dBm | –81 dBm |
MCS9 | 17 dBm | –55 dBm | |
5 GHz 802.11ax (HE20) | MCS0 | 21 dBm | –87 dBm |
MCS11 | 15 dBm | –60 dBm | |
5 GHz, 802.11ax (HE40) | MCS0 | 21 dBm | –84 dBm |
MCS11 | 15 dBm | –56 dBm | |
5 GHz, 802.11ax (HE80) | MCS0 | 21 dBm | –81 dBm |
MCS11 | 15 dBm | –54 dBm | |
Bluetooth Radio | RG-AP820-L(V2) |
Bluetooth | Bluetooth 5.0 |
Antenna type | Integrated omnidirectional antenna |
Maximum antenna gain | 4.5 dBi, with a downtilt angle of roughly 30 degrees |
Maximum transmit power | 10 dBm |
Receive sensitivity | –88 dBm (@BLE) |
Port Specifications | RG-AP820-L(V2) |
Fixed service port | 1 x 10/100/1000BASE-T port ● In compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az Energy Efficient Ethernet (EEE) |
Fixed management port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED |
Button | 1 x Reset button ● Press the button for less than two seconds to restart the device. ● Press the button for more than five seconds to restore the device to factory settings. |
Power Supply and Consumption | RG-AP820-L(V2) |
Input power supply | The AP supports the following two power supply modes: ● 48 V DC/0.3 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased independently. ● PoE input over LAN/PoE: The power sourcing equipment (PSE) complies with IEEE 802.3af standard (PoE). Note: If both DC power and PoE are available, DC power is preferred. |
Overall power consumption | Maximum power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: < 8 W |
Environment and Reliability | RG-AP820-L(V2) |
Temperature | Operating temperature: –10°C to +50°C (14°F to 122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Humidity | Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Software Specifications
Basic Information | RG-AP820-L(V2) |
Applicable software version | RGOS 11.9(6)W3B1 or later |
WLAN | RG-AP820-L(V2) |
Recommended maximum number of active devices per AP | 120 |
Maximum number of associated clients | 1,024 Note The number of associated clients varies according to the environment. |
Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming (supported only in Fit mode) |
Security | RG-AP820-L(V2) |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK, PPSK, Web, 802.1X, PEAP, WPA, WPA2, and WPA3 authentication SMS authentication (used with the RG-WS series wireless access controller) MAB authentication (used with the RG-WS series wireless access controller) WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | Wireless intrusion detection system (WIDS) User isolation Rogue AP detection and containment |
ACL | Dynamic ACL assignment based on 802.1X authentication (The AP needs to work with an AC.) |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
Routing and Switching | RG-AP820-L(V2) |
IP service | Static IPv4 address IPv4 DHCP client FTP ALG and DNS ALG |
IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, and IPv6 ping IPv6 DHCP client |
IP routing | IPv4/IPv6 static routing Multicast-to-unicast conversion DHCP snooping, DHCP Option 82, DHCP server, and DHCP client |
Multicast | Multicast-to-unicast conversion |
VPN | PPPoE client IPsec VPN |
LLDP | Link Layer Discovery Protocol (LLDP) LLDP-MED LLDP-PoE |
Management | RG-AP820-L(V2) |
Network management | Fault detection and alarm Information statistics collection and logging SNMP v1/v2c/v3 NTP Server and NTP Client |
Network management platform | Ruijie Cloud Web-based management (Eweb) |
User access management | Console, Telnet, SSH, SNMP, and TFTP-based management |
Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
