SKU: RG-AP820-L(V3),
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description

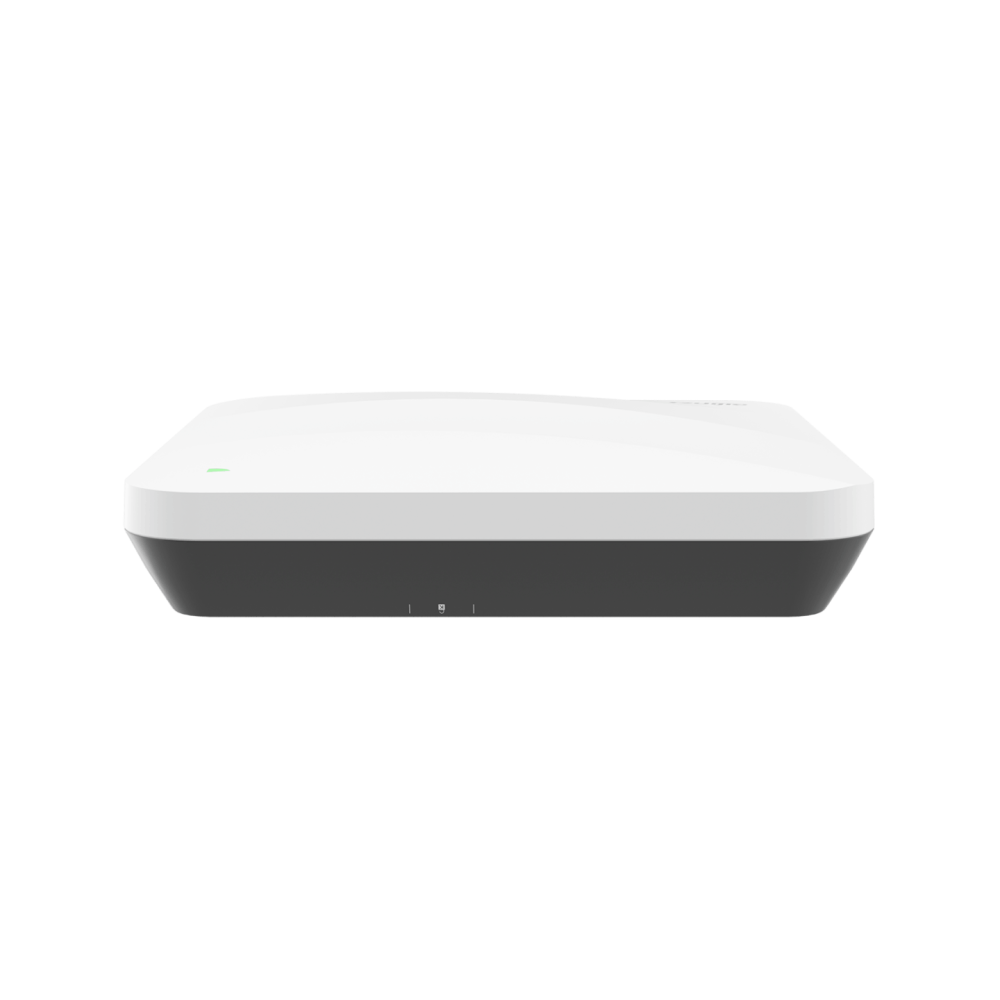

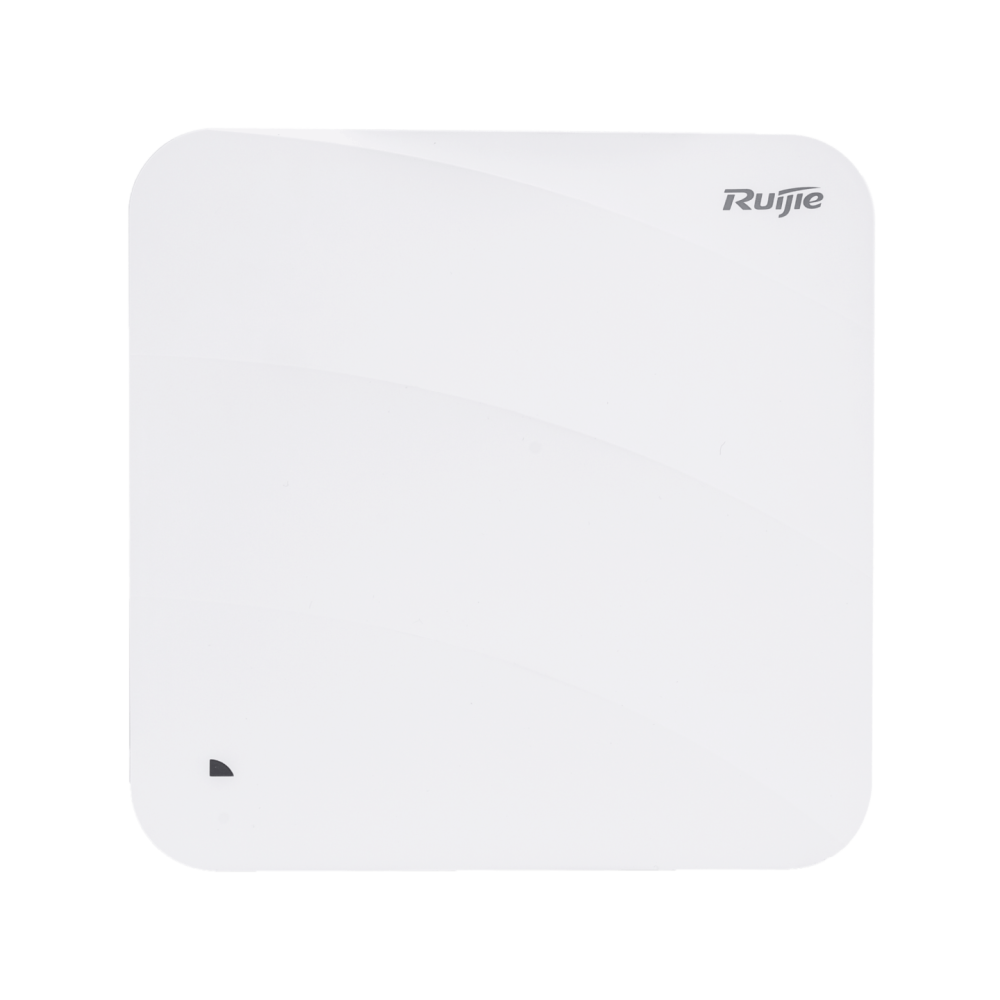

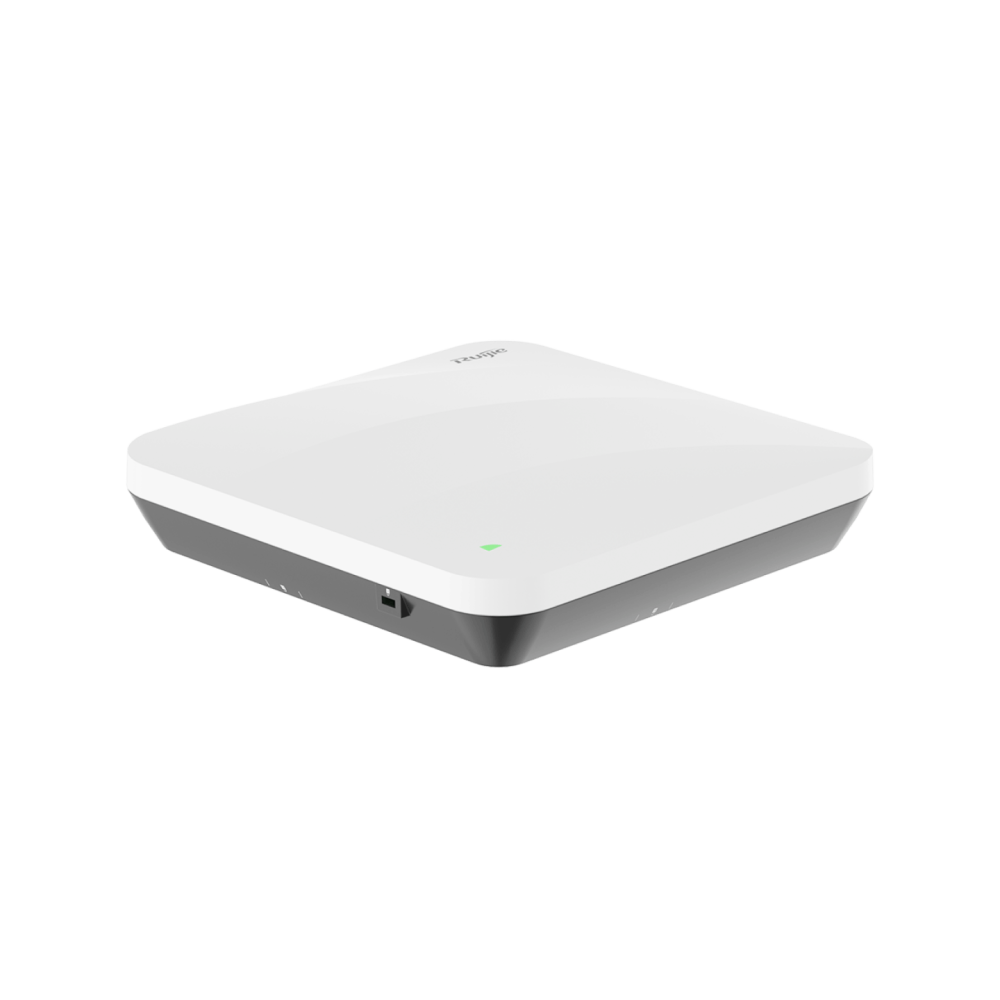

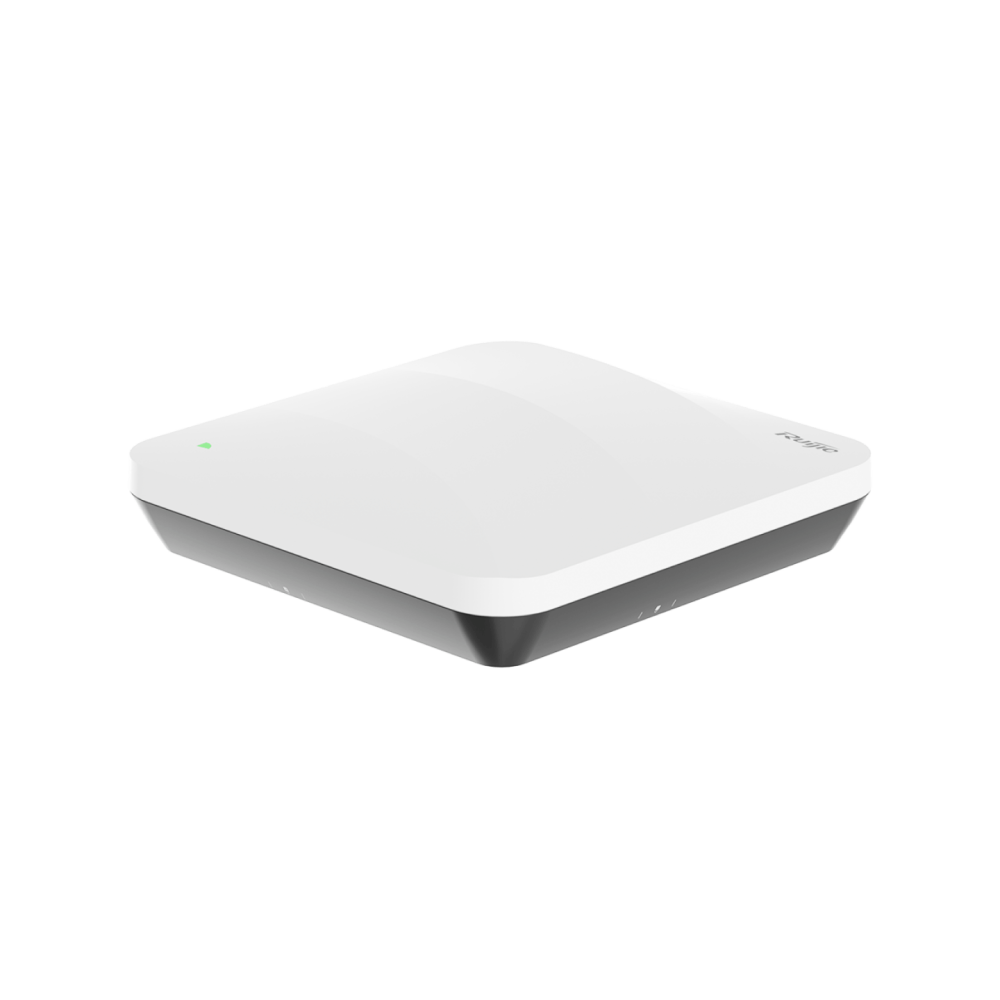

RG-AP820-L(V3)
Wi-Fi 6 dual-radio indoor wireless access point
Up to four spatial streams
Data rate of up to 2.976 Gbps
Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
Fat/Fit/Cloud mode switchover
IEEE 802.3af-compliant (PoE) power supply and DC power supply
RG-E-120(GE)
PSE with 1 x GE port in compliant with IEEE 802.3af standard (PoE)
Brand: Ruijie
Model Number: RG-AP820-L(V3),
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 11/11/2024
Dimensions and Weight | RG-AP820-L(V3) |
Unit dimensions (W x D x H) | 220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.) |
Shipping dimensions (W x D x H) | 507 mm x 319 mm x 278 mm (19.96 in. x 12.56 in. x 10.94 in.) |
Unit weight | Main unit: 0.6 kg (1.32 lbs) Mounting bracket: 0.07 kg (0.15 lbs) |
Shipping weight | 1.04 kg (2.29 lbs) |
Mounting | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
Lock option | Kensington lock and securing latch |
Wi-Fi Radio | RG-AP820-L(V3) |
Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
Operating frequencies | Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
Data rates | Combined peak data rate: 2.976 Gbps 2.4 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160) ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
Antenna gain | 2.4 GHz: 5 dBi 5 GHz: 5 dBi |
Maximum transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm |
Power increment | Configurable in increments of 1 dBm |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-AP820-L(V3) | ||
Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
2.4 GHz 802.11b | 1 Mbps | 23 dBm | -91 dBm |
2 Mbps | 23 dBm | -91 dBm | |
5.5 Mbps | 23 dBm | -90 dBm | |
11 Mbps | 23 dBm | -87 dBm | |
2.4 GHz 802.11g | 6 Mbps | 23 dBm | -89 dBm |
24 Mbps | 22 dBm | -82 dBm | |
36 Mbps | 22 dBm | -78 dBm | |
54 Mbps | 20 dBm | -72 dBm | |
2.4 GHz 802.11n (HT20) | MCS0 | 23 dBm | -85dBm |
MCS7 | 19 dBm | -67 dBm | |
2.4 GHz 802.11n (HT40) | MCS0 | 23 dBm | -82 dBm |
MCS7 | 19 dBm | -64 dBm | |
2.4 GHz 802.11ax (HE20) | MCS0 | 23 dBm | -85 dBm |
MCS11 | 15 dBm | -58 dBm | |
2.4 GHz 802.11ax (HE40) | MCS0 | 23 dBm | -82 dBm |
MCS11 | 15 dBm | -54 dBm | |
5 GHz 802.11a | 6 Mbps | 23 dBm | -89 dBm |
24 Mbps | 22 dBm | -82 dBm | |
36 Mbps | 22 dBm | -78 dBm | |
54 Mbps | 20 dBm | -72 dBm | |
5 GHz 802.11n (HT20) | MCS0 | 23 dBm | -85 dBm |
MCS7 | 19 dBm | -67 dBm | |
5 GHz 802.11n (HT40) | MCS0 | 23 dBm | -82 dBm |
MCS7 | 19 dBm | -64 dBm | |
5 GHz 802.11ac (VHT20) | MCS0 | 23 dBm | -85 dBm |
MCS9 | 18 dBm | -60 dBm | |
5 GHz 802.11ac (VHT40) | MCS0 | 23 dBm | -82 dBm |
MCS9 | 18 dBm | -57 dBm | |
5 GHz 802.11ac (VHT80) | MCS0 | 23 dBm | -79 dBm |
MCS9 | 18 dBm | -53 dBm | |
5 GHz 802.11ax (HE20) | MCS0 | 23 dBm | -85 dBm |
MCS11 | 16 dBm | -58 dBm | |
5 GHz 802.11ax (HE40) | MCS0 | 23 dBm | -82 dBm |
MCS11 | 16 dBm | -54 dBm | |
5 GHz 802.11ax (HE80) | MCS0 | 23 dBm | -79 dBm |
MCS11 | 16 dBm | -52 dBm | |
5 GHz 802.11ax (HE160) | MCS0 | 23 dBm | -77 dBm |
MCS11 | 16 dBm | -50 dBm | |
Bluetooth Radio | RG-AP820-L(V3) |
Bluetooth | Bluetooth 5.1 |
Antenna type | Onboard omnidirectional antenna |
Maximum antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees |
Maximum transmit power | 17 dBm (GFSK) 14 dBm (π/4-DQPSK, 8-DPSK) |
Receive sensitivity | –95.5 dBm (DH5) –95 dBm (π/4-DQPSK) –87.5 dBm (8-DPSK) |

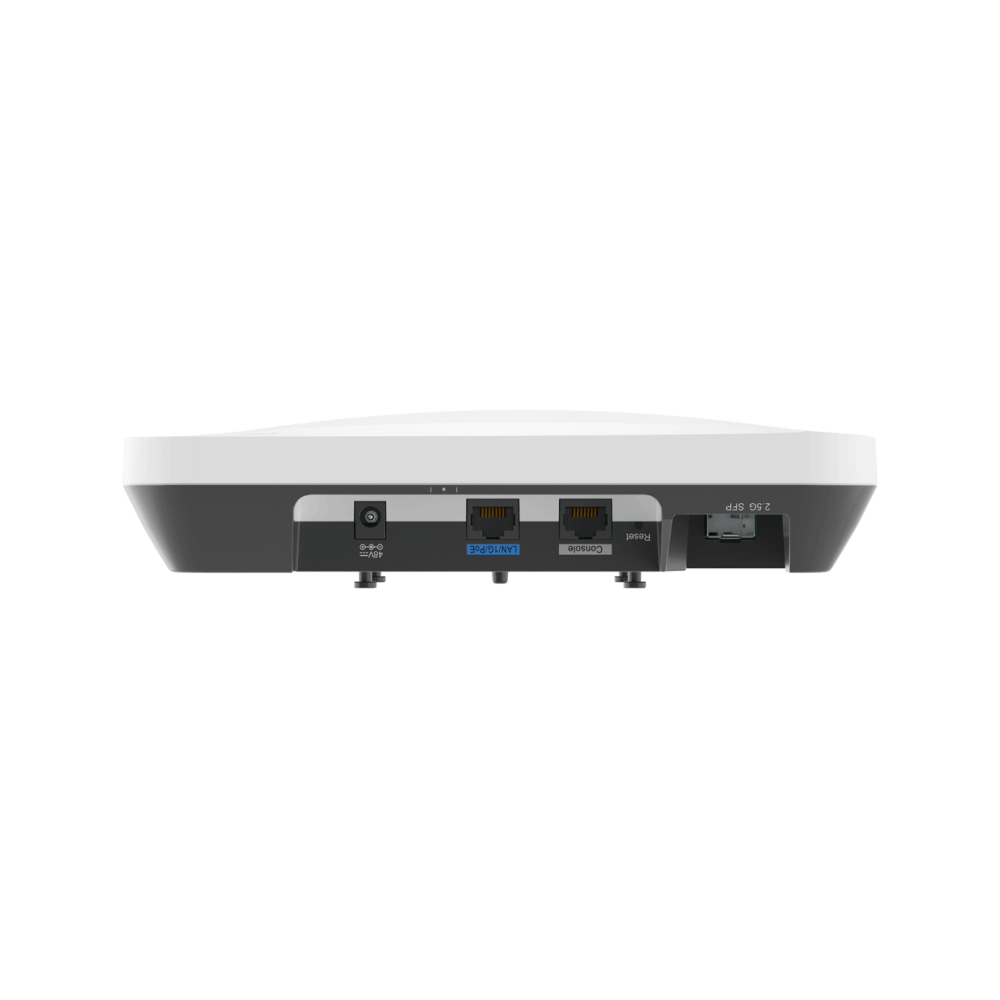

Ports Specifications | RG-AP820-L(V3) |
Fixed service port | 1 x 10/100/1000BASE-T port ● In compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE 1 x 2.5GE SFP/RJ45 combo port, compatibility with 1GE module, shared with one 10/100/1000BASE-T port |
Fixed management port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Note：A combo port consists of an optical Ethernet port and an electrical Ethernet port on the panel and can be used as the optical or electrical port at one time. When either of the Ethernet ports is working, the other port is automatically shut down. You can select a port type as required.
Power Supply and Consumption | RG-AP820-L(V3) |
Input power supply | The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE). Note: ● If both DC power and PoE are available, DC power is preferred. |
Overall power consumption | Maximum power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W |
Note：When the 2.5GE SFP port of the RG-AP820-L(V3) is used as an uplink port, the port supports PoE or DC power supply. When PoE is adopted, the auto-negotiation Ethernet port (LAN/1G/PoE) serves as a PoE-in port only.
Environment and Reliability | RG-AP820-L(V3) |
Temperature | Operating temperature: –10°C to +50°C (14°F to +122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
IP rating | IP41 |
Humidity | Operating humidity: 0% RH to 95% RH (non-condensing) Storage humidity: 0% RH to 95% RH (non-condensing) |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Regulatory Compliance | RG-AP820-L(V3) |
Security regulations | IEC 62368-1 EN 62368-1 |
EMC regulations | EN 55032 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 EN 301 489-1 EN 301 489-3 EN 301 489-17 |
Radio frequency regulations | EN 300 328 EN 301 893 EN 300 440 EN IEC 62311 FCC Part 15 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Applicable Software Version | RG-AP820-L(V3) |
Applicable software version | RGOS11.9(6)W1B4 or higher |
WLAN | RG-AP820-L(V3) |
Recommended maximum number of active devices per AP | 120 |
Maximum number of associated clients | 256 Note The number of associated clients varies according to the environment. |
Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming |
Bridge Vlan | Supported |
Security | RG-AP820-L(V3) |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PPSK, UPSK (used with AC) , web, 802.1X, WPA, WPA2, and WPA3 authentication SMS authentication (used with the RG-WS series wireless access controller) MAB authentication (used with the RG-WS series wireless access controller) WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE, WPA3-OWE transition mode |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
ACL | Dynamic ACL assignment |
CPP | Supported |
NFPP | Supported |
Routing and Switching | RG-AP820-L(V3) |
IP service | Static IPv4 address IPv4 DHCP Client FTP ALG and DNS ALG |
Multicast | Multicast-to-unicast conversion |
IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping IPv6 DHCP Client |
IP routing | IPv4/IPv6 static routing |
VPN | PPPoE Client IPsec VPN |
LLDP | LLDP LLDP-MED LLDP-PoE |
Management | RG-AP820-L(V3) |
Network management | Fault inspection and alarm Information statistics and logging SNMPv1/v2c/v3 NTP Server and NTP Client |
Network management platform | Ruijie Cloud Web-based management (Eweb) |
User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
