SKU: RG-AP680-IO
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description

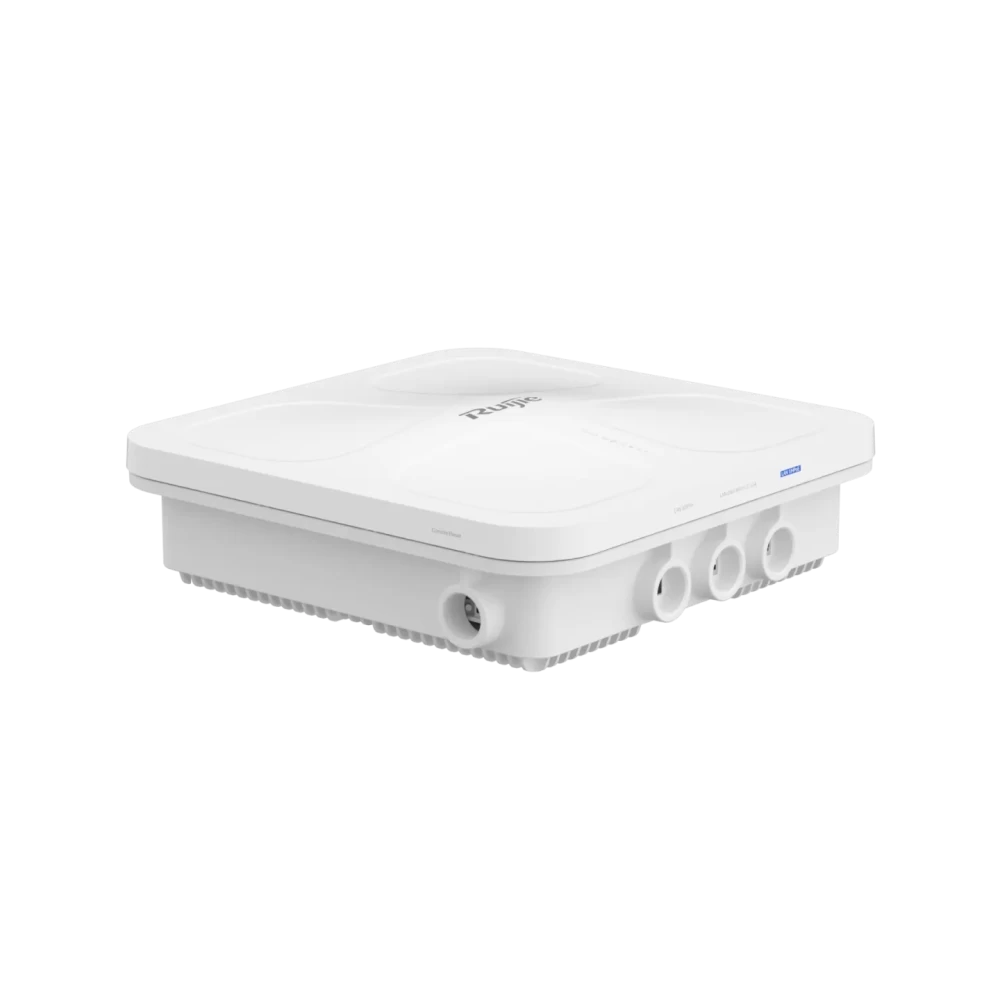

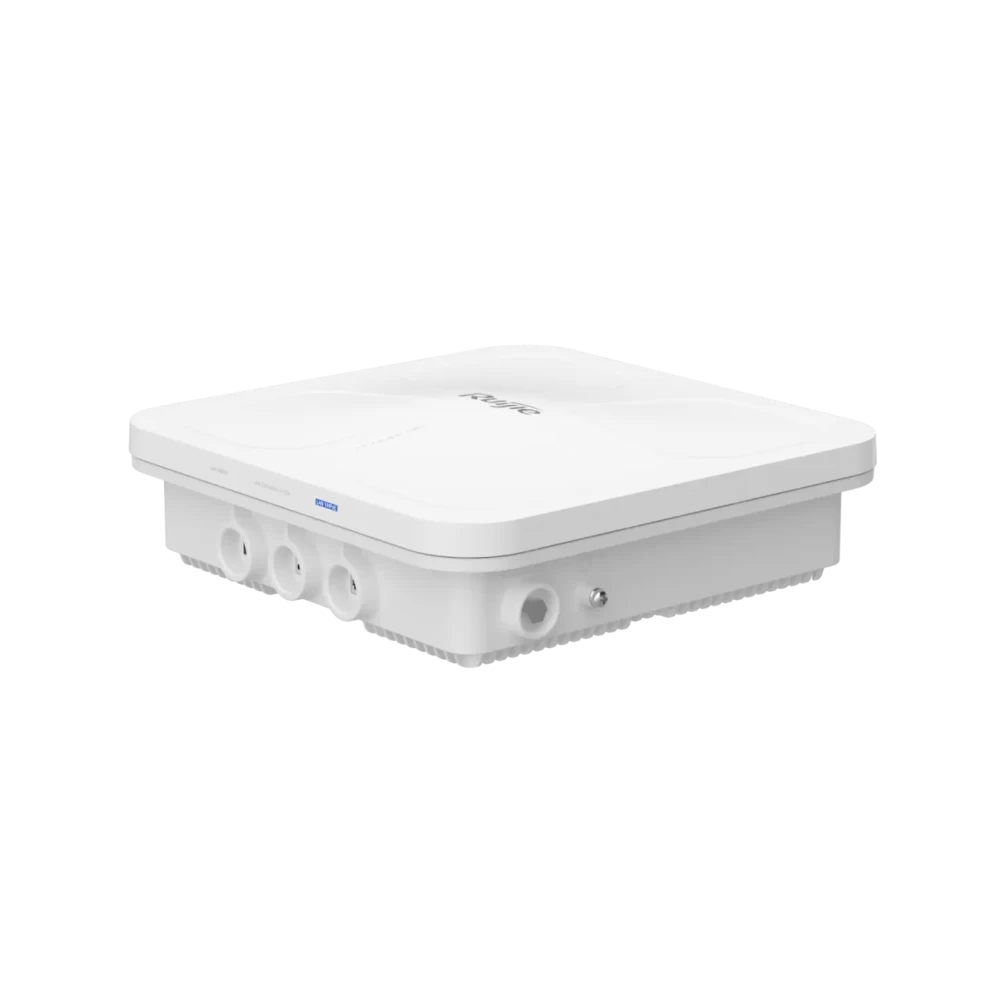

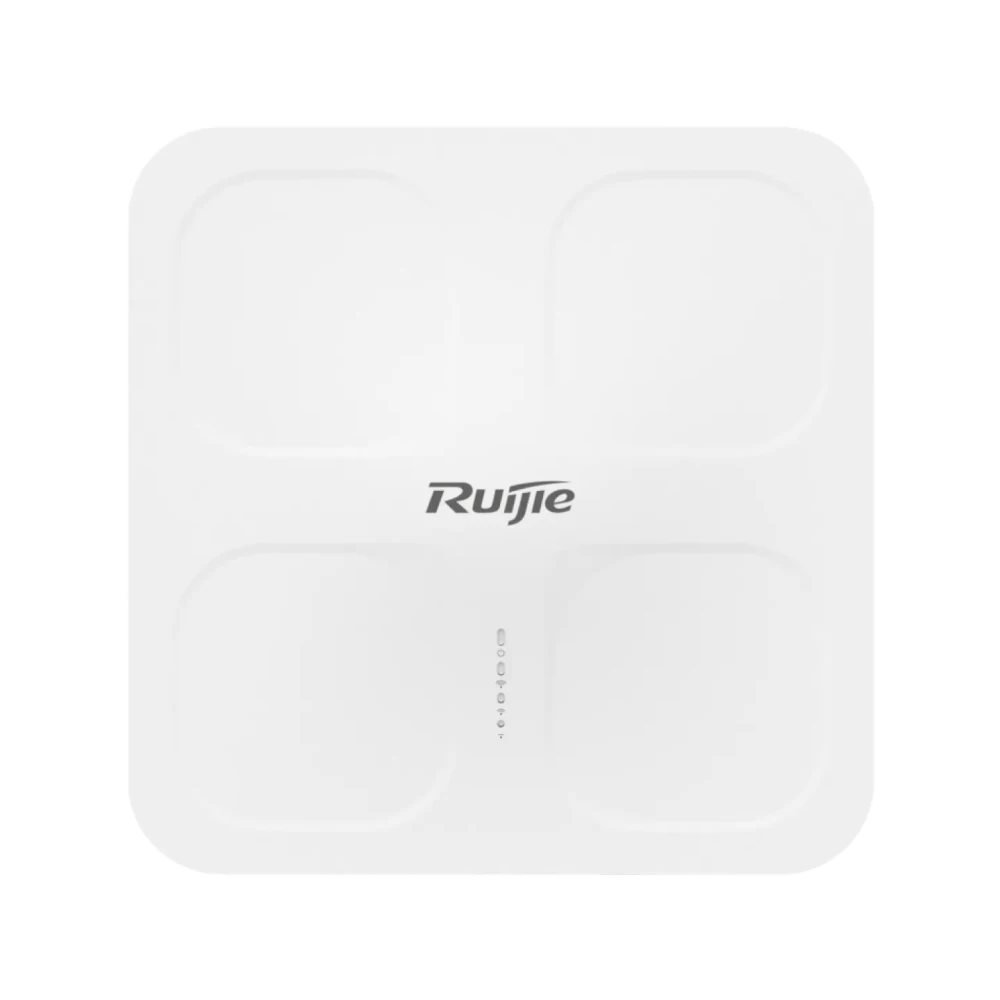

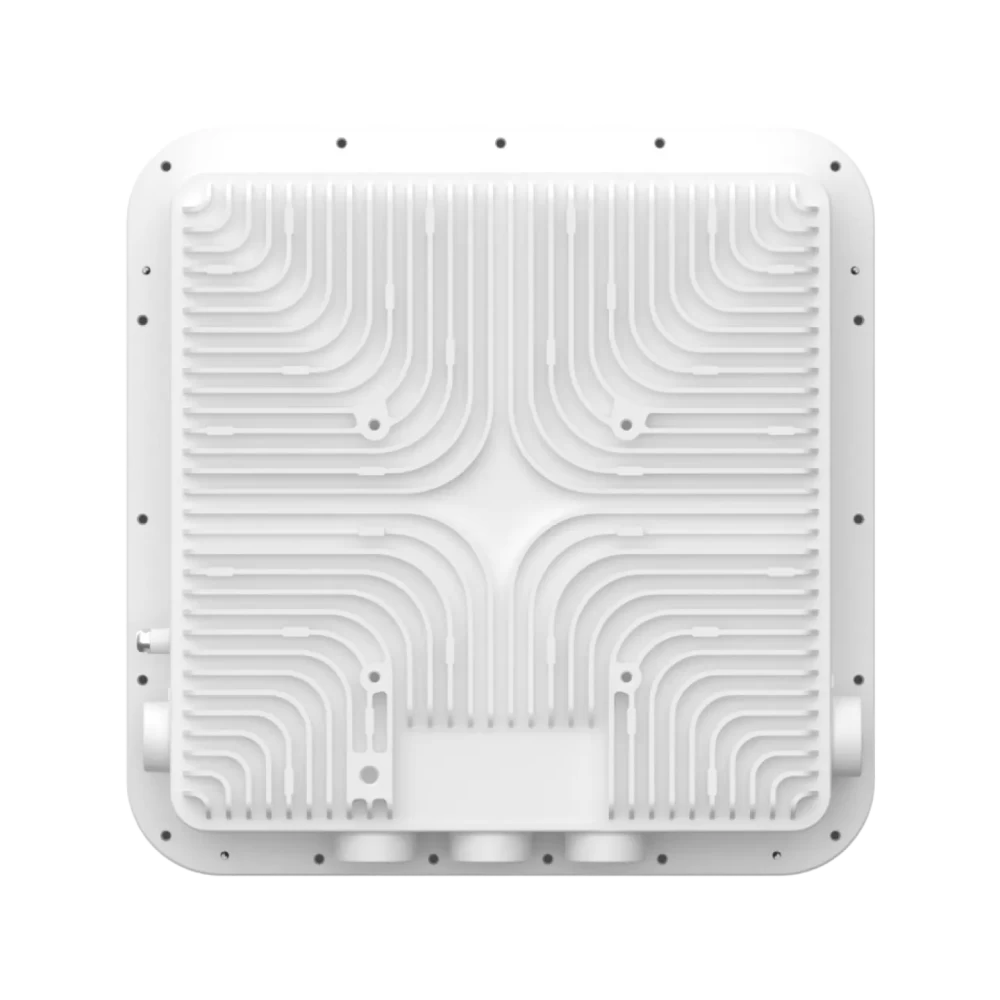

RG-AP680-IO
Wi-Fi 6 dual-radio wireless access point
Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
Built-in omnidirectional antennas
Up to eight spatial streams
Data rate of up to 5.951 Gbps
Fat/Fit/Cloud mode switchover
Electrical and optical uplink ports
IEEE 802.3af/at/bt-compliant (PoE/PoE+/PoE++) power supply
Brand: Ruijie
Model Number: RG-AP680-IO
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 12/11/2024
Hardware Specifications | RG-AP680-IO |
802.11n | Eight spatial streams ● Radio 1 – 2.4 GHz: 4x4 MIMO, four spatial streams ● Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams Channels: ● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz ● Radio 2 – 5 GHz: 20 MHz and 40 MHz Combined peak data rate: 1.2 Gbps ● Radio 1 – 2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31 ) ● Radio 2 – 5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
802.11ac | Four spatial streams ● Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams Channels: ● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 3.467 Gbps ● Radio 2 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9) Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1,024-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) |
802.11ax | Eight spatial streams ● Radio 1 – 2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams ● Radio 2 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams Channels: ● Radio 1 – 2.4 GHz: 20 MHz and 40 MHz ● Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz Combined peak data rate: 5.951 Gbps: ● Radio 1 – 2.4 GHz: 8.6 Mbps to 1.147 Gbps (MCS0 to MCS11) ● Radio 2 – 5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11) Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA) Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Packet aggregation: ● Aggregate MAC Protocol Data Unit (A-MPDU) ● Aggregate MAC Service Data Unit (A-MSDU) Dynamic Frequency Selection (DFS) Cyclic Delay/Shift Diversity (CDD/CSD) Maximum Ratio Combining (MRC) Space-Time Block Coding (STBC) Low-Density Parity Check (LDPC) Transmit beam-forming (TxBF) WPA3 |
Antenna | Wi-Fi ● 2.4 GHz: four built-in omnidirectional antennas, with peak antenna gain of 6 dBi. ● 5 GHz: four built-in omnidirectional antennas, with peak antenna gain of 5 dBi. Bluetooth ● One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 3 dBi. |

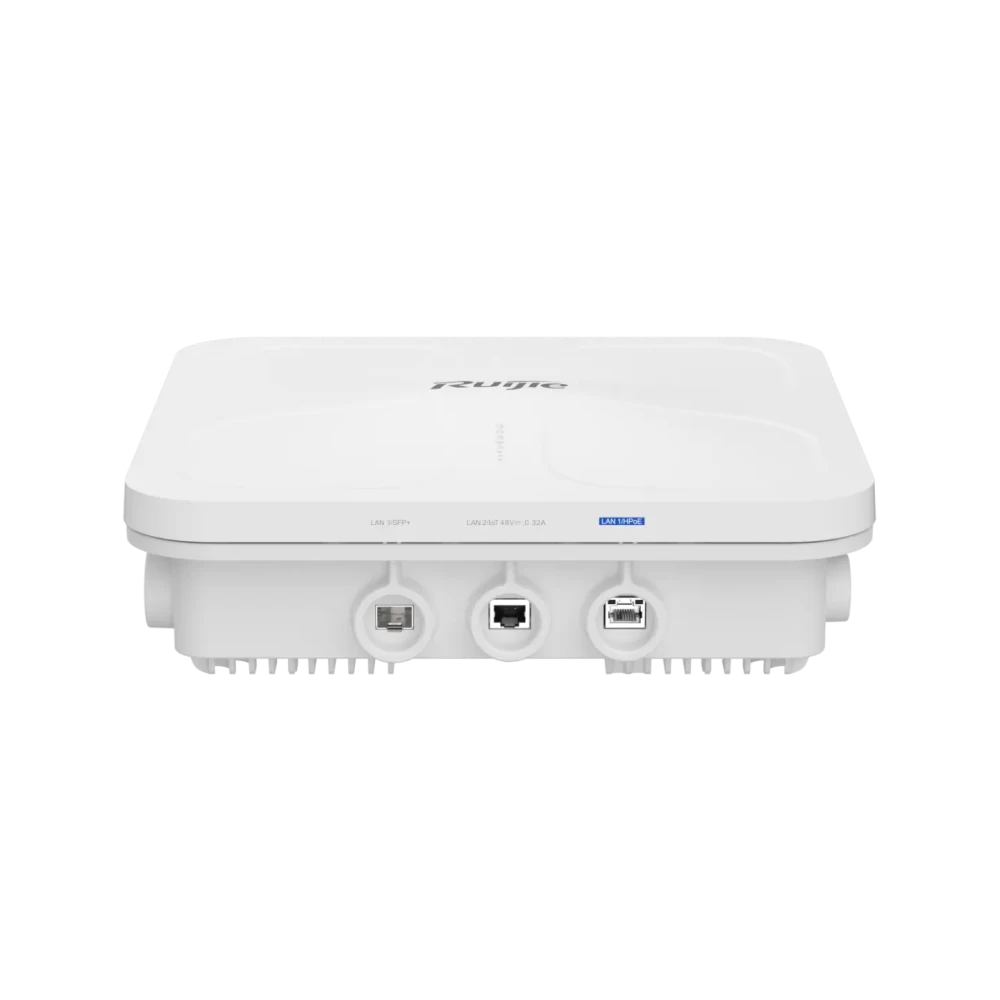

Port | 1 x 100/1000/2.5G/5GBase-T RJ45 Ethernet port with auto-negotiation 1 x 100/1000Base-T RJ45 Ethernet port with auto-negotiation 1 x 10GE optical port,compatibility with 1GE and 2.5GE 1 x RJ45 console port (serial console port) 1 x Bluetooth 5.1 |
Status LED | 1 x multi-color system status LED ● AP power-on status ● Software initialization status and upgrade status ● Uplink service interface status ● Wireless user online status ● CAPWAP tunnel timeout ● Specific AP locating Three single-color signal strength LEDs: ● Whether bridging is enabled ● Whether bridging is successful ● Wireless signal strength after successful bridging |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
Dimensions (W x D x H) | Main unit: 300 mm x 300 mm x 94 mm (11.81 in. x 11.81 in. x 3.70 in.) Shipping: 470 mm x 410 mm x 170 mm (18.50 in. x 16.14 in. x 6.69 in.) |
Weight | Main unit: 3.3 kg (7.28 lbs) Mounting bracket: 1.2 kg (2.65 lbs) Shipping: 6.5 kg (14.33 lbs) |
Mounting | Wall/Pole-mounting (a mounting bracket is delivered with the main unit) |
Input power supply | PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++). |
Maximum power consumption | Maximum power consumption: 40 W ● 802.3af (PoE): 12.95 W, the AP starts up normally. Bluetooth and GPS work properly; all RF cards do not work; external power supply of the PSE is disabled. ● 802.3at (PoE+): 25 W, the AP starts up normally. LAN 2 cannot supply power to external devices. ● 802.3bt (PoE++): 40 W, the AP operates with the optimal performance. ● Idle mode: 10 W |
Environment | Storage temperature: –40°C to +85°C (–40°F to +185°F) Storage humidity: 0% RH to 100% RH (non-condensing) Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.) Operating temperature: –40°C to +65°C (-40°F to +149°F) Operating humidity: 0% RH to 100% RH (non-condensing) Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.) Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
System memory | 2 GB DRAM, 256 MB flash |
Transmit power | 2.4 GHz ● Maximum transmit power: 30 dBm (1,000 mW) ● Minimum transmit power: 10 dBm (10 mW) 5 GHz ● Maximum transmit power: 29 dBm (795 mW) ● Minimum transmit power: 9 dBm (7.94 mW) Note: ● Adjusting the transmit power by percentage (recommended) and in 1dBm increments. ● The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
GPS positioning | Supported |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-AP680-IO | ||
Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
2.4 GHz 802.11b | 1 Mbps | 24 dBm | –94 dBm |
2 Mbps | 24 dBm | –91 dBm | |
5.5 Mbps | 23 dBm | –90 dBm | |
11 Mbps | 22 dBm | –88 dBm | |
2.4 GHz 802.11g | 6 Mbps | 24 dBm | –89.5 dBm |
24 Mbps | 23 dBm | –83 dBm | |
36 Mbps | 23 dBm | –79 dBm | |
54 Mbps | 21 dBm | –73 dBm | |
2.4 GHz 802.11n (HT20) | MCS0 | 24 dBm | –86 dBm |
MCS7 | 21 dBm | –68 dBm | |
2.4 GHz 802.11n (HT40) | MCS0 | 24 dBm | –83 dBm |
MCS7 | 21 dBm | –65 dBm | |
2.4 GHz 802.11ax (HE20) | MCS0 | 24 dBm | –86 dBm |
MCS11 | 19 dBm | –68 dBm | |
2.4 GHz 802.11ax (HE40) | MCS0 | 24 dBm | –83 dBm |
MCS11 | 19 dBm | –65 dBm | |
5 GHz 802.11a | 6 Mbps | 23 dBm | –89.5 dBm |
24 Mbps | 22 dBm | –83 dBm | |
36 Mbps | 22 dBm | –79 dBm | |
54 Mbps | 20 dBm | –73 dBm | |
5 GHz 802.11n (HT20) | MCS0 | 23 dBm | –86 dBm |
MCS7 | 20 dBm | –68 dBm | |
5 GHz 802.11n (HT40) | MCS0 | 23 dBm | –83 dBm |
MCS7 | 20 dBm | –65 dBm | |
5 GHz 802.11ac (VHT20) | MCS0 | 23dBm | –86 dBm |
MCS9 | 19 dBm | –61 dBm | |
5 GHz 802.11ac (VHT40) | MCS0 | 23 dBm | –83 dBm |
MCS9 | 19 dBm | –57 dBm | |
5 GHz 802.11ac (VHT80) | MCS0 | 23 dBm | –80 dBm |
MCS9 | 19 dBm | –53 dBm | |
5 GHz 802.11ax (HE20) | MCS0 | 23 dBm | –86 dBm |
MCS11 | 16 dBm | –58 dBm | |
5 GHz 802.11ax (HE40) | MCS0 | 23 dBm | –83 dBm |
MCS11 | 16 dBm | –54 dBm | |
5 GHz 802.11ax (HE80) | MCS0 | 23 dBm | –80 dBm |
MCS11 | 16 dBm | –52 dBm | |
5 GHz 802.11ax (HE160) | MCS0 | 23 dBm | –77 dBm |
MCS11 | 16 dBm | –49 dBm |
Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
Software Specifications | RG-AP680-IO |
Basic Function | |
Applicable software version | RGOS11.9(6)W3B6 or higher |
WLAN | |
Maximum number of associated STAs | 1,024 (up to 512 STAs per radio) |
Practical maximum client count indication (per device) | 250 |
Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
Maximum number of WLAN IDs | 16 |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote Intelligent Perception Technology (RIPT) Intelligent load balancing based on the STA quantity or traffic Intelligent STA identification |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
CAPWAP | IPv4/IPv6 CAPWAP Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT |
Data forwarding | Centralized and local forwarding |
Wireless roaming | Layer 2 and Layer 3 roaming |
Wireless locating | MU and TAG device locating |
Security and Authentication | |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK, UPSK and web authentication QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3-Enterprise, WPA3-Individual |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | Wireless Intrusion Detection System(WIDS) Wireless Intrusion Protection System(WIPS) User isolation Rogue AP detection and containment |
Dynamic Policy | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL Time range-based ACL ACL based on a Layer 2 interface ACL based on a Layer 3 interface Ingress ACL based on a wireless interface Dynamic ACL assignment based on 802.1X authentication CoA/DM |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
Routing and Switching | |
MAC | Static and filtered MAC addresses MAC address table size: 2,048 Maximum number of static MAC addresses: 2,048 Maximum number of filtered MAC addresses: 2,048 |
Ethernet | Jumbo frame length: 1,518 bytes Full-duplex and half-duplex modes of interfaces IEEE802.1p and IEEE802.1Q Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
VLAN | Interface-based VLAN assignment Maximum number of SVIs: 200 Maximum number of VLANs: 4,094 VLAN ID range: 1–4,094 |
ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP Maximum number of ARP entries: 2,408 ARP check |
IPv4 services | Static and DHCP-assigned IPv4 addresses Maximum number of IPv4 addresses configured on each Layer 3 interface: 200 NAT, FTP ALG, and DNS ALG |
IPv6 services | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping IPv6 DHCP client Maximum number of IPv6 addresses configured on each Layer 3 interface: 400 |
IP routing | IPv4/IPv6 static route Maximum number of static IPv4 routes: 1,024 Maximum number of static IPv6 routes: 1,000 |
Multicast | Multicast-to-unicast conversion |
VPN | PPPoE client IPsec VPN |
Network Management and Monitoring | |
Network management | NTP server and NTP client SNTP client SNMPv1/v2c/v3 Fault detection and alarm Information statistics and logging |
Network management platform | Web management (Eweb) |
User access management | Telnet, SSH, SNMP and FTP management |
Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode. When the AP works in cloud mode, it can be managed through Ruijie Cloud. |
The following value-added software functions can be achieved with the WIS solution (used with RG-iData-WIS and wireless controller).
Value-added Software | RG-AP680-CD(V3) |
Intelligent O&M | |
Experience | Network operation analysis, such as device stability and signal coverage Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters VIP monitoring and alarm, and custom alarm thresholds STA global experience map and experience coverage evaluation based on the time range STA access protocol replay and fine-grained STA fault diagnosis Note: To support the preceding functions, ensure that the AP works in Fit mode. |
Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization Client steering to cope with roaming stickiness, and experience indicator comparison Client steering to cope with remote association, and experience indicator comparison One-click diagnosis – analyzing problems and providing suggestions |
Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes Time capsule – analyzing the device version and configuration change history |
Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
One-click report | One-click health report – generating a report on the overall operation of a network |
Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
Cloud Management | |
Management and maintenance | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates One-click discovery of the wired and wireless network topology and topology generation |
Cloud Authentication | |
Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes Authentication implemented in the cloud, without the need to deploy the local authentication server |
Customized portal | Customized Portal authentication page for mobile phones and PCs |
SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
Platform Capabilities | |
Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities Spark-based big data computing capabilities Data warehouse building based on Hive, and data model conversion, integration, and other functions |
Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments Granting operation permissions to administrators in different scenarios |
System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
Note: For details, refer to the latest hybrid cloud management solution.
Regulatory Compliance | RG-AP680-IO |
Regulatory compliance | EN 55032, EN 55035, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN 62311, EN IEC 62311, EN 50665, IEC 62368-1, EN 62368-1, and IEC 60950-22 |
