SKU: RG-AP680(CD)
Category: ruijie access points
Availability: Unlimited
Model
Description
RG-AP680(CD)
Wi-Fi 6 dual-radio outdoor wireless access point
Up to four spatial streams
Data rate of up to 2.402 Gbps
Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards
Fat/Fit/Cloud mode switchover
IEEE 802.3af-compliant power supply and DC power supply
Brand: Ruijie
Model Number: RG-AP680(CD)
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 05/08/2024
Dimensions and Weight | RG-AP680(CD) |
Unit dimensions(W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
Shipping dimensions(W x D x H) | 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.) |
Unit weight | Main unit: 1.5 kg (3.31 lbs) Mounting bracket: 0.2 kg (0.44 lbs) |
Shipment weight | 2.92 kg (6.44 lbs) |
Mounting | Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
Wi-Fi Radio | RG-AP680(CD) |
Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
Operating frequencies | Radio 1: 802.11b/g/n/ax ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 Radio 2: 802.11a/n/ac/ax ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
Data rates | Combined peak date rate for 2.4 GHz and 5 GHz radios: 1.775 Gbps Combined peak date rate for 5 GHz and 5 GHz radios: 2.402 Gbps Radio 1: 2.4 GHz: 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz: 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) Radio 2: 5 GHz, 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
Antenna type | Built-in intelligent antennas |
Antenna gain | 2.4 GHz: 9 dBi 5 GHz: 9 dBi |
Maximum transmit power | 2.4 GHz radio: 28 dBm (25 dBm per chain) 5 GHz radio: 28 dBm (25 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand 2.400 GHz to 2.4835 GHz: 20 dBm 5.470 GHz to 5.725 GHz: 30 dBm 5.725 GHz to 5.825 GHz: 30 dBm |
Power increment | Configurable in increments of 1 dBm |
Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
Wi-Fi Radio Frequency Performance | RG-AP680(CD) | ||
Frequency Band and Protocol | Data Rate | Maximum Transmit Power per Transmit Chain | Maximum Receive Sensitivity per Receive Chain |
2.4 GHz 802.11b | 1 Mbps | 25 dBm | –92 dBm |
2 Mbps | 25 dBm | –82 dBm | |
5.5 Mbps | 25 dBm | –84 dBm | |
11 Mbps | 25 dBm | –78 dBm | |
2.4 GHz 802.11g | 6 Mbps | 25 dBm | –84 dBm |
24 Mbps | 23 dBm | –74 dBm | |
36 Mbps | 23 dBm | –72 dBm | |
54 Mbps | 20 dBm | –67 dBm | |
2.4 GHz 802.11n (HT20) | MCS0 | 25 dBm | –84 dBm |
MCS7 | 20 dBm | –66 dBm | |
2.4 GHz 802.11n (HT40) | MCS0 | 25 dBm | –79 dBm |
MCS7 | 20 dBm | –63 dBm | |
2.4 GHz 802.11ax (HE20) | MCS0 | 25 dBm | –84 dBm |
MCS11 | 18 dBm | –54 dBm | |
2.4 GHz 802.11ax (HE40) | MCS0 | 25 dBm | –80 dBm |
MCS11 | 18 dBm | –51 dBm | |
5 GHz 802.11a | 6 Mbps | 25 dBm | –84 dBm |
24 Mbps | 23 dBm | –74 dBm | |
36 Mbps | 23 dBm | –72 dBm | |
54 Mbps | 20 dBm | –67 dBm | |
5 GHz 802.11n (HT20) | MCS0 | 25 dBm | –84 dBm |
MCS7 | 20 dBm | –66 dBm | |
5 GHz 802.11n (HT40) | MCS0 | 25 dBm | –81 dBm |
MCS7 | 20 dBm | –63 dBm | |
5 GHz 802.11ac (VHT20) | MCS0 | 25 dBm | –84 dBm |
MCS9 | 19 dBm | –61 dBm | |
5 GHz 802.11ac (VHT40) | MCS0 | 25 dBm | –81 dBm |
MCS9 | 19 dBm | –56 dBm | |
5 GHz 802.11ac (VHT80) | MCS0 | 25 dBm | –78 dBm |
MCS9 | 19 dBm | –53 dBm | |
5 GHz 802.11ax (HE20) | MCS0 | 25 dBm | –84 dBm |
MCS11 | 18 dBm | –54 dBm | |
5 GHz 802.11ax (HE40) | MCS0 | 25 dBm | –81 dBm |
MCS11 | 18 dBm | –51 dBm | |
5 GHz 802.11ax (HE80) | MCS0 | 25 dBm | –78 dBm |
MCS11 | 18 dBm | –48 dBm | |
Bluetooth Radio | RG-AP680(CD) |
Bluetooth | Bluetooth 5.0 |
Antenna type | Integrated omnidirectional antenna |
Maximum antenna gain | 4.5 dBi |
Maximum transmit power | 10 dBm |
Receive sensitivity | -88 dBm (@BLE) |
Ports Specifications | RG-AP680(CD) |

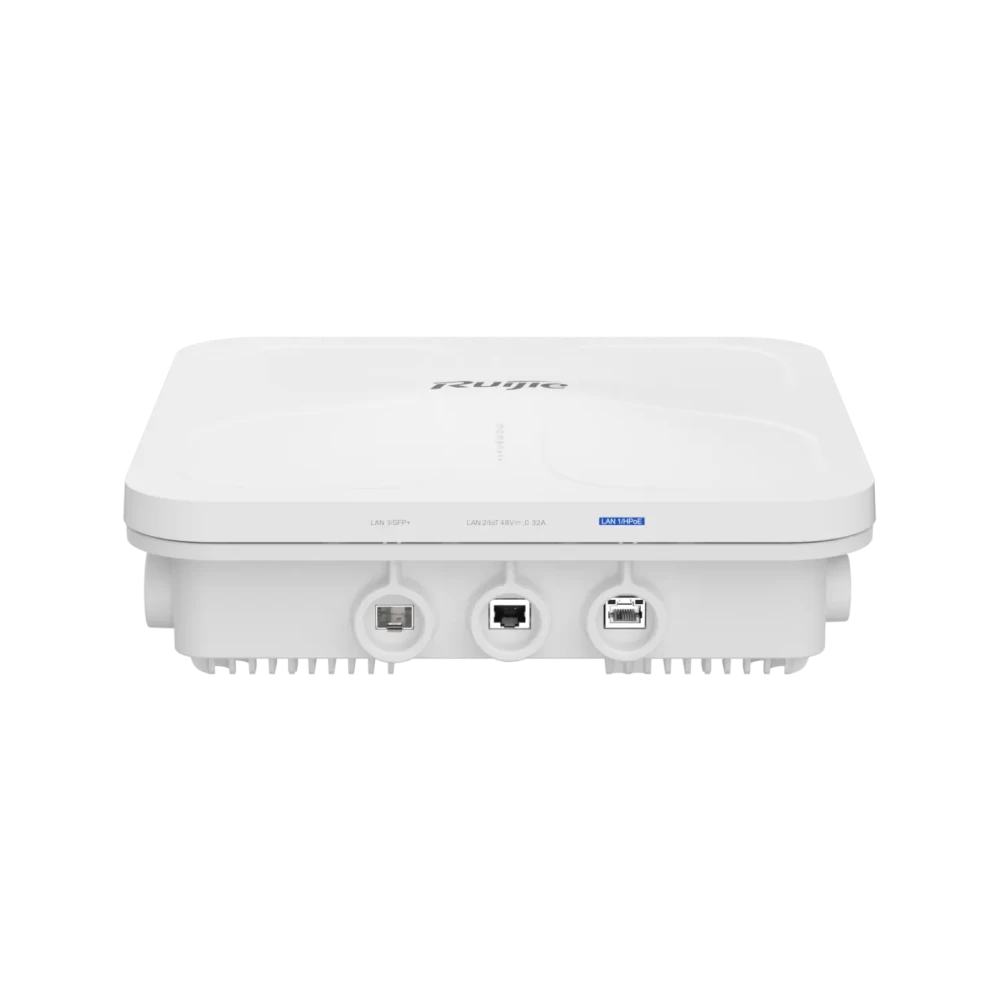

Fixed service port | 1 x 10/100/1000BASE-T port, supporting PoE input 1 x 1GE SFP port |
Fixed management port | 1 x RJ45 console port (serial console port) |
Status LED | 1 x multi-color system status LED 3 x single-color RSSI LEDs |
Button | 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings. |
Power Supply and Consumption | RG-AP680(CD) |
Input power supply | The AP supports the following two power supply modes: ● 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently. ● PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: If both DC power and PoE are available, DC power is preferred. |
Overall power consumption | Maximum power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6.0 W |
Environment and Reliability | RG-AP680(CD) |
Temperature | Operating temperature: –40°C to +65°C (–40°F to +149°F) Storage temperature: –40°C to +85°C (–40°F to +185°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Humidity | Operating humidity: 0% RH to 100% RH (non-condensing) Storage humidity: 0% RH to 100% RH (non-condensing) |
IP rating | IP68 |
Environment standard | Storage and shipment environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | > 250,000 hours |
Regulatory Compliance | RG-AP680(CD) |
Regulatory compliance | EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 300 328 EN 301 893 EN 300 440 FCC Part 15 EN IEC 62311 IEC 62368-1 EN 62368-1 IEC 60950-22 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Applicable Software Version | RG-AP680(CD) |
Applicable software version | RGOS11.9(6)W1B1 or later |
WLAN | RG-AP680(CD) |
Recommended maximum number of active devices per AP | 120 |
Maximum number of associated clients | 1024 Note The number of associated clients varies according to the environment. |
Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming |
Security | RG-AP680(CD) |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK and web authentication QR code-based guest authentication (used with the RG-WS series wireless access controller) SMS authentication (used with the RG-WS series wireless access controller) MAB authentication (used with the RG-WS series wireless access controller) WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64/128-bit) |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
ACL | Dynamic ACL assignment |
CPP | Supported |
NFPP | Supported |
Routing and Switching | RG-AP680(CD) |
IP service | Static IPv4 address IPv4 DHCP client NAT FTP ALG and NAT DNS ALG |
Multicast | Multicast-to-unicast conversion |
IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping IPv6 DHCP client |
IP routing | IPv4/IPv6 static routing |
VPN | PPPoE client IPsec VPN |
Management | RG-AP680(CD) |
Network management | Fault inspection and alarm Information statistics and logging |
Network management platform | Web-based management (Eweb) |
User access management | Telnet, SNMP, SSH, and TFTP-based management |
Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
