SKU: RG-AP630
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-AP630(IDA2)

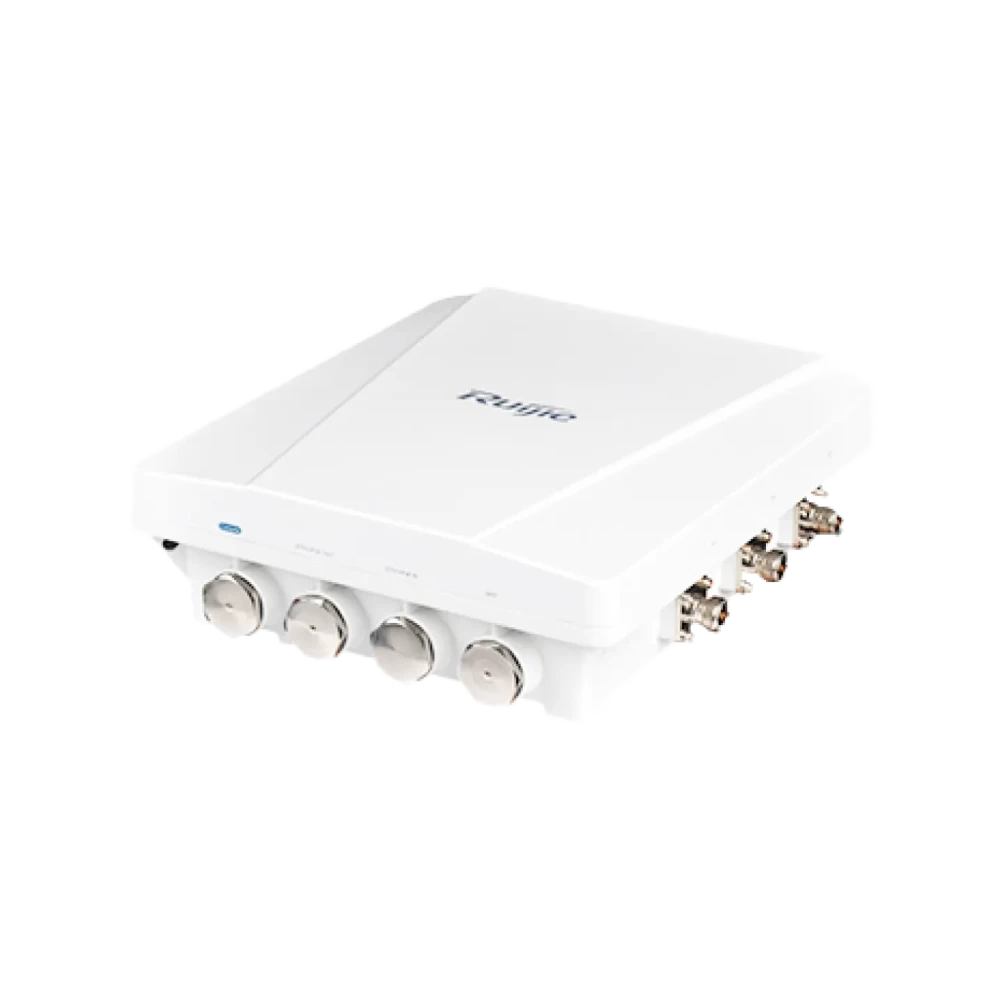

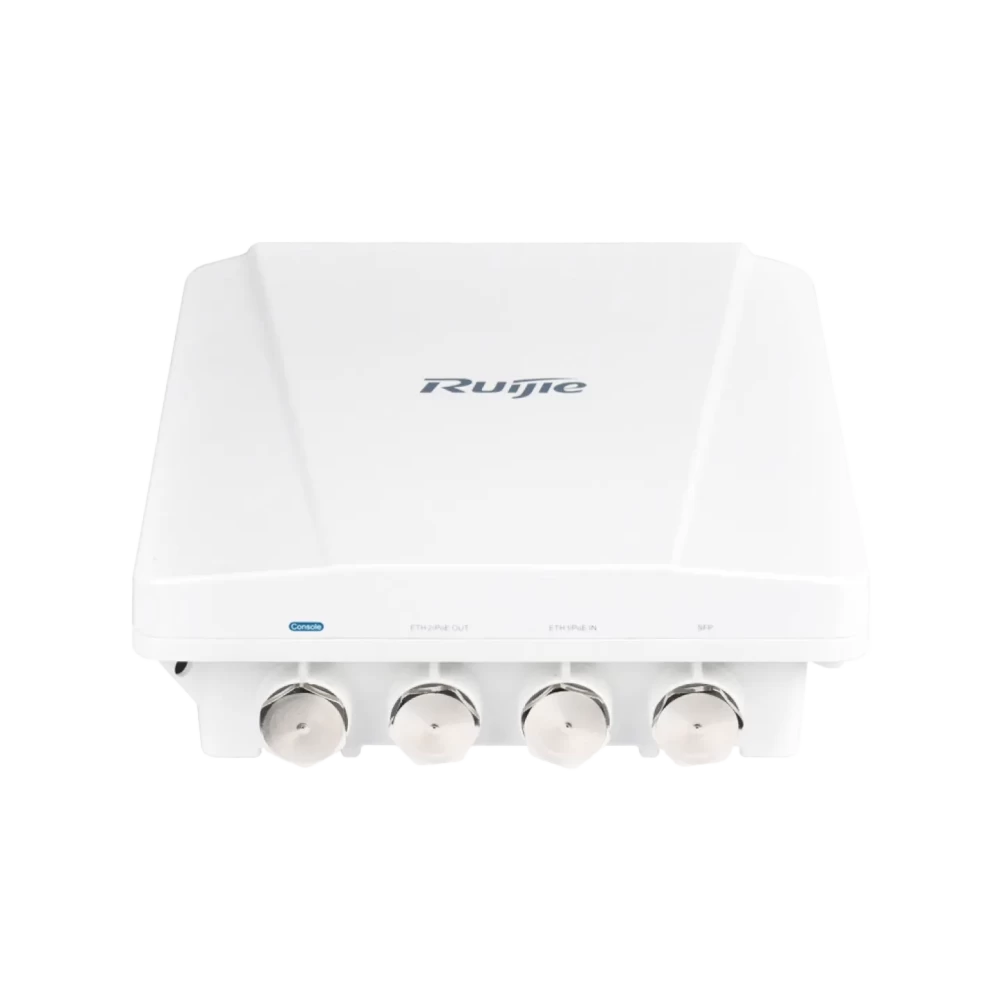

Outdoor Wireless Access Point, built-in directional smart antenna and lightning arrester, support internal/external antenna switching, support concurrent 802.1 1a/b/g/n/ac and WAVE2, FAT/FIT mode, PoE+ (Installation Mount-Kit included, but PoE adaptor sold separately)
Optional Accessories
RG-S2910-24GT4SFP-UP-H
24 x 10/100/1000BASE-T ports for downlink and 4 x gigabit SFP ports (non-combo) for uplink. To support HPOE (Port1~4), POE+, POE, 1 console port
Optional External Antennas
RG-ANTx3-2400D
2.4 GHz MIMO outdoor directional antenna kit, include:
15dBi panel antenna (1 set);
1-meter N-N coaxial cables (3 sets);
waterproof materials (1 set)
RG-ANTx3-5800D
5.8 GHz MIMO outdoor directional antenna kit, include:
19dBi panel antenna (1 set);
1-meter N-N coaxial cables (3 sets);
waterproof materials (1 set)
RG-ANTx3-2400&5800(O)
2.4 GHz & 5.8 GHz MIMO outdoor omnidirectional antenna kit, include:
8dBi panel antenna (1 set);
1-meter N-N coaxial cables (6 sets);
waterproof materials (2 sets)
Brand: Ruijie
Model Number: RG-AP630
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 11/11/2024
Model | RG-AP630(IDA2) | |
Target Deployments | For big campus, wireless city, harbor, storage room, mine | |
Basic Specifications | Radio | Concurrent dual-radio dual-band |
Protocol | 802.11a/b/g/n/ac Wave2 | |
Operating Bands | 802.11 b/g/n: 2.4GHz to 2.483GHz 802.11a/n/ac: 5.150GHz to 5.350GH z, 5.47GHz to 5.725GH z, 5.725GHz to 5.850GHz (vary depending on countries) | |
Antenna | Built-in Directional Smart Antenna (support external/ internal antenna switching) | |
Antenna Lobe Orientation | Internal Directional: Horizontal 60 degrees, Vertical 30 degrees | |
Antenna Gain | 10dBi | |
Model | RG-AP630(IDA2) | |
Basic Specifications | Max Throughput | Build-in antenna model: [email protected] 1733Mbps@5G 2.533Gbps per AP; External antenna model: [email protected] 1300Mbps@5G 1.9Gbps per AP |
Spatial Streams | 4 | |
Modulation | OFDM: BPSK@6/9Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps DQPSK@2Mbps [email protected]/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM | |
Receiver Sensitivity | 11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps) 11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps) 11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15 11ac HT20: -90dBm (MCS0) , -63dBm (MCS9) 11ac HT40: -85dBm(MCS0) , -60dBm (MCS9) 11ac HT80: -82dBm(MCS0) , -58dBm (MCS9) | |
Maximum Transmit Power | 27dBm transmit power depends on local laws and regulations. | |
Adjustable Power | 1dBm | |
IP Rating | IP67 | |
Ports | Service Port | 1 10/100/1000 Base-T ETH1/PoE IN port, 1 10/100/1000 Base-T ETH2 port, 1 1000M SFP port (combo) |
Management Port | 1 console port (RJ45) | |
Power | Power Supply | PoE+ (802.3at) |
Power Consumption | <25W | |
WLAN | Maximum clients per AP | Up to 512 |
BSSID capacity | Up to 16 per radio Up to 32 per AP | |
SSID hiding | Support | |
Model | RG-AP630(IDA2) | |
WLAN | Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | Support |
Remote Intelligent Perception Technology (RIPT) | Support | |
X-speed | Support | |
Intelligent load balancing based on the number of users or traffic | Support | |
STA control | SSID/radio-based | |
Bandwidth control | STA/SSID/AP-based speed control | |
Preference for 5 GHz (band select) | Support | |
Wireless position tracking | Support | |
Dynamic Frequency Selection (DFS) | Future Release Support | |
Security | PSK, Web, and 802.1x authentication | Support |
Data encryption | WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) | |
QR code authentication | Support | |
SMS authentication | Support | |
PEAP authentication | Support | |
Data frame filtering | Whitelist, static/dynamic blacklist | |
User isolation | Support | |
Rogue AP detection and countermeasure | Support | |
Dynamic ACL assignment | Support | |
RADIUS | Support | |
CPU Protection Policy (CPP) | Support | |
Network Foundation Protection Policy (NFPP) | Support | |
Wireless Intrusion Detection System (WIDS) | Support | |
Wireless Intrusion Prevention System (WIPS) | Support | |
Routing | IPv4 address | Static IP address or DHCP reservation |
IPv6 CAPWAP tunnel | Support | |
ICMPv6 | Support | |
IPv6 address |
| |
ISATAP | Support | |
Multicast | Support | |
Model | RG-AP630(IDA2) | |
Management and Maintenance | Network management | SNMP v1/v2C/v3, Telnet, SSH, TFTP and web management |
Visualized wireless heat map analysis | Support (needs to integrated with SNC) | |
Real-time spectrum analysis | Support (needs to in tegrated with SNC) | |
Fault detection and alarm | Support | |
Cloud AC management | Support | |
Statistics and logs | Support | |
FAT/FIT switching | The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC. The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet. | |
External Characterisitics | Lock | Support |
LED Indicators | Power status and WDS signal strength | |
Relevant Standard | Wi-Fi Alliance Certification | Support |
Safety Standard | GB4943, EN/IEC 60950-1, EN/IEC 60950-22 | |
EMC Standard | GB9254-2008, EN301 489, | |
Health Standard | EN 50385 | |
Radio Standard | FCC Part15, EN300328, EN301893 | |
Vibration Standard | GB/T 2423 | |
Specifications | Dimensions (W x D x H) (mm) | 276 x 246 x 90 |
Weight | <2.5kg | |
Work Environment | Temperature | Operating Temperature: -40°C to 65°C (heater module will be enabled at -15°C) |
Storage Temperature: | ||
Humidity | Operating Humidity: 0% to100% (non-condensing) | |
Storage Humidity: 0% to 100% (non-condensing) | ||
Installation Mode | Wall/pole-m ount installation | |
Outdoor Antennas
Model | RG-ANTx3-2400D | RG-ANTx3-5800D | RG-ANTx3-2400&5800(o) | |
Type of External Antenna | Directional | Directional | Omnidirectional | |
Electrical Specifications | Frequency range | 2.4 to 2.483GHz | 5.125 to 6.100GHz | 2.4 to 2.5GHz 5.125 to 6.100GHz |
Gain | 3 x 15dBi | 2 x 19dBi (vertical) + 16dBi (dual inclined planes) | 8 dBi | |
Horizontal beamwidth | 65° | 21° | 360° | |
Vertical beamwidth | 16° | 16° | 17° | |
Front-to-back ratio | < -25 dB | < -25 dB | <-25 dB | |
VSWR | < 1.5 | <1.5 | <1.5 | |
Polarization | 2*VP (vertical polarization)+1*HP (horizontal polarization) | ±45° and vertical polarization | VP (vertical polarization) | |
Input impedance | 50 ohms | 50 ohms | 50 ohms | |
Mechanical Specifications | Mounting mode | Pole mounting | Pole mounting | Pole mounting |
Temperature range | -40°C to 60°C | -40°C to 60°C | -40°C to 60°C | |
Unit weight | 2.3 kg | 1.3 kg | 1.2 kg | |
Dimensions | 400 x 240 x 35 mm | 380 x 380 x 33 mm | 145 x 330 mm | |
Connector | 3 x N-K | 3 x N-K | 6 x N-K | |
