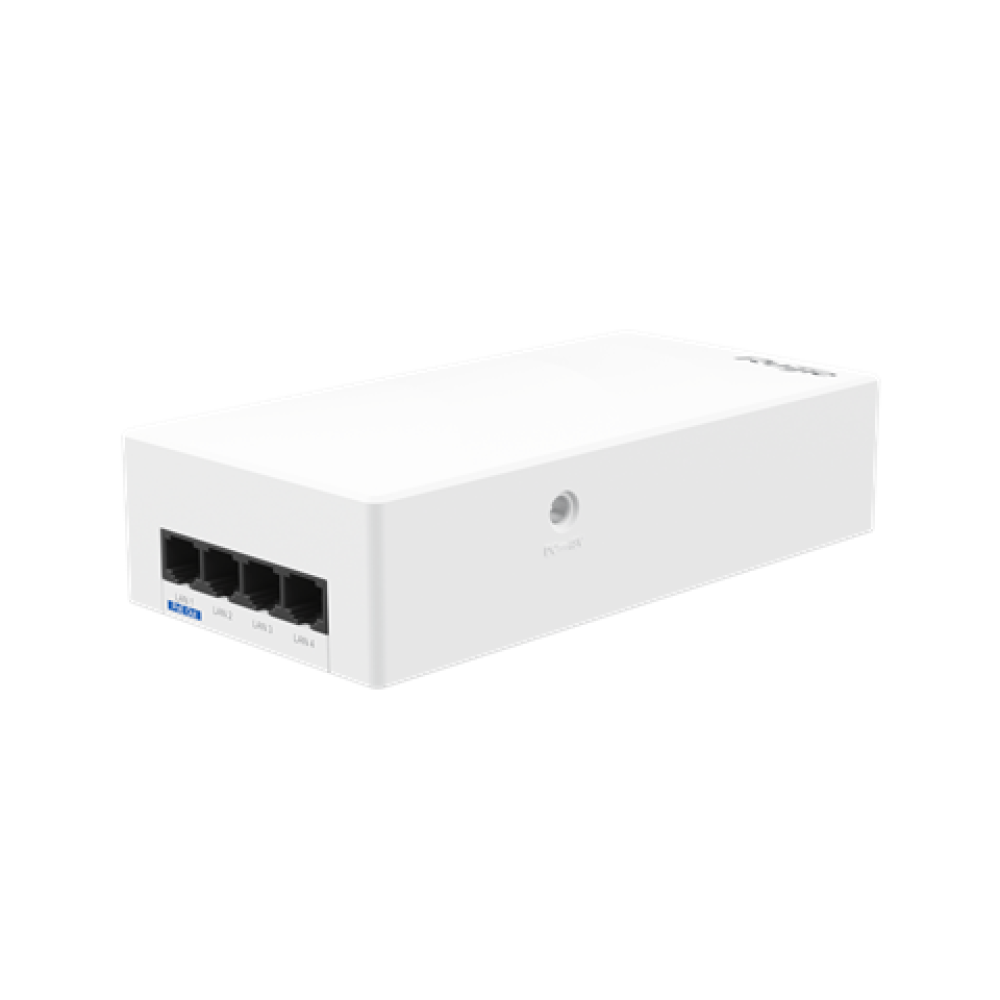

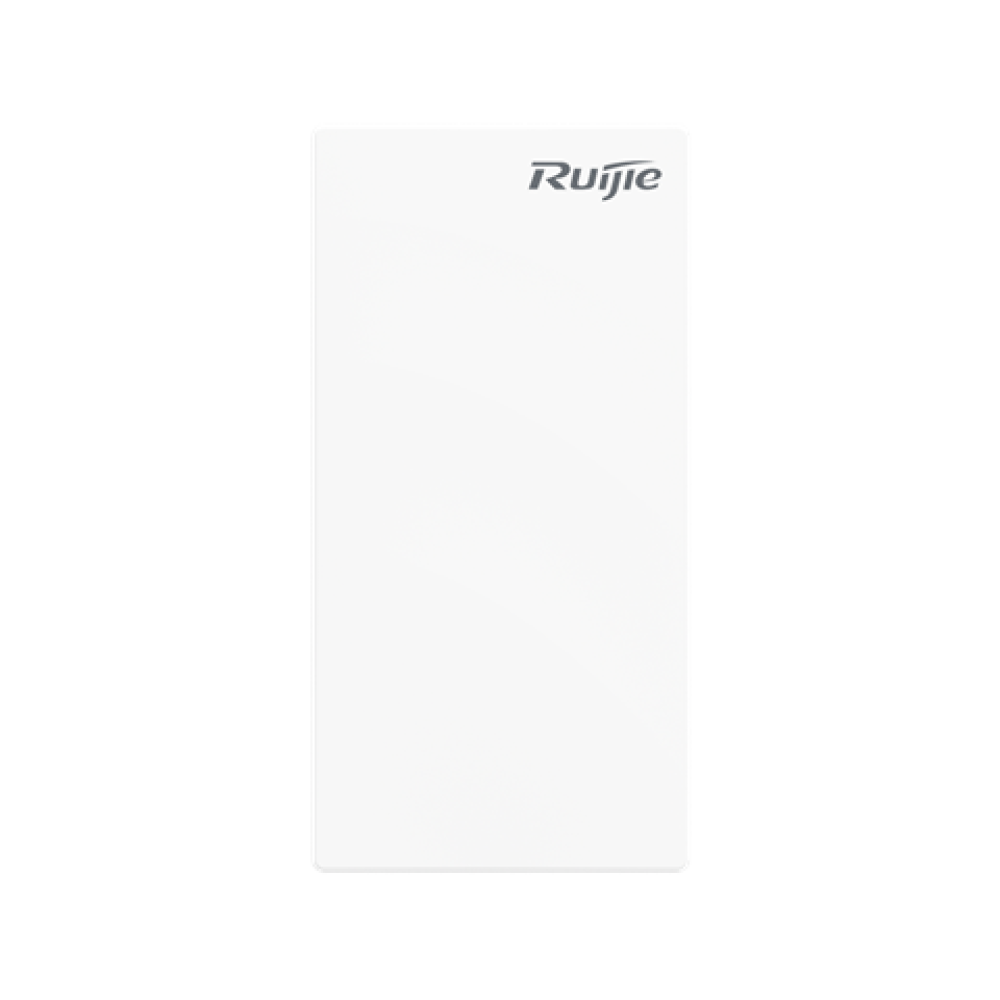

RG-AP180P-L, Wi-Fi 6 Dual-Radio 2.976 Gbps  RUIJIE Wall Plate AP
RG-AP180P-L, Wi-Fi 6 Dual-Radio 2.976 Gbps  RUIJIE Wall Plate AP
RG-AP180P-L, Wi-Fi 6 Dual-Radio 2.976 Gbps  RUIJIE Wall Plate AP
In stock

RG-AP180P-L, Wi-Fi 6 Dual-Radio 2.976 Gbps RUIJIE Wall Plate AP

SKU: RG-AP180P-L

Category: ruijie access points

Availability: Unlimited

0.00/5 (0 Review)
Quantity:
Total: KD 85.000
Share on:

Description

Model

Description

RG-AP180P-L

Wi-Fi 6 dual-radio wall plate wireless access point

Up to four spatial streams

Data rate of up to 2.976 Gbps

Compliance with IEEE 802.11a/b/g/n/ac and 802.11ax standards

Fat/Fit/Cloud mode switchover

IEEE 802.3af/at-compliant power supply and DC power supply

Note:

●    A PSE needs to be purchased separately.

●    A 48 V/0.6 A power adapter needs to be purchased separately.

Product Specifications

Brand: Ruijie

Model Number: RG-AP180P-L

Availability: In stock

Minimum order quantity: 1

Maximum order quantity: 999

Listed date: 17/12/2024

Hardware Specifications

Dimensions and Weight

RG-AP180P-L

Unit dimensions(W x H x D)

86 mm x 170 mm x 43 mm (3.39 in. × 6.69 in. × 1.69 in.)

Shipping dimensions(W x D x H)

399 mm x 367 mm x 245 mm (15.71 in. × 14.45 in. × 9.65 in.)

Unit weight

Main unit: 0.3 kg (0.66 lbs)

Mounting bracket: 0.1 kg (0.22 lbs)

Shipping weight

11.53 kg (25.42 lbs)

Mounting

Wall-mount (a mounting bracket is delivered with the main unit)

Junction box-mount (86 mm/European-standard/American-standard junction box)

Color

Elegant white

Lock option

Kensington lock



Wi-Fi Radio

RG-AP180P-L

Radio design

Dual-radio and up to four spatial streams:

● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1, 802.11b/g/n/ax:

● 2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13

Radio 2, 802.11a/n/ac/ax:

● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

● 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.

Data rates

Combined peak data rate: 2.976 Gbps

Radio 1: 2.4 GHz, 574 Mbps

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

Radio 2: 5 GHz, 2.402 Gbps

● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160)

● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)

Antenna gain

2.4 GHz: 5 dBi

5 GHz: 5 dBi

Maximum transmit power

2.4 GHz radio: 20 dBm (17 dBm per chain)

5 GHz radio: 20 dBm (17 dBm per chain)

Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.



Thailand

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM



The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency Performance

RG-AP180P-L

Frequency Band and Protocol

Data Rate

Maximum Transmit Power per Transmit Chain

Maximum Receive Sensitivity per Receive Chain

2.4 GHz, 802.11b

1 Mbps

20 dBm

–96 dBm

2 Mbps

-10 dBm

–94 dBm

5.5 Mbps

-10 dBm

–93 dBm

11 Mbps

-10 dBm

–89 dBm

2.4 GHz, 802.11g

6 Mbps

19 dBm

–91 dBm

24 Mbps

17 dBm

–85 dBm

36 Mbps

17 dBm

–80 dBm

54 Mbps

16 dBm

–74 dBm

2.4 GHz, 802.11n (HT20)

MCS0

19 dBm

–85 dBm

MCS7

16 dBm

–67 dBm

2.4 GHz, 802.11n (HT40)

MCS0

19 dBm

–82 dBm

MCS7

16 dBm

–64 dBm

2.4 GHz, 802.11ax (HE20)

MCS0

18 dBm

–85 dBm

MCS11

12 dBm

–58 dBm

2.4 GHz, 802.11ax (HE40)

MCS0

17 dBm

–82 dBm

MCS11

12 dBm

–54 dBm

5 GHz, 802.11a

6 Mbps

18 dBm

–89 dBm

24 Mbps

17 dBm

–82 dBm

36 Mbps

17 dBm

–78 dBm

54 Mbps

15 dBm

–72 dBm

5 GHz, 802.11n (HT20)

MCS0

18 dBm

–85 dBm

MCS7

14 dBm

–67 dBm

5 GHz, 802.11n (HT40)

MCS0

17 dBm

–82 dBm

MCS7

14 dBm

–64 dBm

5 GHz, 802.11ac (VHT20)

MCS0

18 dBm

–85 dBm

MCS9

13 dBm

–60 dBm

5 GHz, 802.11ac (VHT40)

MCS0

17 dBm

–82 dBm

MCS9

13 dBm

–57 dBm

5 GHz, 802.11ac (VHT80)

MCS0

16 dBm

–82 dBm

MCS9

13 dBm

–56 dBm

5 GHz, 802.11ax (HE20)

MCS0

18 dBm

–85 dBm

MCS11

12 dBm

–58 dBm

5 GHz, 802.11ax (HE40)

MCS0

17 dBm

–82 dBm

MCS11

12 dBm

–54 dBm

5 GHz, 802.11ax (HE80)

MCS0

16 dBm

–82 dBm

MCS11

12 dBm

–52 dBm

5 GHz, 802.11ax (HE160)

MCS0

15 dBm

–79 dBm

MCS11

12 dBm

–50 dBm



Bluetooth Radio

RG-AP180P-L

Bluetooth

Bluetooth 5.1

Antenna type

Onboard omnidirectional antenna

Maximum antenna gain

2.4 dBi, with a downtilt angle of roughly 30 degrees

Maximum transmit power

10 dBm

Receive sensitivity

–88 dBm (@BLE)



Ports Specifications

RG-AP180P-L

Fixed service port

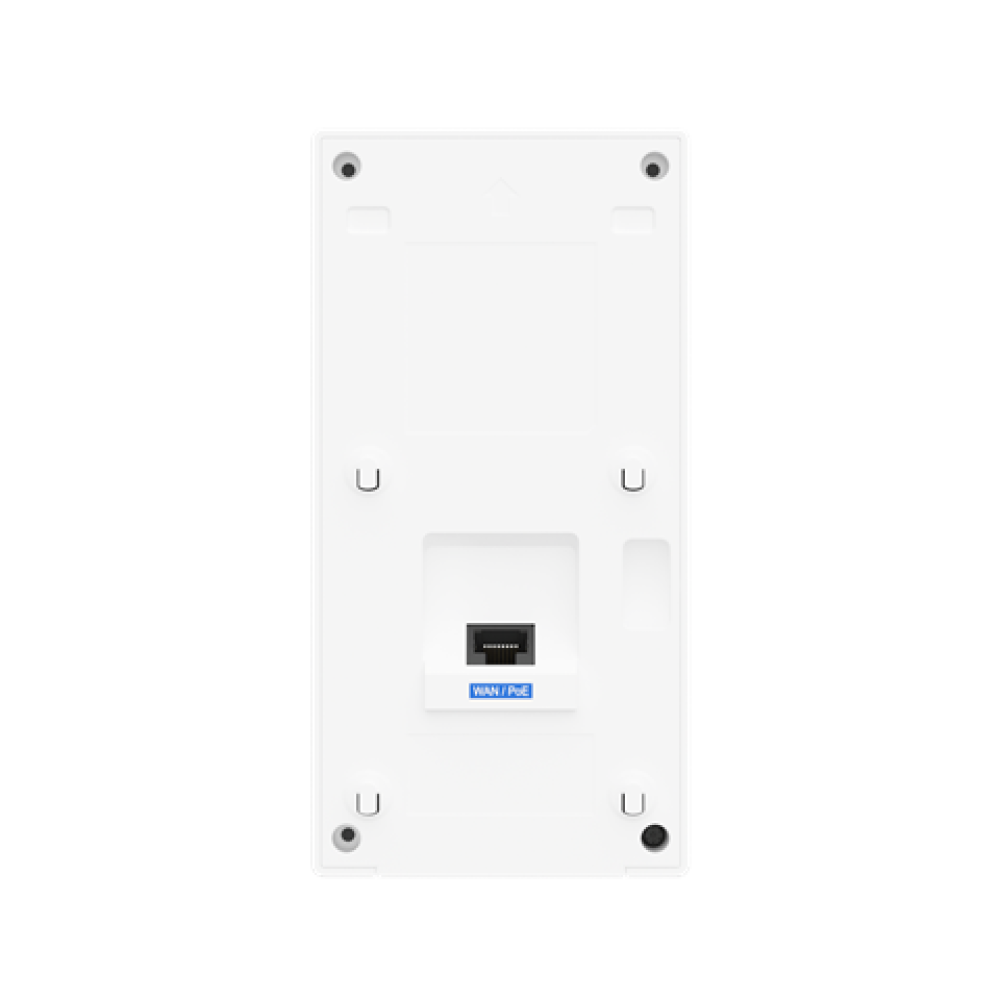

Uplink:

1 x 100/1000/2.5GBASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+)

When powered by 802.3af PoE, LAN 1 cannot supply power to an attached device.

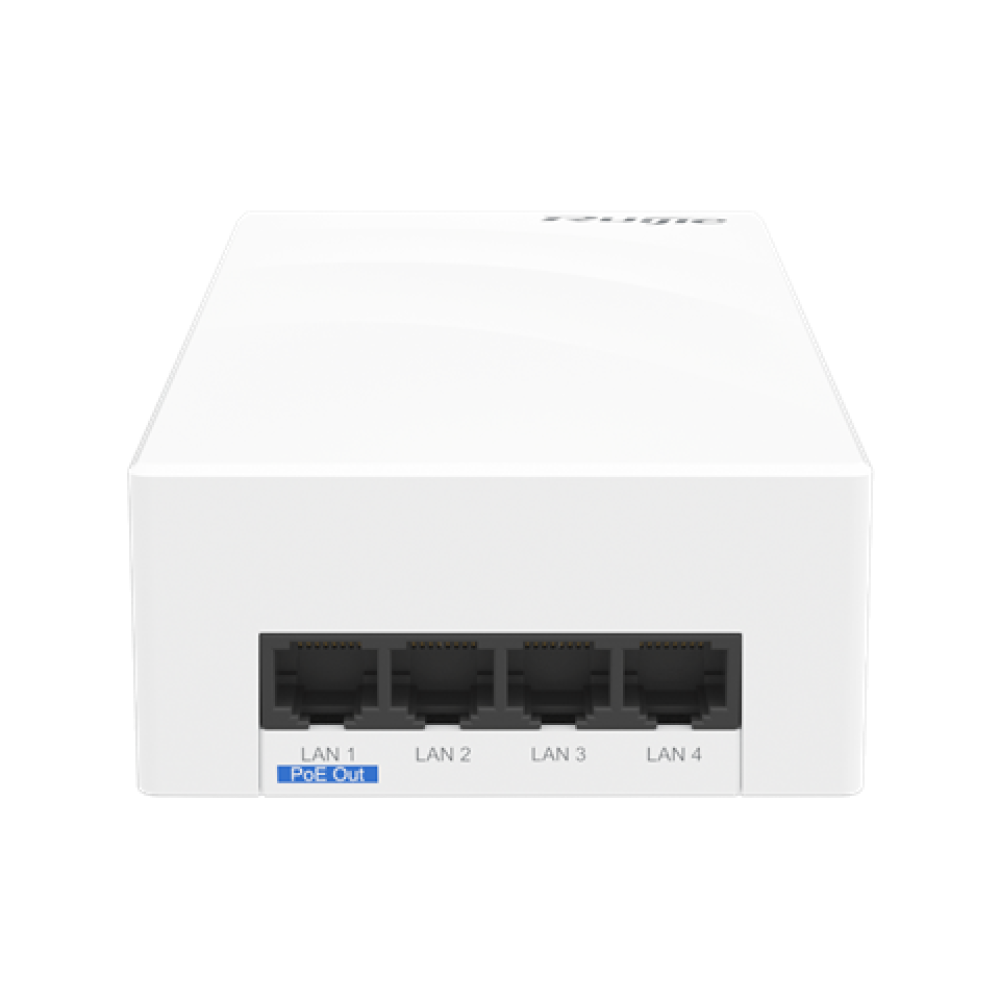

Downlink:

4 x 10/100/1000BASE-T ports

LAN 1 supports 48 V/10 W power supply to an attached device.

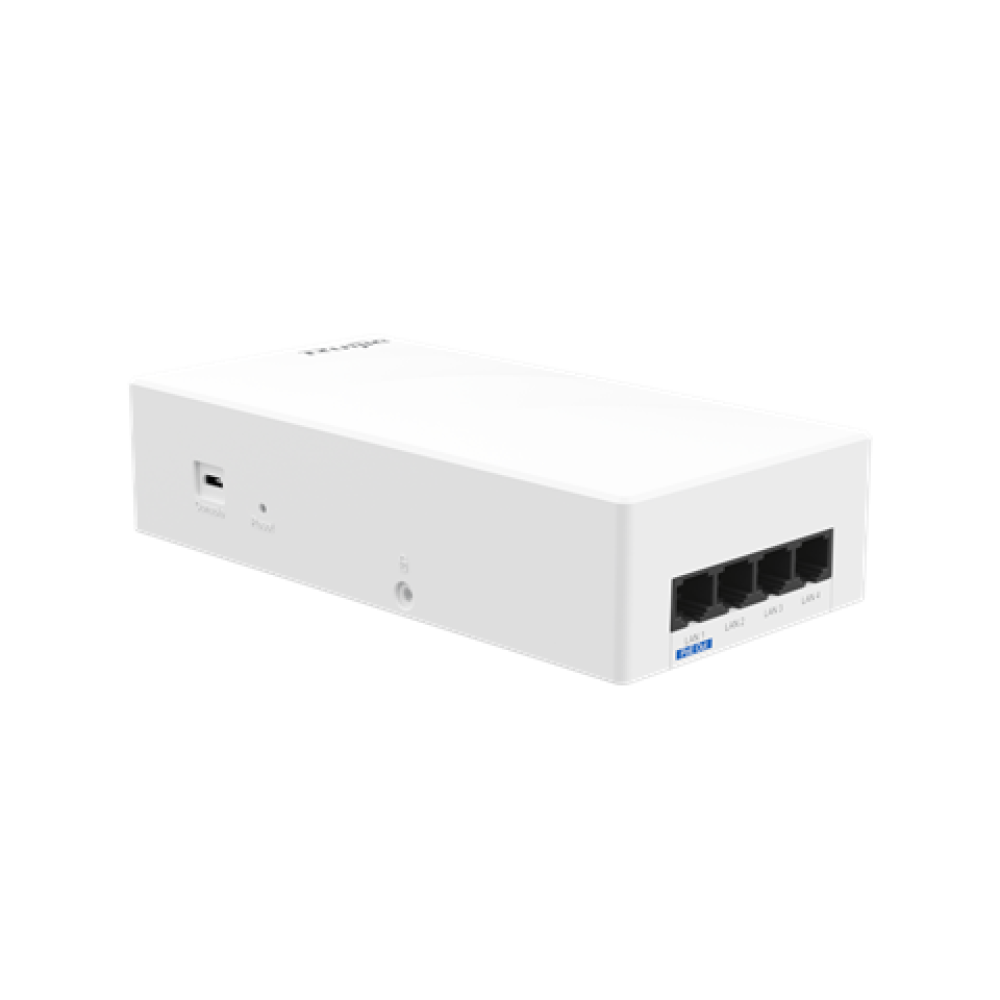

Fixed management port

1 x Micro USB console port

Status LED

1 x multi-color system status LED

Button

1 x Reset button

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 5 seconds. Then the device restores to factory settings.



Power Supply and Consumption

RG-AP180P-L

Input power supply

The AP supports the following two power supply modes:

● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.

● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).

Note:

● When powered by 802.3at (PoE+), the AP operates with the optimal performance.

● If both DC power and PoE are available, DC power is preferred.

PoE port

LAN 1 supports 48 V/10 W PoE output to an attached device.

Overall power consumption

Maximum power consumption: 25 W

● DC powered: 25 W

● PoE powered (802.3af): 15 W

● PoE+ powered (802.3at): 25 W

● Idle mode: 8 W



Environment and Reliability

RG-AP180P-L

Temperature

Operating temperature: 0°C to 40°C (–32°F to +104°F)

Storage temperature: –40°C to 70°C (–40°F to +158°F)

Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 5% RH to 95% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Mean Time Between Failure (MTBF)

200,000 hours (22 years) at the operating temperature of 25°C (77°F)



Regulatory Compliance

RG-AP180P-L

Security regulations

IEC 62368-1

EN 62368-1

EMC regulations

EN 55032

EN 55035

EN IEC 61000-3-2

EN 61000-3-3

EN 301 489-1

EN 301 489-3

EN 301 489-17

Radio frequency regulations

EN 300 328

EN 301 893

EN 300 440

EN 62311

EN IEC 62311

EN 50665

FCC Part 15

* For more country-specific regulatory information and approvals, contact your local sales agency.



Software Specifications

Applicable software version

RG-AP180P-L

Applicable software version

RGOS11.9(6)W3B3 or higher



WLAN

RG-AP180P-L

Recommended maximum number of active devices per AP

120

Maximum number of associated clients

256

 Note

The number of associated clients varies according to the environment.

Maximum number of BSSIDs

32 (up to 16 BSSIDs per radio)

STA management

SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent load balancing based on the STA quantity or traffic

STA limiting

SSID-based STA limiting

Radio-based STA limiting

Bandwidth limiting

STA/SSID/AP-based rate limiting

Wireless roaming

Layer 2 and Layer 3 roaming



Security and Authentication

RG-AP180P-L

Authentication and encryption

Remote Authentication Dial-In User Service (RADIUS)

PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE

Data frame filtering

Allowlist, static blocklist, and dynamic blocklist

ACL

Dynamic ACL assignment

● ACL assignment based on time spans

● ACL assignment (complete entry) based on MAC addresses

● Execution of pre-configured ACLs (entry index) based on MAC addresses

CPP

Supported

NFPP

Supported



Routing and Switching

RG-AP180P-L

IP service

Static IPv4 address and DHCP-assigned IPv4 address

Multicast

Multicast-to-unicast conversion

IPv6 basics

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping

IPv6 DHCP Client

IP routing

IPv4/IPv6 static routing

VPN

PPPoE client

IPsec VPN



Management

RG-AP180P-L

Network management

Fault inspection and alarm

Information statistics and logging

SNMPv1/v2c/v3

NTP Server and NTP Client

Network management platform

Ruijie Cloud

Web-based management (Eweb)

STA access management

Console, Telnet, SSH, SNMP and TFTP-based management

Fat/Fit/Cloud mode switchover

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Customer Feedback

0

0 Verified ratings
0%
0%
0%
0%
0%

No review found.

Delivery Info

Flat Rate

Free Shipping on Flat Rate starts from order amount KD 0.000

Choose your Location

Hawalli
  • Choose City
  • Bayan
  • Hawalli
  • Massilah
  • Mushrif
  • Salwa'
  • Sha''ab
  • Subbah-as-Salim
  • al-Funaytis
  • al-Funaytis-al-Garbiyah
  • al-Jabiriyah
  • al-Karim
  • ar-Rumaythiyah
  • as-Salimiyah
  • Mishref
  • Qadesiya
  • Safat
  • Salmiya
  • A'qaylah
  • Abu Hulayfah
  • Dahar
  • Desert Area
  • Hadiyah
  • Jabbar-al-'Ali
  • Shu'aybah
  • al-Ahmadi
  • al-Fintas
  • al-Fuhayhil
  • al-Mahbulah
  • al-Manqaf
  • al-Wafrah
  • ar-Riqqah
  • as-Sabahiyah
  • az-Zawr
  • 'Umayriyah
  • Abraq Khitan
  • Ardiyah
  • Fardaws
  • Jalib ash-Shuyuh
  • Janub-as-Surrah
  • Khitan-al-Janubiyah
  • Qartaba
  • Ray
  • Riqay
  • Sabhan
  • Sarbah-an-Nasr
  • Warmawk
  • al-Andalus
  • al-Farwaniyah
  • ar-Rabbiyah
  • Amgarah
  • Desert Area
  • Nasim
  • Tayma'
  • Uyawn
  • Waha
  • al-Jahra
  • al-Qusayr
  • as-Sulaybiyah
  • 'Abullah-as-Salam
  • Ardhiyah
  • Banayd-al-Qar
  • Health District
  • Kayfan
  • Khalidiyah
  • Mansuriyah
  • Nuzha
  • Qarnadah
  • Shamiyah
  • ad-Da'iyah
  • ad-Dasma
  • ad-Dawhah
  • al-'Udayliyah
  • al-Fayha
  • al-Kuwayt
  • al-Qadisiyah
  • ar-Rawdah
  • as-Sulaybihat
  • ash-Shuwaykh Industrial
  • ash-Shuwaykh Reservoir
Hawalli, Ibn Khaldoun St, Kuwait City
  • Choose pickup location
  • Hawalli, Ibn Khaldoun St, Kuwait City
Door Delivery

Door Delivery

Pickup Location

Pickup Location

Return Policy

Return Policy

Easy Return, Quick Refund. See more.

Shoping Cart

0 Item’s selected

Subtotal

KD 0.000
