Dimensions and Weight

RG-AP180

Unit dimensions

(W x H x D)

In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.)

Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)

Shipping dimensions

(W x D x H)

508 mm x 390 mm x 152 mm (20.00 in. x 15.35 in. x 5.98 in.)

Unit weight

0.19 kg (0.42 lbs)

Shipping weight

9.67 kg (21.32 lbs)

Mounting

Wall-mount

Junction box-mount (86 mm/European-standard junction box)

Note: If you want to use an American-standard junction box, purchase an RG-AP180-MNT mounting bracket separately.

Color

Elegant white

Wi-Fi Radio

RG-AP180

Radio design

Dual-radio and up to four spatial streams:

● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO

● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1: 802.11b/g/n/ax

● 2.400 GHz to 2.4835 GHz, ISM, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.

Data rates

Combined peak data rate: 1.775 Gbps

Radio 1: 2.4 GHz, 574 Mbps

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

Radio 2: 5 GHz, 1.201 Gbps

● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maximum)

● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)

● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum)

● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

● 802.11b: 1, 2, 5.5, 11

● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40)

● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54

● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80)

● 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in intelligent antennas (two 2.4 GHz antennas and two 5 GHz antennas)

Antenna gain

2.4 GHz: 2.5 dBi

5 GHz: 5.5 dBi

Maximum transmit power

2.4 GHz radio: 20 dBm (17 dBm per chain)

5 GHz radio: 20 dBm (17 dBm per chain)

Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Thailand

2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm

5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm

5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm

5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance

RG-AP180

Frequency Band and Protocol

Data Rate

Maximum Transmit Power per Transmit Chain

Maximum Receive Sensitivity per Receive Chain

2.4 GHz, 802.11b

1 Mbps

18 dBm

–91 dBm

2 Mbps

17 dBm

–91 dBm

5.5 Mbps

16 dBm

–90 dBm

11 Mbps

15 dBm

–87 dBm

2.4 GHz, 802.11g

6 Mbps

18 dBm

–89 dBm

24 Mbps

16 dBm

–82 dBm

36 Mbps

16 dBm

–78 dBm

54 Mbps

15 dBm

–72 dBm

2.4 GHz, 802.11n (HT20)

MCS0

18 dBm

–85 dBm

MCS7

15 dBm

–77 dBm

2.4 GHz, 802.11n (HT40)

MCS0

18 dBm

–82 dBm

MCS7

15 dBm

–64 dBm

2.4 GHz, 802.11ax (HE20)

MCS0

18 dBm

–85 dBm

MCS11

12 dBm

–58 dBm

2.4 GHz, 802.11ax (HE40)

MCS0

18 dBm

–82 dBm

MCS11

12 dBm

–54 dBm

5 GHz, 802.11a

6 Mbps

18 dBm

–89 dBm

24 Mbps

16 dBm

–82 dBm

36 Mbps

16 dBm

–78 dBm

54 Mbps

15 dBm

–72 dBm

5 GHz, 802.11n (HT20)

MCS0

18 dBm

–85 dBm

MCS7

15 dBm

–67 dBm

5 GHz, 802.11n (HT40)

MCS0

18 dBm

–82 dBm

MCS7

15 dBm

–64 dBm

5 GHz, 802.11ac (VHT20)

MCS0

18 dBm

–85 dBm

MCS9

13 dBm

–60 dBm

5 GHz, 802.11ac (VHT40)

MCS0

18 dBm

–82 dBm

MCS9

13 dBm

–57 dBm

5 GHz, 802.11ac (VHT80)

MCS0

18 dBm

–79 dBm

MCS9

13 dBm

–53 dBm

5 GHz, 802.11ax (HE20)

MCS0

18 dBm

–85 dBm

MCS11

12 dBm

–58 dBm

5 GHz, 802.11ax (HE40)

MCS0

18 dBm

–82 dBm

MCS11

12 dBm

–54 dBm

5 GHz, 802.11ax (HE80)

MCS0

18 dBm

–79 dBm

MCS11

12 dBm

–52 dBm

Bluetooth Radio

RG-AP180

Bluetooth

Bluetooth 5.0

Antenna type

Onboard omnidirectional antenna

Maximum antenna gain

2.4 dBi, with a downtilt angle of roughly 30 degrees

Maximum transmit power

10 dBm

Receive sensitivity

–88 dBm (@BLE)

Ports Specifications

RG-AP180

Fixed service port

Uplink:

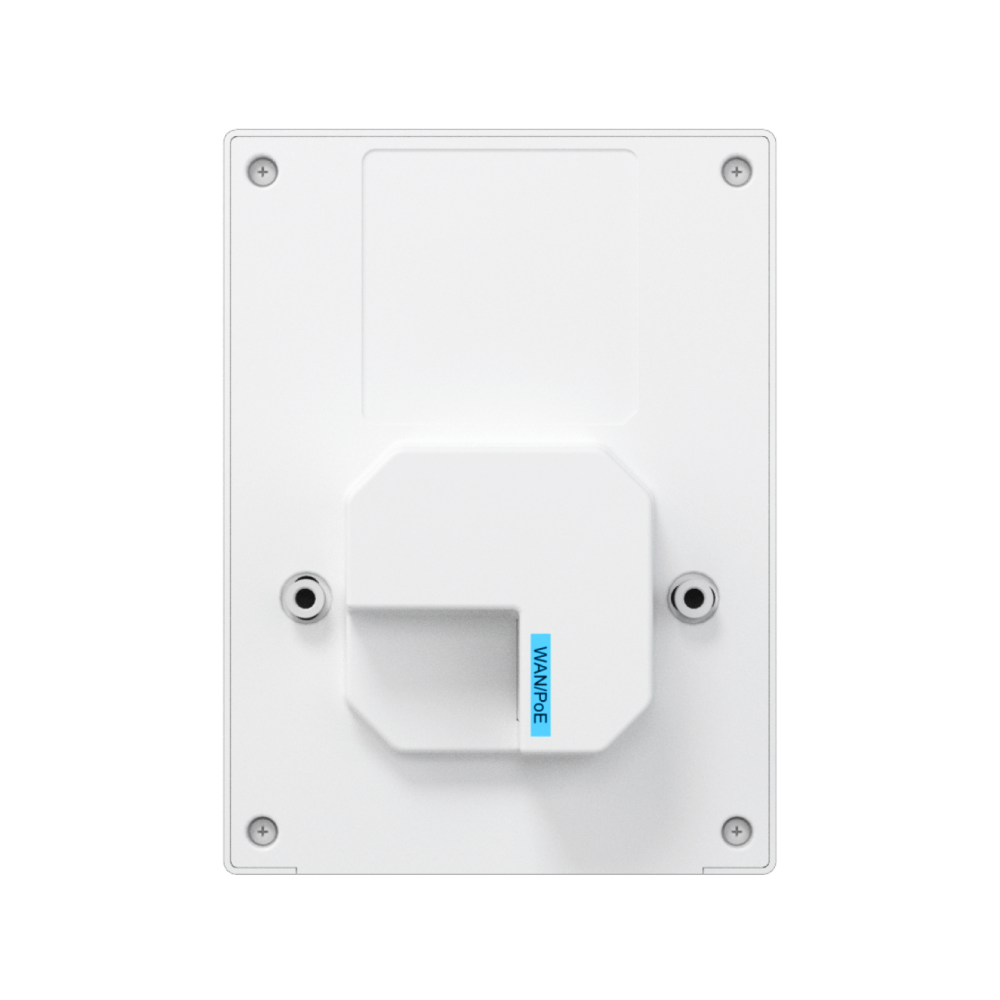

1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+).

Downlink:

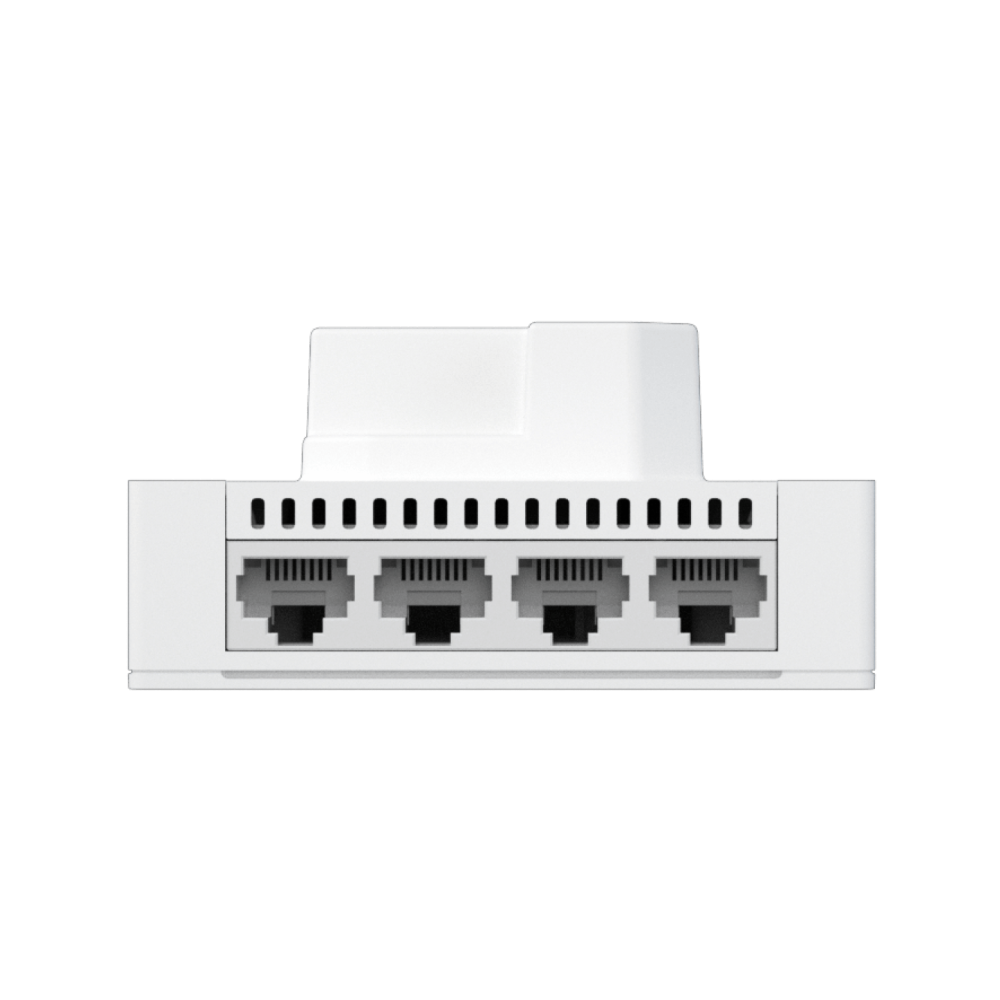

4 x 10/100/1000BASE-T ports

Fixed management port

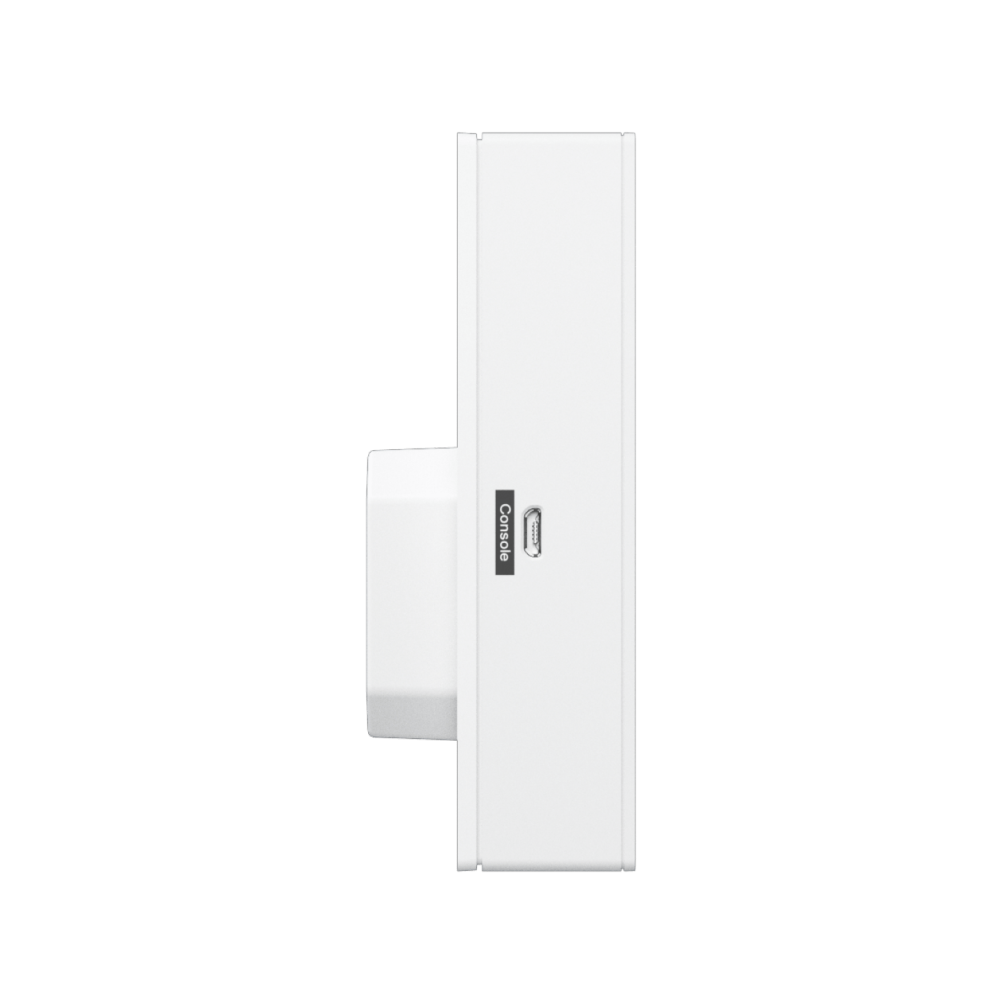

1 x Micro USB console port (under the decorative cover)

Status LED

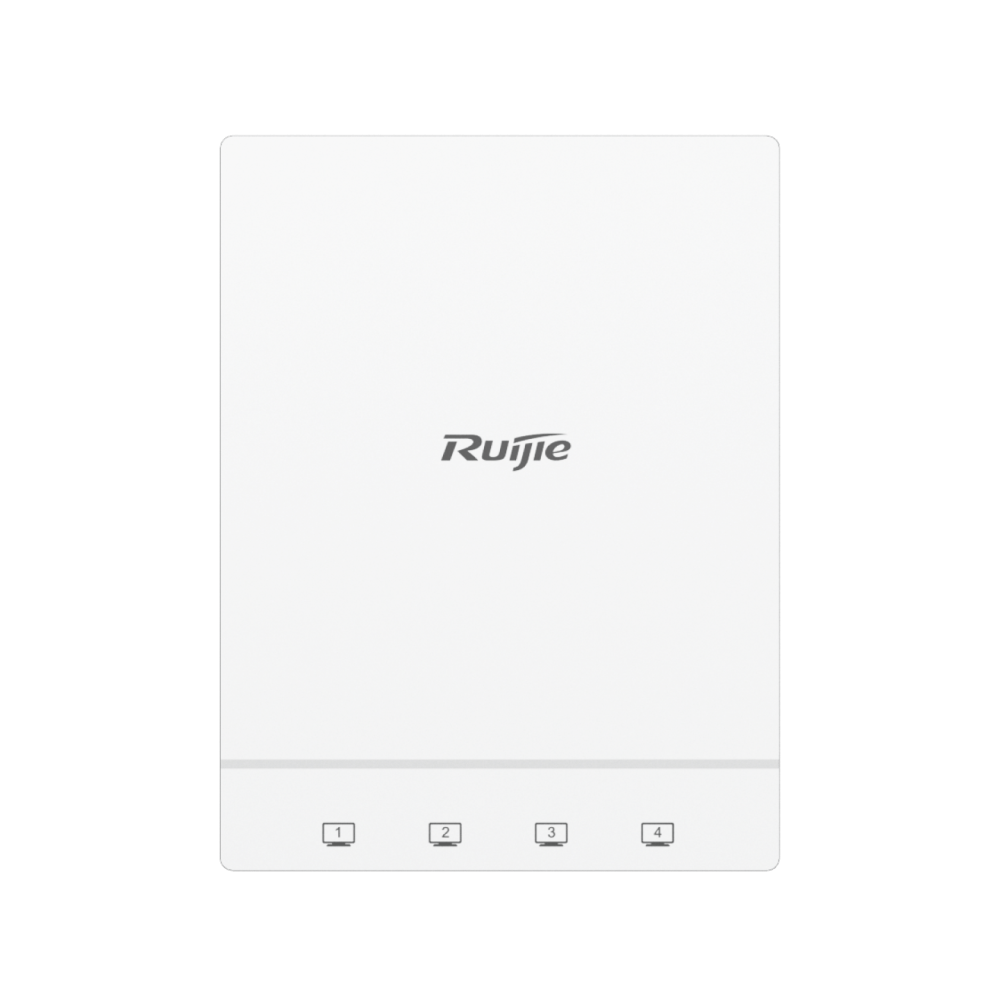

1 x multi-color system status LED

Button

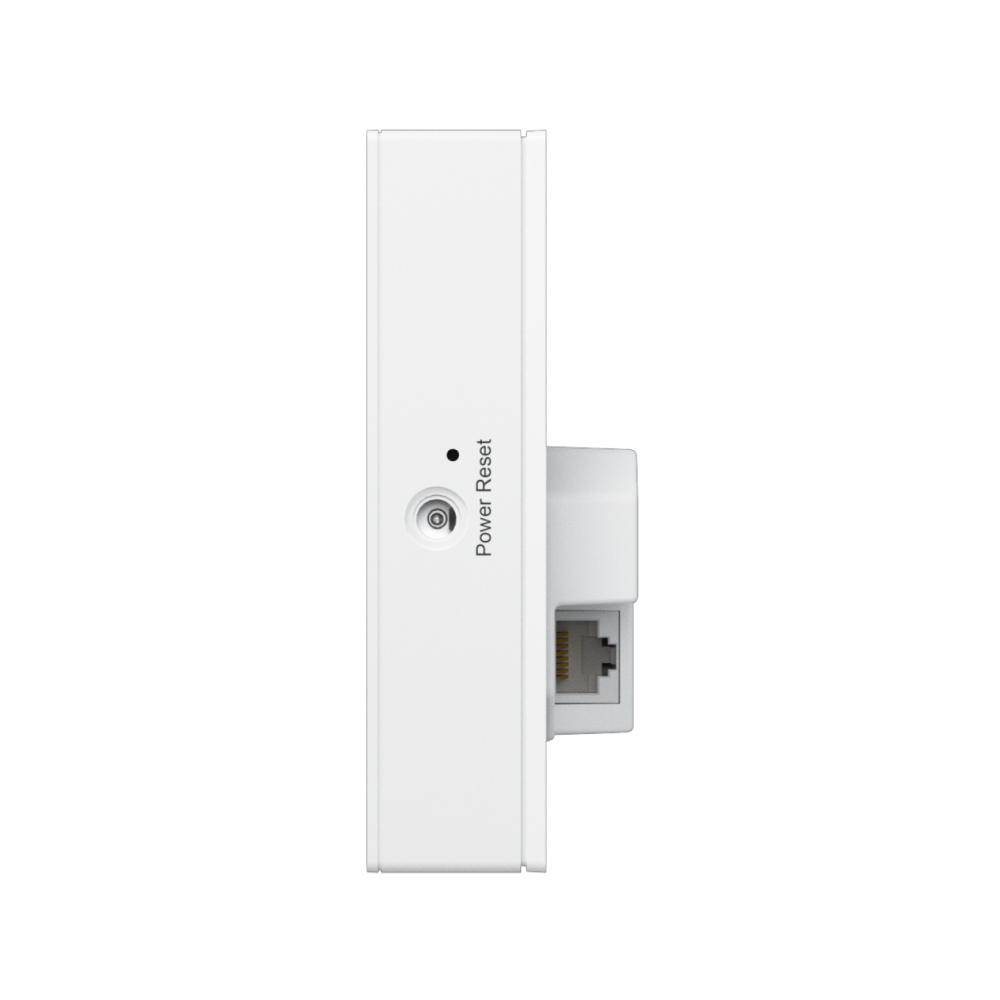

1 x Reset button

● Press the button for shorter than 2 seconds. Then the device restarts.

● Press the button for longer than 3 seconds. Then the device restores to factory settings.

Power Supply and Consumption

RG-AP180

Input power supply

The AP supports the following two power supply modes:

● 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.

● PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard.

Note:

● When powered by 802.3at (PoE+), the AP operates with the optimal performance.

● If both DC power and PoE are available, DC power is preferred.

Overall power consumption

Maximum power consumption: 10 W

● DC powered: 10 W

● PoE powered (802.3af): 10 W

● Idle mode: 3.3 W

Environment and Reliability

RG-AP180

Temperature

Operating temperature: –10°C to +50°C (14°F to 122°F)

Storage temperature: –40°C to+ 70°C (–40°F to +158°F)

Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 5% RH to 95% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Mean Time Between Failure (MTBF)

200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Regulatory Compliance

RG-AP180

Security regulations

IEC 62368-1

EN 62368-1

EMC regulations

EN 55032

EN 55035

EN IEC 61000-3-2

EN 61000-3-3

EN 301 489-1

EN 301 489-3

EN 301 489-17

Radio frequency regulations

EN 300 328

EN 301 893

EN 300 440

EN IEC 62311

FCC Part 15

Applicable software version

RG-AP180

Applicable software version

RGOS11.9(6)W1B9 or later

WLAN

RG-AP180

Recommended maximum number of active devices per AP

120

Maximum number of associated clients

256

 Note

The number of associated clients varies according to the environment.

Maximum number of BSSIDs

16 (up to 8 BSSIDs per radio)

STA management

SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent client identification technology

Intelligent load balancing based on the STA quantity or traffic

STA limiting

SSID-based STA limiting

Radio-based STA limiting

Bandwidth limiting

STA/SSID/AP-based rate limiting

Wireless roaming

Layer 2 and Layer 3 roaming

Security and Authentication

RG-AP180

Authentication and encryption

Remote Authentication Dial-In User Service (RADIUS)

PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE

Data frame filtering

Allowlist, static blocklist, and dynamic blocklist

ACL

Dynamic ACL assignment

● ACL assignment based on time spans

● ACL assignment (complete entry) based on MAC addresses

● Execution of pre-configured ACLs (entry index) based on MAC addresses

CPP

Supported

NFPP

Supported

Routing and Switching

RG-AP180

IP service

Static IPv4 address and DHCP-assigned IPv4 address

NAT ALG FTP and NAT ALG DNS

Multicast

Multicast-to-unicast conversion

IPv6 basics

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping

IPv6 DHCP client

IP routing

IPv4/IPv6 static routing

VPN

PPPoE client

IPsec VPN, up to four IPsec tunnels

Management

RG-AP180

Network management

Fault inspection and alarm

Information statistics and logging

SNMPv1/v2c/v3

NTP Server and NTP Client

Network management platform

Ruijie Cloud

Web-based management (Eweb)

User access management

Console, Telnet, SSH, SNMP and TFTP-based management

Fat/Fit/Cloud mode switchover

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
