SKU: RG-AM5532
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description
RG-AM5532

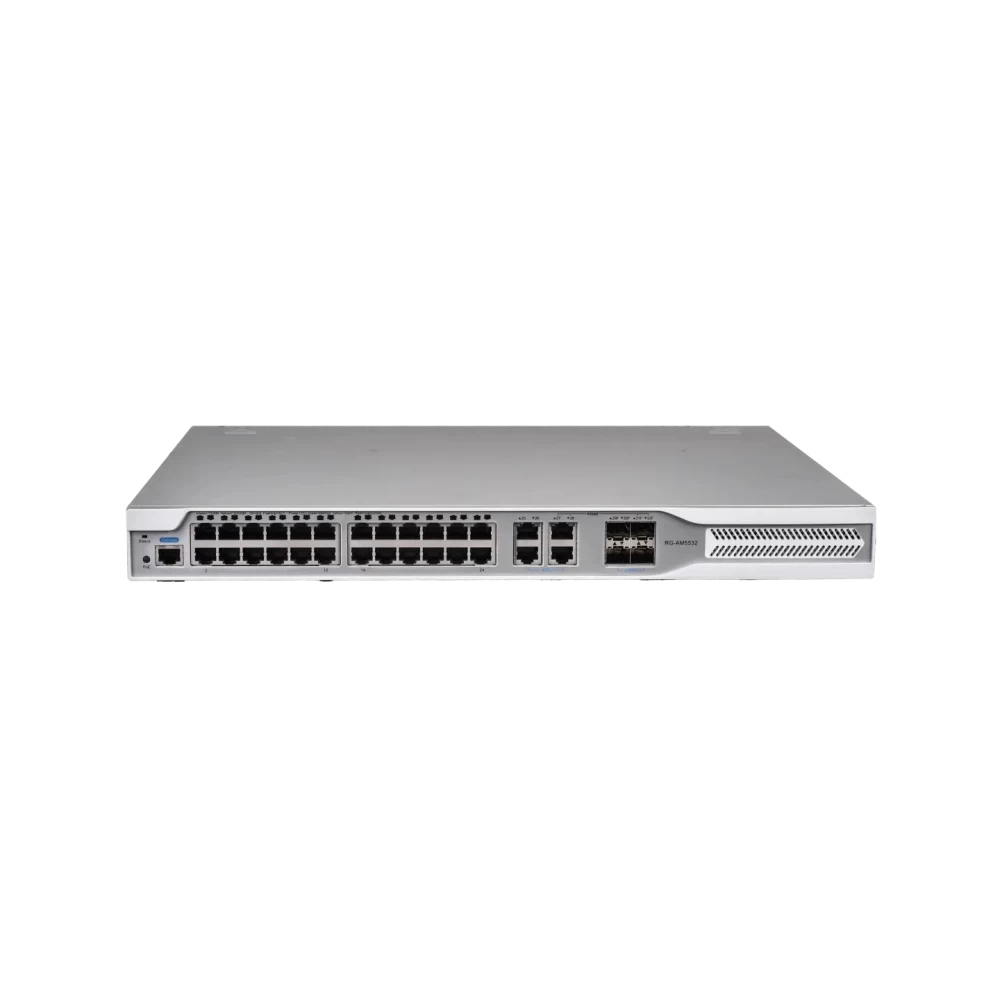

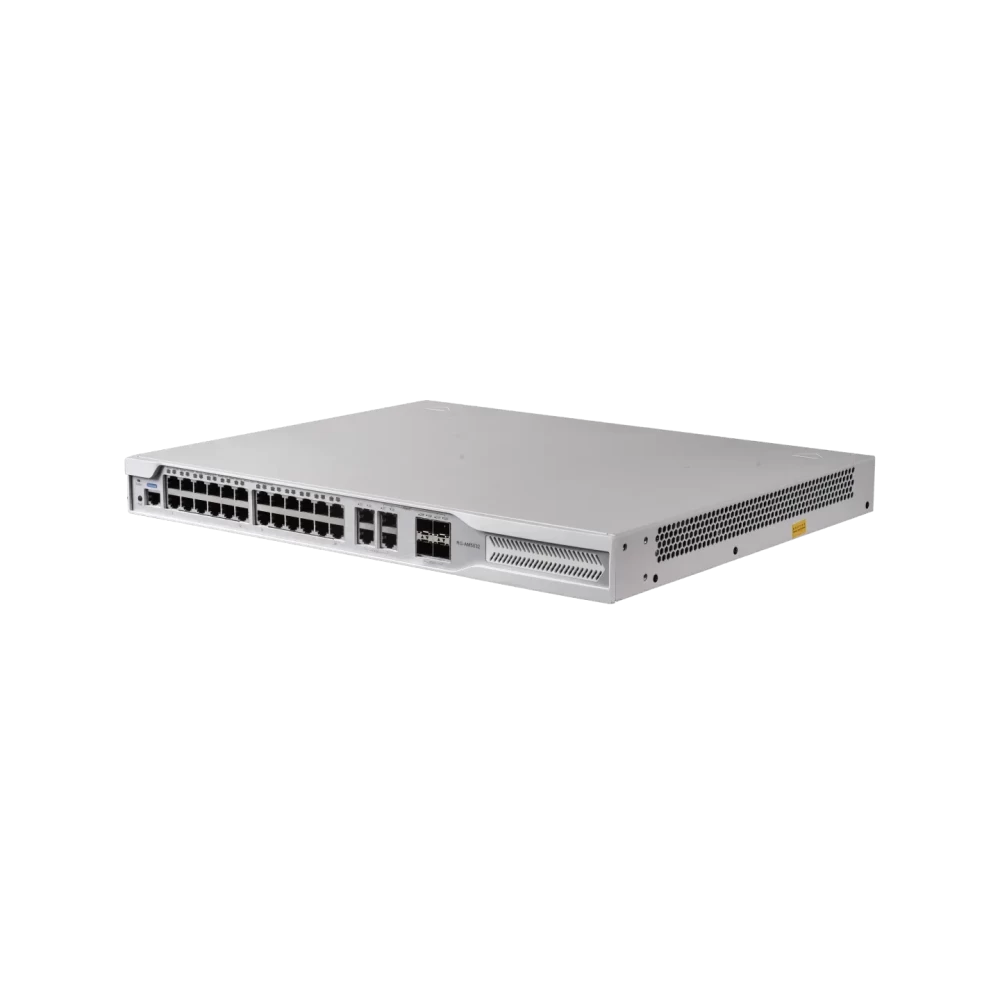

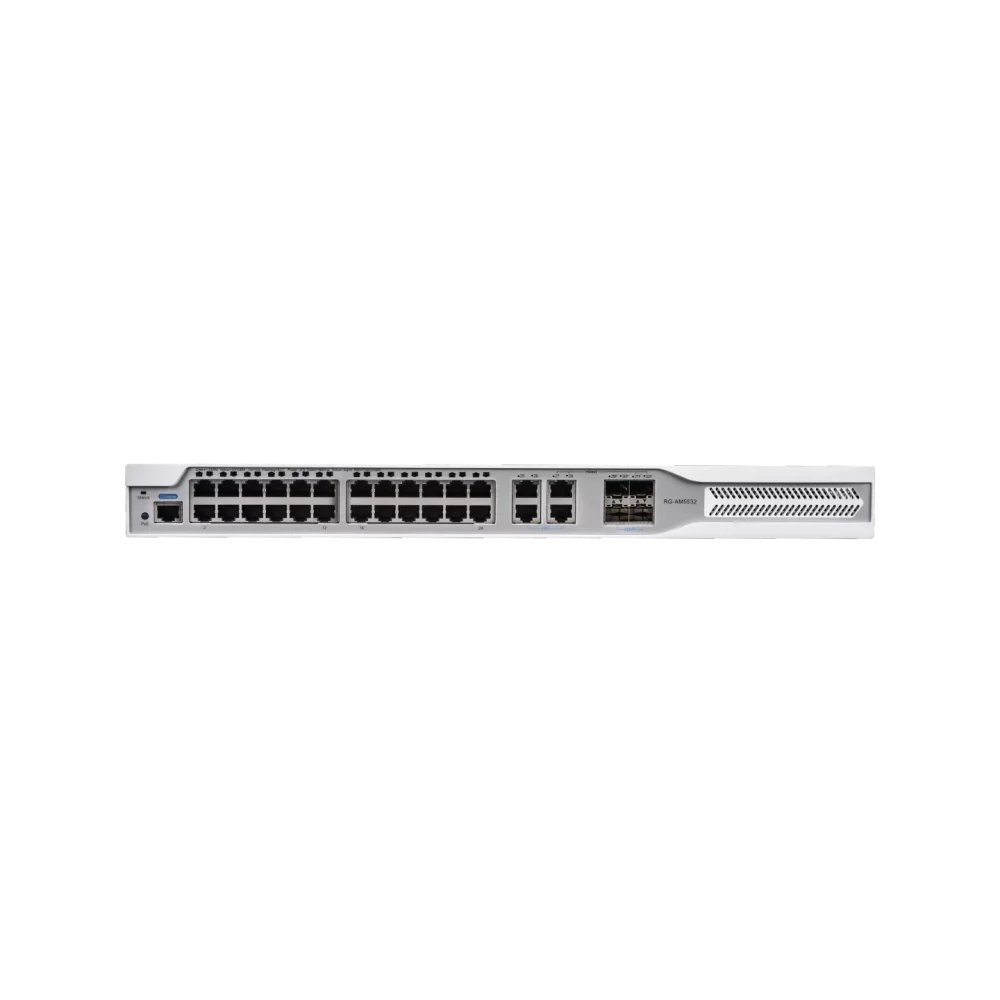

The master AP of the i-Share+ solution APs with 24 downlink 1000 Mbps PoE ports, four uplink 1000 Mbps PoE electrical ports and four uplink 10GE SFP+ ports in auto negotiation mode. The uplink ports support three mutually exclusive modes: two 1000 Mbps electrical ports and two 10GE optical ports (supporting up to two settled APs), four 1000 Mbps electrical ports (supporting up to three settled APs) and four 10GE optical ports (not supporting settled APs). The master AP supports up to 24 i-Share micro APs. Each master AP uses four wireless controller licenses.
RG-MAP852(V3)
A universal Wi-Fi 6 dual-radio i-Share micro AP. The AP supports up to four spatial streams and the maximum access rate of 2.976 Gbps. It complies with IEEE 802.11b/g/n/ax and IEEE 802.11a/n/ac/ax standards. The AP provides one 1000 Mbps uplink port and four 1000 Mbps downlink ports. The AP can be can be mounted on a wall, ceiling, or junction box.
Brand: Ruijie
Model Number: RG-AM5532
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 16/11/2024
Dimensions and Weight | RG-AM5532 |
Dimensions( W x D x H) | Main unit: 360 mm x 440mm x 44mm (14.17 in. x 17.32 in. x1.73 in.) Shipping: 550mm x 470 mm x 255 mm (21.65 in. x 18.50 in. x 10.04 in.) |
Rack height | 1 RU |
Weight | Main unit: 5.8 kg (12.79 lbs, including the package) Shipping: 6.2 kg (13.67 lbs) |
Mounting | Wall/Workbench/Rack-mount |
System Specifications | RG-AM5532 |
Memory | 512 MB |
Flash memory | 512 MB |
Switching capacity | 68 Gbps |
Packet forwarding rate | 101 Mpps |
Port Specifications | RG-AM5532 |
Fixed service port | Uplink: 4 x 1000BASE-T ports 4 x 10GE SFP+ ports Downlink: 24 x 10/100/1000BASE-T ports |
Fixed management port | 1 x RJ45 console port |
Status LED | 1 x system status LED 28 x RJ45 port LEDs 4 x SFP+ port LEDs |
Button | 1 x Power button |
Power Supply and Consumption | RG-AM5532 |
Input power supply | Rated voltage range: 100 V AC to 240 V AC Maximum voltage range: 90 V AC to 264 V AC Frequency: 50/60 Hz Rated current: 3 A |
External power supply | Supported |
Maximum power consumption | 300 W |
Environment and Reliability | RG-AM5532 |
Temperature | Operating temperature: –10°C to +45°C (14°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 220 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Altitude | Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.) Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) |
Humidity | Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
Fan | Dual-fan design |
Safe fan speed | 9000 rpm |
Shock and vibration | GB/T 2423.6 |
Environmental standard | Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | 400,000 hours (44 years) at the operating temperature of 25°C (77°F) |
Regulatory Compliance | RG-AM5532 |
Regulatory compliance | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, ETSI EN 300 386, IEC 62368-1, and EN 62368-1 |
*For more country-specific regulatory information and approvals, contact your local sales agency.
Applicable Software Version | RG-AM5532 |
Applicable software version | RGOS 11.9(6)W2P1 or later |
WLAN | RG-AM5532 |
Maximum number of associated STAs | 2,048 |
STA management | SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Intelligent load balancing based on the STA quantity or traffic |
STA limiting | SSID-based STA limiting Radio-based STA limiting |
Bandwidth limiting | STA/SSID/AP-based rate limiting |
Wireless roaming | Layer 2 and Layer 3 roaming |
Security and Authentication | RG-AM5532 |
Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS) PSK and web authentication QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES) |
Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
WIDS | Wireless Intrusion Detection System(WIDS) User isolation |
ACL | Dynamic ACL assignment based on 802.1X authentication (used with the AC) IPv6 ACL Time range-based ACL ACL based on a Layer 2 interface ACL based on a Layer 3 interface |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
Routing and Switching | RG-AM5532 |
MAC | MAC address learning and aging Static and dynamic MAC addresses Source MAC address filtering Limitation on the number of MAC addresses learned on an interface |
Ethernet | Jumbo frame length: 1518 Full-duplex and half-duplex modes of interfaces IEEE802.1p and IEEE802.1Q Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
VLAN | Interface-based VLAN assignment Maximum number of SVIs: 4,094 Maximum number of VLANs: 4,094 VLAN ID range: 1 to 4,094 |
ARP | ARP entry aging and proxy ARP Maximum number of ARP entries: 1,024 ARP check |
IPv4 services | Static and dynamic IPv4 addresses DHCP server and DHCP client DNS client NTP server and NTP client |
IPv6 services | Static and dynamic IPv6 addresses Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping DNSv6 client NTPv6 server and NTPv6 client |
IP routing | IPv4/IPv6 static routing Maximum number of static IPv4 routes: 1,024 Maximum number of static IPv6 routes: 1,000 Static black hole routing |
Multicast | Multicast-to-unicast conversion IGMP Snooping |
Network Management and Monitoring | RG-AM5532 |
Network management | SNMPv1/v2c/v3 Fault detection and alarm |
Network management platform | Web management (Eweb) |
User access management | Console, Telnet, SSH, FTP client, FTP server, and TFTP client |
