SKU: RG-AM5528-SF
Category: RUIJIE NETWORK SWITCH
Availability: Unlimited
Model
Description

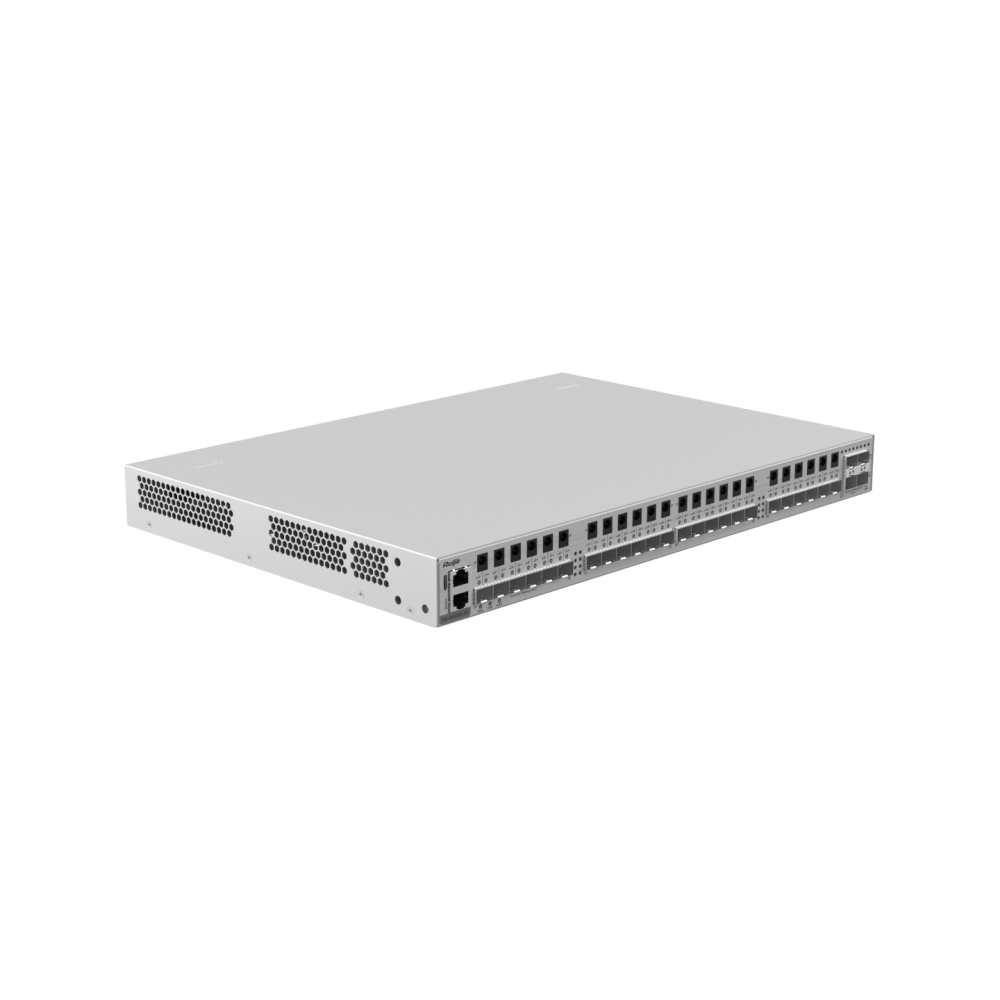

RG-AM5528-SF
All-optical i-Share+ master AP for Ruijie SOE Solution
24 x downlink 1G/2.5G SFP ports and 24 x PoE/PoE+ power supply ports. Four power supply ports support PoE/PoE/PoE++ power supply.
4 x uplink 10G SFP+ ports, low noise, and power supply included
In i-Share mode, each master AP occupies eight wireless controller licenses.
RG-MAP852-SF-S
Universal IEEE 802.11ax-compliant dual-radio wall plate micro AP for Ruijie SOE Solution
1 x SFP port
1 x 10/100/1000Base-T Ethernet port with auto-negotiation
2.4 GHz and 5 GHz frequency bands
A wireless data rate of up to 1.775 Gbps per device
BOB structure
One 1G optical module of the master AP
RG-MAP852-SF-M
Universal IEEE 802.11ax-compliant dual-radio wall plate micro AP for Ruijie SOE Solution
1 x 2.5G SFP port
4 x10/100/1000Base-T Ethernet ports with auto-negotiation
2.4 GHz and 5 GHz frequency bands
A wireless data rate of up to 2.976 Gbps per device
Support for Bluetooth
Wall-mounted, ceiling-mounted, and junction box-mounted
One 2.5G optical module for the micro AP and one 2.5G optical module for the master AP are delivered with this AP.
RG-HybridP
The hybrid pigtails for Ruijie SOE Solution incorporates optical fibers and copper wires. One end is the LC interface and DC connector.
RG-HybridBox
The hybrid box for Ruijie SOE Solution supports input of 24 hybrid pigtails and output of 24 hybrid cables, which is used to connect the hybrid pigtails to the hybrid cables.
RG-OEHC-SM-1B6A2-2x0.5-I-305
Indoor single-core 2 × 0.5 mm² hybrid cable, single roll, with a length of 305 m
RG-OEHC-SM-1B6A2-2x1.0-I-305
Indoor single-core 2 × 1.0 mm² hybrid cable, single roll, with a length of 305 m
RG-OEHC-SM-2B6A2-2x1.5-O-1000
Outdoor dual-core 2 x 1.5 mm² hybrid cable, single roll, with a length of 1000 m
Brand: Ruijie
Model Number: RG-AM5528-SF
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 999
Listed date: 16/11/2024
Dimensions and Weight | RG-AM5528-SF |
Dimensions (W x D x H) | Main unit: 442 mm x 315 mm x 43.6 mm (17.40 in. x 12.40 in. x 1.72 in.) Shipping: 538 mm x 438 mm x 173 mm (21.18 in. x 17.24 in. x 6.81 in.) |
Rack height | 1 RU |
Weight | Main unit: 4.6 kg (10.14 lbs) Shipping: 6.38 kg (14.06 lbs) |
Mounting | Rack-mount |
System Specifications | RG-AM5528-SF |
Memory | 1 GB DDR4 |
Flash memory | 4 GB |
Switching capacity | 880 Gbps/7.92 Tbps |
Packet forwarding rate | 426 Mpps/600 Mpps |
Port Specifications | RG-AM5528-SF |

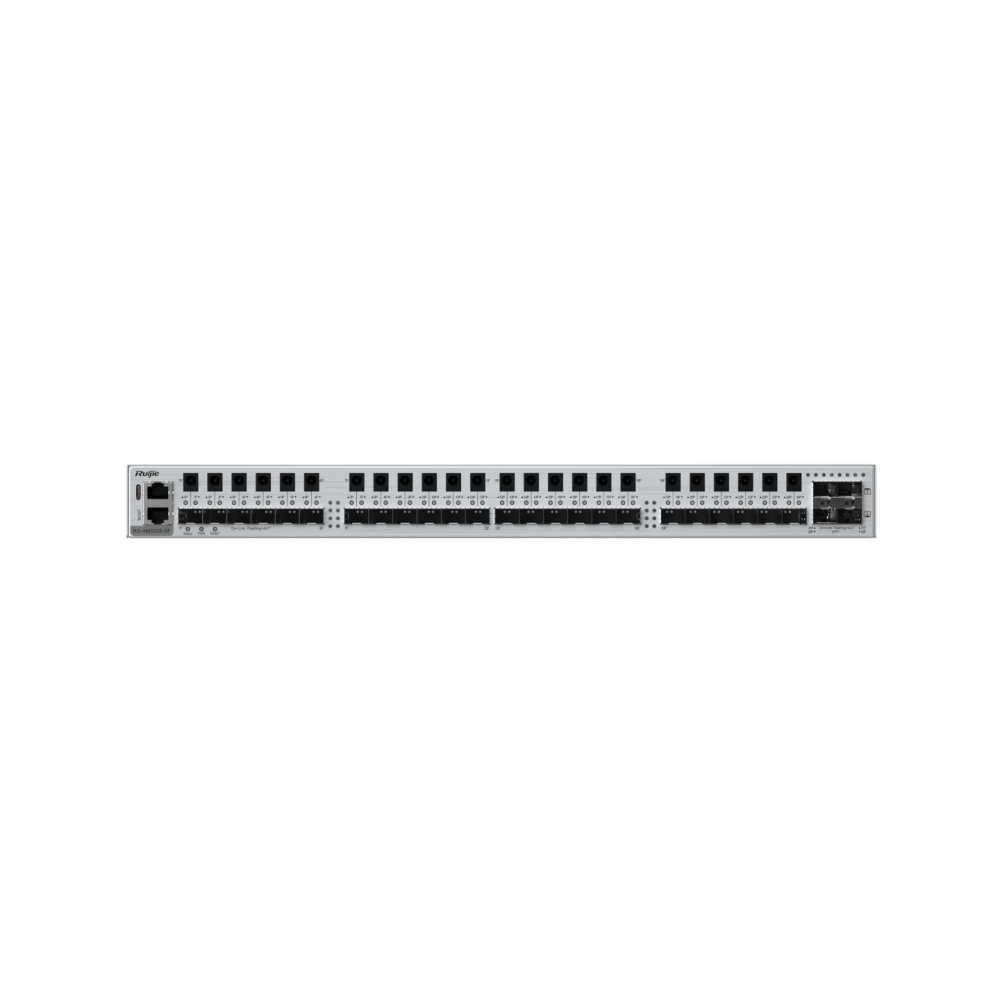

Fixed service port | Uplink: 4 x 10GE SFP+ ports that can only switch between 10GE SFP+ mode and 1GE SFP mode simultaneously. Separate mode switching is not supported. Downlink: 24 x 1GE/2.5GE SFP ports and 24 x PoE-out ports. Ports 1 to 20 support PoE/PoE+, and each port supports up to a 30 W PoE power supply. Ports 21 to 24 support PoE/PoE+/PoE++, and each port supports up to 90 W PoE power supply. The maximum PoE output power is 480 W. |
Fixed management port | 1 x RJ45 console port 1 x 10/100/1000BASE-T MGMT port |
Status LED | 24 x PoE LEDs 24 x 1000/2.5GBASE-X SFP port LEDs 4 x SFP+ port LEDs 1 x system status LED 1 x power LED 1 x MGMT port LED |
Power Supply and Consumption | RG-AM5528-SF |

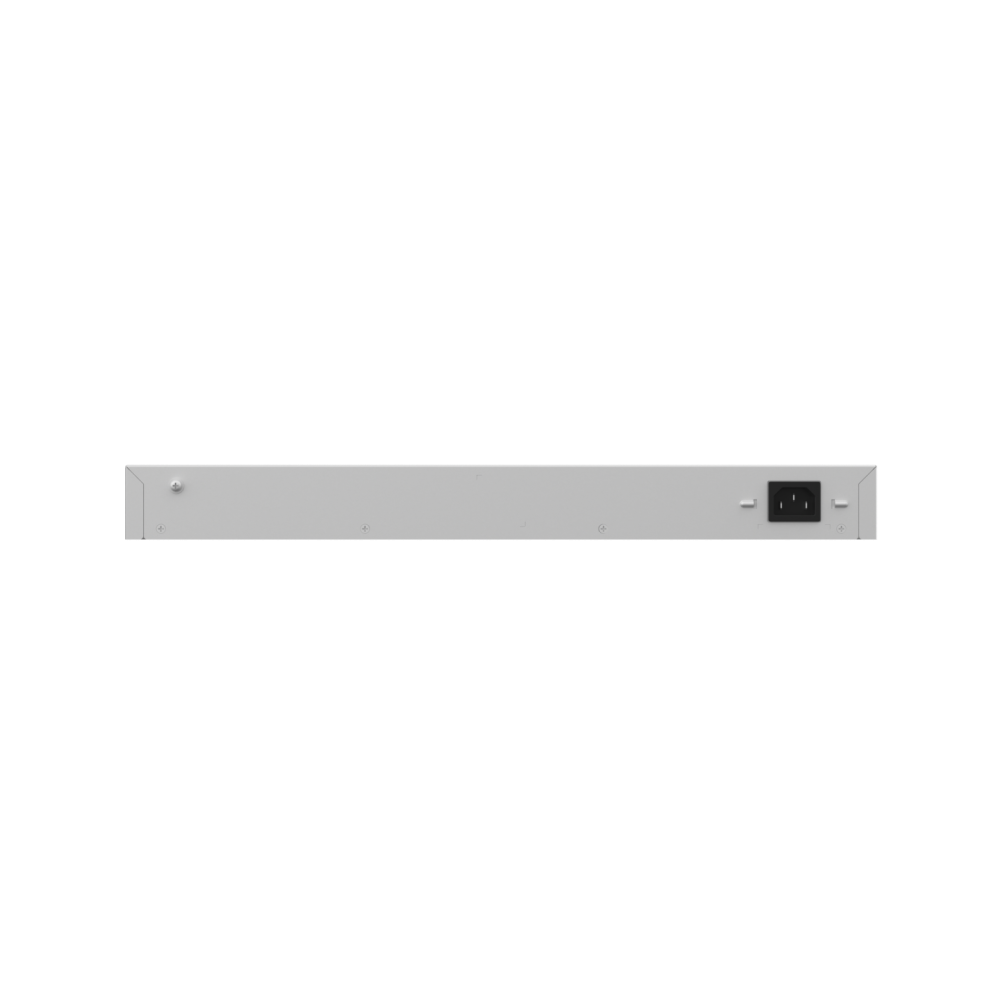

Input power supply | One 550 W built-in power module (AC input and DC output) ● Input voltage: 176 V AC to 240 V AC Frequency: 50 Hz to 60 Hz Rated input current: 4 A ● Output voltage: 12 V DC for the master AP and 54 V DC for the external unit |
Maximum power consumption | Maximum power consumption: 530 W Without load: < 42 W With full load: < 530 W |
Environment and Reliability | RG-AM5528-SF |
Temperature | Operating temperature: 0ºC to 45ºC (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 1,800–5,000 m (5,905.51–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Altitude | Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
Humidity | Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) |
Surge protection | AC power connector ● Differential mode: ± 6 kV ● Common mode: ± 6 kV Hybrid cable connector ● Differential mode: ± 2 kV ● Common mode: ± 6 kV |

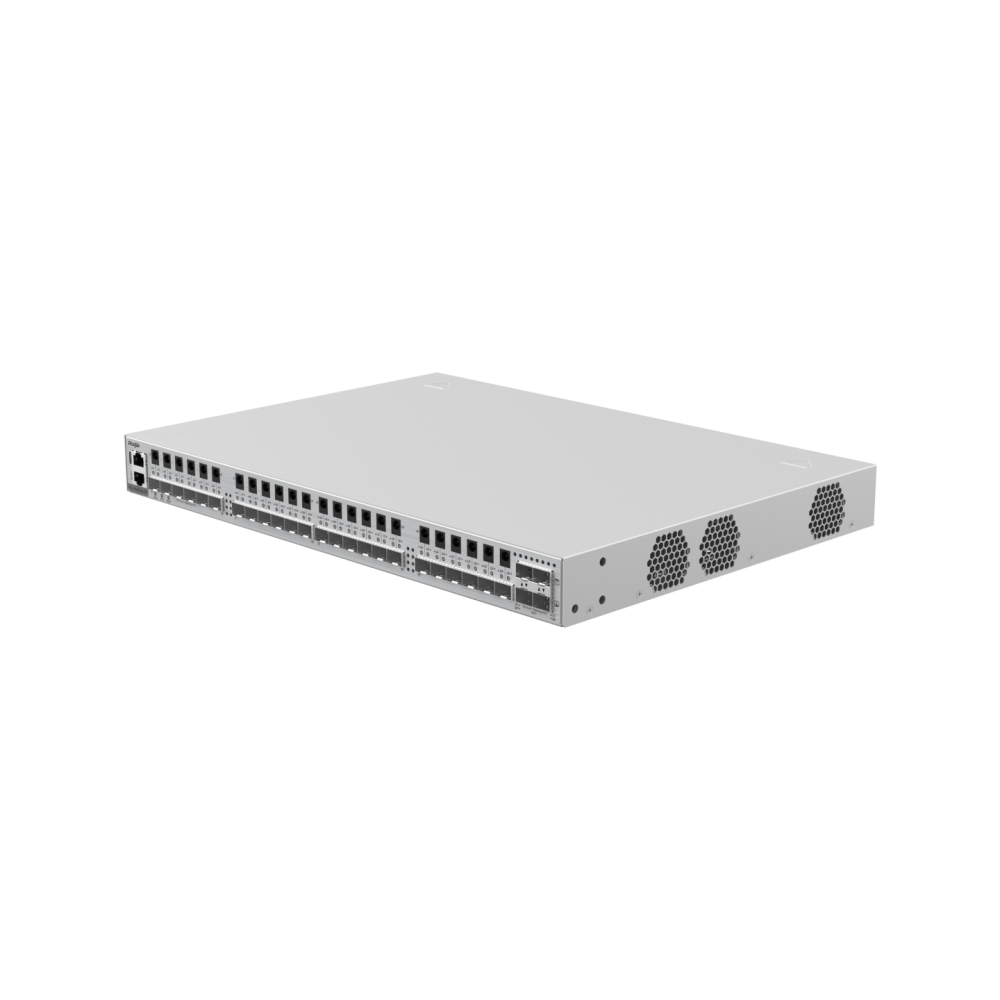

Fan | Fan speed adjustment Fan fault alarm |
Shock and vibration | GB/T 2423 |
Environmental standard | Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
Mean Time Between Failure (MTBF) | 69.23 years at the operating temperature of 25°C (77°F) |
Software Specifications | RG-AM5528-SF |
Basic Function | |
Applicable software version | RGOS12.5(4)B0404P1 or later |
Security and Authentication | |
ACL | IPv6 ACL Time range-based ACL Egress ACL based on a Layer 2 physical interface or aggregate interface Ingress ACL based on a Layer 2 physical interface or aggregate interface Egress ACL based on a Layer 3 interface Ingress ACL based on a Layer 3 interface |
CPP | CPU Protect Policy (CPP) |
NFPP | Network Foundation Protection Policy (NFPP) |
Routing and Switching | |
MAC | MAC address learning and aging Static and dynamic MAC addresses Source MAC address filtering Limitation on the number of MAC addresses learned on an interface |
Ethernet | Jumbo frame length: 1,518 bytes IEEE802.1p and IEEE802.1Q Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
VLAN | Interface-based VLAN assignment Maximum number of SVIs: 1,000 Maximum number of VLANs: 4,094 VLAN ID range: 1 to 4,094 |
ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP Maximum number of ARP entries: 24,000 ARP check |
IPv4 services | Static and dynamic IPv4 addresses DHCP server and DHCP client DHCP snooping DNS client and DNS proxy NTP server, NTP client, and SNTP client |
IPv6 services | Static and dynamic IPv6 addresses. Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping DNSv6 client NTPv6 server and NTPv6 client |
IP routing | IPv4/IPv6 static routing Maximum number of static IPv4 routes: 1,000 Maximum number of static IPv6 routes: 1,000 Static black hole routing |
Multicast | Multicast-to-unicast conversion IGMP snooping |
Network Management and Monitoring | |
Network management | SNMPv1/v2c/v3 Fault detection and alarm |
Network management platform | Web management (Eweb) |
User access management | Console, Telnet, SSH, TFTP client, TFTP server, FTP server ,and FTP client |
Regulatory Compliance | RG-AM5528-SF |
Regulatory compliance | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, ETSI EN 300 386, IEC 62368-1, and EN 62368-1 |
